Take your RAM 2500 to new heights with this 5.5 Inch lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires. Quick Specs:
Front Lift Height 5.5 Inch
Rear Lift Height 4.5 Inch
Front Lift Method Radius Arms
Rear Lift Method Coil Springs
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 4.5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 17 x 9
Back Spacing 2 5.75 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 20 x 9
Back Spacing 3 5.75 Inch
Max Tire Size 3 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

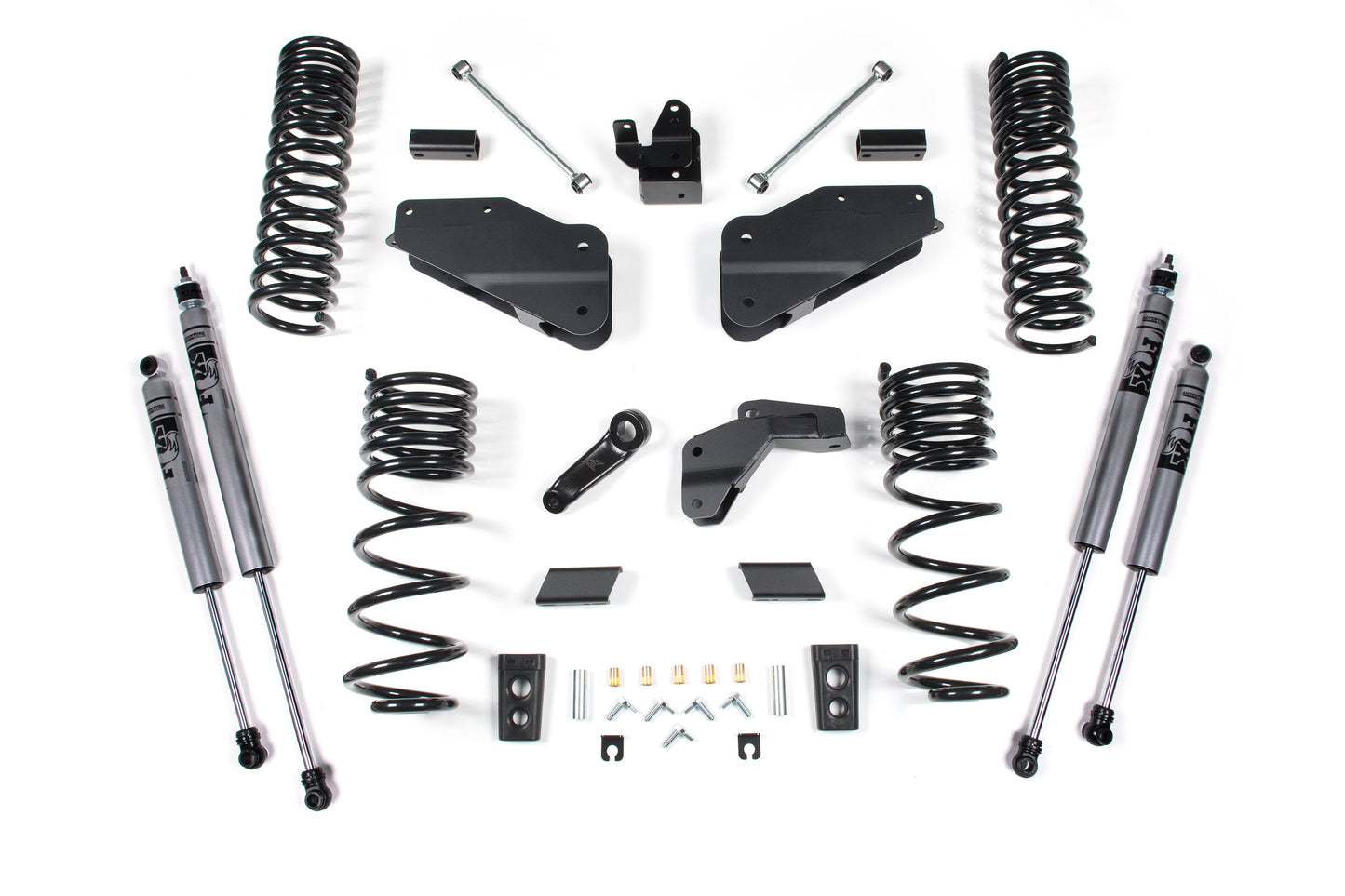

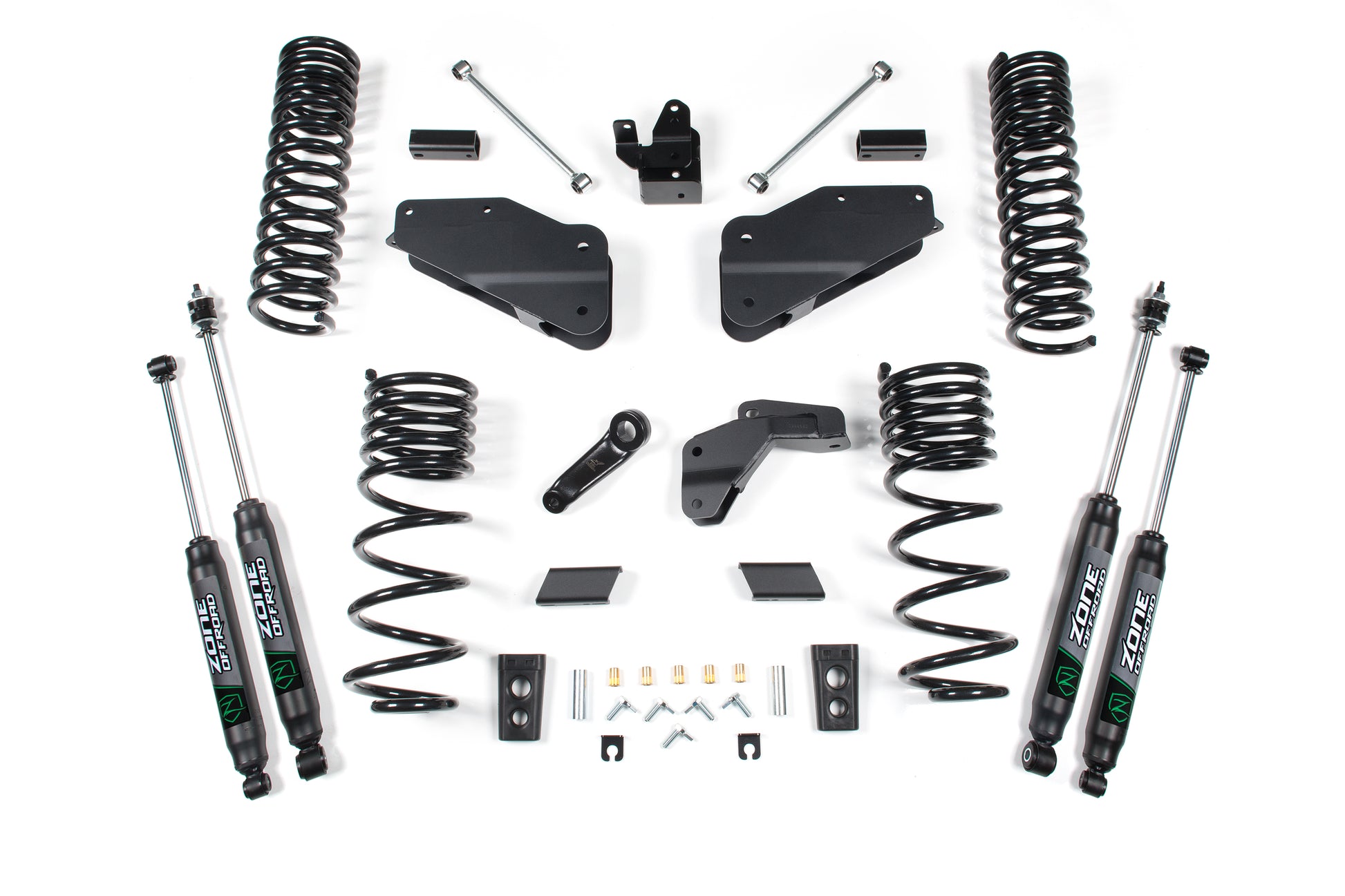

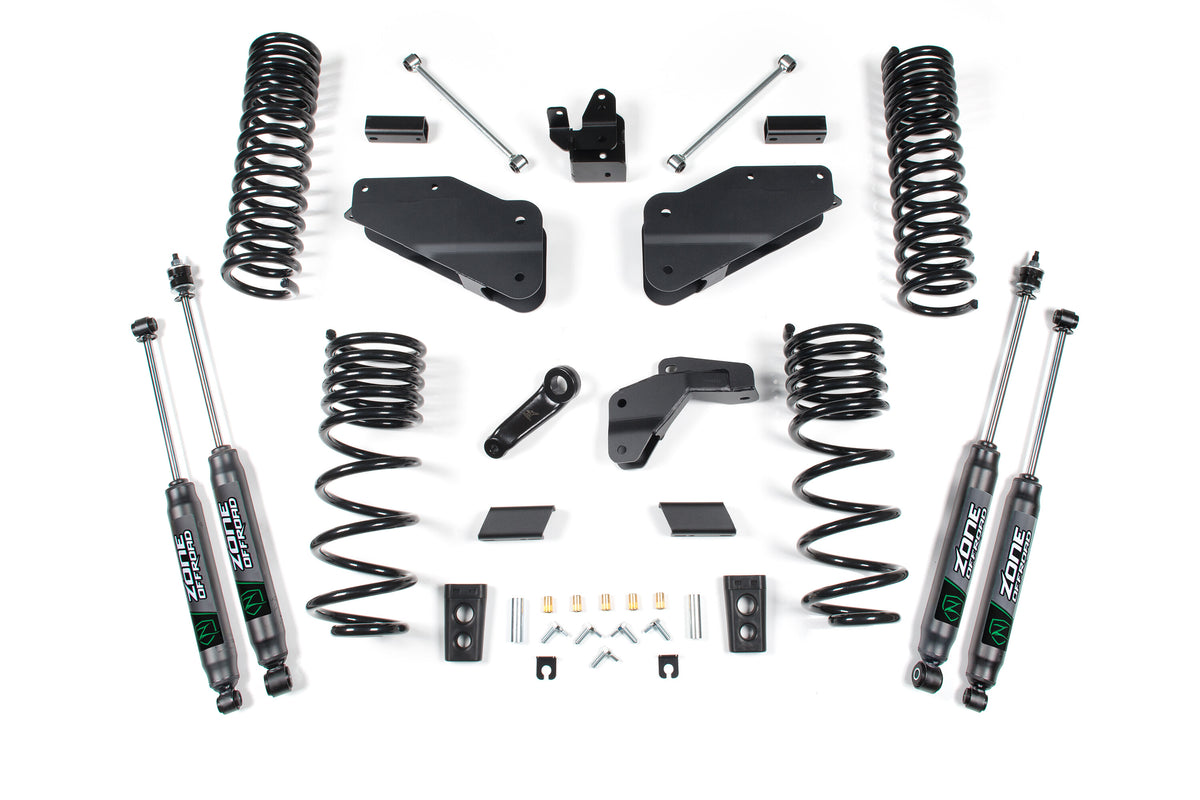

In The Box:
All Necessary Mounting / Installation Hardware
Bump Stops
Coil Springs
Dropped Pitman Arm
Radius Arm Drop Brackets
Sway Bar Relocation Brackets
Track Bar Relocation Bracket
Features:
Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and levelign the stance
Radius arm drop brackets to correct caster and improve suspension geometry
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry
Kit Components:
ZON7742 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595620
ZON7756 Nitro- 27.9 x 16.6 x 2-3/8 Special/EB1 2 711745595705
