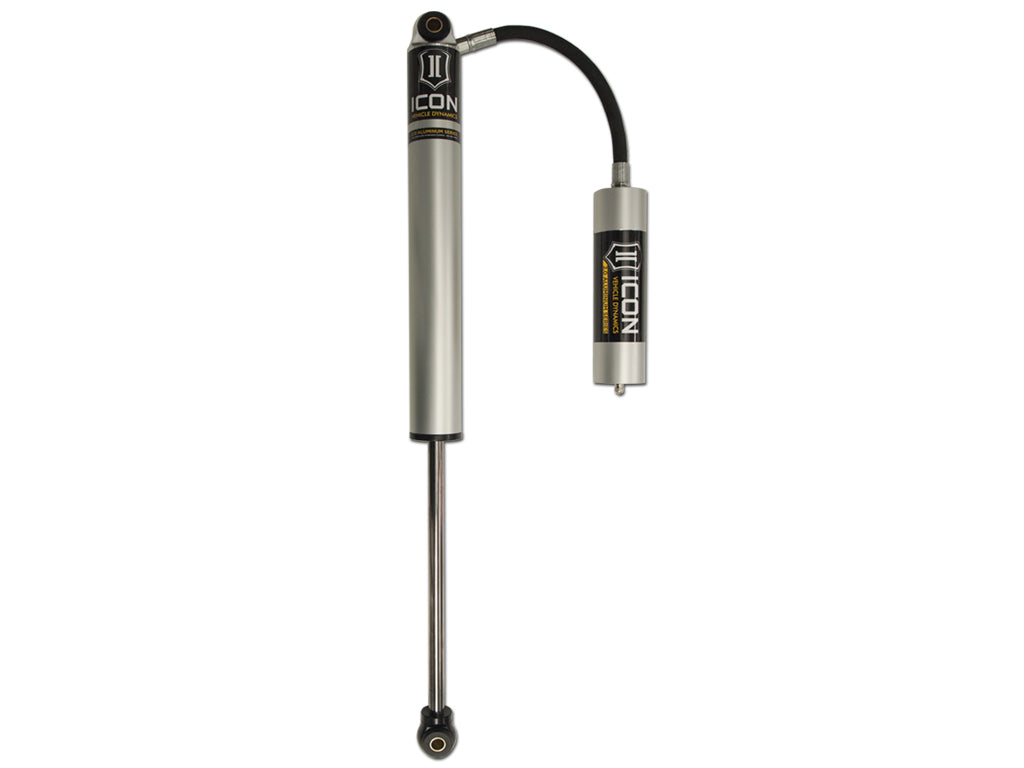

12-15 Hilux Rear 2.0 VS RR ICON Vehicle Dynamics

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.

Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits:

• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrile rubber top out bumper for noise free operation
• Nitrogen charged monotube design with remote reservoir
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Application-specific reservoir mounting hardware
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• 100 Percent revalveable
• 5/8 Inch chrome plated hardened steel shaft resists corrosion and pits
• 100 Percent rebuildable

Details

• Finish: Anodized
• Adjustable: No
• Body Diameter: 2 Inch
• Boot Included: No
• Bushing Color: Black
• Bushing Included: Yes
• Bushing Material: Polyurethane
• Coil Over Springs Included: No
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Remote Reservoir: Yes
• Service Parts: 254101G - 1/2 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
• Shock Absorber Body End Measuring Point: Center Of Eylet
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Upper Mount Type: Eyelet
• Add On Part: 614600 - 2.0 Icon Billet Resi Clamp Kit, 252012 - -4 To -10 Hose Shield Kit, 614700 - 2.0 Shock Boot Kit (Each)
