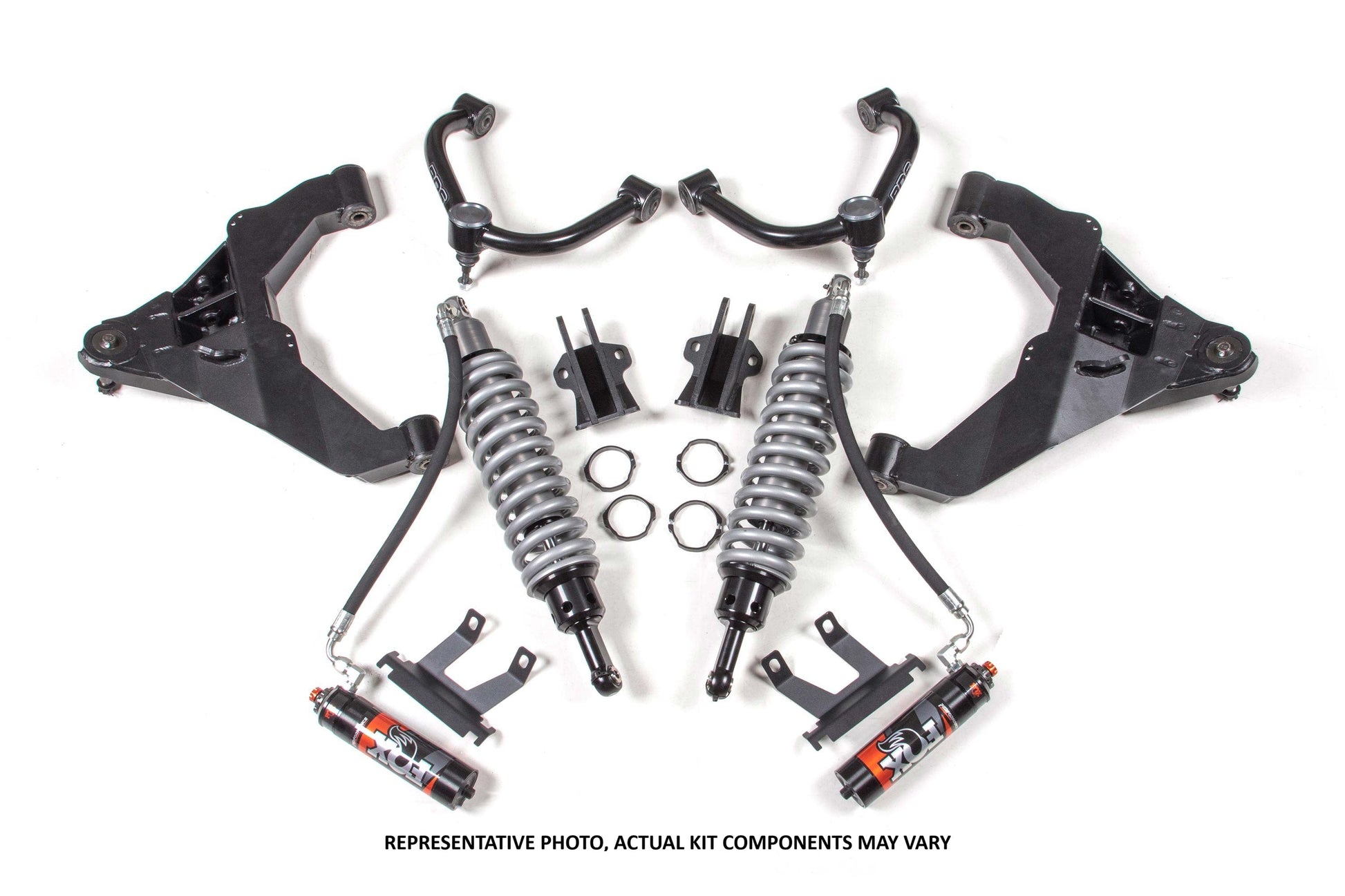

11-19 Chevrolet Silverado 2500HD/3500HD - GMC Sierra 2500HD/3500HD 4WD 6.5 Inch Coilover Upgrade - Fox 2.5 Performance Elite Series C/O BDS Suspension

BDS offers complete coilover conversion upgrade kits for your Chevy Silverado and GMC Sierra 2500/3500 HD, making it effortless to convert your standard lifted suspension into coilovers. These kits are equipped with heavy-duty brackets and FOX 2.5 Coilovers to withstand any rugged use and abuse you subject them to, taking your vehicle's performance to new heights.

These upgrade kits are compatible with existing BDS 6-inch lift kits, allowing for seamless integration.

BDS provides a bolt-on bracket for mounting the coilovers to the frame in the shock mount location. To reinforce the upper mount, a weld-in support gusset is utilized.

Aside from replacing the factory torsion bars, the upper and lower control arms are also upgraded for enhanced strength and travel to accommodate the new coilovers. The tubular performance upper control arms, specially designed by BDS for this system, work seamlessly with the 2.5 coilovers.

The new lower control arms, on the other hand, are built from high-strength steel, fully boxed, and internally gusseted to complement the uppers.

FOX 2.5 Performance Elite Coil-Overs:

FOX Performance Elite 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment:

FOX Performance Elite 2.5 coil-overs come standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain

HD Control Arms:

Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features and Benefits:

• FOX 2.5 Performance Elite Coilovers w/ Remote DSC Adjustment
• Heavy duty tubular UCAs to improve travel
• Fully Boxed and Gusseted LCAs
• Next Level Performance On and Offroad
• Compatible with existing 4.5 inch and 6.5 inch BDS Lifts
• Easy Installation (Only minor welding for gusset)

Details:

• Finish: Powdercoat
• Color: Black
• Front Lift Height: 6.5 Inch
• Fuel Type: Diesel
• Lift Type: Coilover
• Material: Aluminum
• Engine Years: 2011-2019
• Engine Manufacturer: Duramax
• Shocks Included: Yes
• Series: Performance Elite Series
• Shock Style: FOX 2.5 Performance Elite Shocks
