This lift kit is built around heavy-duty replacement upper control arms that dwarf the factory components and provide a significantly improved range of motion. These upgraded UCA's are made from fully welded, 1/8 Inch steel plate and CNC-machined ball joint and bushing mounts.
The high-quality MOOG ball joints can handle heavy-duty use, and they work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles.
Strut spacers provide a full 3.5 Inch of lift and install easily on the factory struts without the need of a strut compressor. A rear 3 Inch block and U-bolt system nets 2 Inch of rear lift and provides an athletic level vehicle stance Quick Specs:
Front Lift Height 3.5 Inch
Front Lift Method Upper Control Arms
Rear Lift Method Block Kit
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 5 Inch
Max Tire Size 285 / 70
Finish Powdercoat

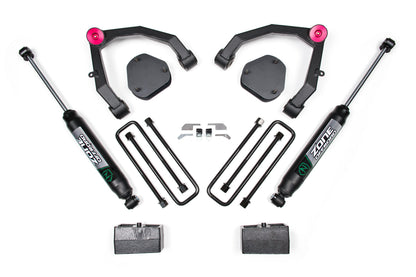

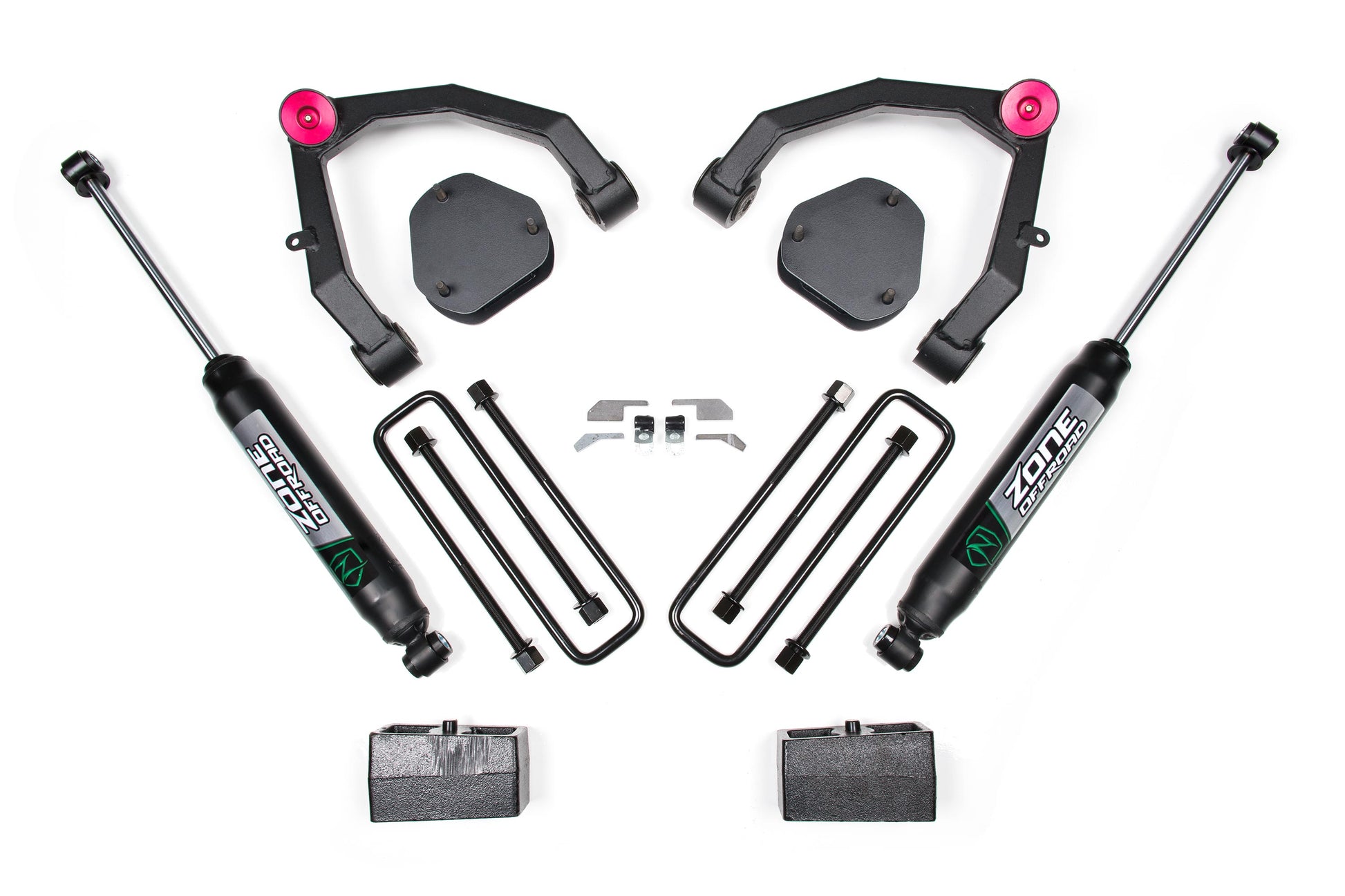

In The Box:
Strut Spacer - Front
Lift Blocks - Rear
Upper Control Arms
Features:
Fully welded, heavy duty upper control arms that dwarf the factory arms.
CNC-machined UCA bushing and ball joint cups.
OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
Improved UCA range of motion compared to stock arms
UCAs utilize replaceable ball joints
Kit Components:
ZON7719 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595613
ZONC1309 2007-2013 Chevy/GMC 3 Inch Rear Block Kit 1 711745596627
