Raise it up with this 4 Inch Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear.
This kit clears your 4WD 2005 - 2015 Toyota Tacoma for tires up to 33 Inches with some trimming. Quick Specs:
Front Lift Height 4 Inch
Rear Lift Height 3 Inch
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 4.5 Inch
Max Tire Size 33 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 4.5 Inch
Max Tire Size 2 33 x 12.5
Wheel Size 3 22 x 9
Back Spacing 3 4.5 Inch
Max Tire Size 33 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels No
Welding Required No

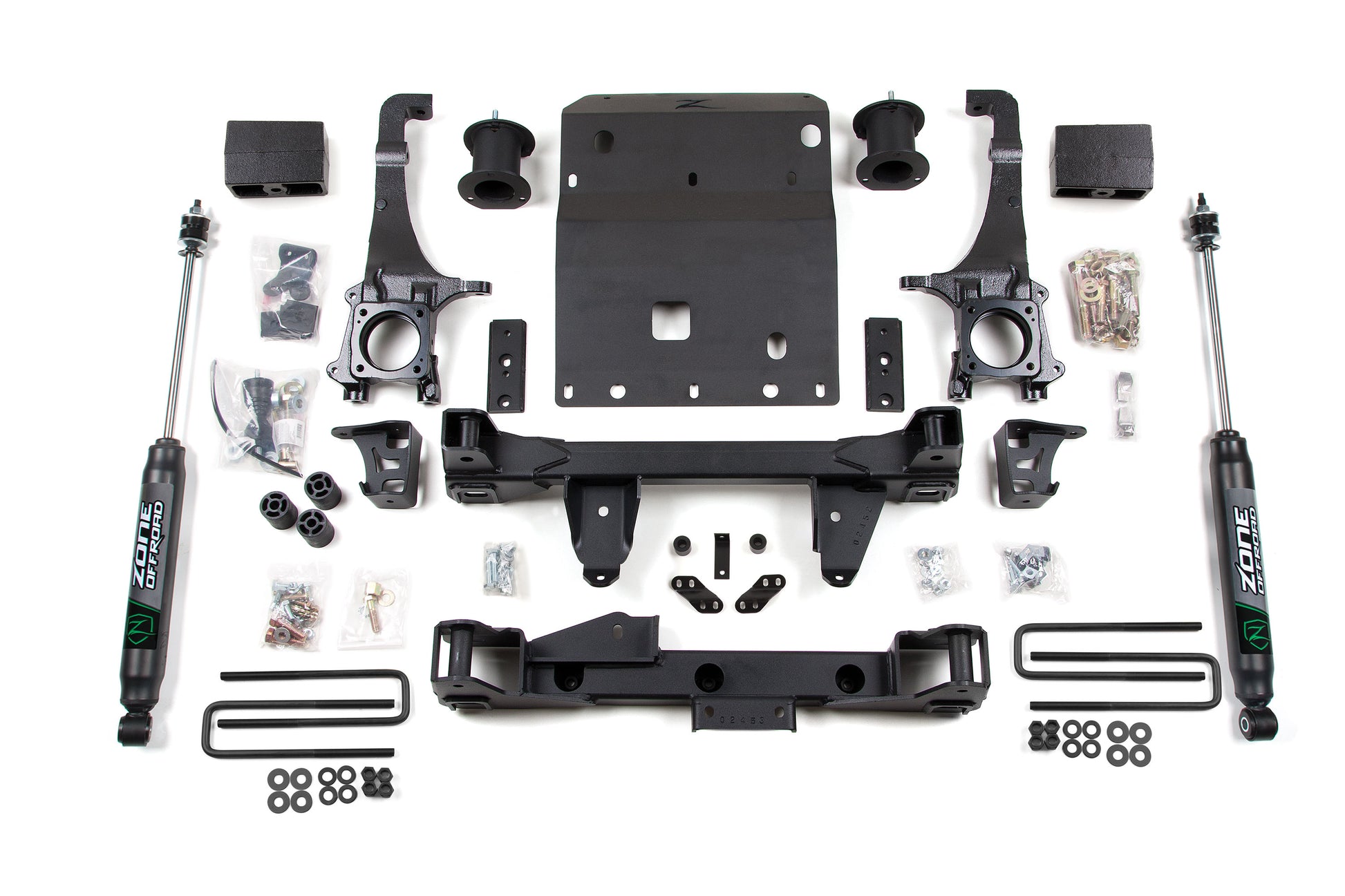

In The Box:
All Necessary Mounting / Installation Hardware
Crossmembers
Rear Lift Block & U-Bolt Kit
Steering Knuckles
Strut Spacers
Features:
High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Full width belly skid plate offers improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Bump stop, sway bar and brake line relocation brackets to correct operating angles
Kit Components:
ZON7954 Nitro- 26.50 x 15.60 x 2-3/8 S1/EB1 2 711745596092
ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789
ZONT2401 2005-2015 Toyota Tacoma Box Kit (2of3) 1 711745601796
ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888
ZONT2602 2005-2015 Toyota Tacoma Box Kit (3of3) 1 711745601901
