03-06 Wrangler TJ LWB LCG Long Arm & Bracket Upgrade Kit Lower 3-5 Inch Lift TeraFlex

Upgrade your lower short control arm suspension to an adjustable Enduro LCG Long Arm Suspension System with the TeraFlex LJ LWB: Lower LCG Long Arm & Bracket Upgrade Kit. Enduro LCG also Requires adjustable Rear Upper Short Control Arm Pair (TJ: # 1614800). Provides complete alignment adjustability and dependability for maximum performance on LJ Wrangler Unlimited models with 3-5 Inch Lifts.

CAD-engineered TeraFlex TJ: (Pro) LCG (4-Link) Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss (Not Included) are designed for maximum strength. The 1/4 Inch-thick steel brackets are CNC laser cut and precision bent for accurate fitment.

Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Enduro

LCG and/or Pro LCG Long Arm Suspension Systems.
By streamlining the frame-end mounting points, we were able to incorporate both front and rear mounts in the Lower LCG Long Arm Frame Brackets thus simplifying installation while maintaining a factory appearance.

Add our adjustable Rear Upper Short Control Arm Pair (TJ: # 1614800) for a complete Enduro LCG Long Arm Suspension System.

Or combine this kit with the Front Upper Pro LCG Long Arm & Bracket Upgrade Kit (TJ: # 1443470) and triangulated Rear Upper Pro LCG 4-Link Long Arm & Bracket Upgrade Kit (TJ SWB: # 1444870) (LJ LWB: # 1444880) to step up to our full Pro LCG Long Arm Suspension System.

Can be added to an existing suspension lift.

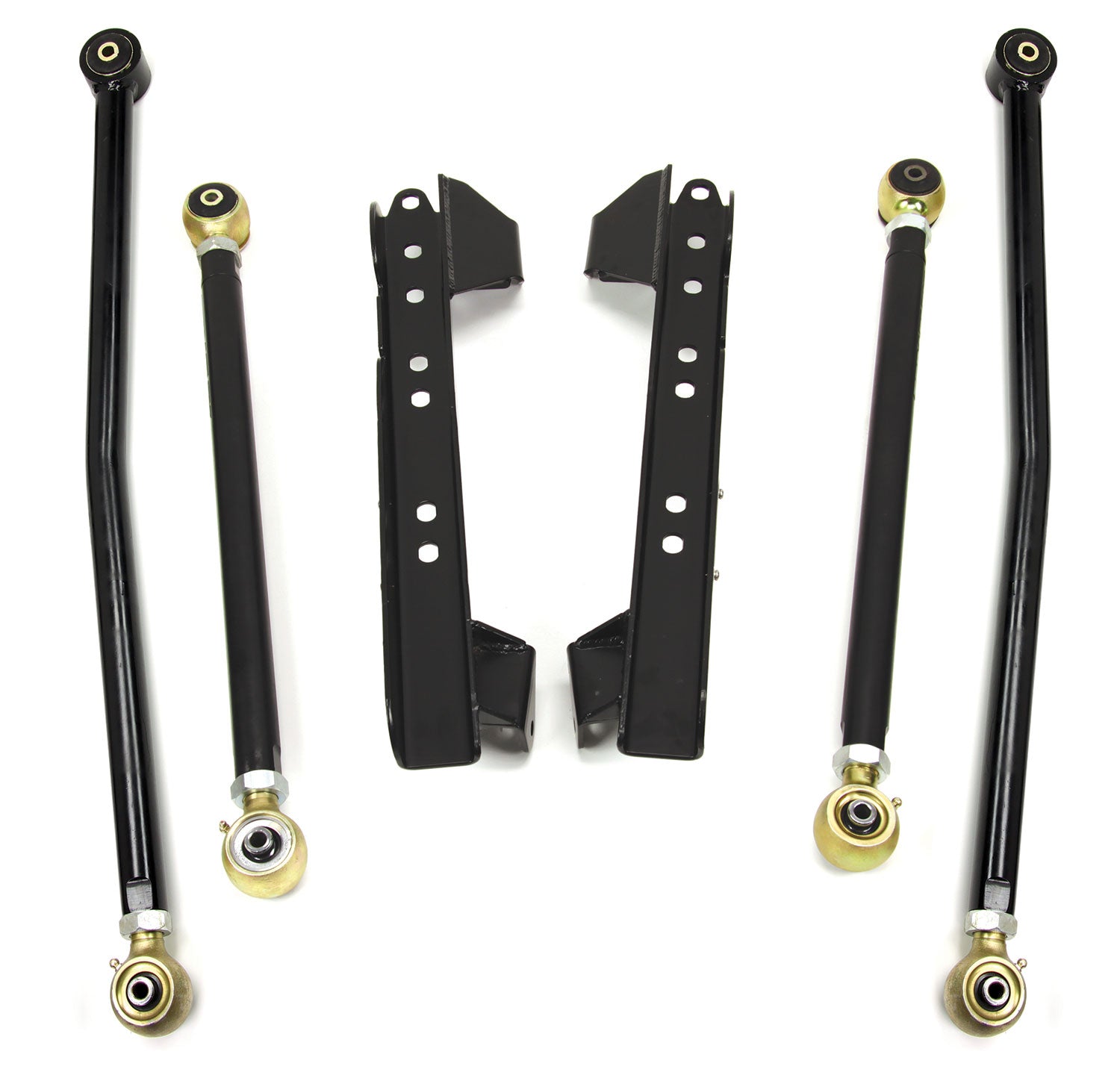

Includes:

• LCG Long Arm Pair - Lower (Front or SWB Rear) (# 1447702):
• Arm - Lower (Front or Rear / Left or Right) (# 1978226) x 2
• LCG Long Arm Pair - Rear Lower (# 1447704):
• Arm - Rear Lower Left (# 1644781)
• Arm - Rear Lower Right (# 1644782)
• LCG Long Arm Frame Bracket Kit - Lower (# 1447701):
• Bracket - Lower Left (Front/Rear)
• Bracket - Lower Right (Front/Rear)
• All necessary hardware

Fitment Vehicle(s):

• LJ Wrangler Unlimited (long wheelbase)

Specs:

• Lift Height: 3-5 Inch

Control Arm Specs:

• TJ: LCG Long Arm Pair - Lower (Front or SWB Rear) (# 1447702):
• Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
• Factory Length: 15-3/4 Inch
• Min. Length: 31-9/16 Inch
• Max. Length: 36-3/16 Inch
• Bolt - Both: 9/16 Inch (14mm)
• Joint - Axle: 4116260
• Joint - Frame: 4520011
• LJ LWB: LCG Long Arm Pair - Rear Lower (# 1447704):
• Tube Diameter & Wall: 1.75 Inch x 0.25 Inch
• Factory Length: 15-3/4 Inch
• Min. Length: 41-11/16 Inch
• Max. Length: 44-1/16 Inch
• Bolt - Both: 9/16 Inch (14mm)
• Joint - Axle: 4116260
• Joint - Frame: 4520011
