00-04 FSD Front 4-8 Inch Box Kit ICON Vehicle Dynamics

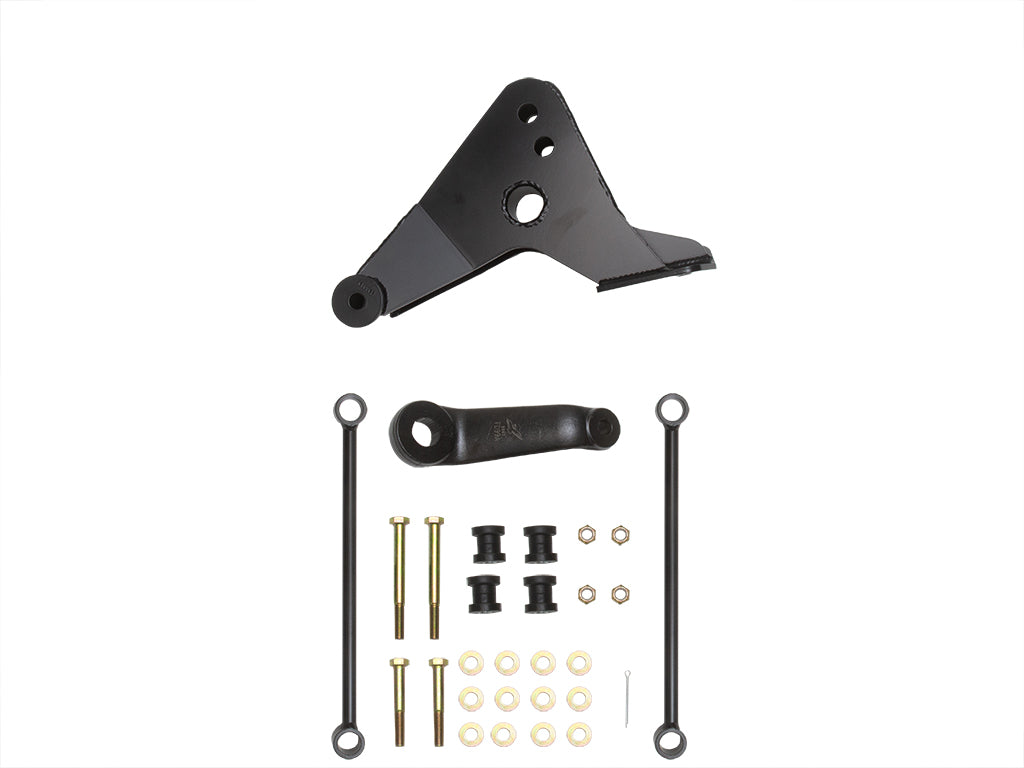

The ICON Vehicle Dynamics 2000-2004 Ford F-250 and F-350 Super Duty/2000-2005 Ford Excursion 4-8 Inch Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 4-6 Inch lift suspension system as well as taller lift heights, up to 8 Inch over stock. This kit includes a fabricated front track bar drop bracket made from CNC laser cut and brake formed .25 Inch steel plate for strength and to ensure proper track bar angle and axle placement.

This bracket features two track bar mounting locations, allowing the bracket to be compatible with a wide lift height range. A 4 Inch drop pitman arm corrects steering geometry for the lift height range and eliminates bump steer common when the steering drag link and track bar are not parallel.

Front extended sway bar links with polyurethane bushings corrects sway bar angle and prevents bind through the full range of suspension travel. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.

Features and Benefits:

• Essential components for install of ICON 4-6 Inch lift suspension systems
• Track bar bracket fabricated from CNC laser cut and brake formed .25 Inch steel plate
• 2 postion track bar mount allows configuration for a wide lift height range
• 4 Inch drop pitman arm
• Front extended sway bar links prevent sway bar bind
• Polyurethane sway bar link bushings
• Semi-gloss black powder coat finish for all fabricated components
• Fully bolt on installation with all hardware included
• Protected by ICON's Limited Lifetime Warranty

Details

• Color: Black
• Material: Steel
• Bolt Grade: 8.0
• Bolt Material: Steel
• Bushing Color: Black
• Bushings Included: Yes
• Grade Type: Performance
• Service Parts: 611002 - Sway Bar Link Bushing And Sleeve Kit
• Universal Or Specific Fit: Specific
