08-10 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Diesel Without Overload Zone Offroad

When you go big you can go anywhere. This 6 Inch Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 3 Inch Inch tires. Get the look and performance you want out of your Diesel 4WD 2008 - 2010 Ford F-250 / F-3 Inch0. Quick Specs:

• Front Lift Height 6 Inch
• Rear Lift Height 4 Inch
• Front Lift Method Radius Arm Drop
• Rear Lift Method Dual Add-A-Leafs & Block Kit
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 3 Inch x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 3 Inch x 12.5
• Wheel Size 3 Inch20 x 9
• Back Spacing 3 Inch4.5 Inch
• Max Tire Size 3 Inch3 Inch x 12.5
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

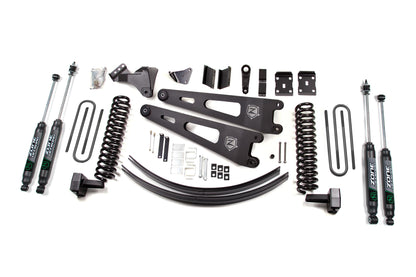

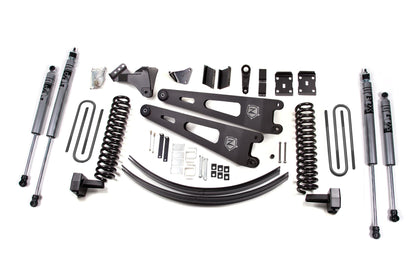

In The Box:

• Add-A-Leaf's
• All Necessary Mounting / Installation Hardware
• Coil Springs
• Dropped Pitman Arm
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Radius Arms

Features:

• Brake line relocation brackets allow re-use of factory brake lines.
• Bump stop extensions properly limit up-travel, protecting your vehicle.
• Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
• Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
• High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
• Rear lift block and longer U-bolts for easy installation and level stance.
• Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
• Sway bar relocation brackets maintain operating angle for reduced body roll.

Kit Components

• ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
• ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
• ZONF1309 08-12 Ford F250/350 4 Inch Rear 1 711745599116
• ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
• ZONF1603 08-10 Super Duty 6 Inch Box Kit 1 711745599314
• ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369
• ZONF6209 08-12 Super Duty Dual Add-a-leaf 1 711745599956
