Take your 1980-1996 Ford F350 Monobeam 4WD truck to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Front Lift Method: Leaf Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 3 inch
This system is designed for a front solid axle style suspension only. The kit will not work on Twin-Traction Beam applications.
Easy, 100 percent Bolt-on installation
Glideride leaf springs to provide full lift height and increased capacity
Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
Cast steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Shock Option NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

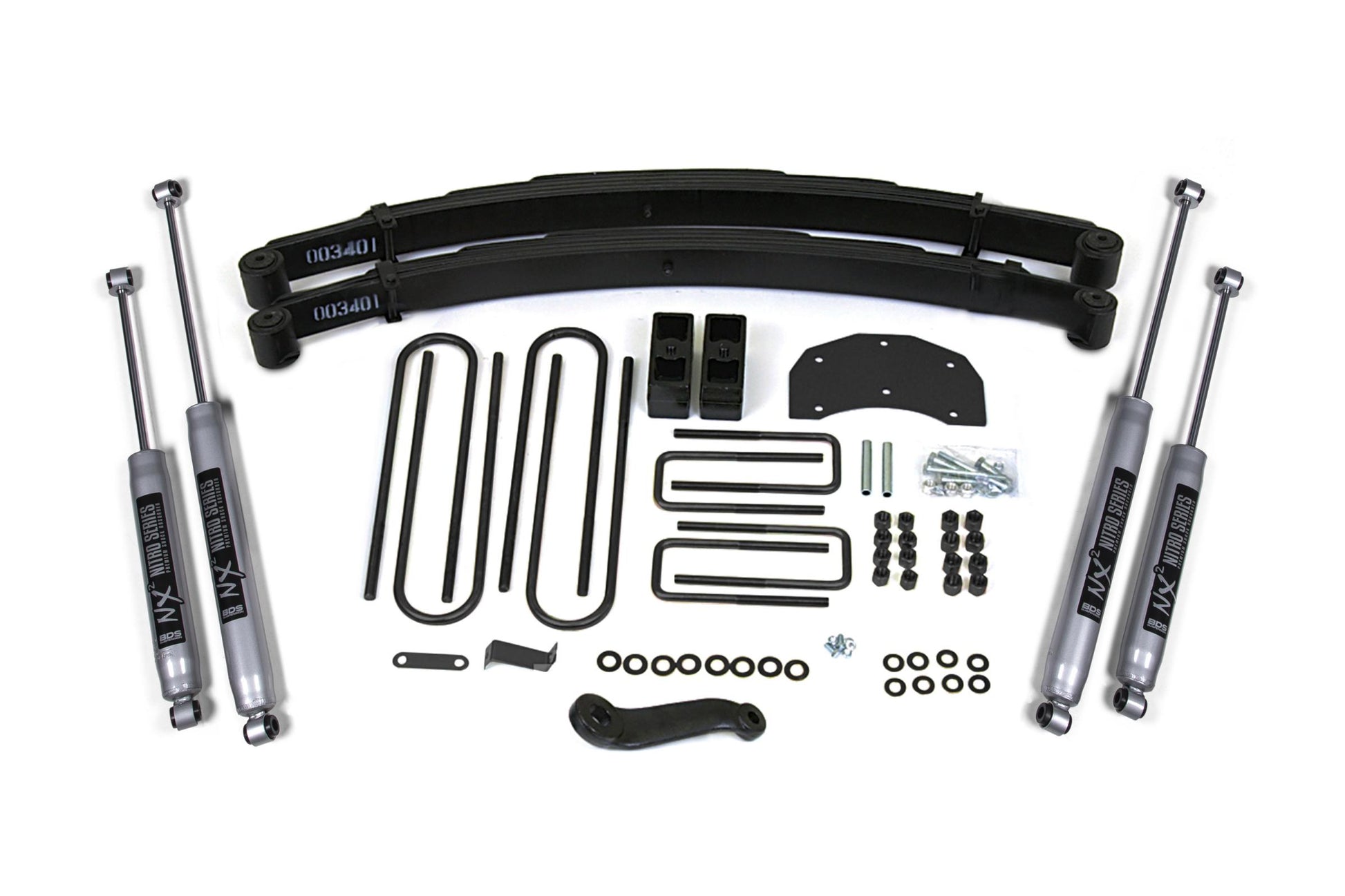

Kit Components:
Includes two BDS003401, 80-96 Ford F250 Gas 4 Inch Front Spring, UPC Code 658848611331
Includes one BDS013308, 86-97 Ford F350 3in Rear Block&Ubolt Kit, UPC Code 658848613267
Includes one BDS013403, 86-96 Ford F350 Front Box Kit, UPC Code 658848613366
Includes one BDS083401, Ford F150/Bron/Rang Pitman Arm - PS, UPC Code 658848618279
Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
