2003-2013 RAM 2500/2003-2012 RAM 3500 HD 4.5 Inch Lift Box Kit ICON Vehicle Dynamics

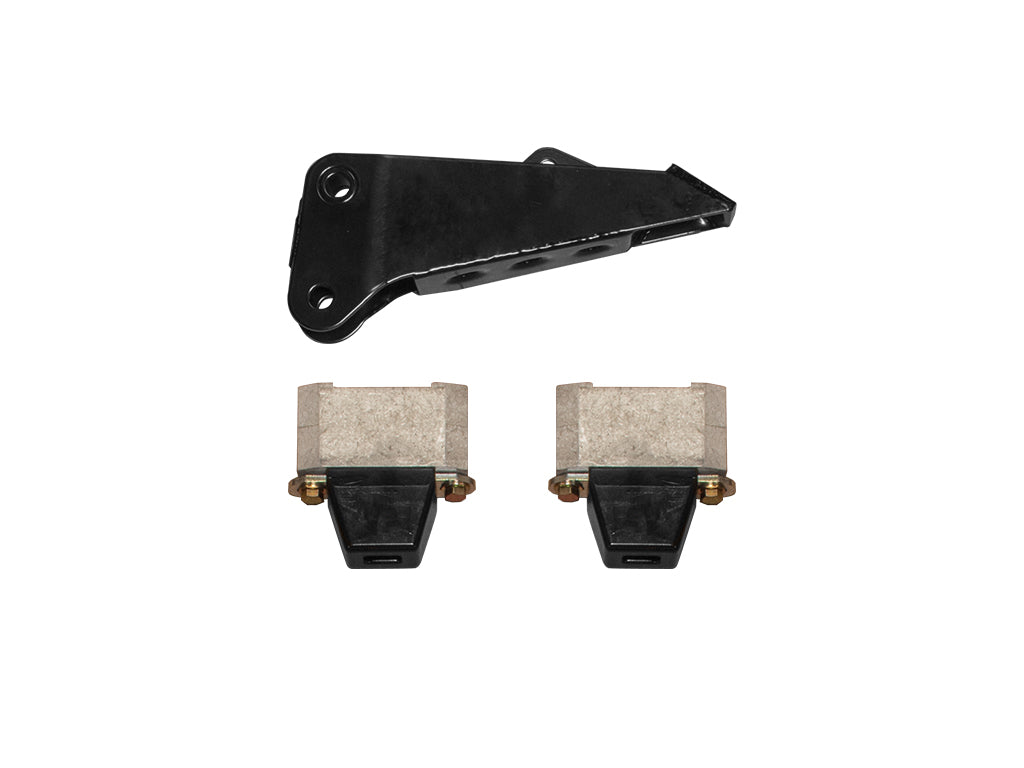

The ICON Vehicle Dynamics 2003-2013 Ram 2500/2003-2012 Ram 3500 Front Box kit contains many of the miscellaneous parts required to lift the front of the vehicle when using an ICON 4.5 Inch lift suspension system. This kit includes a fabricated front track bar drop bracket made from CNC laser cut and brake formed .25 Inch steel plate for strength and to ensure proper track bar angle and axle placement.

A semi-gloss black powder coat finish prevents corrosion and keeps the track bar bracket looking as good as it performs. CNC machined aluminum bump stops spacers and new rubber bump stops are also included to properly limit front suspension compression travel to prevent damage to suspension components during spirited off-road driving.

Features and Benefits:

• Fabricated track bar drop bracket reduces track bar angle and centers front axle for use with 4.5 Inch of front lift
• Track bar bracket made from CNC laser cut and brake formed .25 Inch steel plate
• Semi-gloss black powder coat finish for corrosion resistance
• CNC machined aluminum front bump stop spacers properly limit suspension travel
• New rubber bump stops help absorb bottom out force
• All installation hardware included
• Protected by ICON's limited lifetime warranty

Details

• Material: Steel, Aluminum
• Bracket Color: Black
• Bracket Material: Steel
• Bracket Material Thickness: 0.25
• Bracket Mount Hole Quantity: 1.0
• Bracket Width: 1.625
• Bump Stop Material: Rubber
• Bump Stop Spacer Material: Aluminum
• Bump Stop Spacers Included: Yes
• Bump Stops Included: Yes
• Bushings Included: No
• Grade Type: Performance
• Mounting Hardware Included: Yes
• Universal Or Specific Fit: Specific
