Waterproof Relay 30 Amp 30 Amp Continuous & 40 Amp Momentary Mr Gasket

Mr. Gasket waterproof relays are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use.

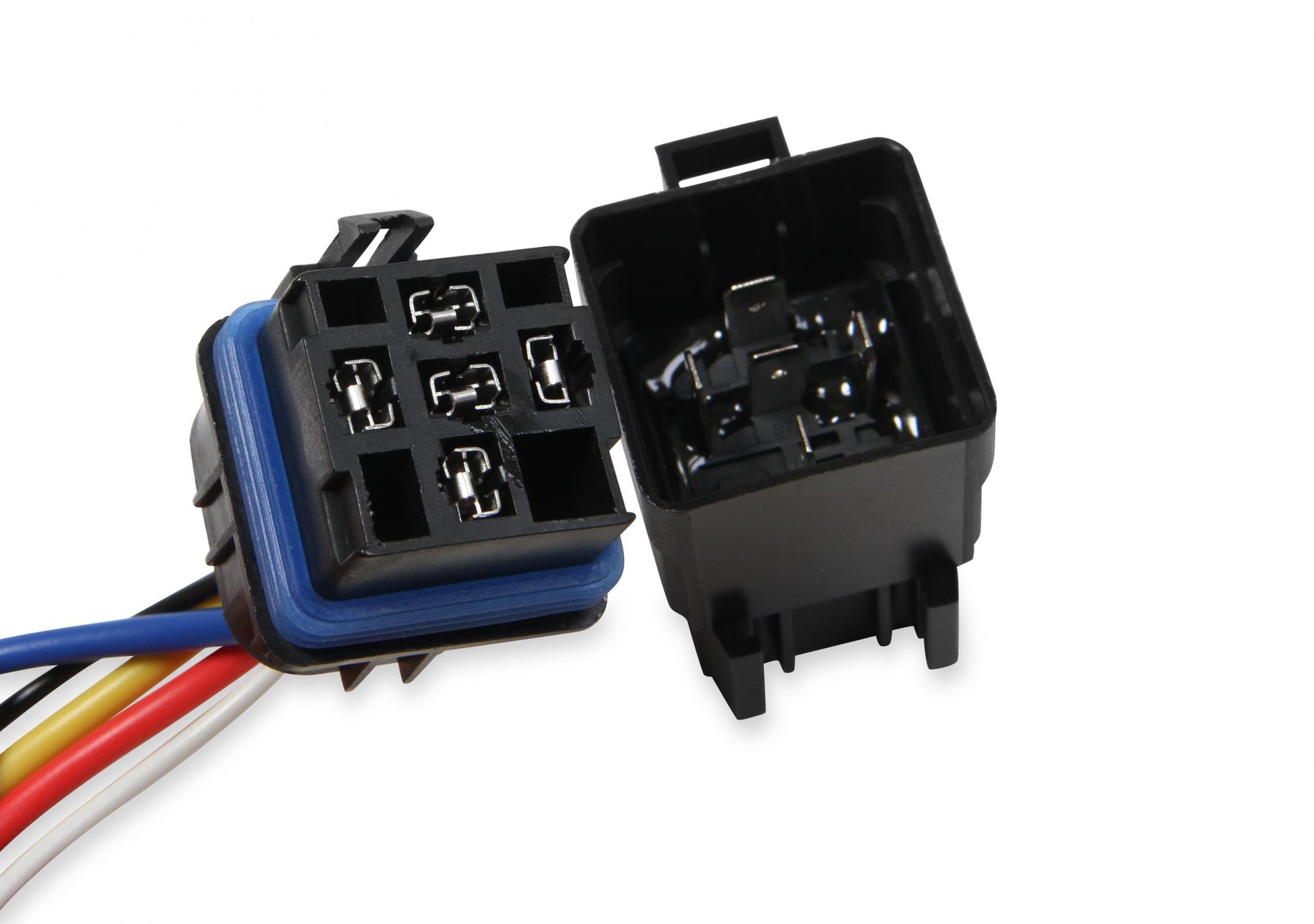

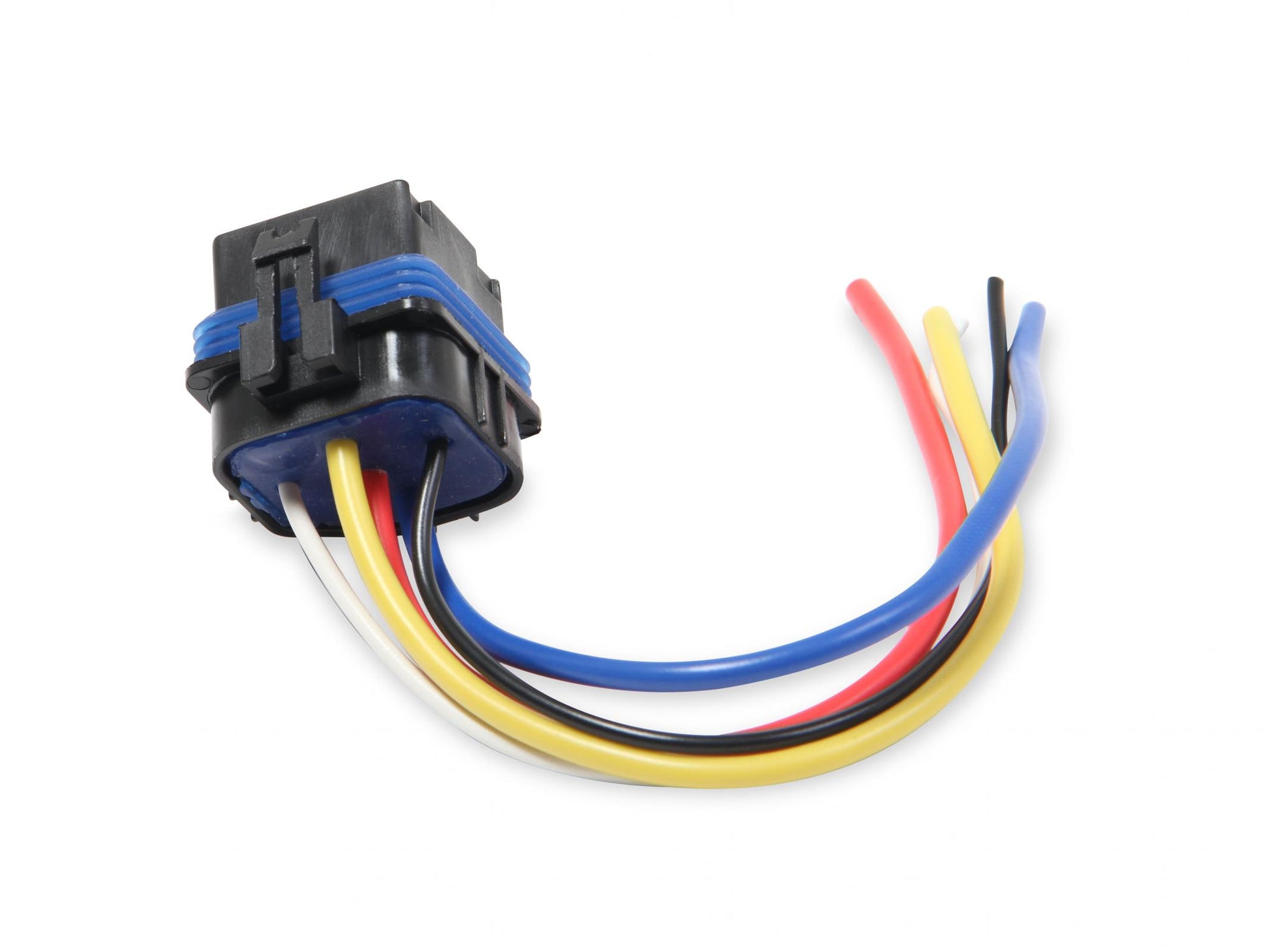

The pigtail harness has 7 inch long leads with heavy-duty 12 and 18 Inchgauge wire. The connector has the wires molded-in rubber and a Gasket for a leak-proof seal.

Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).

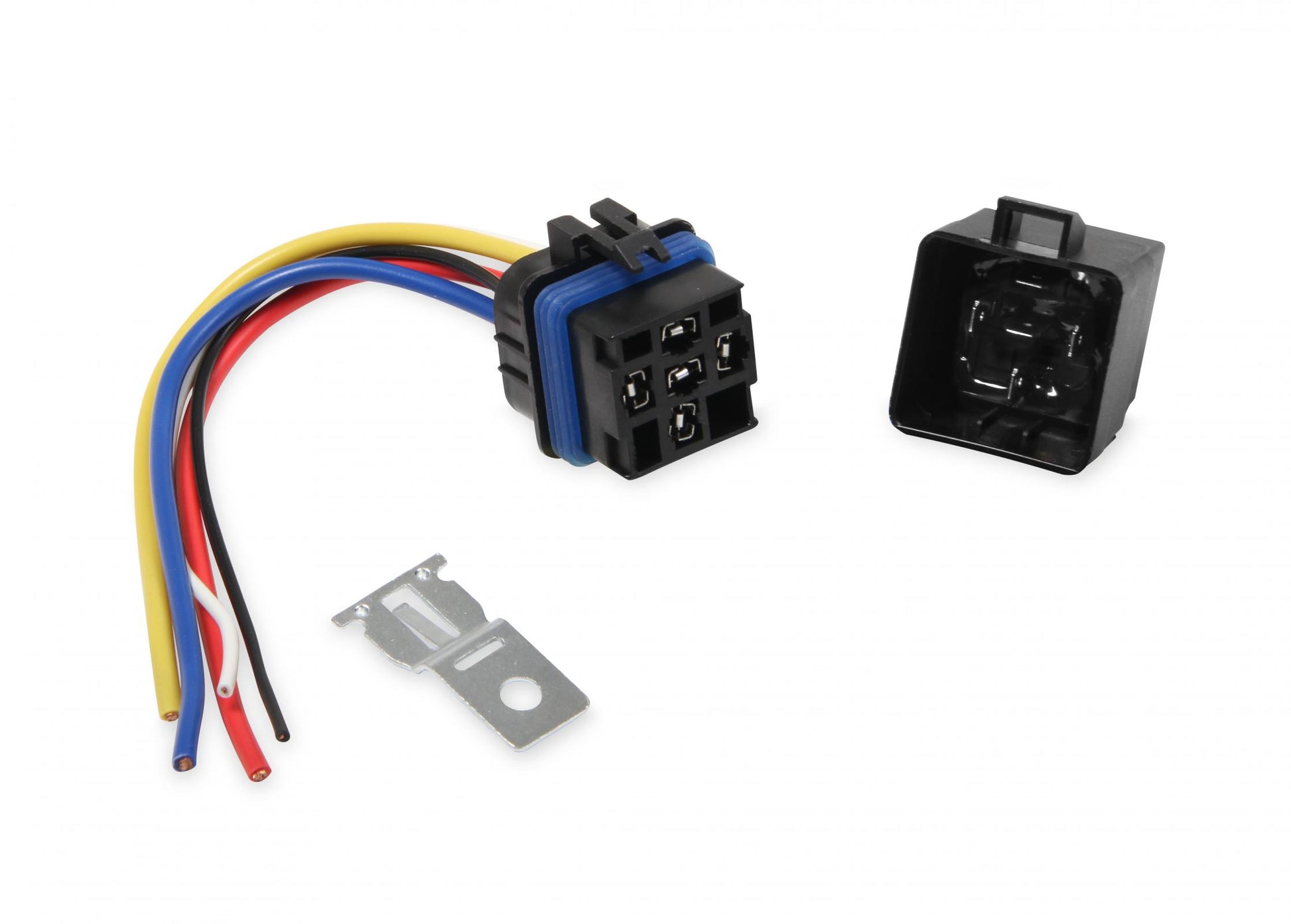

• Waterproof relay w/ pigtail harness and sealed connector
• 40/30Amp - 30 AMP continuous load and 40 AMP momentary
• 12V DC
• Works in normally open or normally closed circuits
• Pigtail wires are 7 Inch long
• Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (8 Inch normally open), red (8 Incha normally closed) - (2) 18 Inchgauge wires on black (8 Inch ground) and white (8 Inch +12V)
• Metal mounting bracket - can be mounted under-hood or just about any other location on vehicle
• Ideal for use in: marine, dirt track cars, and off-road trucks and Jeeps

Details:

• Emission Code: 5
• Warranty: Manufacturer's Limited 90 Day Warranty
