Holley

300-132

$311.95
$311.95
Sale Sold out
Shipping calculated at checkout.
View full details

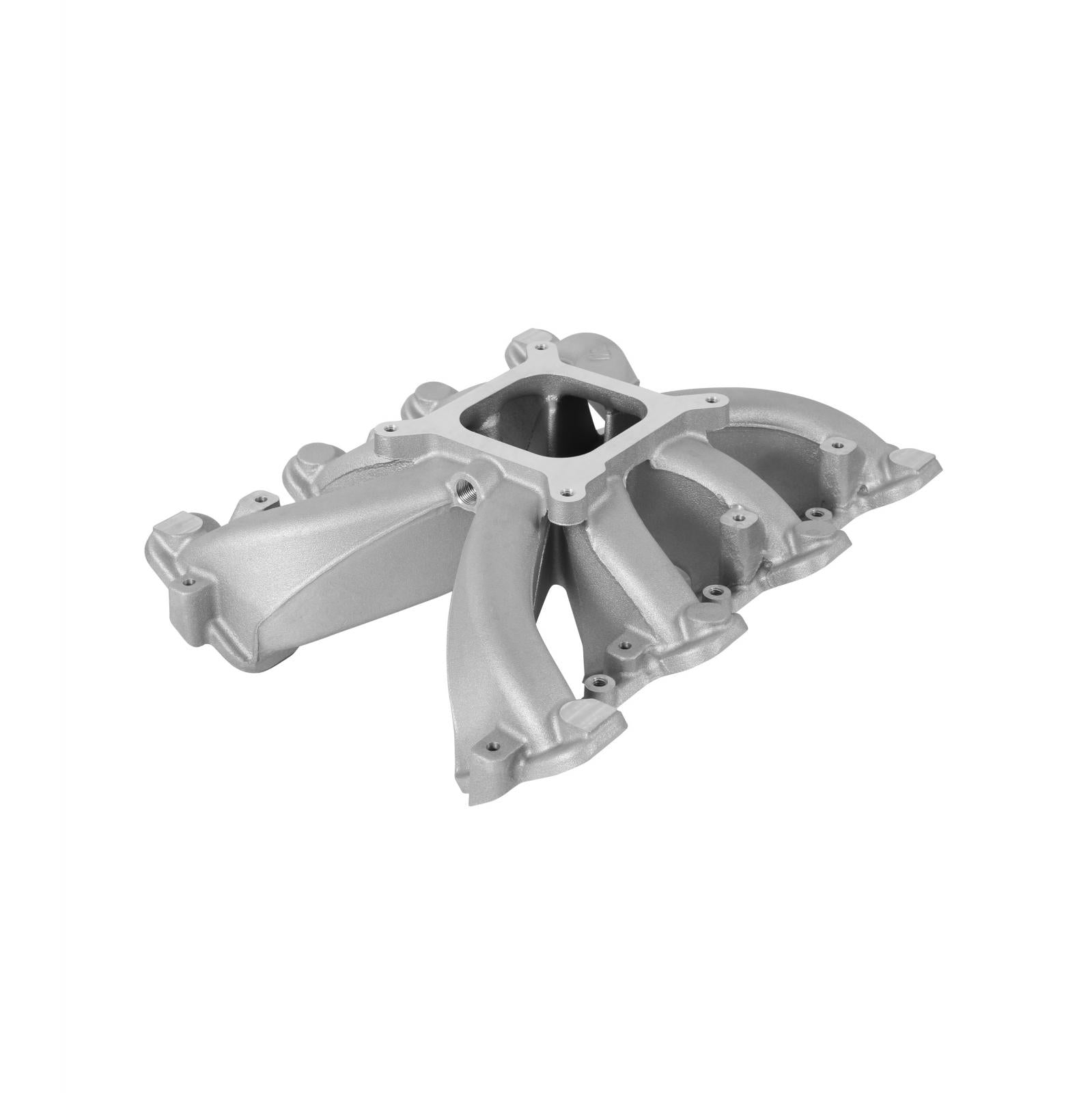

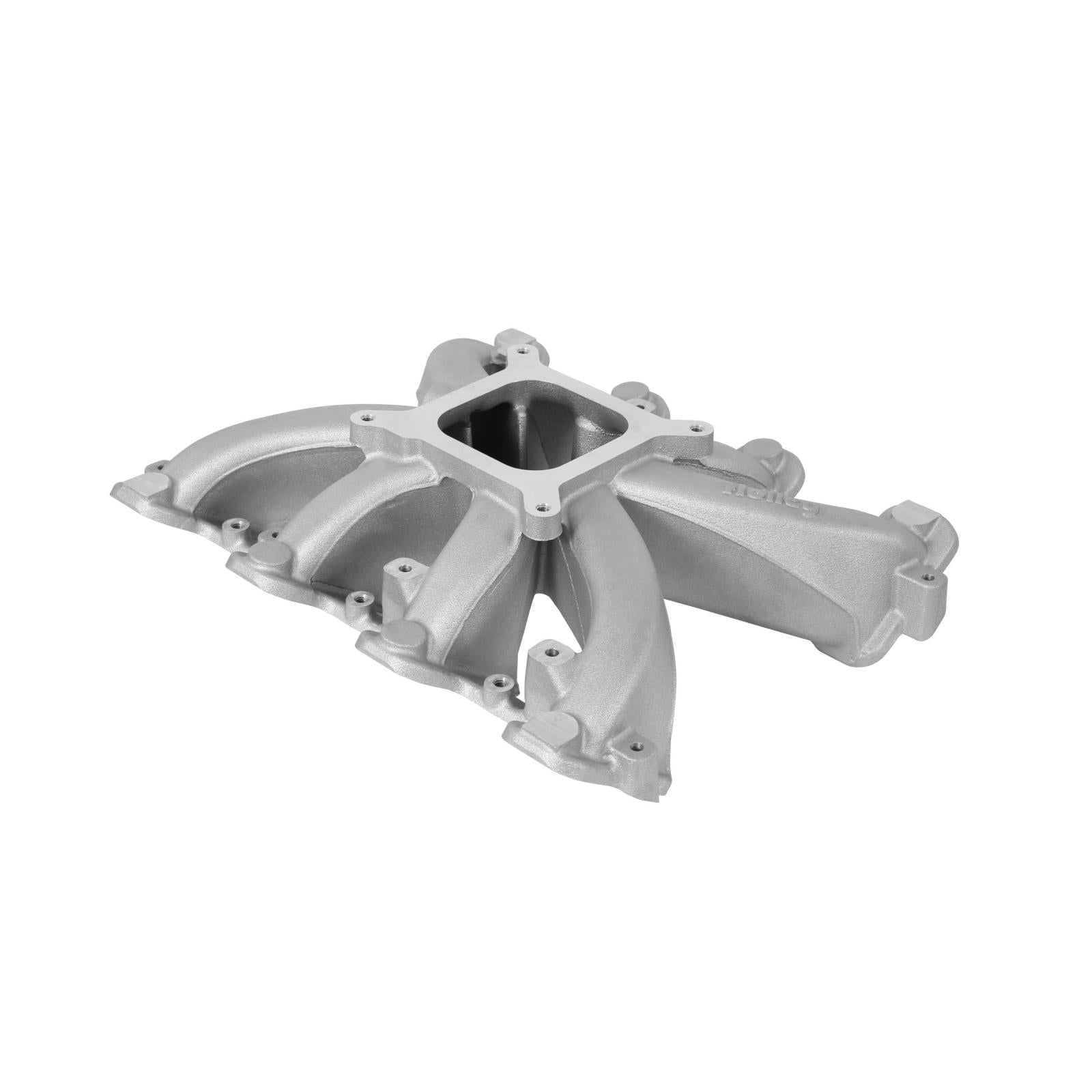

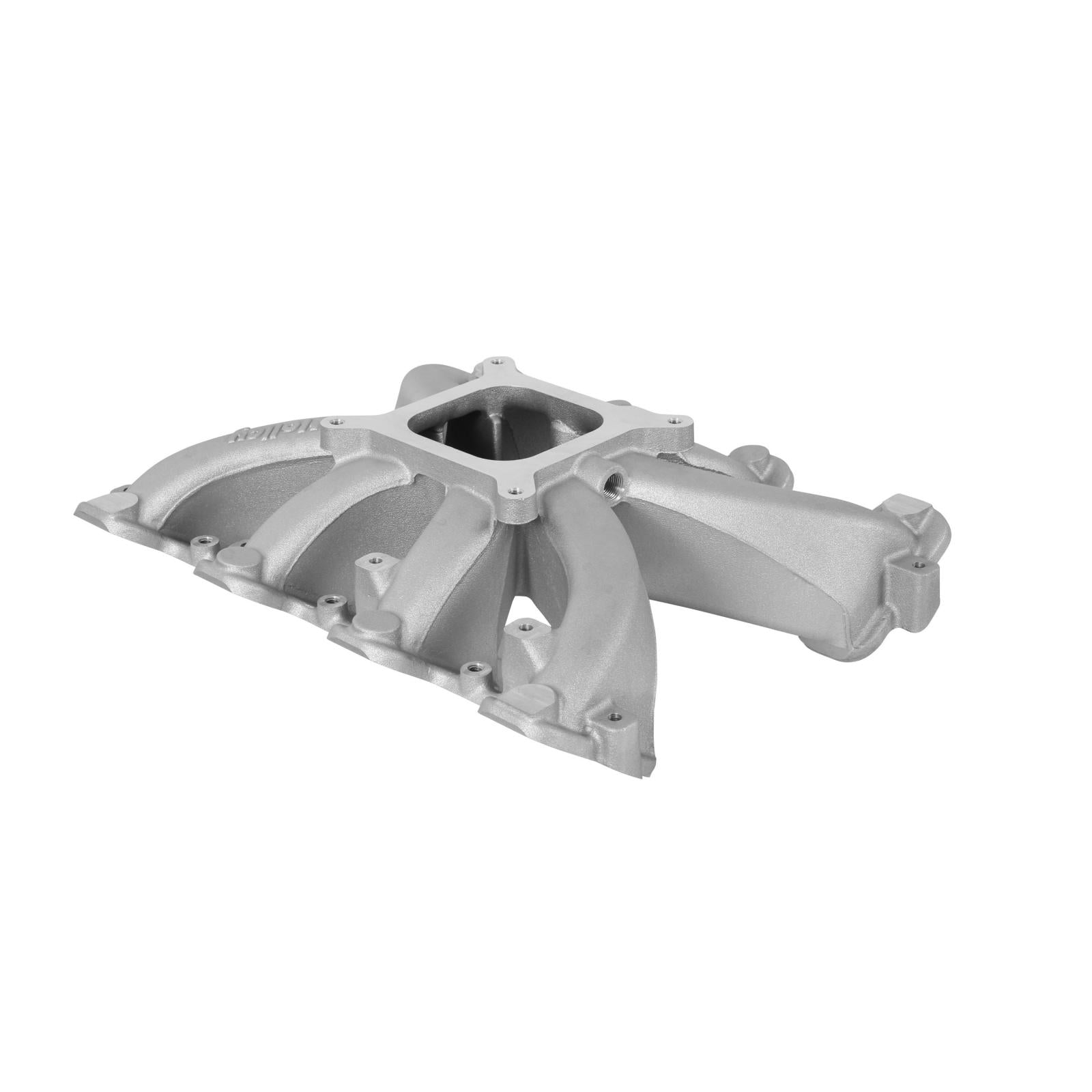

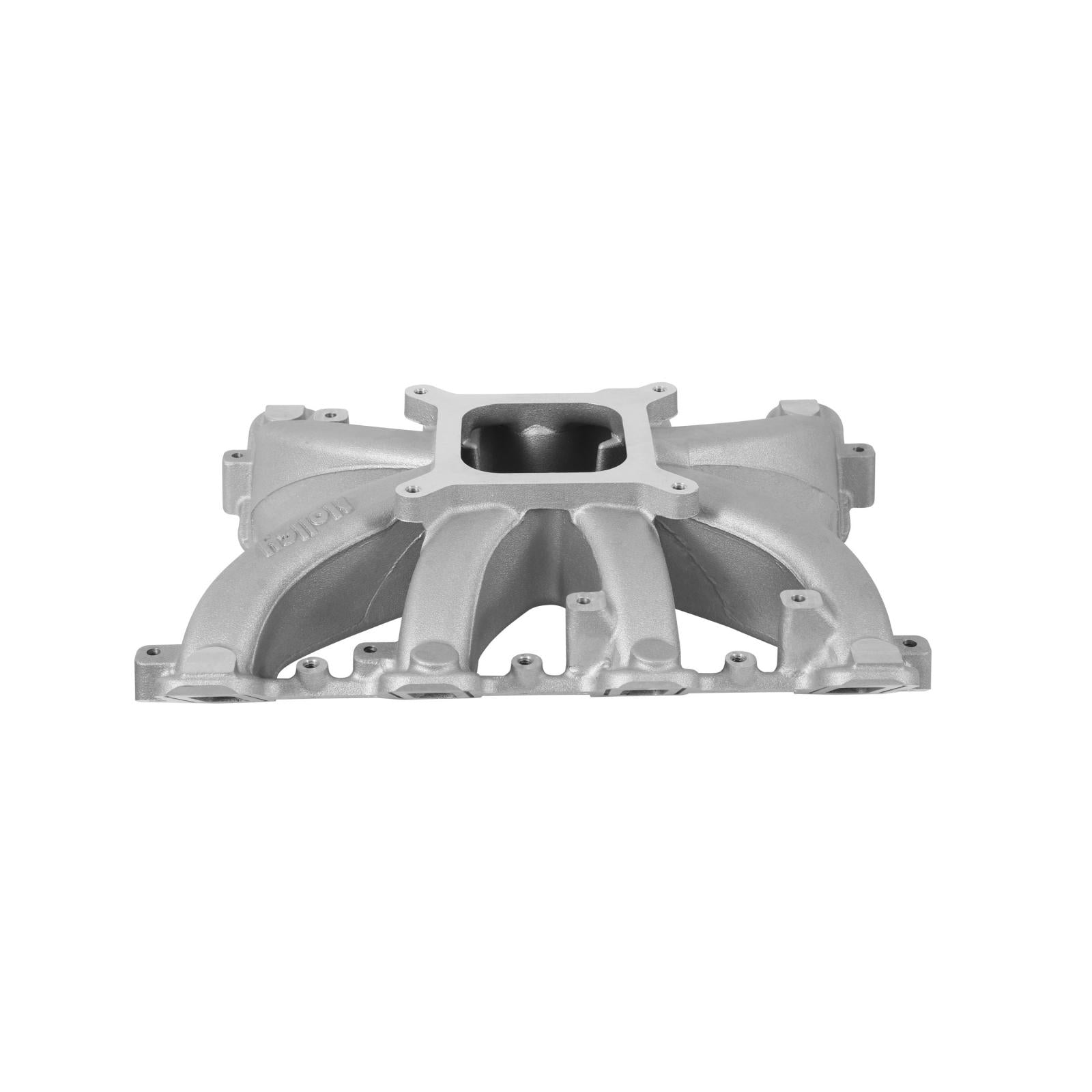

Carbureted single plane intake manifold. Fits all Gm Ls Gen Iii or Iv engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads

Features and Benefits:

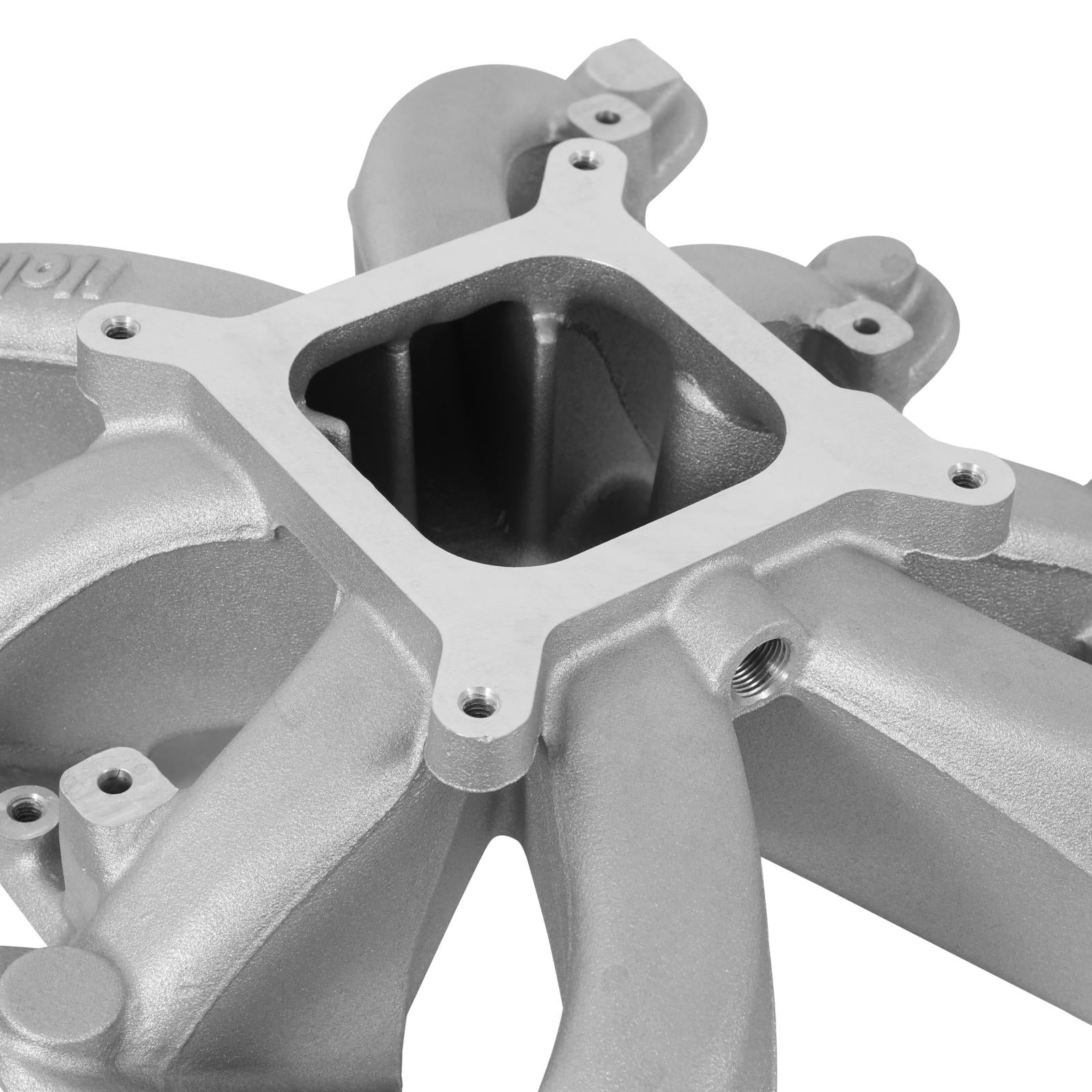

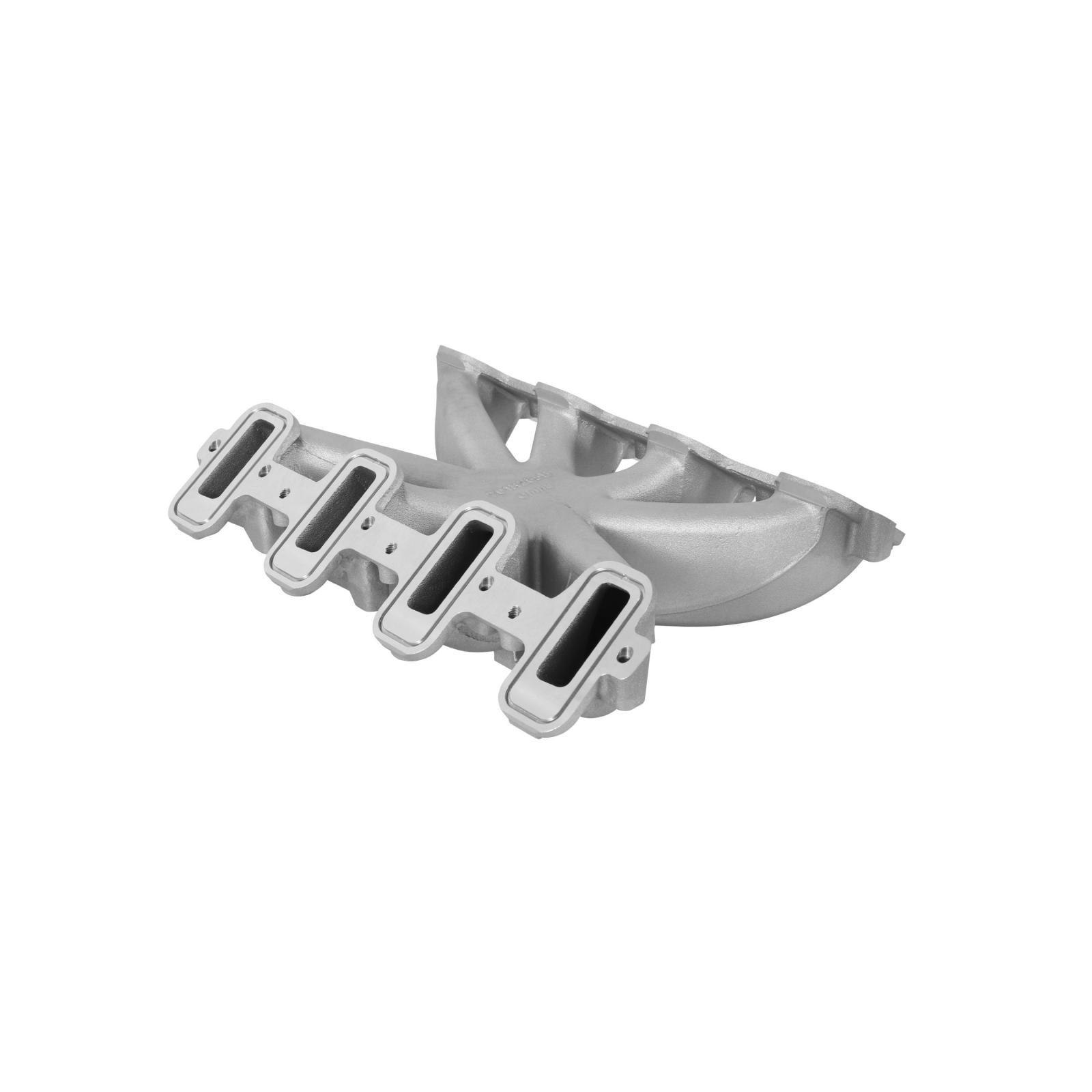

  • Includes Viton intake to cylinder head O-ring gaskets - Viton is a registered trademark of DuPont Performance Elastomers 4150 Square bore carb mounting flange (accepts up to 1.75 inch diameter throttle bores) Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality Port size - 2.659 inch height x .918 inch wide Cast aluminum construction - great manifold for centrifugal blower, turbocharged or Nos power adder applications Height (front) - 4.95 inch to the lifter valley cover flange at the engine block front flange Weight - 11.5 lbs
  • Minimum carb flange height - fits in vehicles with minimum hood modifications 2500-7000 RPM power band

Associated Comments:

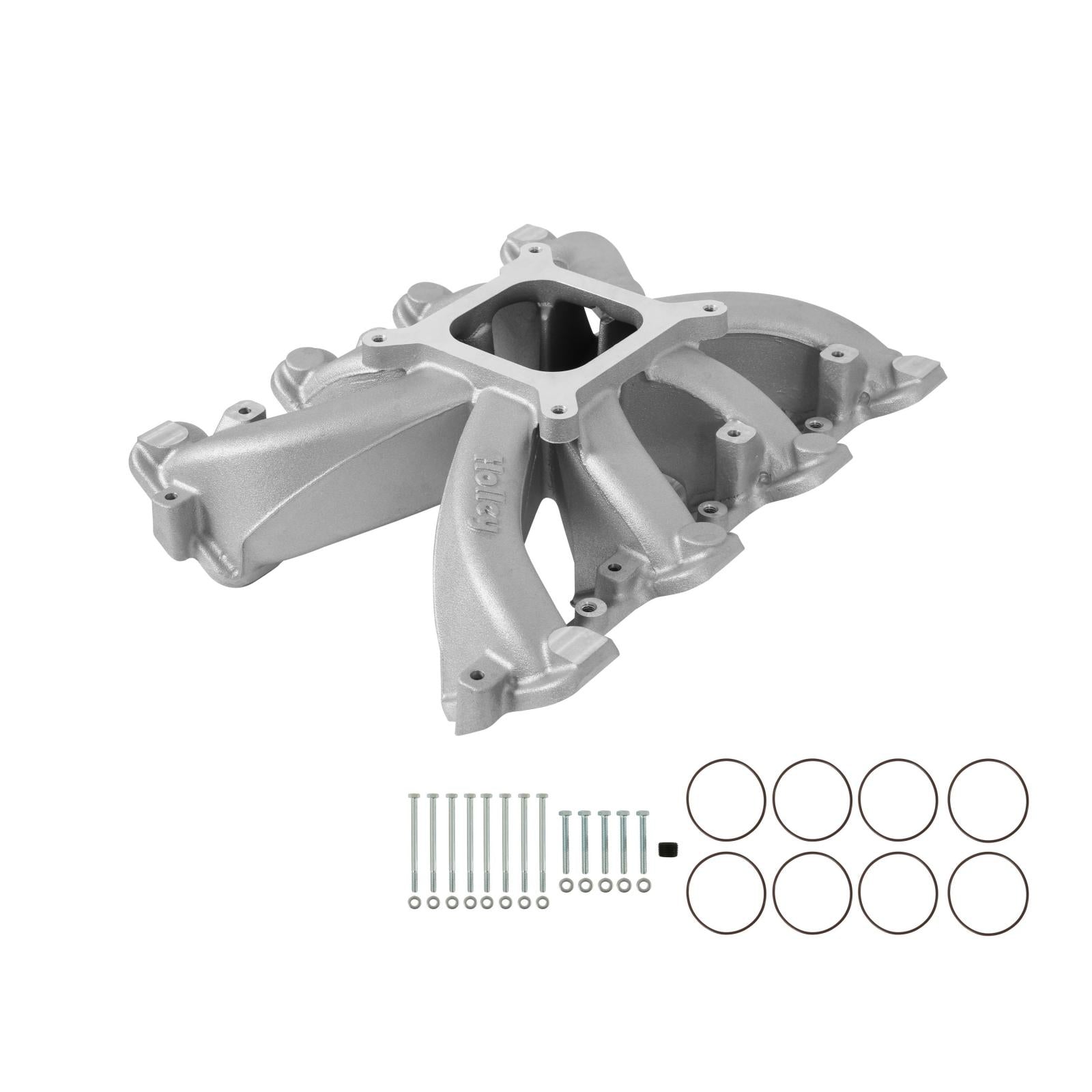

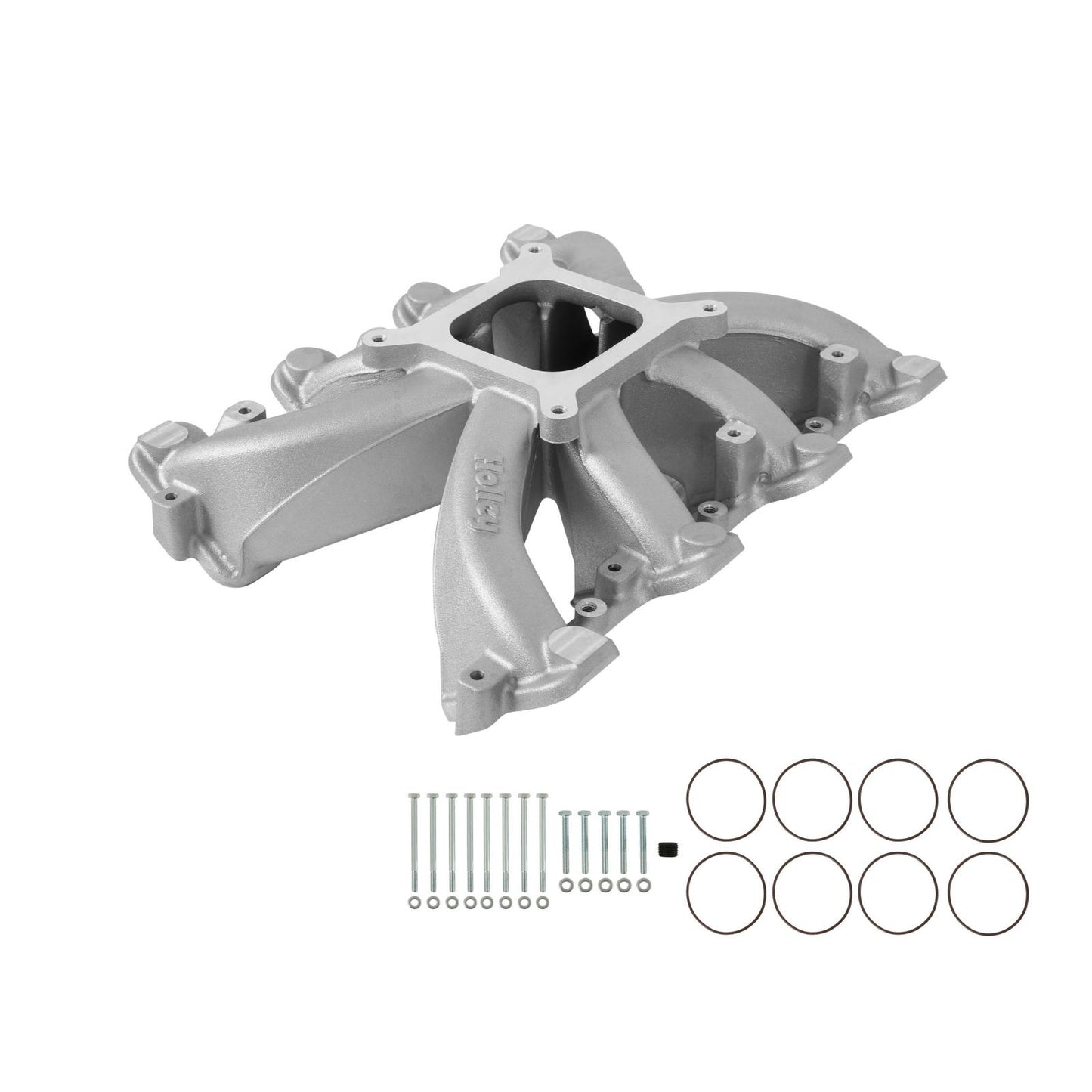

  • Includes mounting bolts & washers as well. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.

Details:

  • Barrel Quantity: 4.0
  • Basic Operating RPM Range: 2500-7000 RPM
  • Cnc Ported: No
  • Carburetor Flange: Square/4150
  • Carburetor Quantity: 1.0
  • Carburetor Studs Included: No
  • Color: Natural
  • Construction: Cast
  • Cylinder Head Port Shape: Cathedral
  • Deck Height: 9.24 Inch
  • Egr Port: No
  • Engine: Gm LS1/LS2/LS6
  • Flange Style: 4150 Square Bore
  • Front Maximum Height: 4.95 Inch
  • Fuel Injectors Included: No
  • Fuel Rail(s) Included: No
  • Fuel System Type: Carb
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Intake Port Gasket(s) Included: No
  • Manifold Type: Single Plane
  • Material: Aluminum
  • Nitrous Bung(s) Included: No
  • Plenum Finish: Natural
  • Rear Maximum Height: 4.95 Inch
  • Removable Runners: No
  • Removable Top/Lid: No
  • Single Or Dual Plane Type: Single Plane
  • Throttle Body Bore Diameter: 3.6
  • Throttle Body Gasket Included: No
  • Throttle Body Included: No
  • Vacuum Ports: Yes
  • Warranty: Manufacturer's Limited 90 Day Warranty
