1 22

Holley

300-290BK

$718.95
$718.95
Sale Sold out
Shipping calculated at checkout.
View full details

? As-Cast Runner Cross-Sectional Area - 4.5 in2 at the runner entry tapered to 3.2 in2 at the flange exit The Ls Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination.

This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. ?

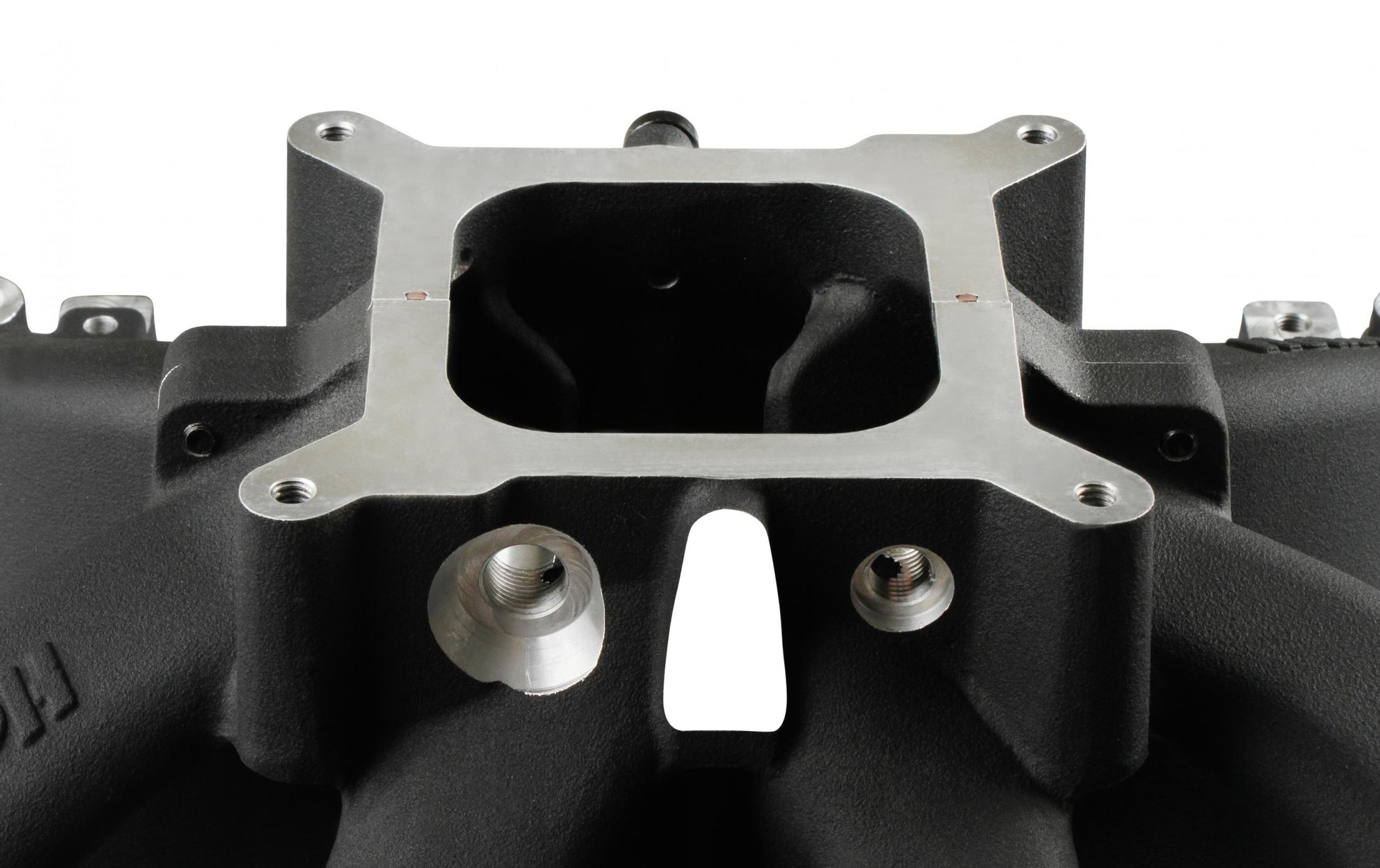

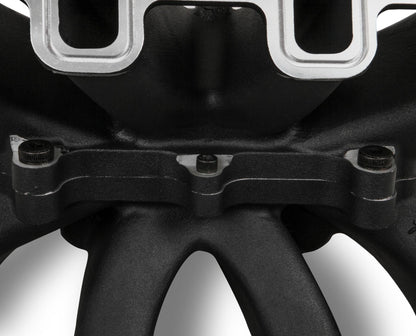

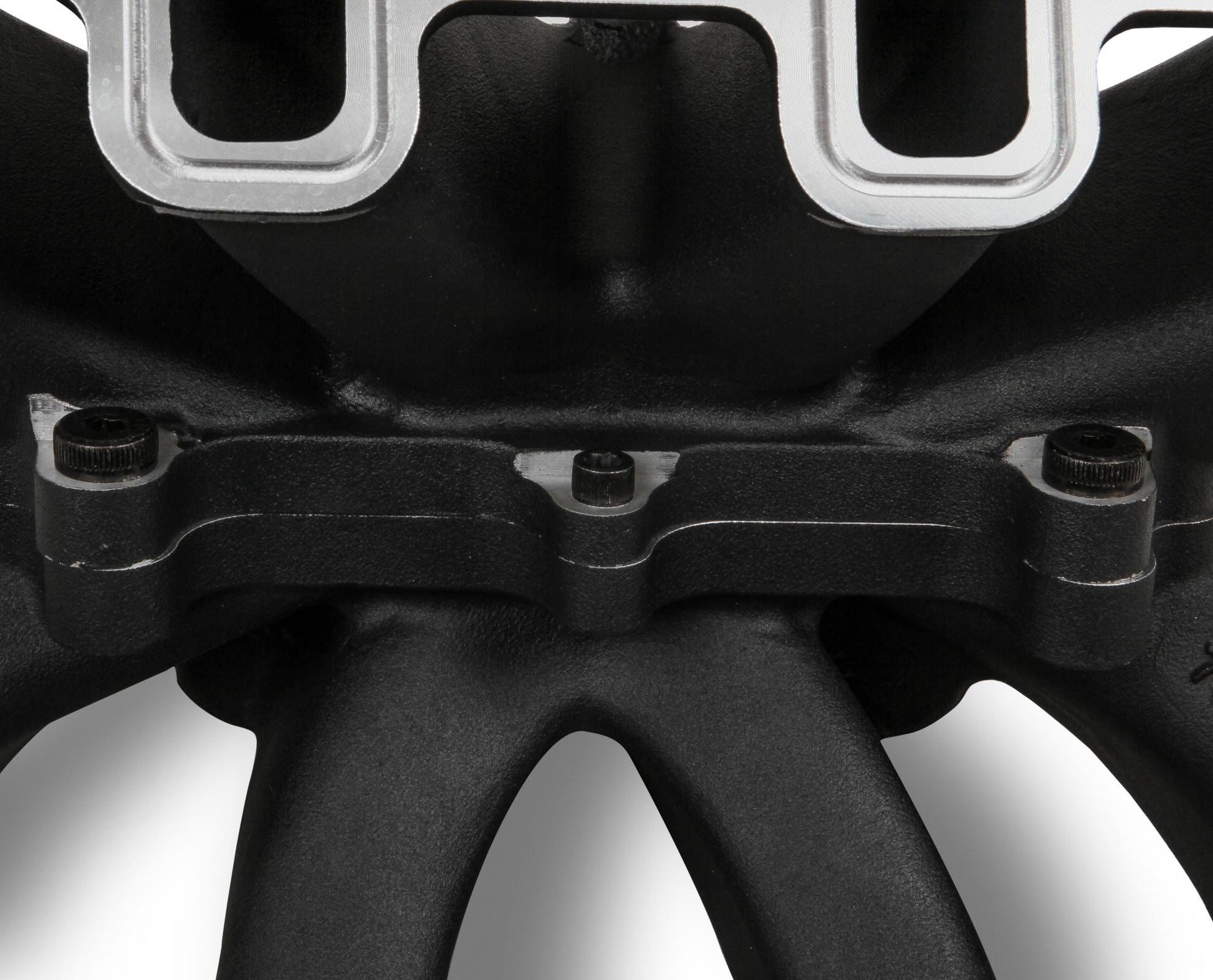

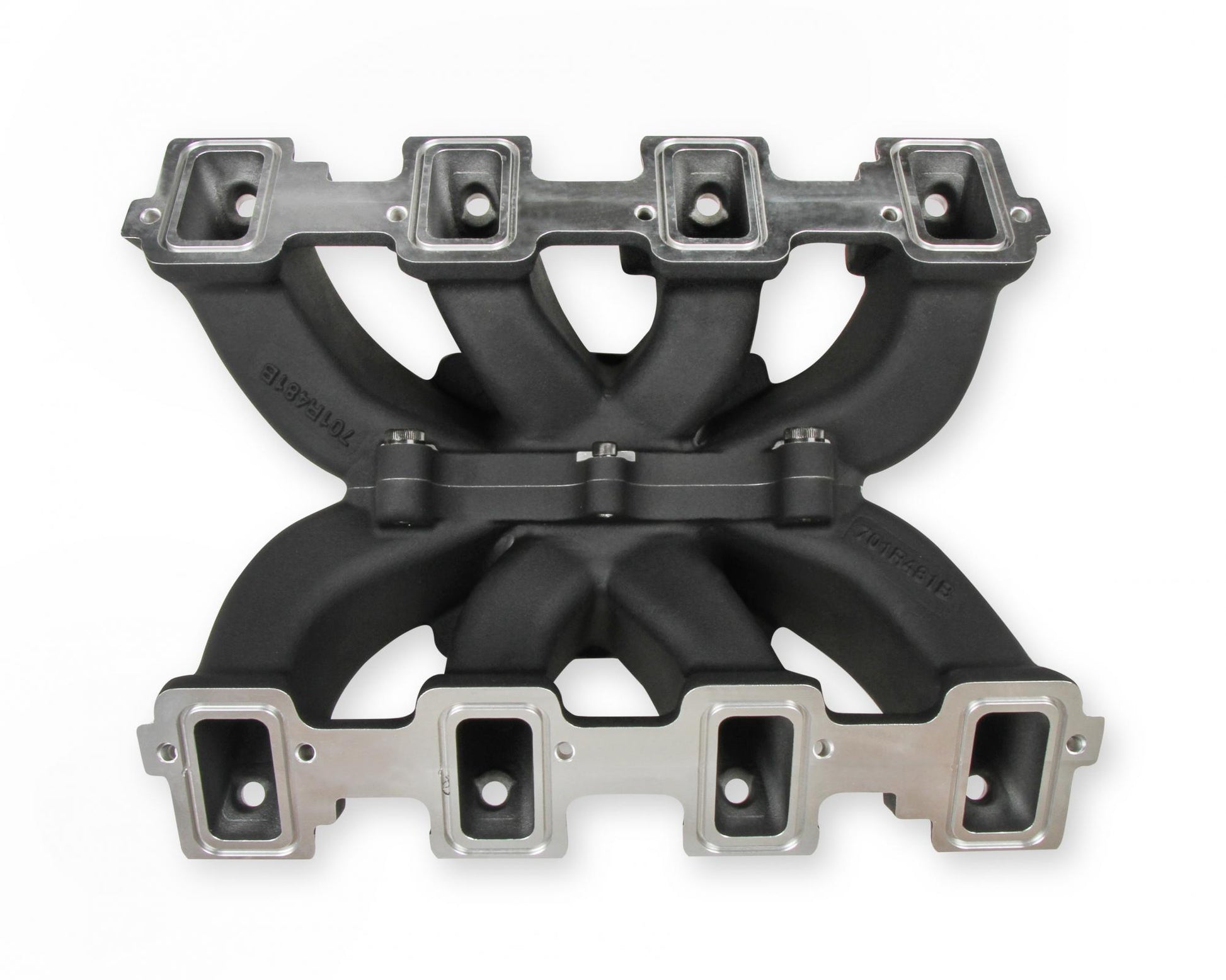

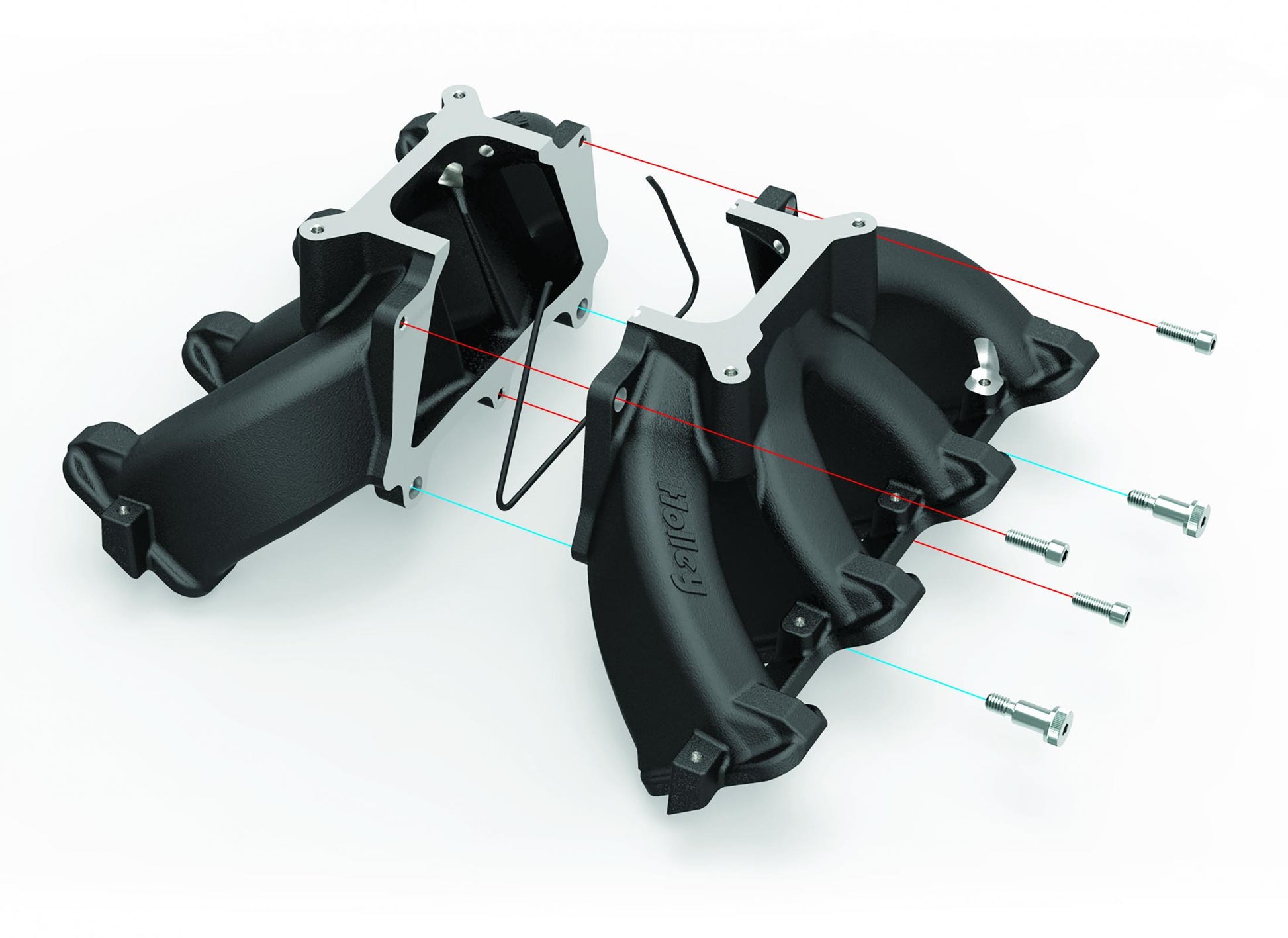

Port Size- 2.59 inch Height x 1.28 inch Wide ? Throttle Body Flange - Standard 4150 for up to 1-3/4 inch diameter throttle bores Technical Data: The Holley Ls Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap.

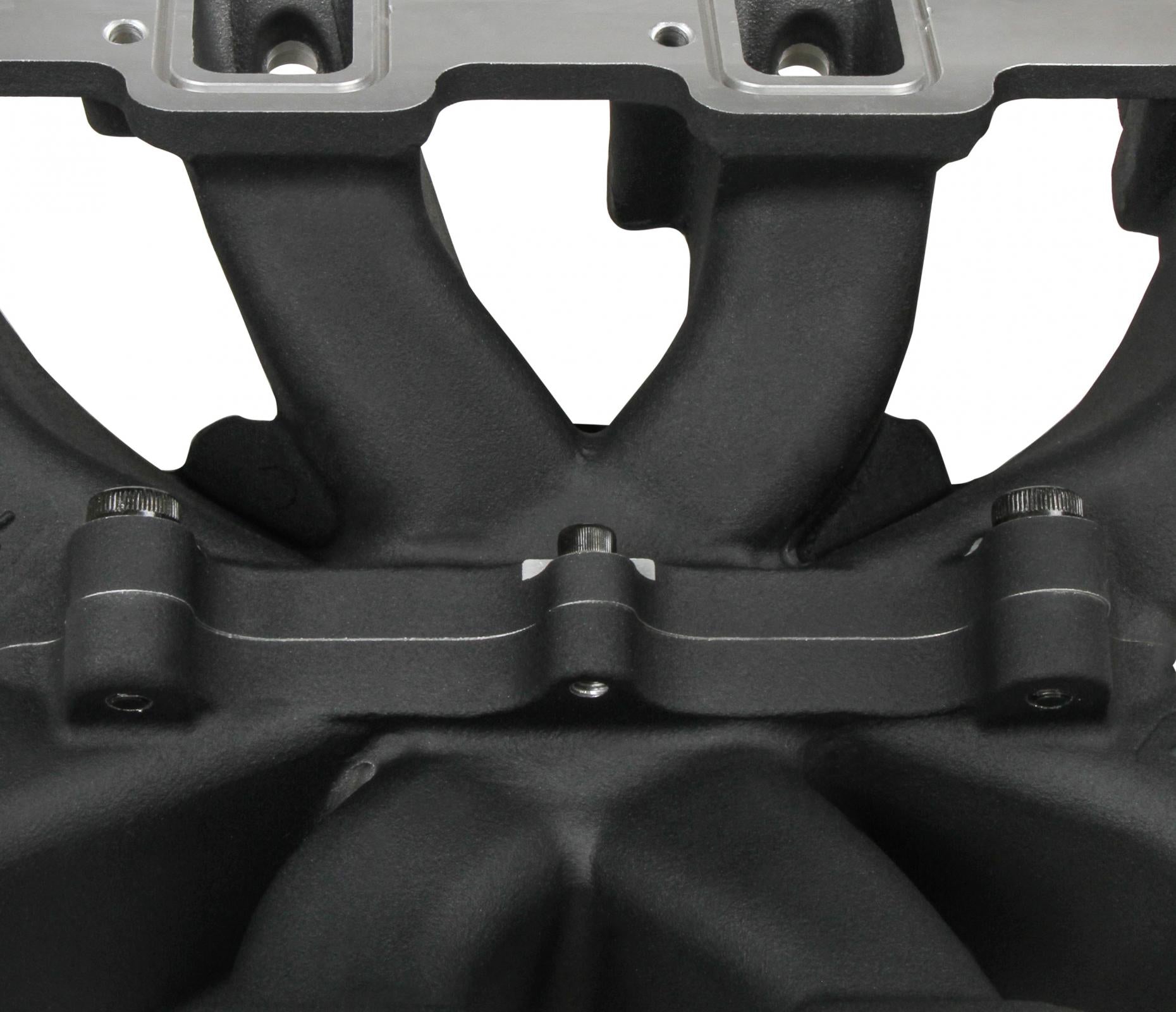

With shoulder bolt locators and O-ring seal, reassembly is simple and precise. The new Holley Single-Plane Race intake manifold were designed with performance in mind.

They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit Gm Ls Gen Iii engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.

? A-B Height - 7.20 inch (0 carb flange angle)

Features and Benefits:

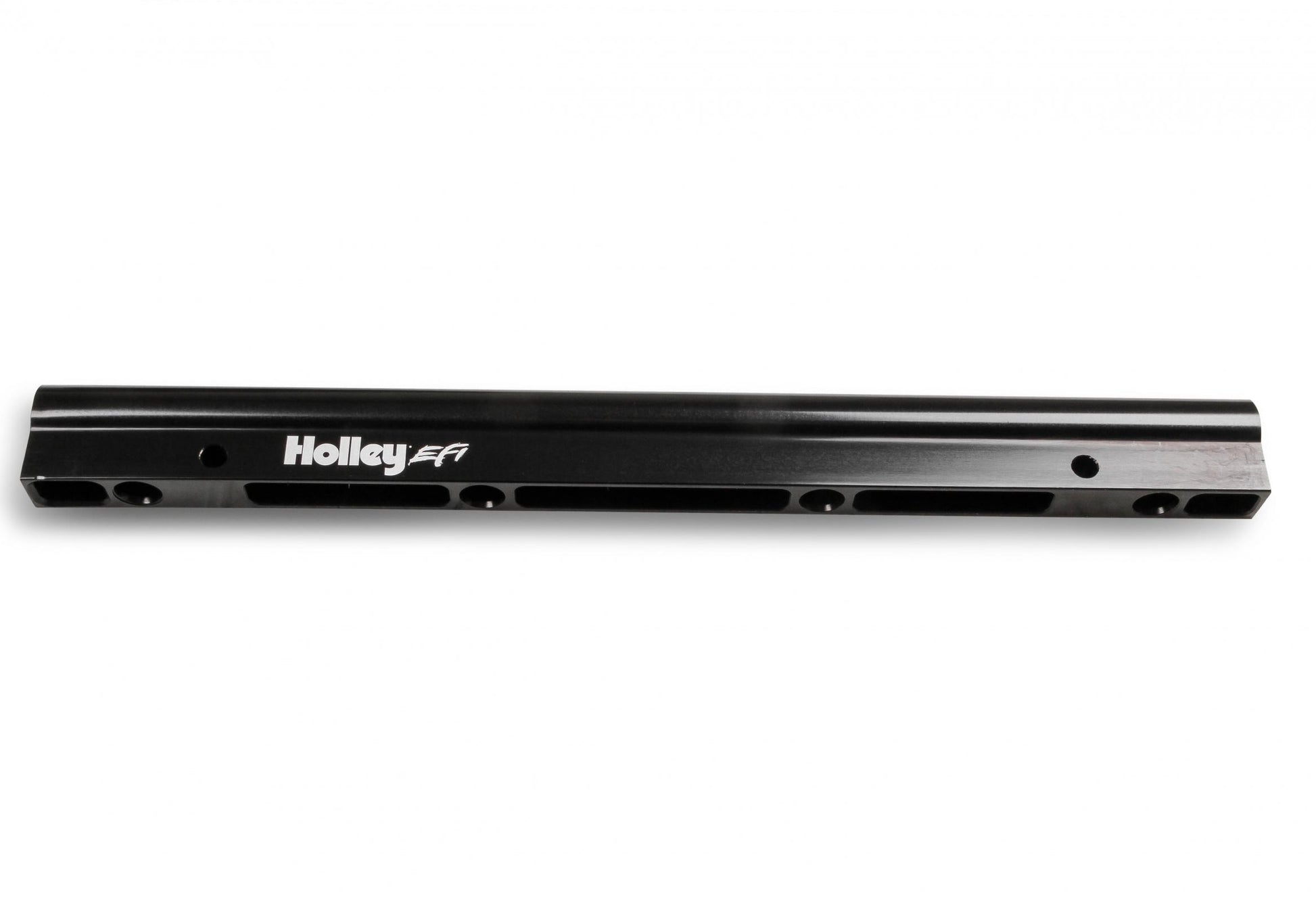

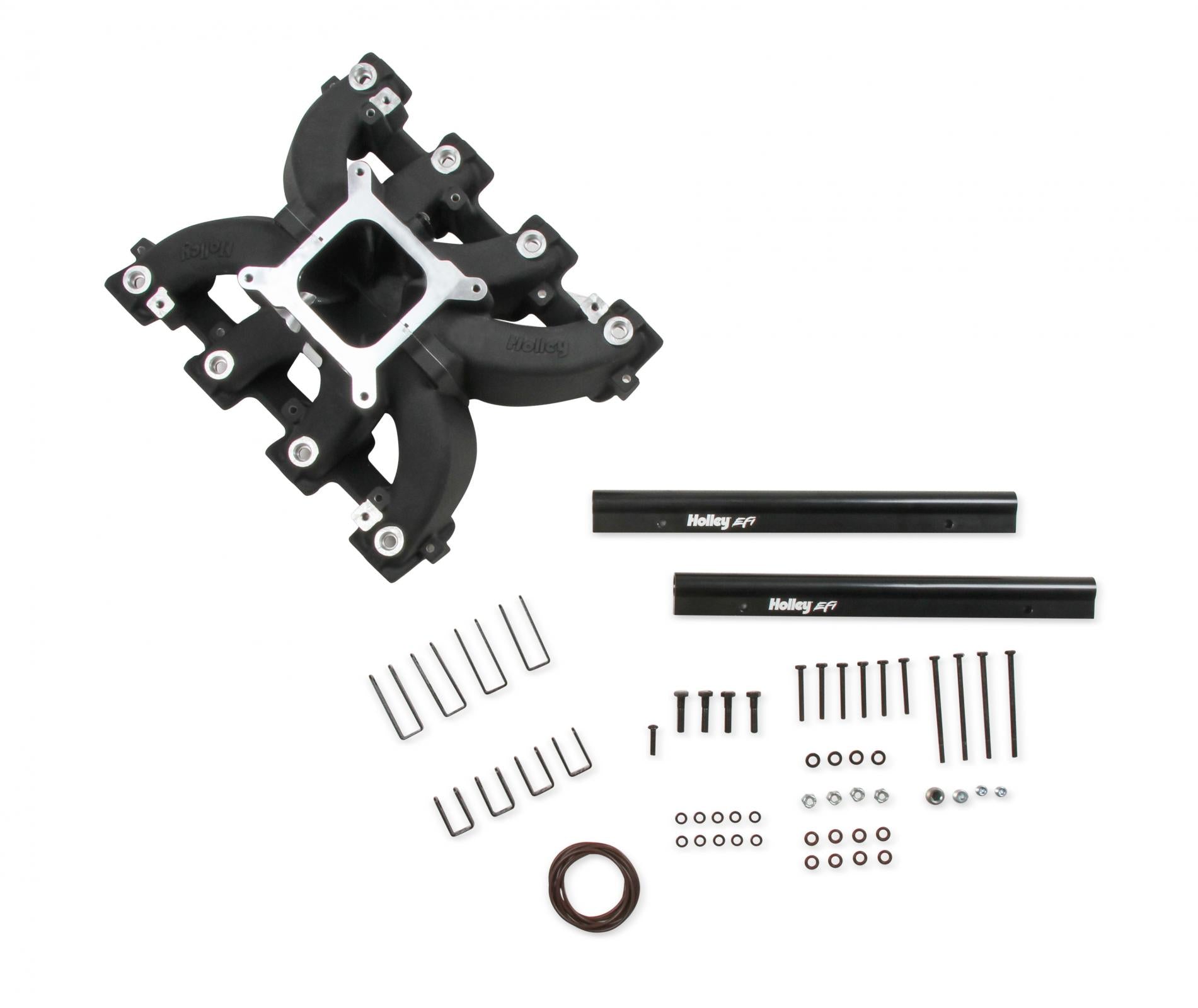

  • Split feature making porting efforts easy! Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange Lighter than other split race intakes Maximum performance race design with hood clearance consideration Billet Fuel Rails and rail mounting hardware included

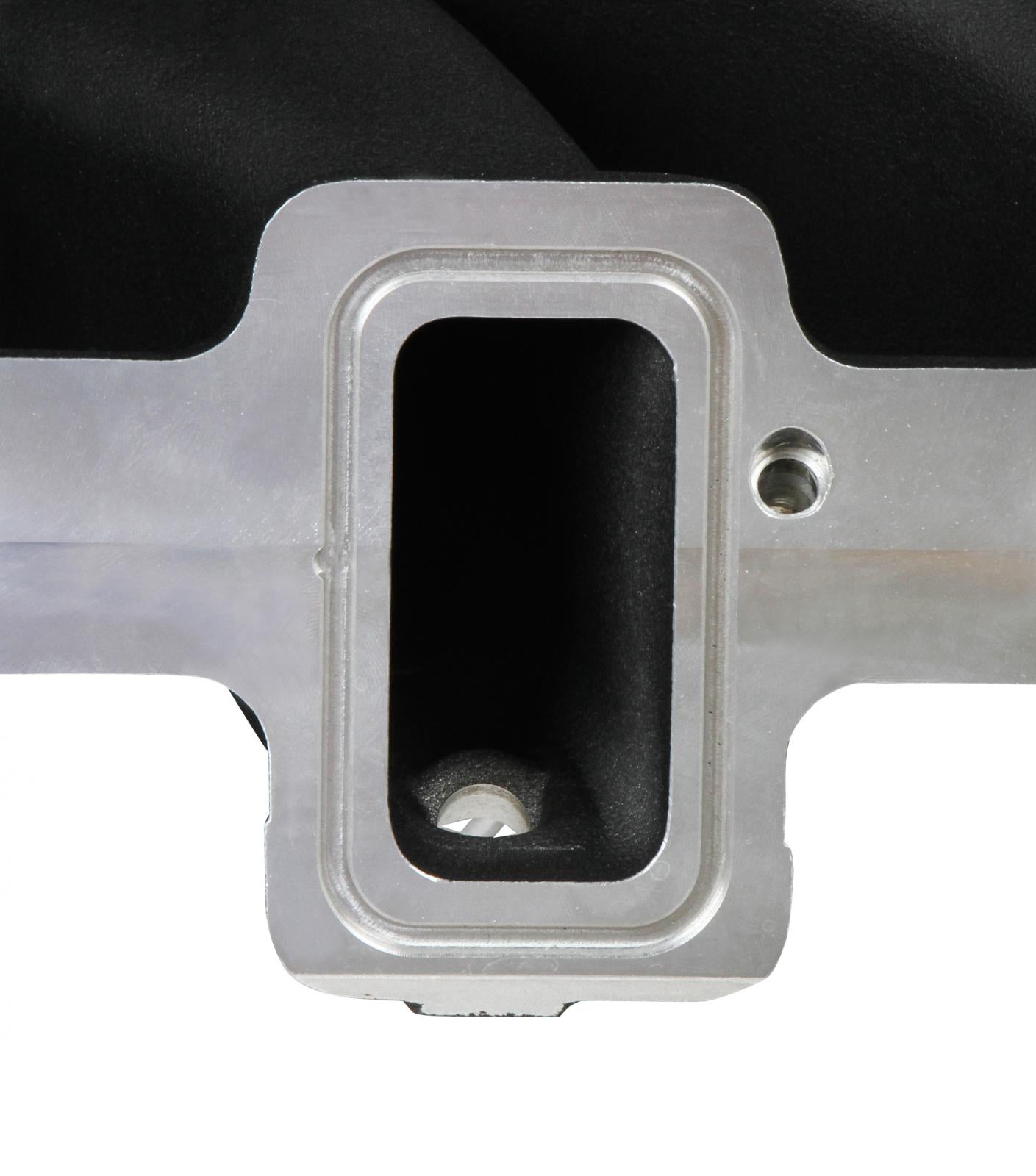

  • 33 to 50 percent the price of other split race intakes Captured O-ring seals at head ports and split

Associated Comments:

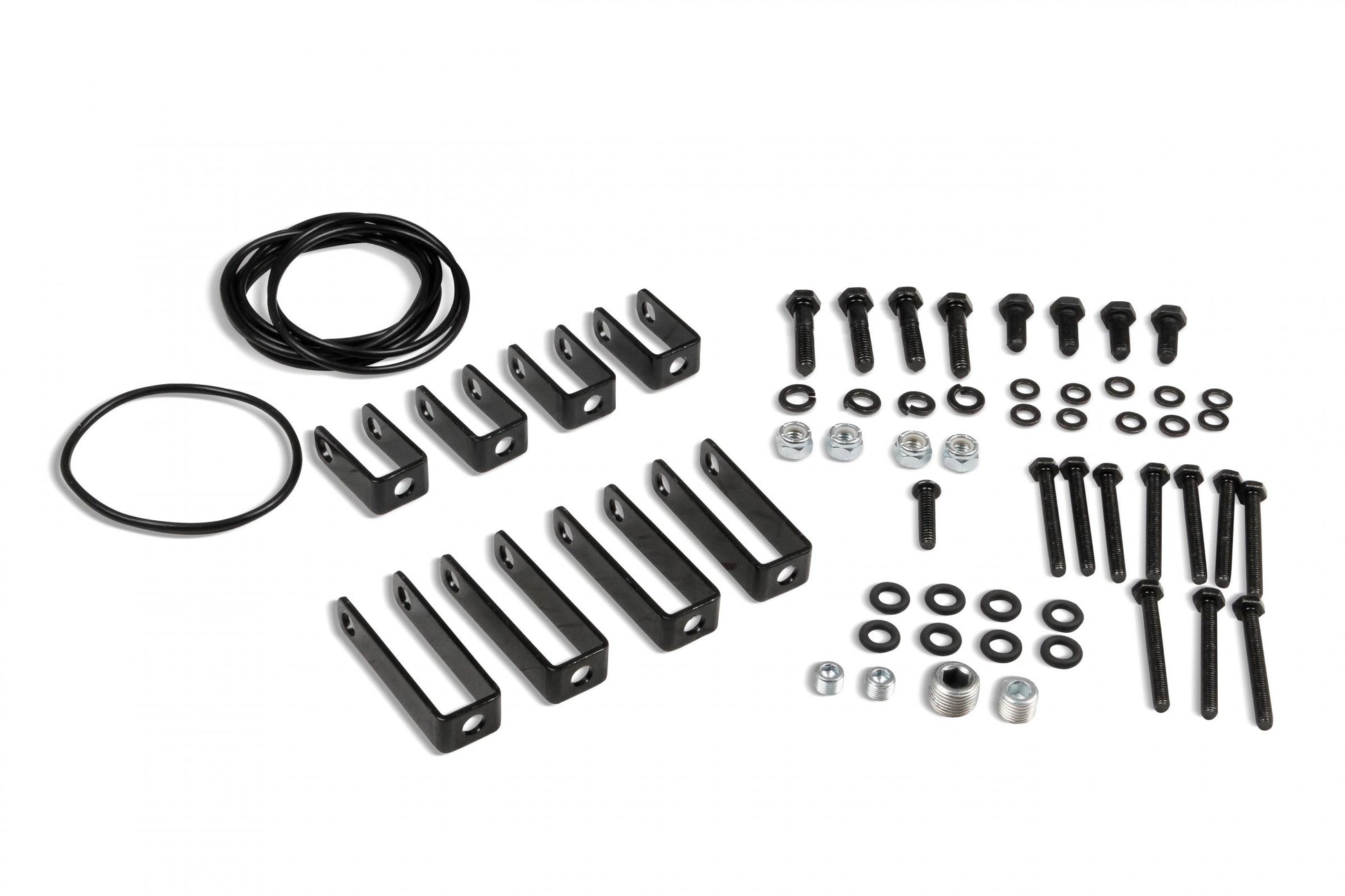

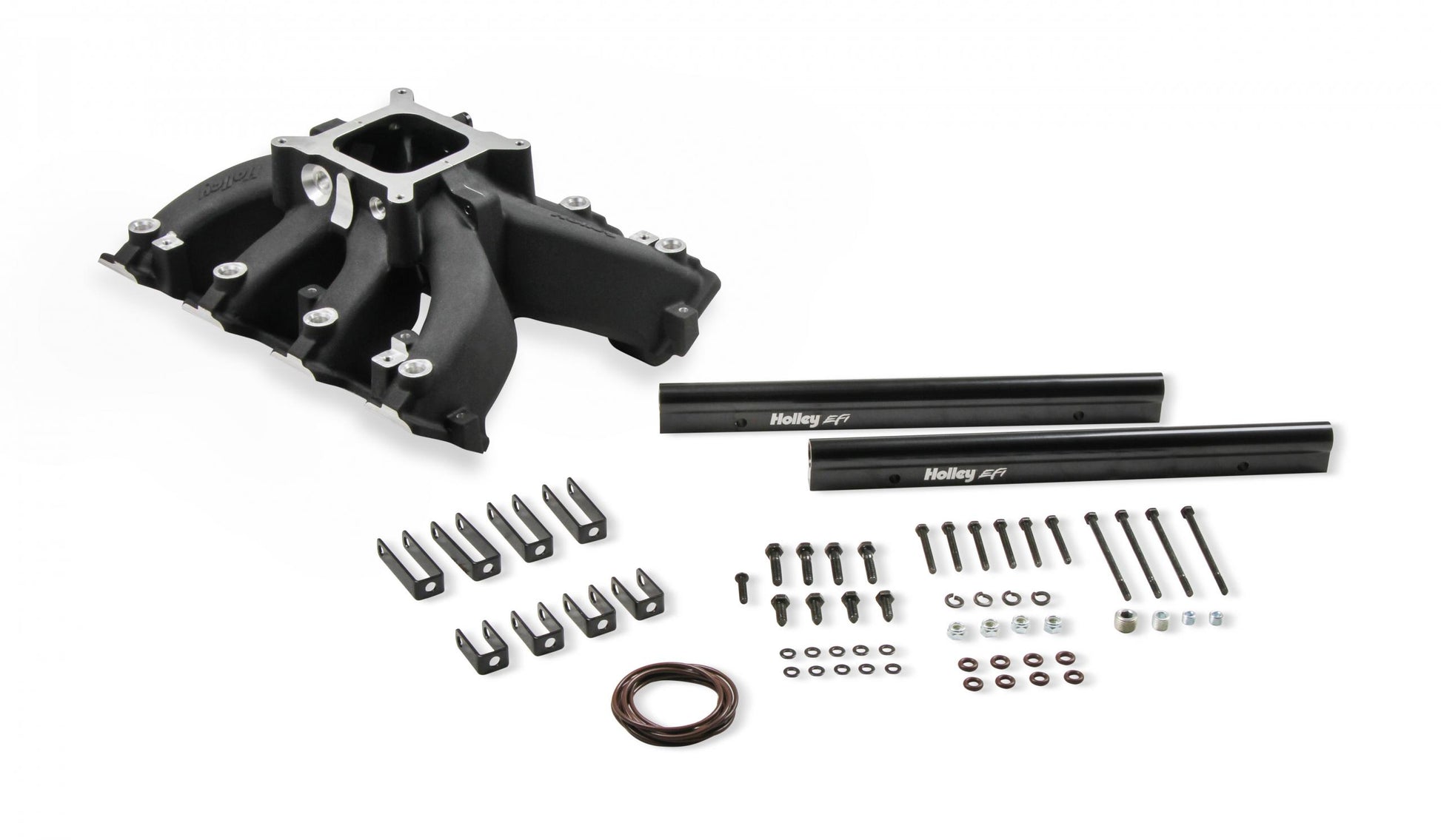

  • Two different length fuel rail bracket sets are included; the long brackets are for mounting the fuel rails at a height for Bosch style EV1 type fuel injectors. The short brackets are for mounting the fuel rails at a height for Gm Oe LS7 fuel injectors.
  • When using the Oe Gm LS7 injector, the O-ring on the outlet (intake manifold) end of the injector must be changed to the O-ring supplied in the short bracket pack.

Details:

  • Barrel Quantity: 4.0
  • Basic Operating RPM Range: 3500-8000 RPM
  • Cnc Ported: No
  • Carburetor Flange: Square/4150
  • Carburetor Quantity: 1.0
  • Carburetor Studs Included: No
  • Color: Black
  • Construction: Cast
  • Cylinder Head Port Shape: Rectangle
  • Deck Height: 9.24 Inch
  • Egr Port: No
  • Engine: Gm LS3/L92
  • Flange Style: 4150 Square Bore
  • Front Maximum Height: 7.32 Inch
  • Fuel Injectors Included: No
  • Fuel Rail(s) Included: No
  • Fuel System Type: EFI
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Intake Port Gasket(s) Included: No
  • Manifold Type: Split Single Plane
  • Material: Aluminum
  • Nitrous Bung(s) Included: No
  • Plenum Finish: Black
  • Rear Maximum Height: 7.32 Inch
  • Recommended Use: Forced Induction
  • Removable Runners: No
  • Removable Top/Lid: No
  • Single Or Dual Plane Type: Single Plane
  • Throttle Body Bore Diameter: 3.6
  • Throttle Body Gasket Included: No
  • Throttle Body Included: No
  • Vacuum Ports: Yes
  • Warranty: Manufacturer's Limited 90 Day Warranty
