1 12

MSD Ignition

6430

$522.95
$522.95
Sale Sold out
Shipping calculated at checkout.
View full details

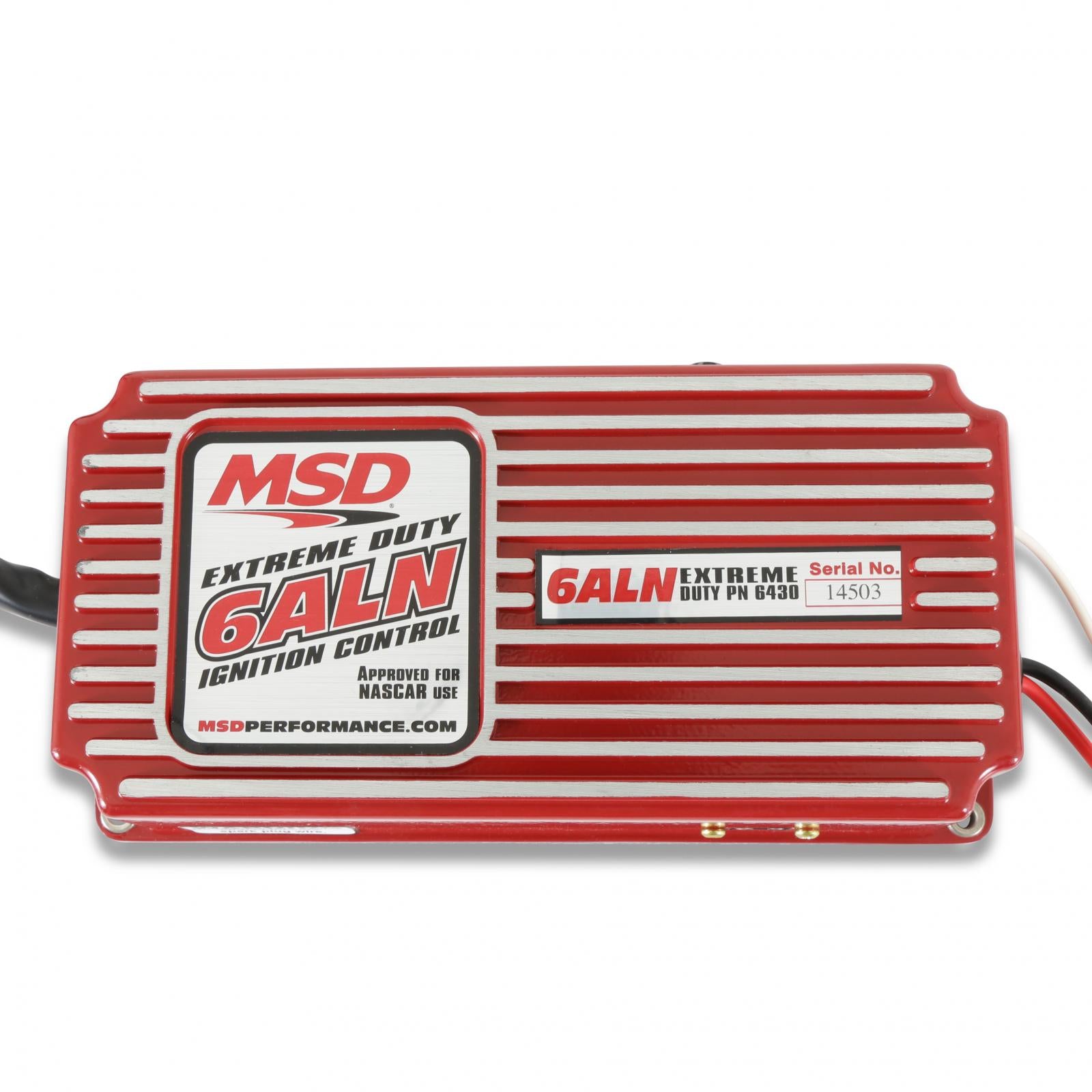

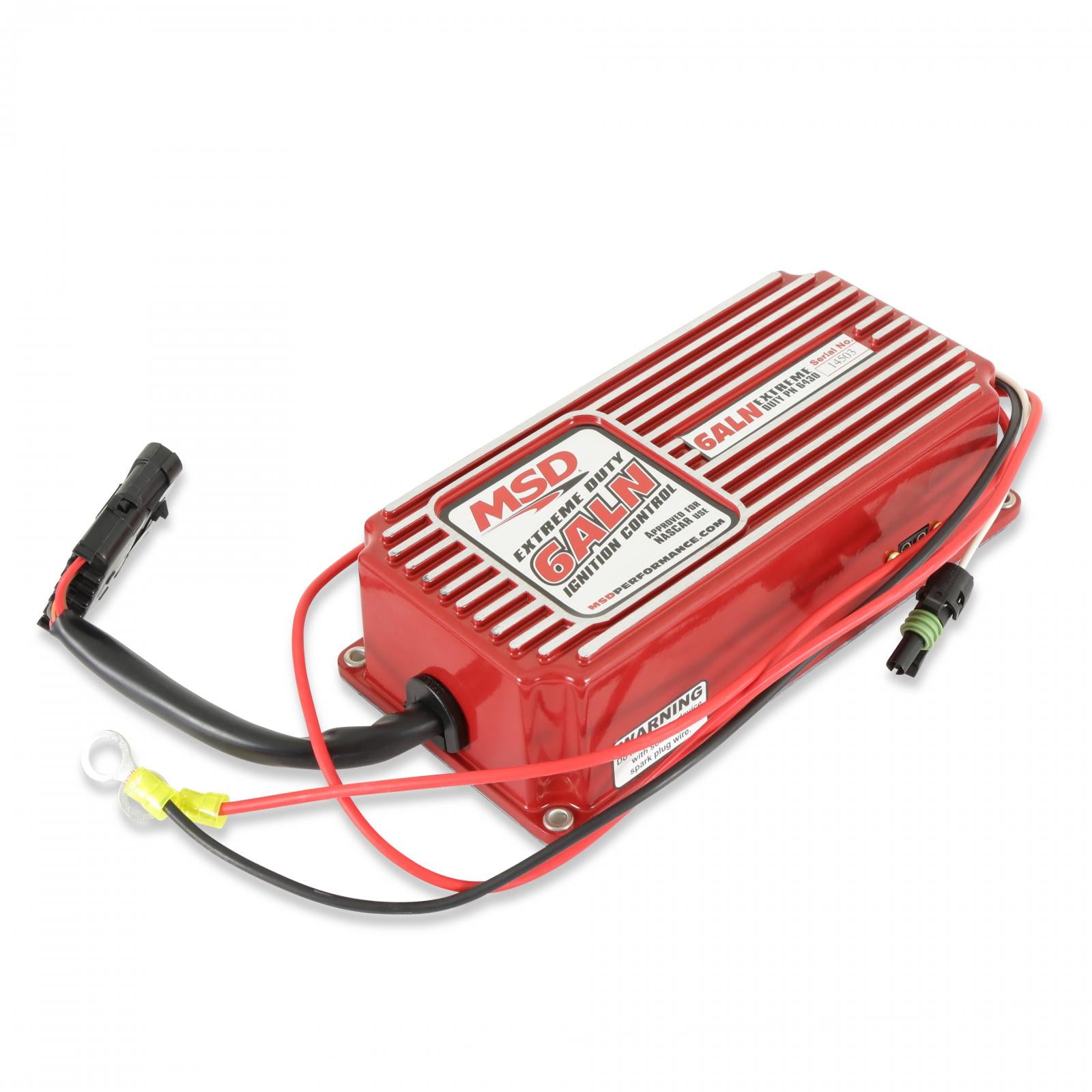

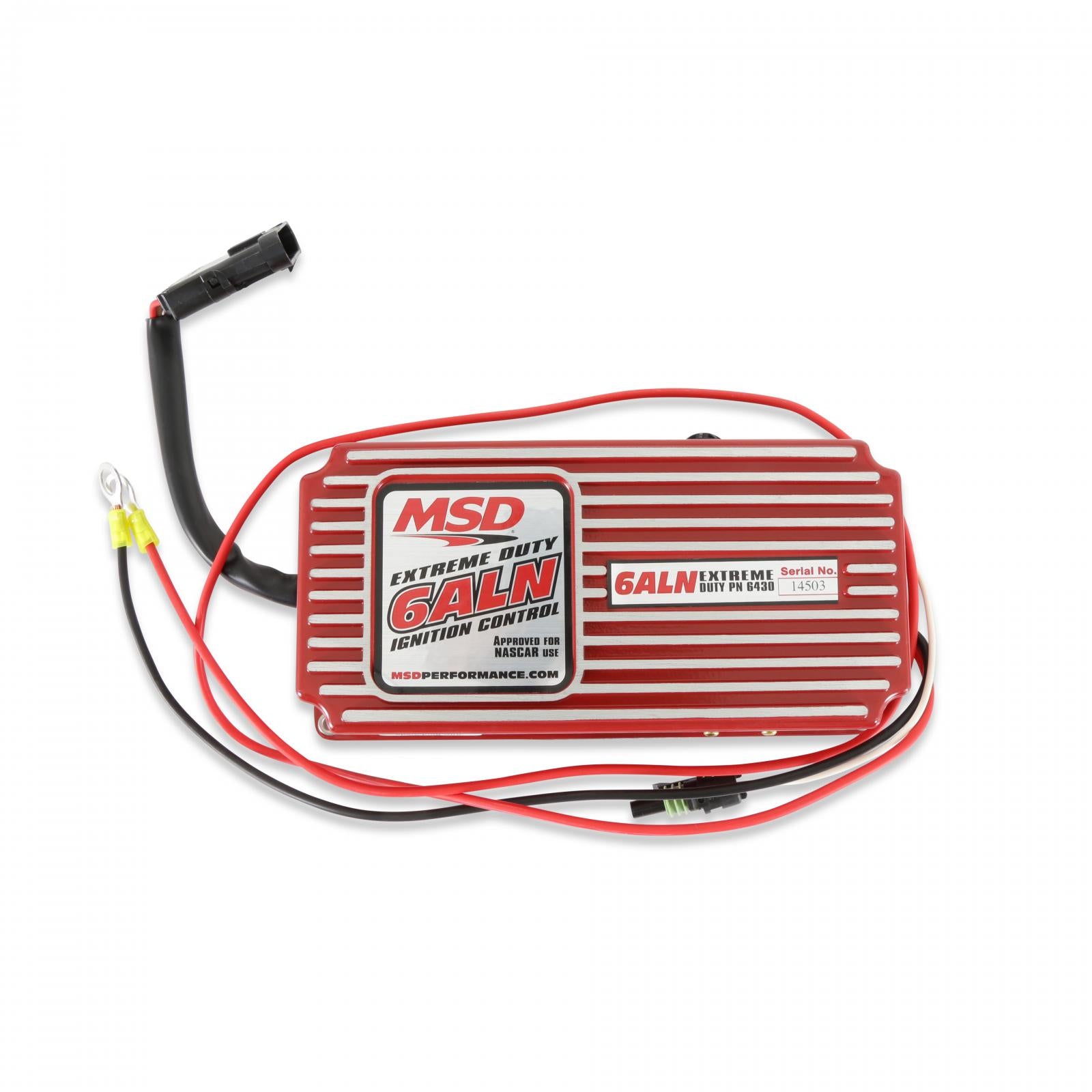

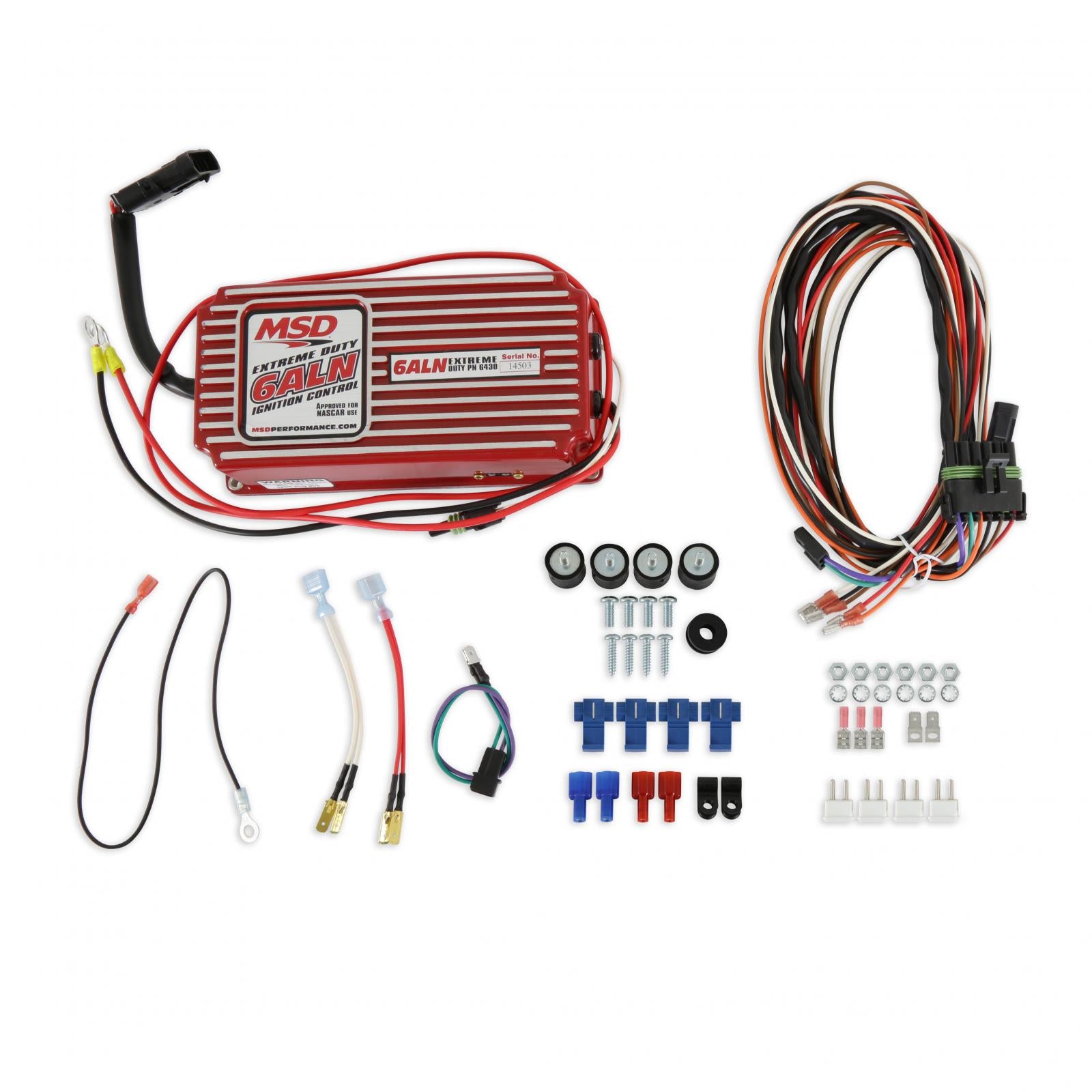

Originally designed with NASCAR in mind, the 6ALN is equipped with the mandatory 6-Pin Weathertight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection.

  • The 6ALN has a built-in Rev Control. These rev controls are adjustable with plug-in modules and will save your engine from over-rev damage caused by
  • missed shifts or driveline failure.
  • Works on 12 - 18 volt electrical system
  • Multiple spark, capacitive discharge ignition control

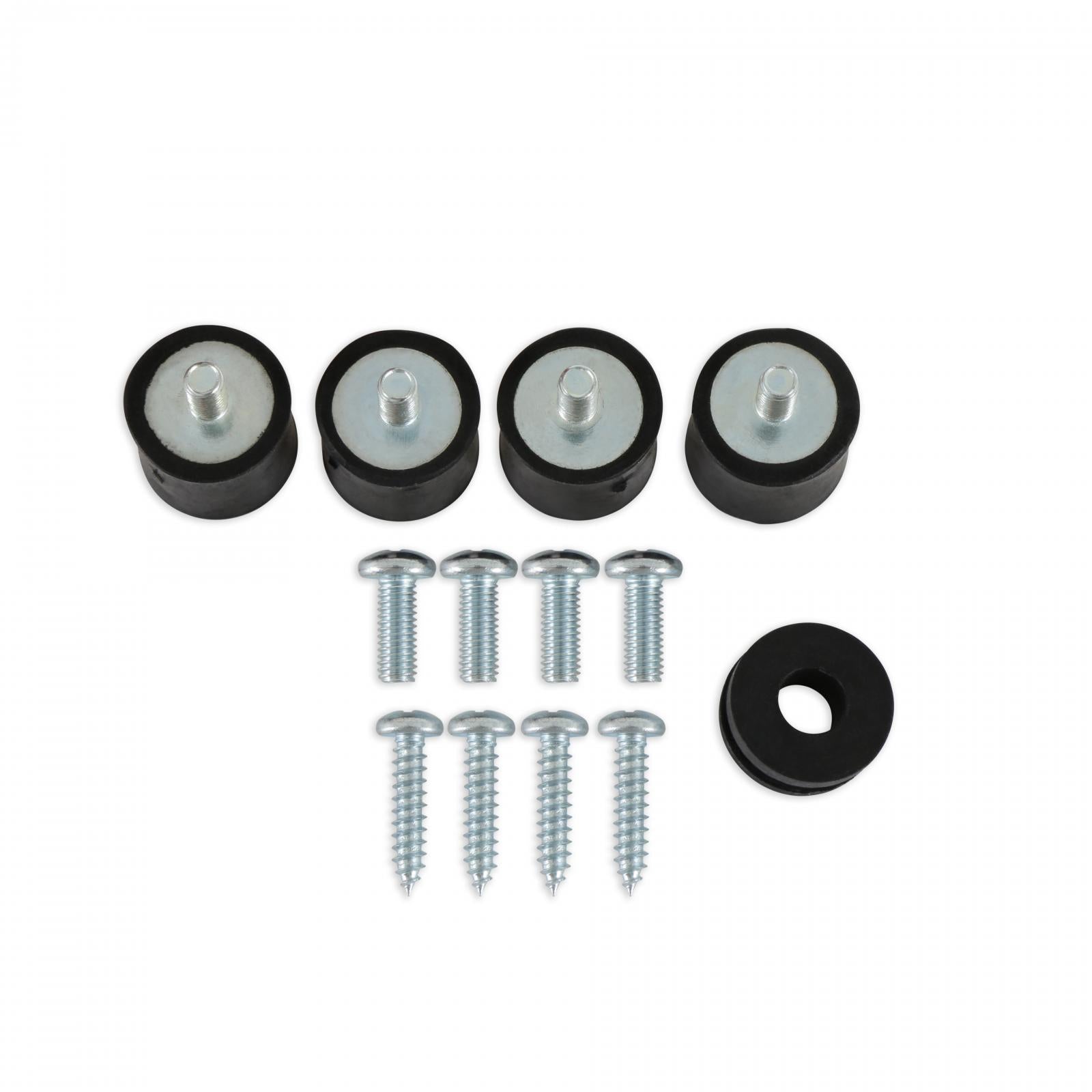

  • Supplied with rubber shock mounts

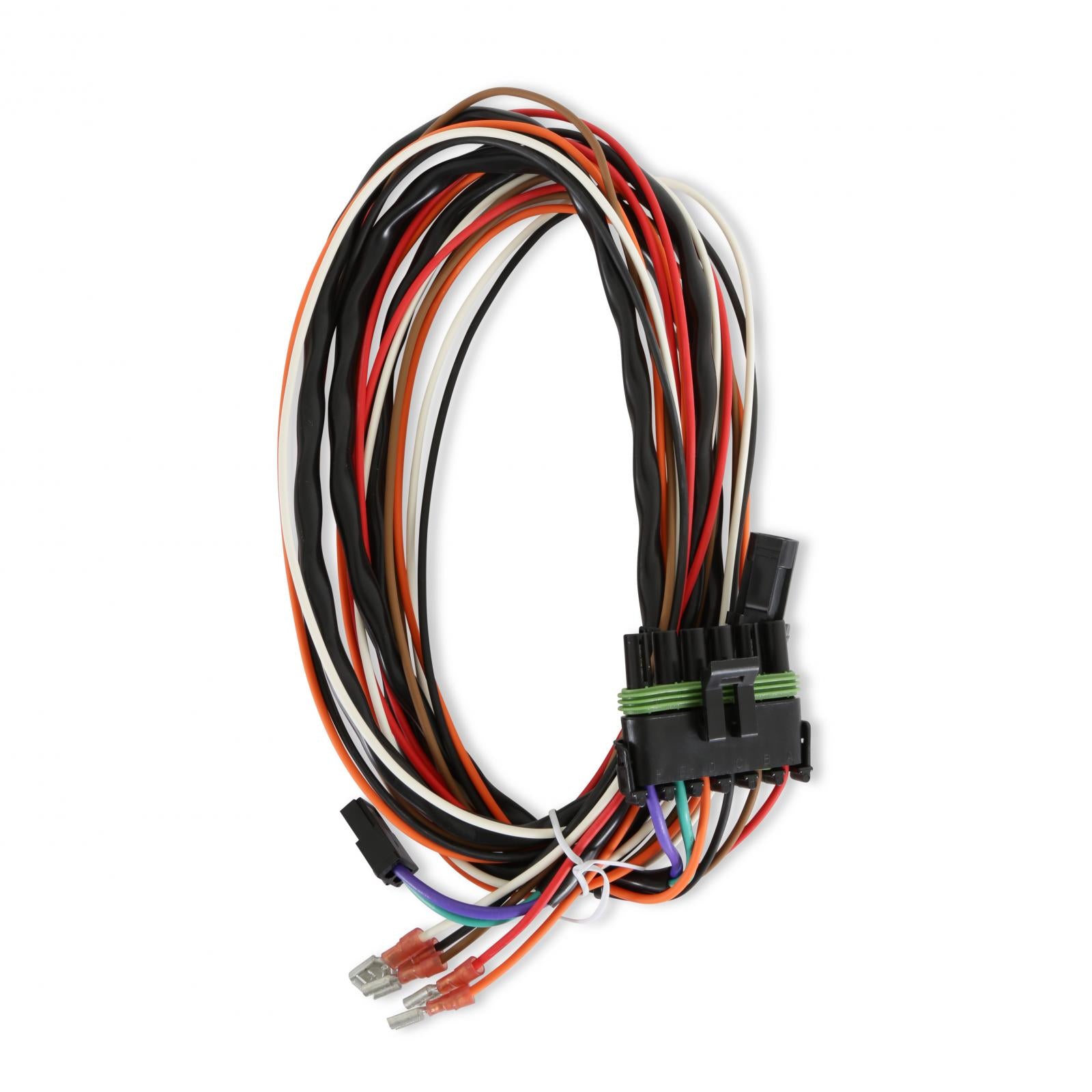

  • 6-pin Weathertight connector, mandatory for NASCAR use
  • Multiple sparks for 20 degrees of crankshaft rotation
  • Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection
  • Circuit board is encased in a clear two part silicone elastomer
  • Built-in Soft Touch Rev Control is adjustable with RPM Modules
  • 470 primary voltage output to coil

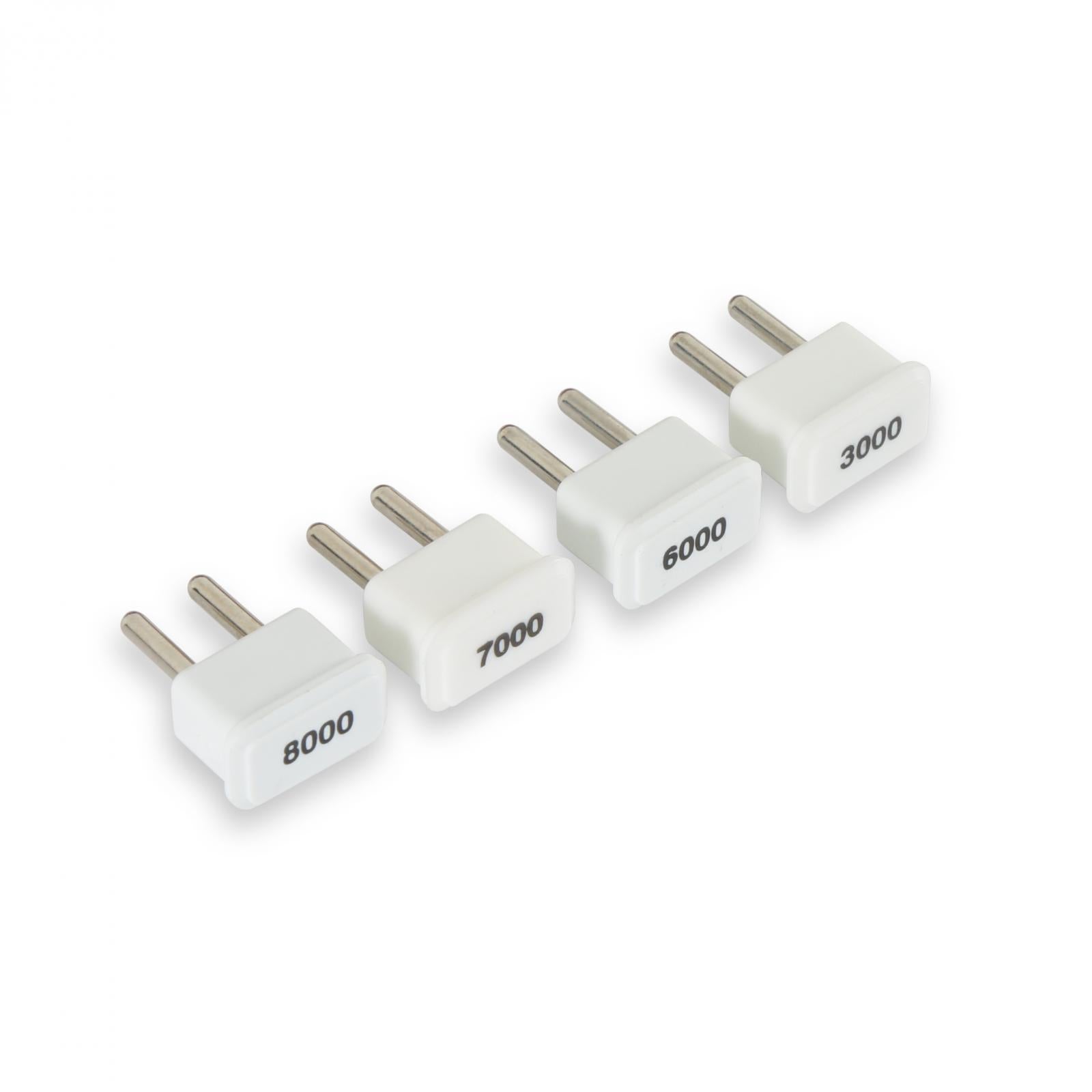

  • Supplied with 3,000, 6,000, 7,000 &amp
  • 8,000 RPM Modules
  • Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
  • 110 millijoules per spark up to 15,000 RPM
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs
  • Clear plastic base plate for easy tech inspection

Details:

  • Connector Gender: Male Female
  • Connector Quantity: 2.0
  • Emission Code: 4
  • Height: 2.9
  • Ignition Type: Performance
  • Length: 10.8
  • Maximum Rpm: 15,000

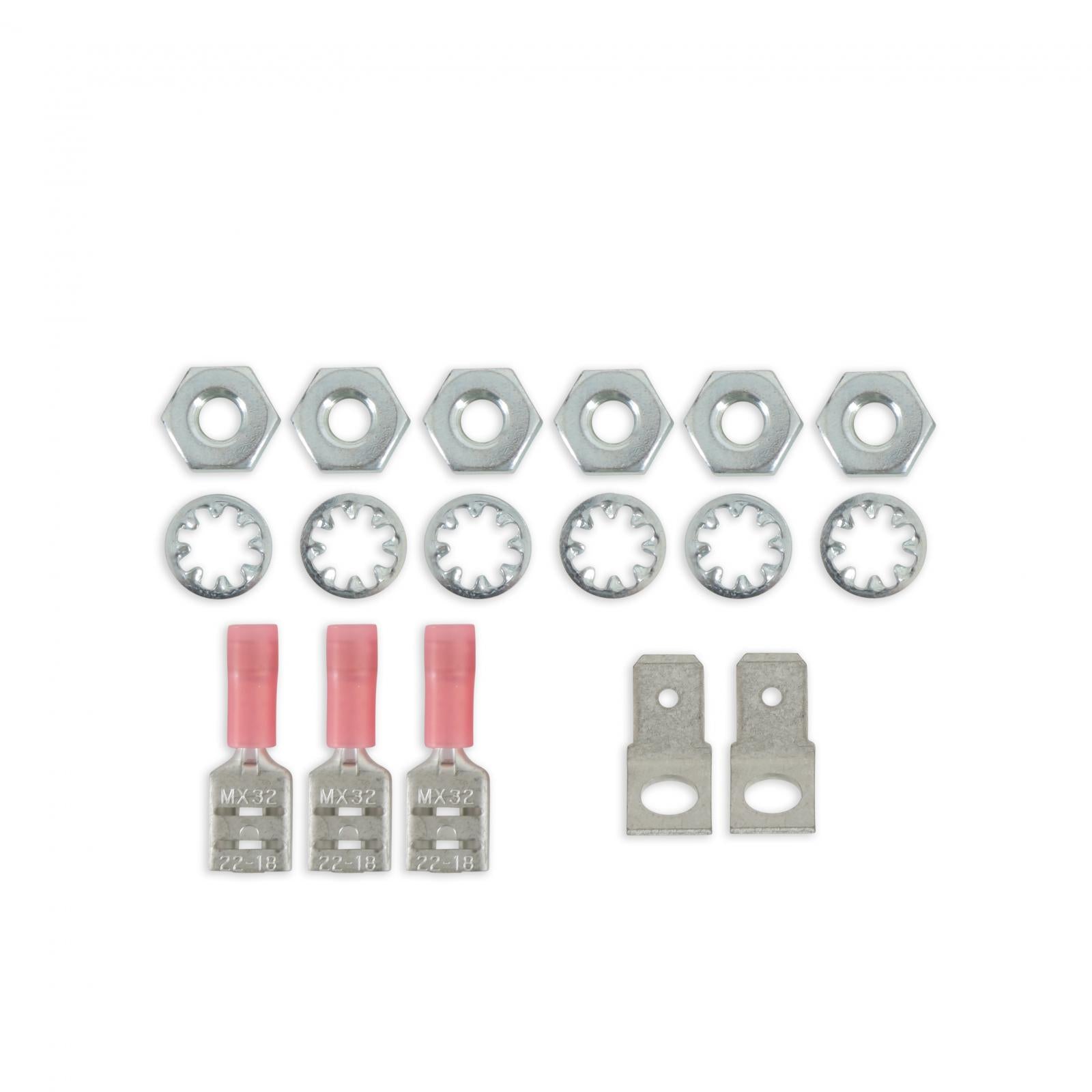

  • Mounting Hardware Included: Yes
  • Mounting Type: Surface Mount
  • Primary Voltage: 470
  • Spark Energy Mj Per Spark: 110
  • Terminal Gender: Male Female
  • Terminal Quantity: 9.0
  • Warranty: Manufacturer's Limited 1 Year Warranty
