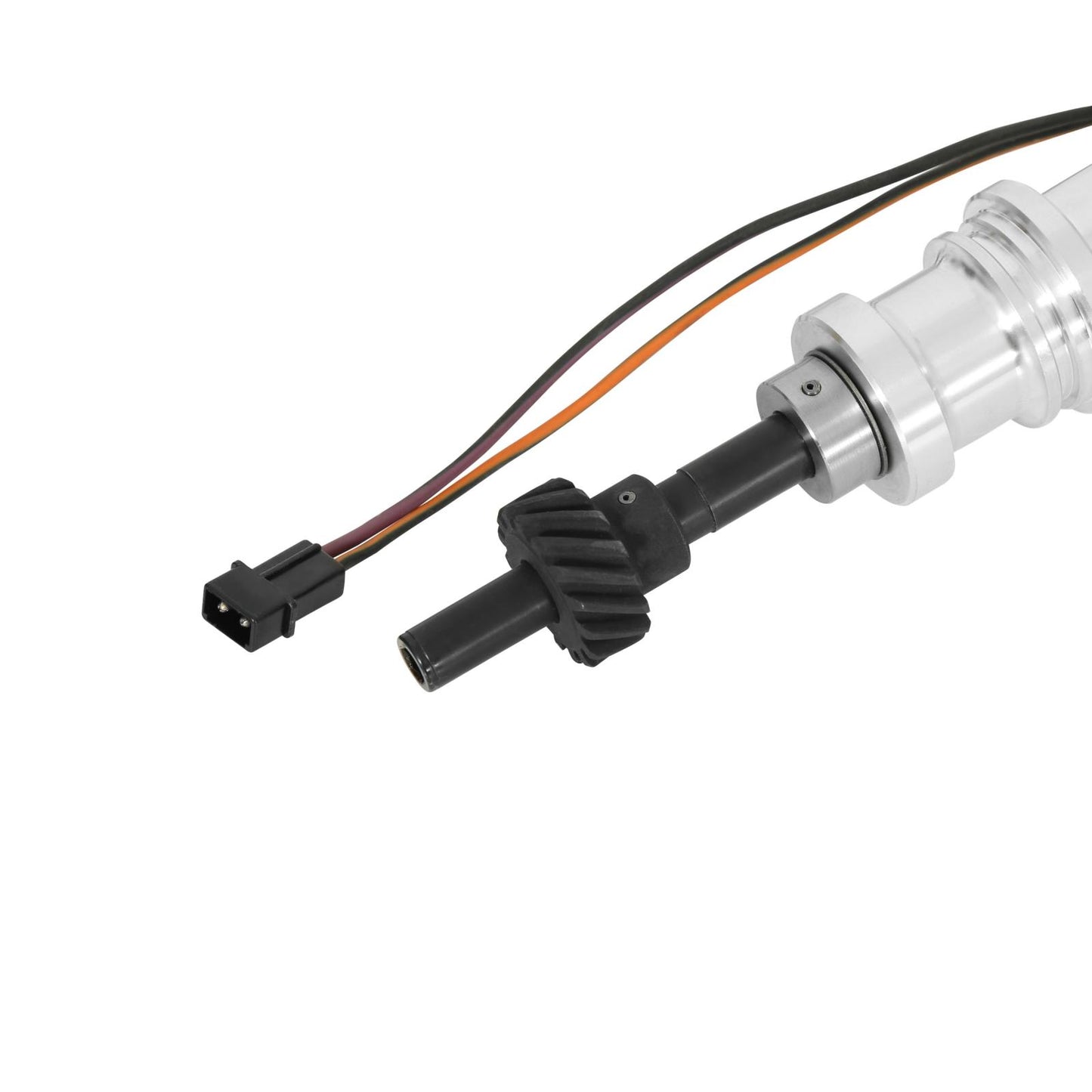

Ford 289/302 Street Pro-Billet Small Diameter Distributor For 289/302 Engines, Includes Iron Gear And Vacuum Advance. Must Be Used With An 6, 7 Or 8-Series MSD Ignition

The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance.

• Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.
• MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8 Inch smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• CNC machined billet aluminum housing and billet aluminum base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Nylon pads ensure smooth operation of the advance weights
• Must be used with an MSD Ignition Control
• Vacuum advance canister for improved economy (can be locked out)
• CARB E.O. Approved
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Mechanical advance assembly can be locked out for crank trigger systems
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance weight pins are staked and tig welded to the plate

Details:

• Distributor Cap Included: Yes
• Distributor Type: Magnetic Pickup
• Emission Code: 1
• Engine: Ford Small Block
• Gear: Cast Iron
• Gear Material: Cast Iron Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
