Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear

  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-1
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-2
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-3
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-4
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-1
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-2
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-3
  • Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline W/Abs 29 Inch Long USA Standard Gear-4
1 10

USA Standard Gear

ZA K630103

$191.89
$191.89
Sale Sold out
Shipping calculated at checkout.
View full details

USA Standard Gear uses advanced alloys and the latest heat-treating technologies to produce a strong, durable axle. This kit contains all the components to replace, repair, or upgrade axle shafts so your vehicle will be up and running fast.

  • Fits GM 7.5 inch. Differential
  • Length 29 inch.
  • Rear, 5 Lug
  • 28 Spline
  • 2.25 inch. Od Wheel Bearing

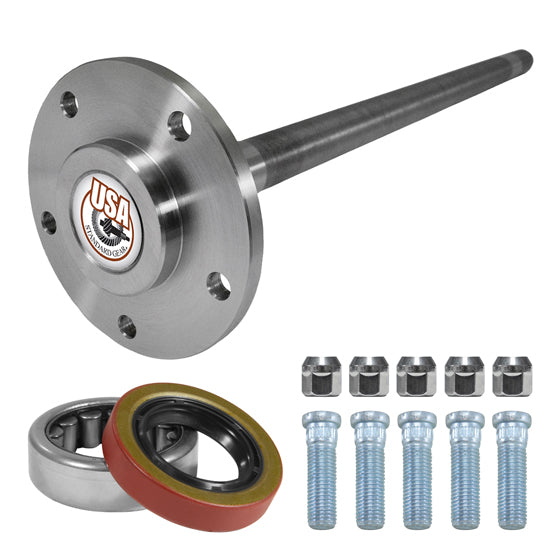

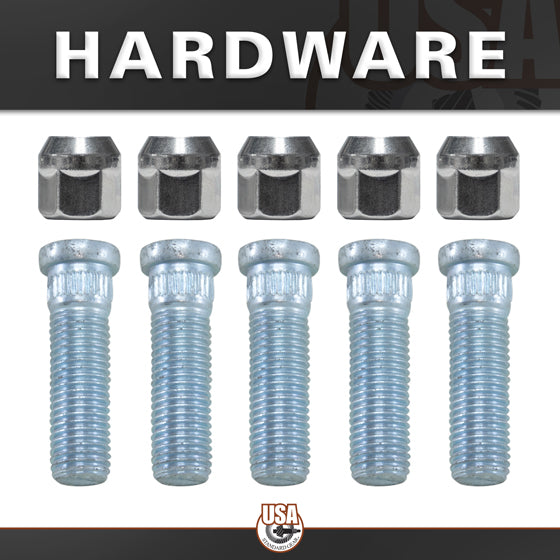

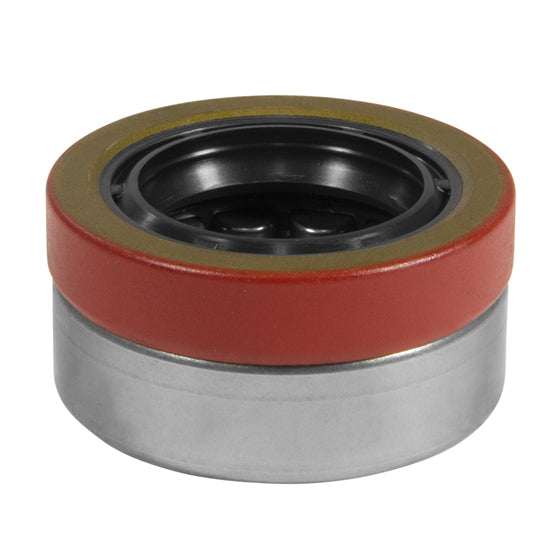

  • Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts

Features and Benefits:

  • Fits GM 7.5 inch. Differential
  • Length 29 inch.
  • Rear, 5 Lug
  • 28 Spline
  • 2.25 inch. Od Wheel Bearing
  • Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts

Details:

  • AAP UDA 12:Ea
  • AAP UDA 22:1
  • AAP UDA 4:85
  • Inboard Spline Quantity:28
  • Retainer Included:no
  • Wheel Bolt Pattern Size:5 x 4.75 inch

Application Summary:

1988-1994 Chevrolet S10 Blazer (Rear) (Drive: 4WD / Note: GM 7.5 inch. / 7.625 inch. Rear

  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1988-1997 Chevrolet S10 (Rear) (Drive: 4WD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1988-1991 GMC S15 Jimmy (Rear) (Drive: 4WD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1988-1990 GMC S15 (Rear) (Drive: 4WD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1991-1997 GMC Sonoma (Rear) (Drive: 4WD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1991 GMC Syclone (Rear) (Drive: AWD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1992-1993 GMC Typhoon (Rear) (Drive: AWD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)
  • 1991-1997 Oldsmobile Bravada (Rear) (Drive: AWD / Note: GM 7.5 inch. / 7.625 inch. Rear
  • Axle Shaft Kit (1 Side)
  • 28spl
  • 4WD & AWD
  • 29, 5 Lug
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts, Without Rear ABS)

Vehicle Fitment

Year Make Model Trim
1988–1990 GMC S15 —
1988–1991 GMC S15 Jimmy —
1988–1994 Chevrolet S10 Blazer —
1988–1997 Chevrolet S10 —
1991 GMC Syclone —
1991–1994 Oldsmobile Bravada —
1991–1997 GMC Sonoma —
1992–1993 GMC Typhoon —
1996–1997 Oldsmobile Bravada —
