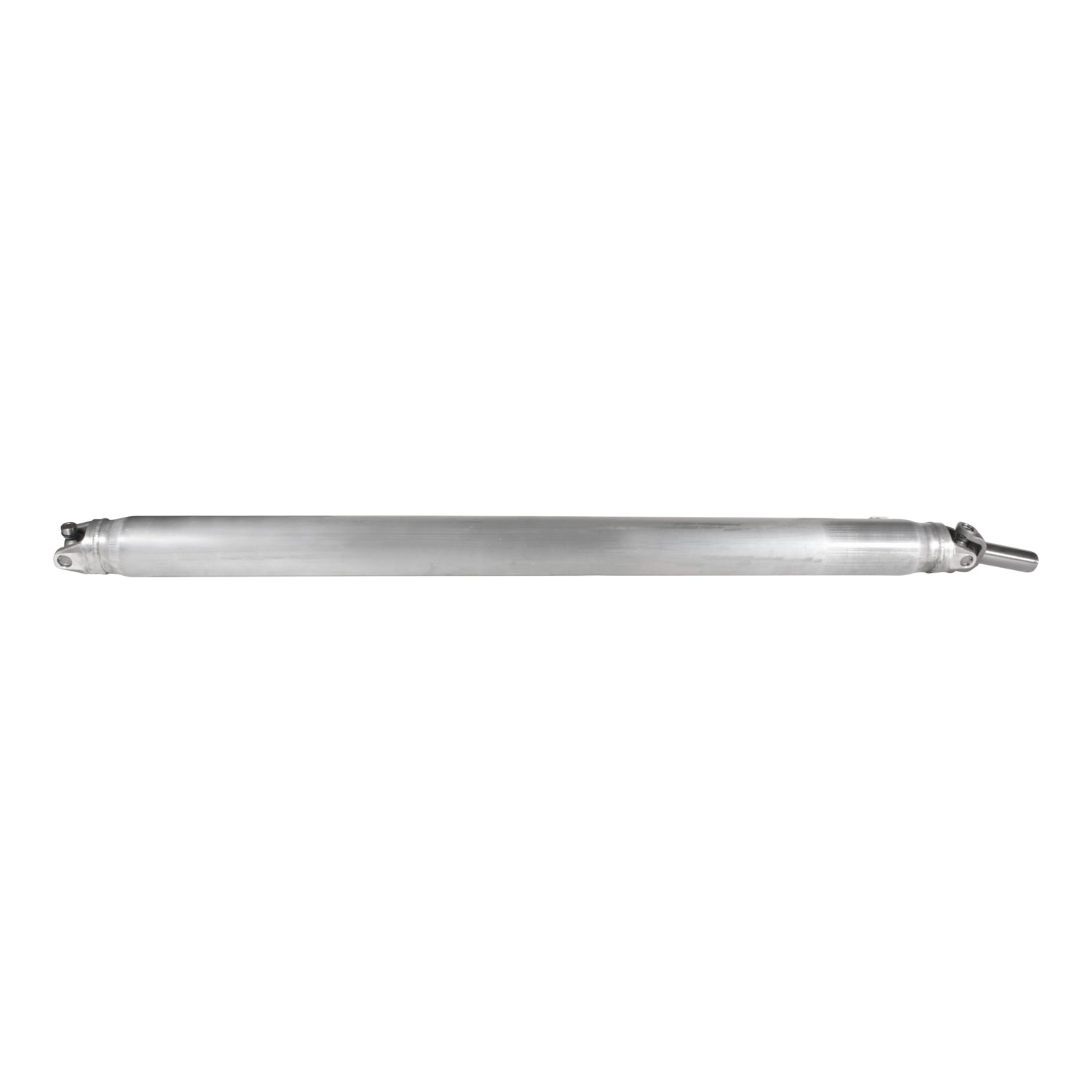

Aluminum Driveshaft For Chevy Silverado/GMC Sierra 4Wd 68.25 Inch Long USA Standard Gear

  • Aluminum Driveshaft For Chevy Silverado/GMC Sierra 4Wd 68.25 Inch Long USA Standard Gear
  • Aluminum Driveshaft For Chevy Silverado/GMC Sierra 4Wd 68.25 Inch Long USA Standard Gear-1
  • Aluminum Driveshaft For Chevy Silverado/GMC Sierra 4Wd 68.25 Inch Long USA Standard Gear-2
  • Aluminum Driveshaft For Chevy Silverado/GMC Sierra 4Wd 68.25 Inch Long USA Standard Gear-3
1 4

USA Standard Gear

ZDS105004A

$551.89
$551.89
Sale Sold out
Shipping calculated at checkout.
View full details

This USA Standard Gear driveshaft is built new from high-grade aluminum and many components have been upgraded from OEM to eliminate known issues. They're computer balanced and maintenance free, resulting in a superior driveshaft.

  • Fits 1999-2005 extended/crew cab Chevy Silverado/GMC Sierra 4WD
  • Measures 68.25 from centerline of slip yoke u-joint located to centerline of opposite u-joint
  • 32 spline slip yoke
  • Mechanics 3R rear u-joint w/1.125 cap diameter
  • Brand new and fully assembled for simple out-of-the-box replacement
  • Slip yokes & u-joints are lubricated with high temperature grease
  • USA Standard driveshafts are strengthened over common Oe shafts to prevent Oe failure
  • USA Standard Perfect Fit driveshafts are guaranteed for proper fitment and easy installation
  • All units are dynamically balanced at 3,000+ rpm for vibration-free driving

Features and Benefits:

  • Fits 1999-2005 extended/crew cab Chevy Silverado/GMC Sierra 4WD
  • Measures 68.25 from centerline of slip yoke u-joint located to centerline of opposite u-joint
  • 32 spline slip yoke
  • Mechanics 3R rear u-joint w/1.125 cap diameter
  • Brand new and fully assembled for simple out-of-the-box replacement
  • Slip yokes & u-joints are lubricated with high temperature grease
  • USA Standard driveshafts are strengthened over common Oe shafts to prevent Oe failure
  • USA Standard Perfect Fit driveshafts are guaranteed for proper fitment and easy installation
  • All units are dynamically balanced at 3,000+ rpm for vibration-free driving

Details:

  • AAP UDA 4:70
  • End 1 Type:Mechanics 3R (S44) U-Joint
  • End 2 Type:Female Slip
  • Inboard Spline Quantity:32
  • Overall Length:75.6 inch
  • Shaft Diameter:4.75 inch
  • Shaft Material:Aluminum
  • Slip Yoke:Yes
  • Universal Joints Included:Yes

Application Summary:

1999-2005 Chevrolet Silverado 1500 (Rear) (Bed Length: 78.0, 68.4 & Body: Extended Cab Pickup, Crew Cab Pickup & Wheel Base: 143.5 & Drive: 4WD / Qualifier: with 75.6 (in) Overall Length / Note: Aluminum Rear Driveshaft

  • 68-1/4 inch. measured from centerline of U-Joint located at the slip yoke end to the centerline of the U-Joint on the opposite end
  • 32 Spline Slip Yoke
  • Mechanics 3R Rear U/Joint (1.125 inch. Cap Diameter)
  • Replaces Oe 15751438, 15165400, 15746002)
  • 1999-2005 GMC Sierra 1500 (Rear) (Bed Length: 78.0, 68.4 & Body: Extended Cab Pickup, Crew Cab Pickup & Wheel Base: 143.5 & Drive: 4WD / Qualifier: with 75.6 (in) Overall Length / Note: Aluminum Rear Driveshaft
  • 68-1/4 inch. measured from centerline of U-Joint located at the slip yoke end to the centerline of the U-Joint on the opposite end
  • 32 Spline Slip Yoke
  • Mechanics 3R Rear U/Joint (1.125 inch. Cap Diameter)
  • Replaces Oe 15751438, 15165400, 15746002)
