Clutch Installation Kit Includes Flywheel, Clutch, Hydraulic Release Bearing, Hardware Fits GM 6 Bolt LS Engines with T-56 Transmission Holley

This Kit includes all the hardware and components needed for a complete clutch install on a 6-bolt crank Ls engine using a T-56 transmission. A 12-inch organic disc with a 6 spring helix sprung hub provides the superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street.

This provides 30 percent more clamping pressure and transmits that through a Billet steel flywheel.

Features and Benefits:

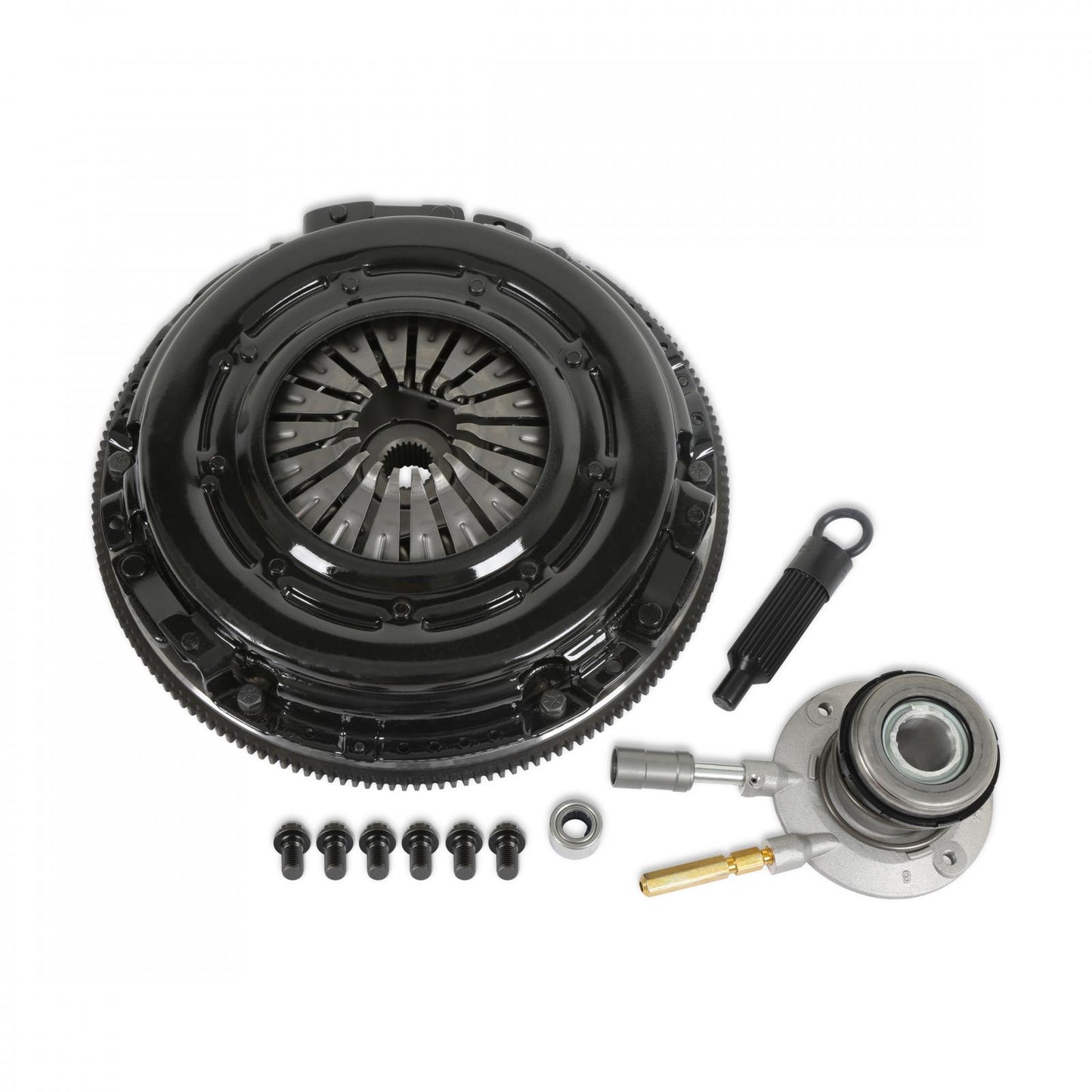

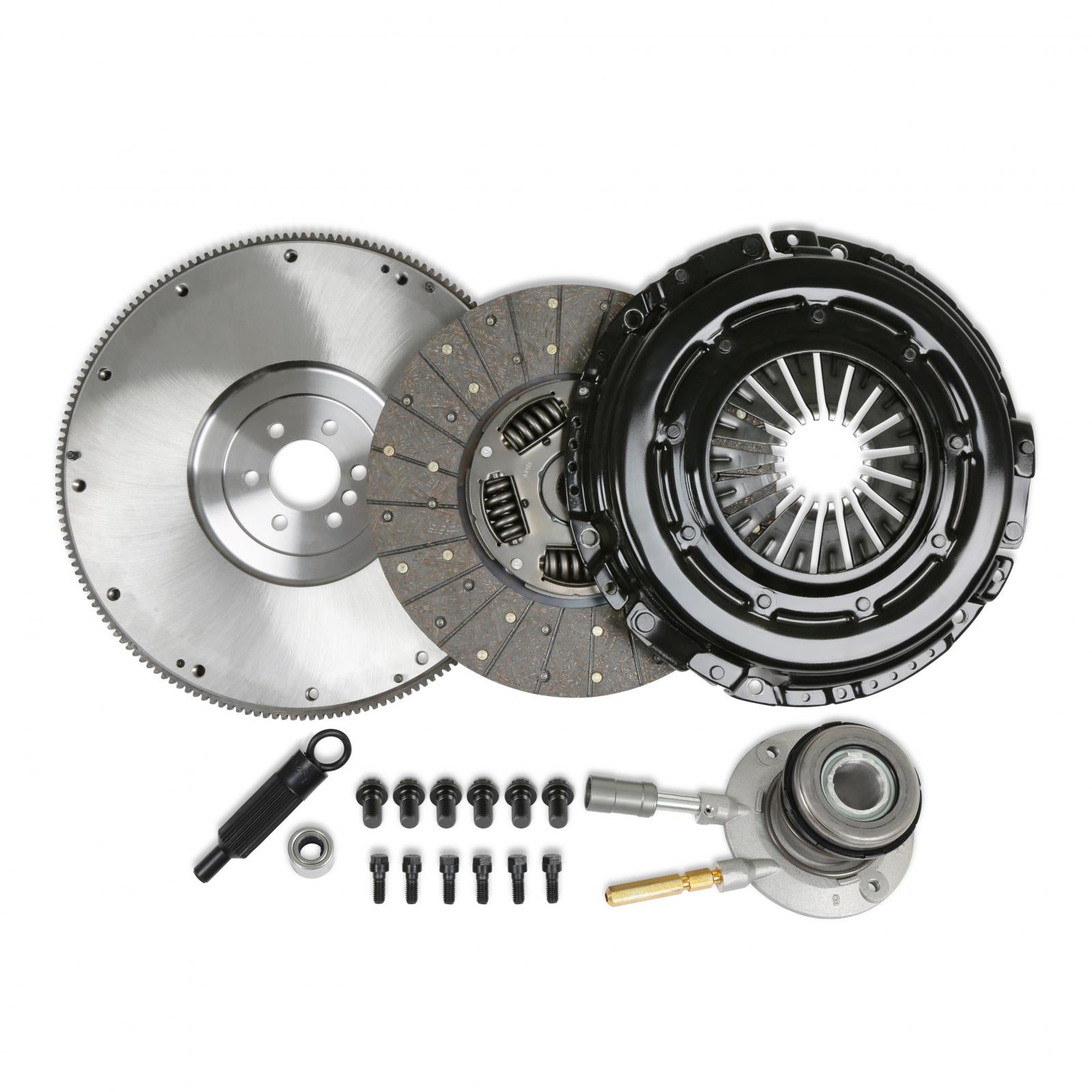

• Includes Pressure Plate, Disk, Flywheel, Alignment Tool, Pilot Bearing, Pressure Plate Bolts, Flywheel Bolts and Hydraulic release bearing (hydraulic release bearing to transmission bolts not included) 12-inch Organic Single Disc Clutch with 1-1/8-inch 26 Spline Hub for Ls Engines with 6 Bolt Crankshaft 6-Bolt Billet Steel Flywheel provides strength and a fresh, new foundation for the clutch Street/Strip Clutch Kit Provides Excellent Holding Strength with a Smooth Daily Driver Pedal Feel Designed for Power Levels up to 550 Naturally Aspirated Horsepower

Associated Comments:

• Allow 500 miles for clutch break in period

Details:

• Alignment Tool Included: Yes
• Cable Included: No

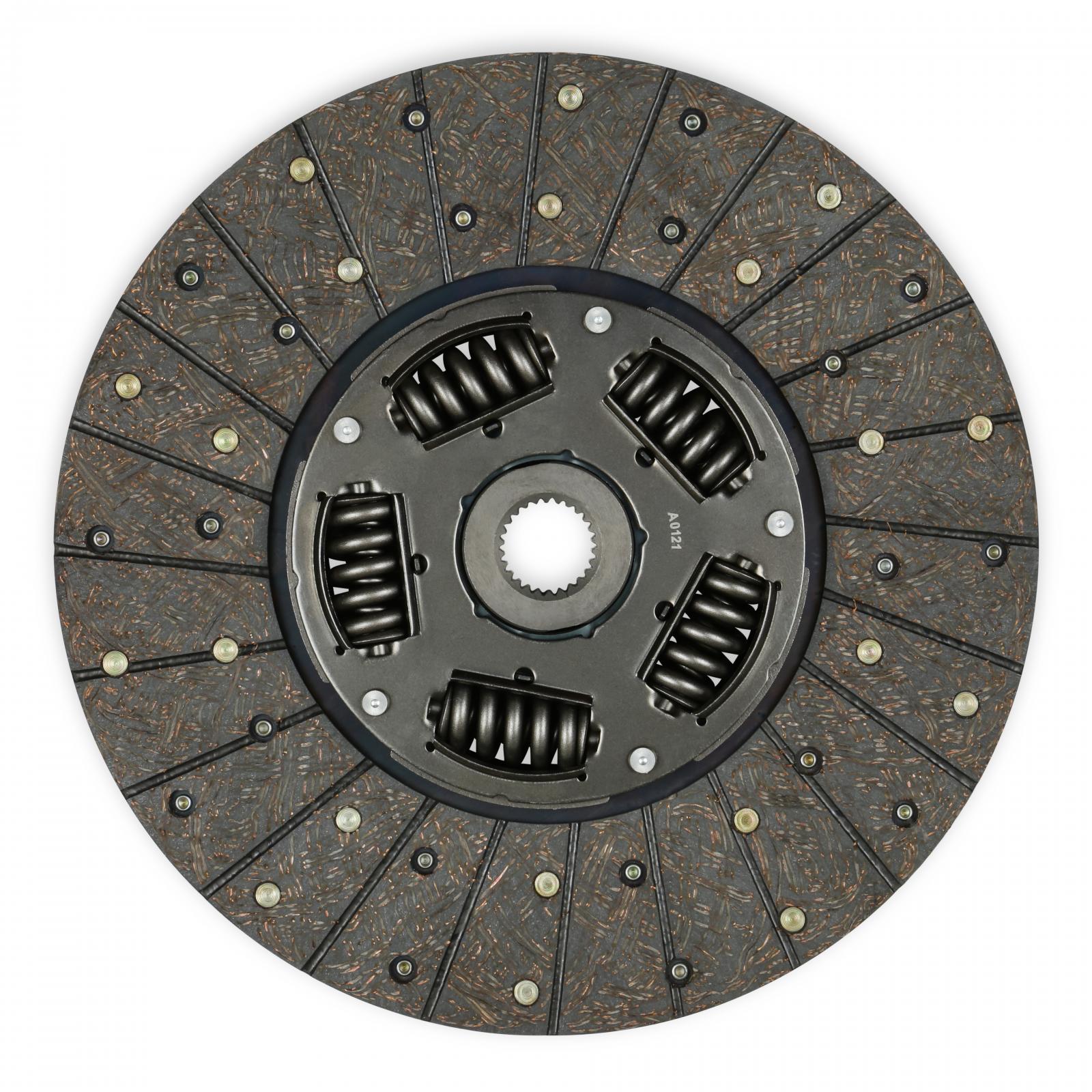

• Disc Diameter: 12.0
• Disc Material: Organic
• Disc Style: Spring Hub
• Disc Type Sprung Solid: Sprung
• Engine: Gm Gen Iii/Iv (Ls)
• Flywheel Bolts Included: Yes

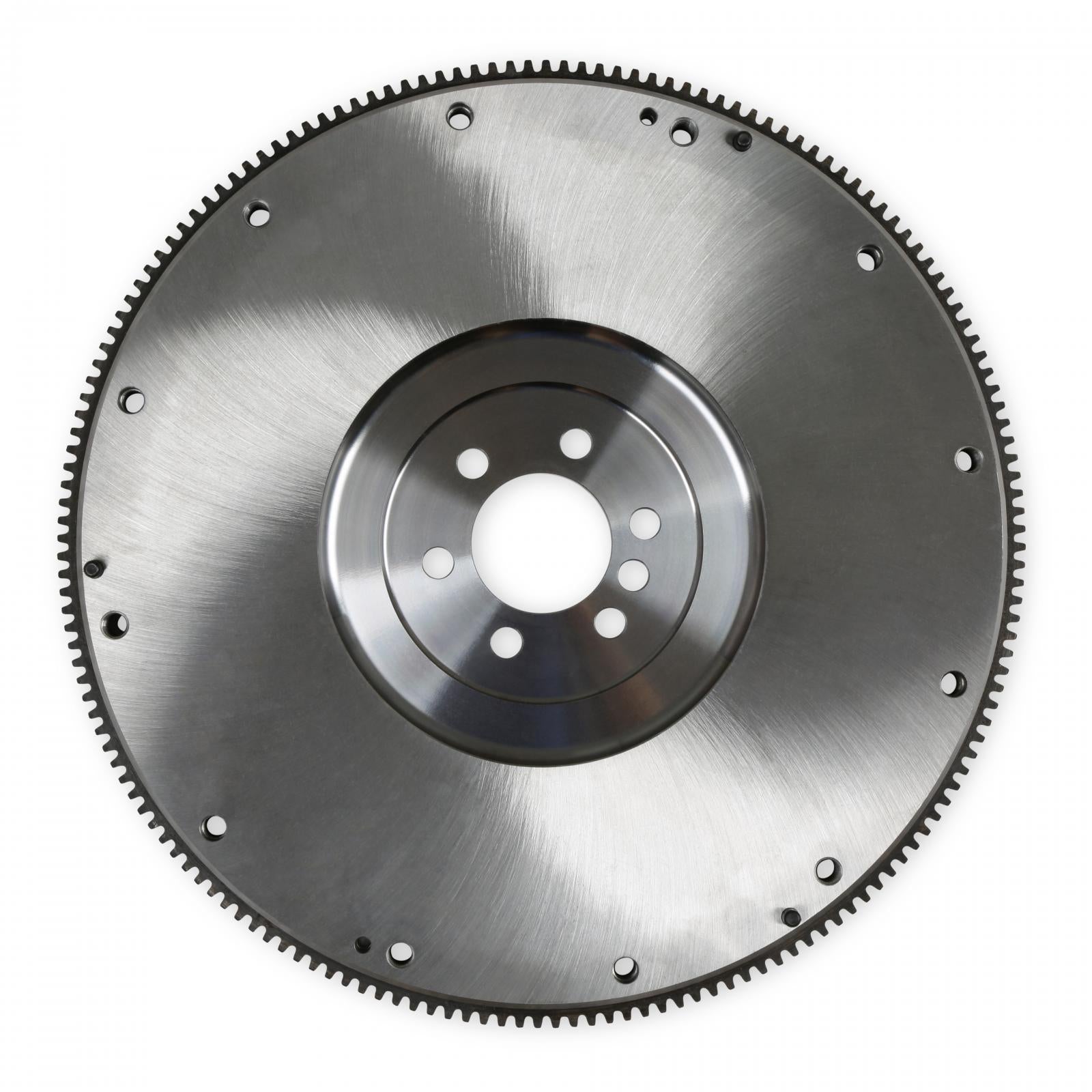

• Flywheel Material: Billet Steel
• Grade Type: Performance
• Grease Included: No
• Hardware: Steel
• Input Shaft Diameter: 1-1/8 inch.
• Input Spline: 26.0
• Input Spline Quantity: 26.0
• Mounting Hardware Included: Yes
• New Or Remanufactured Clutch: New

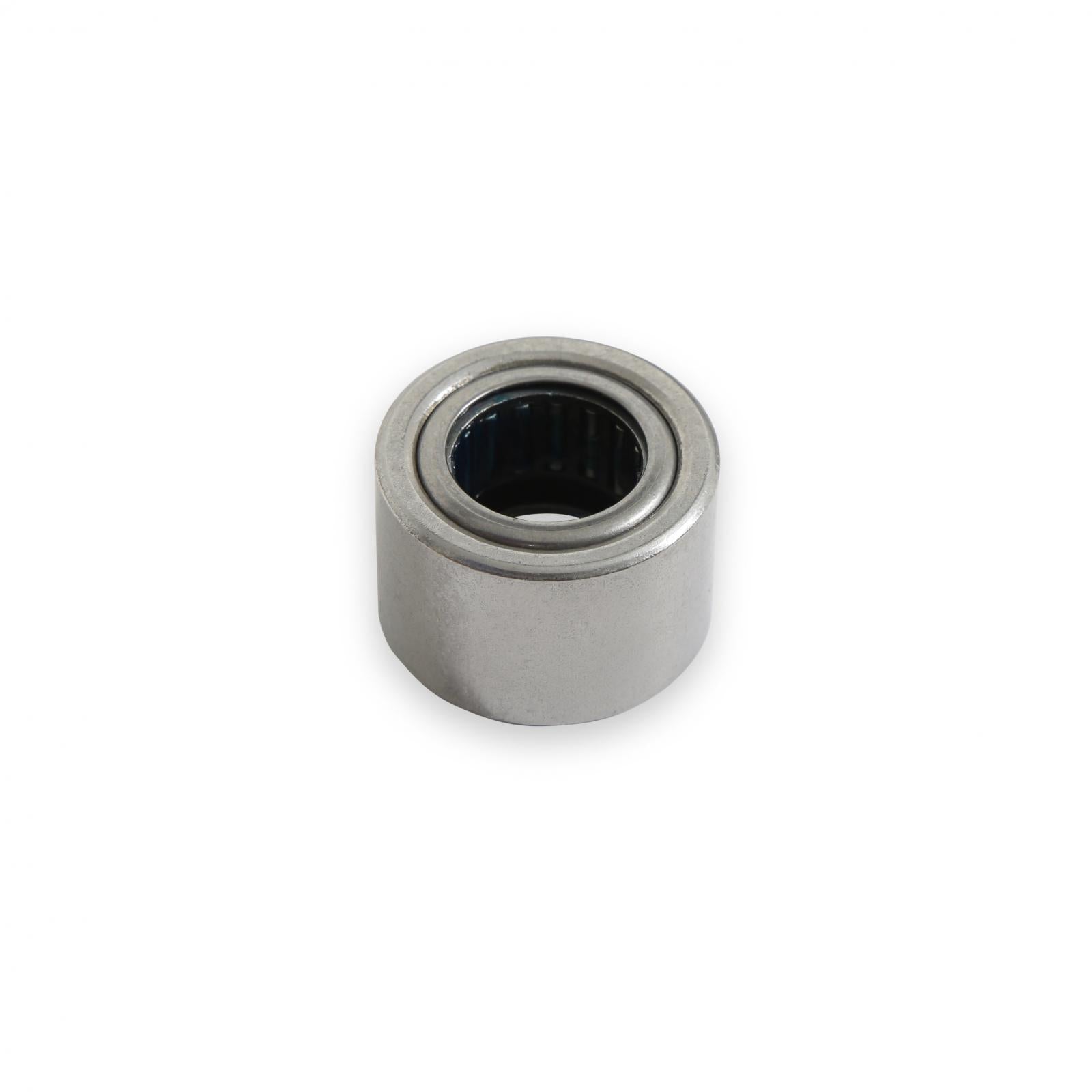

• Pilot Bearing: Roller
• Pilot Bushing Included: Yes
• Pressure Plate Bolts Included: Yes

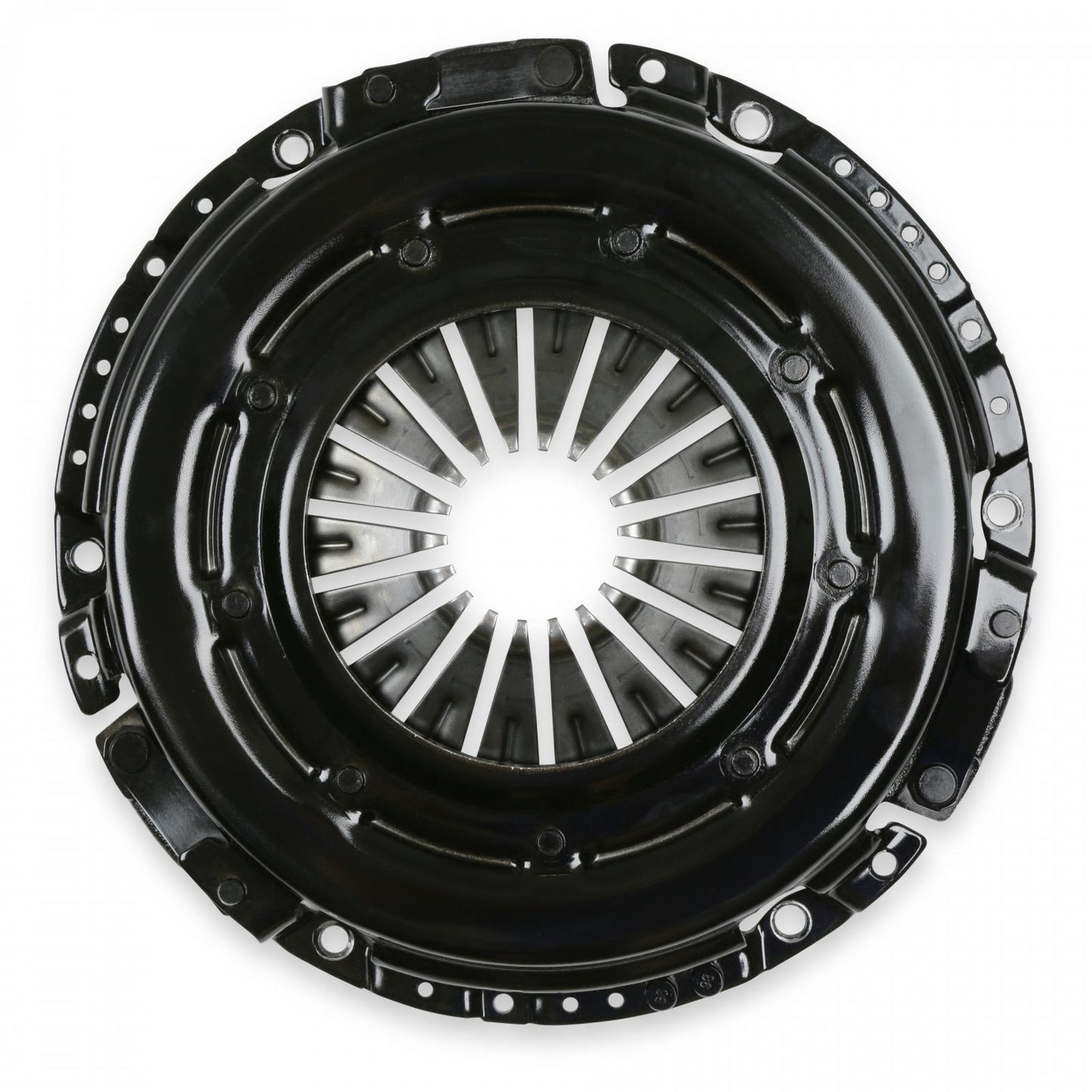

• Pressure Plate Style: Diaphragm

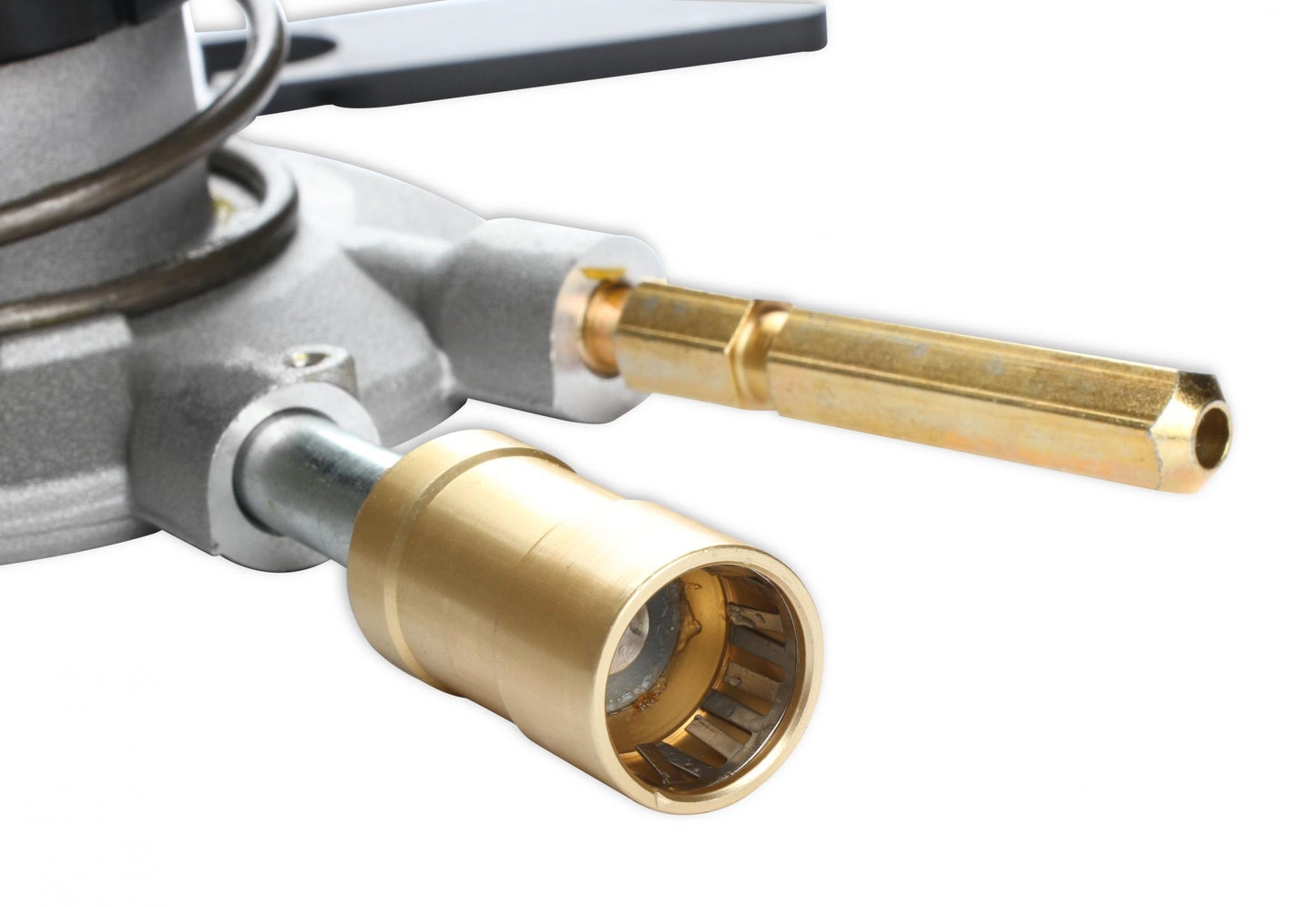

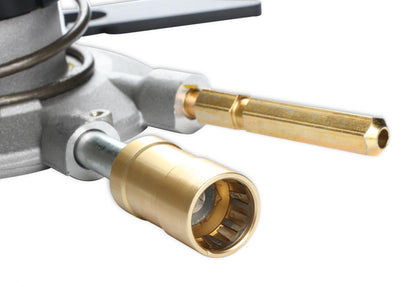

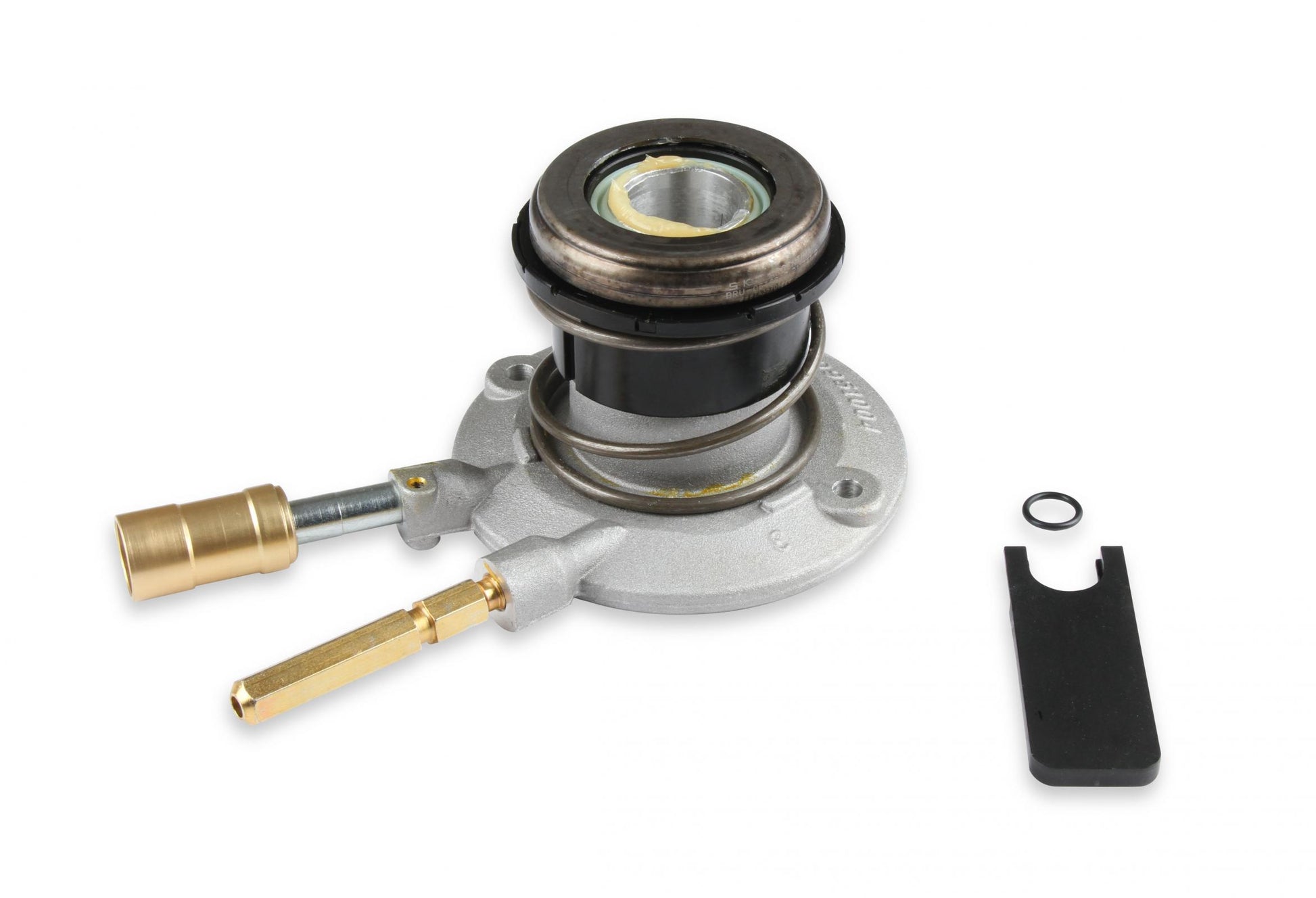

• Release Bearing: Hydraulic
• Release Bearing Included: Yes
• Transmission: T56 Gm | T56 Magnum Gm
