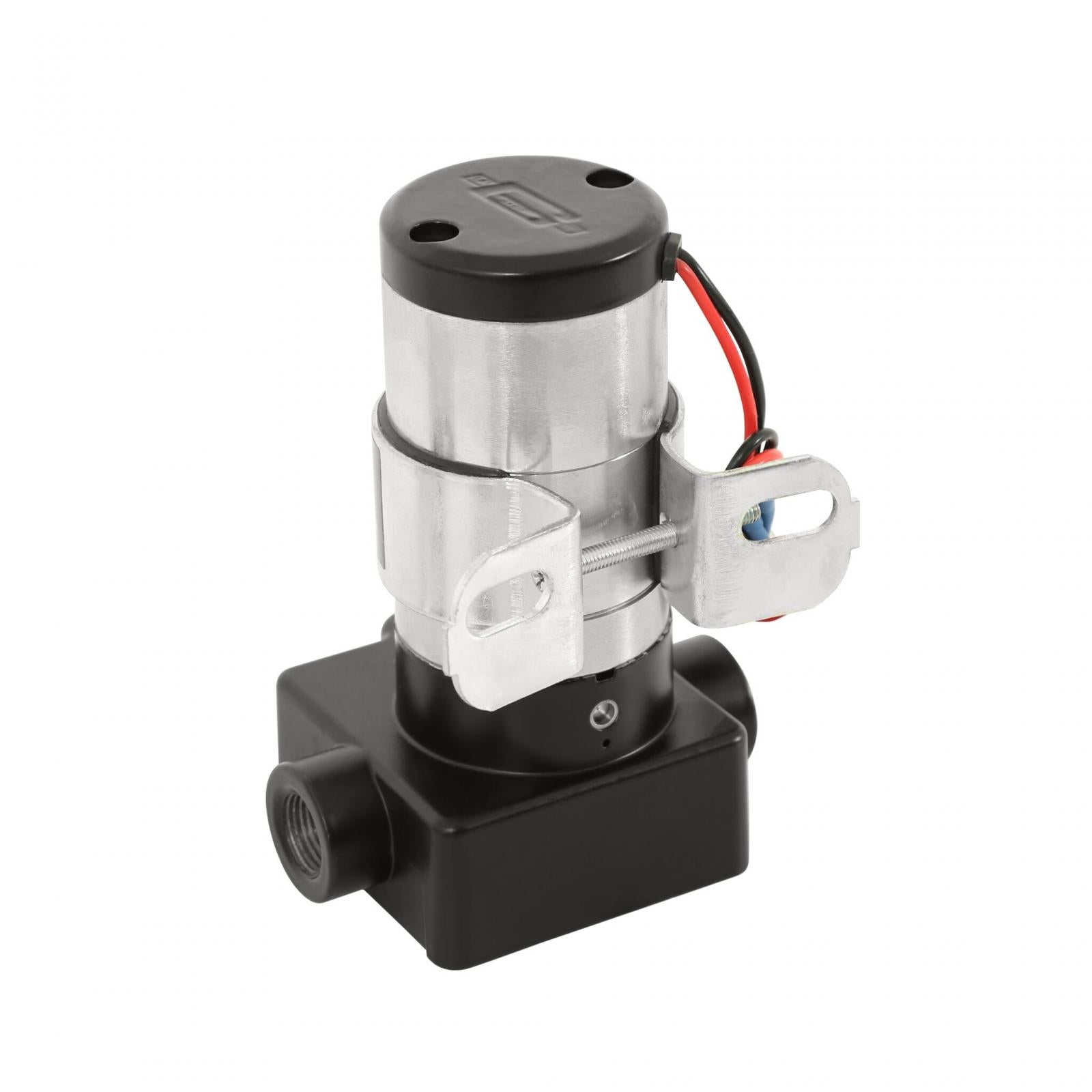

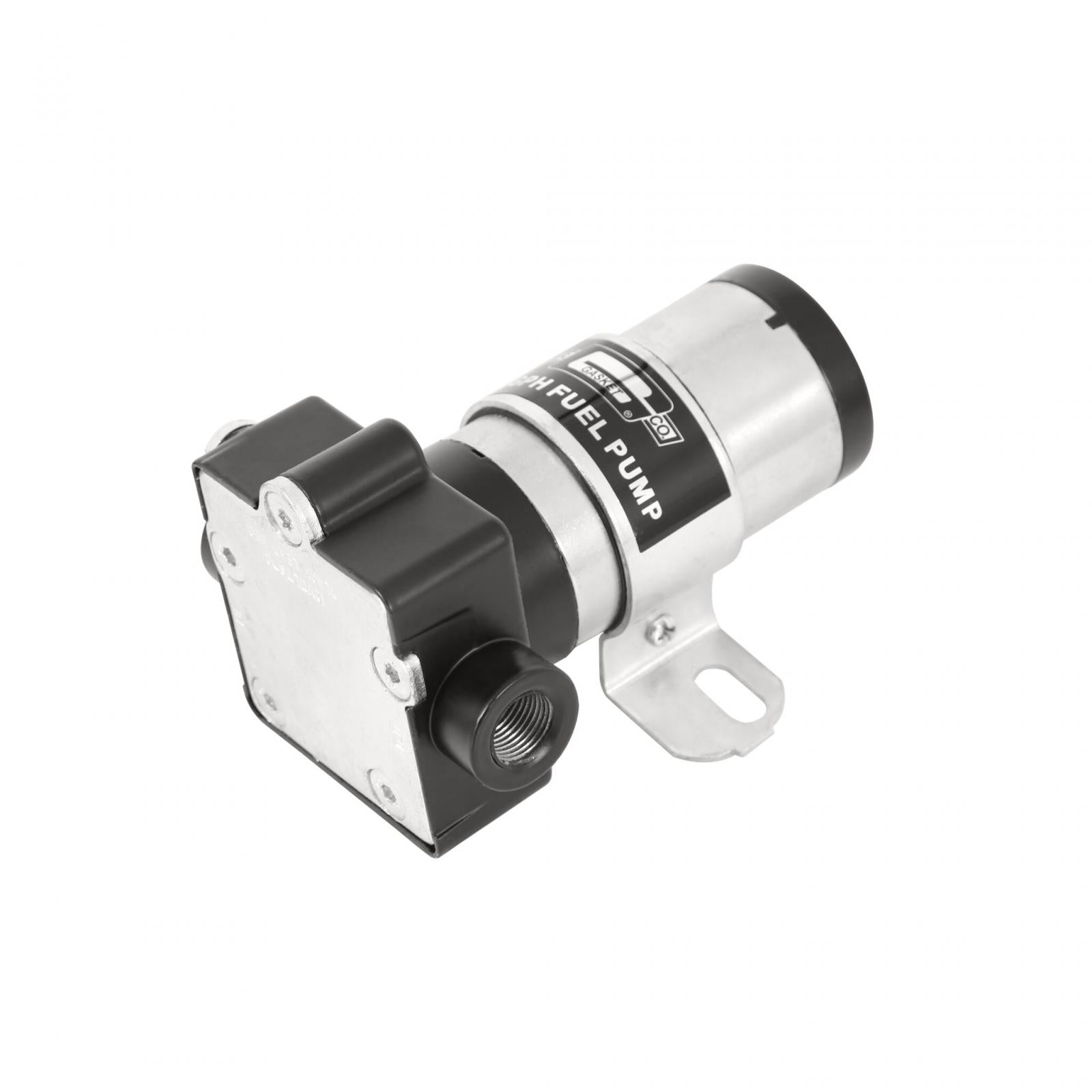

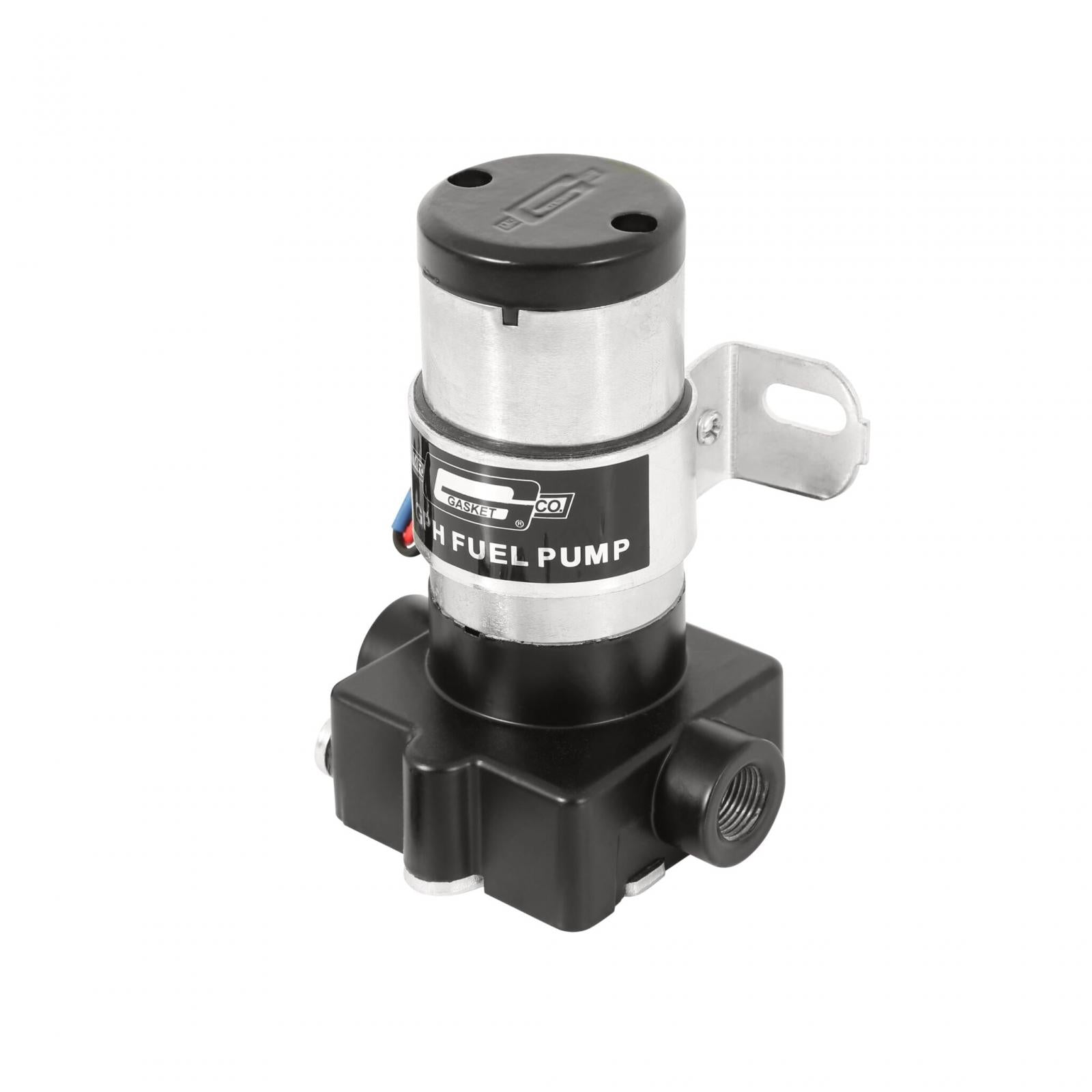

Electric Fuel Pump with Regulator 105 GPH For Carbureted Gasoline Applications Only Mr Gasket

This high performance electric fuel pump has a free flow rate of 105 GPH (gallons per hour) with a maximum pressure of 14 psi (pounds per square inch). It is a gravity fed vane/rotor type high volume low pressure pump designed for street/strip applications.

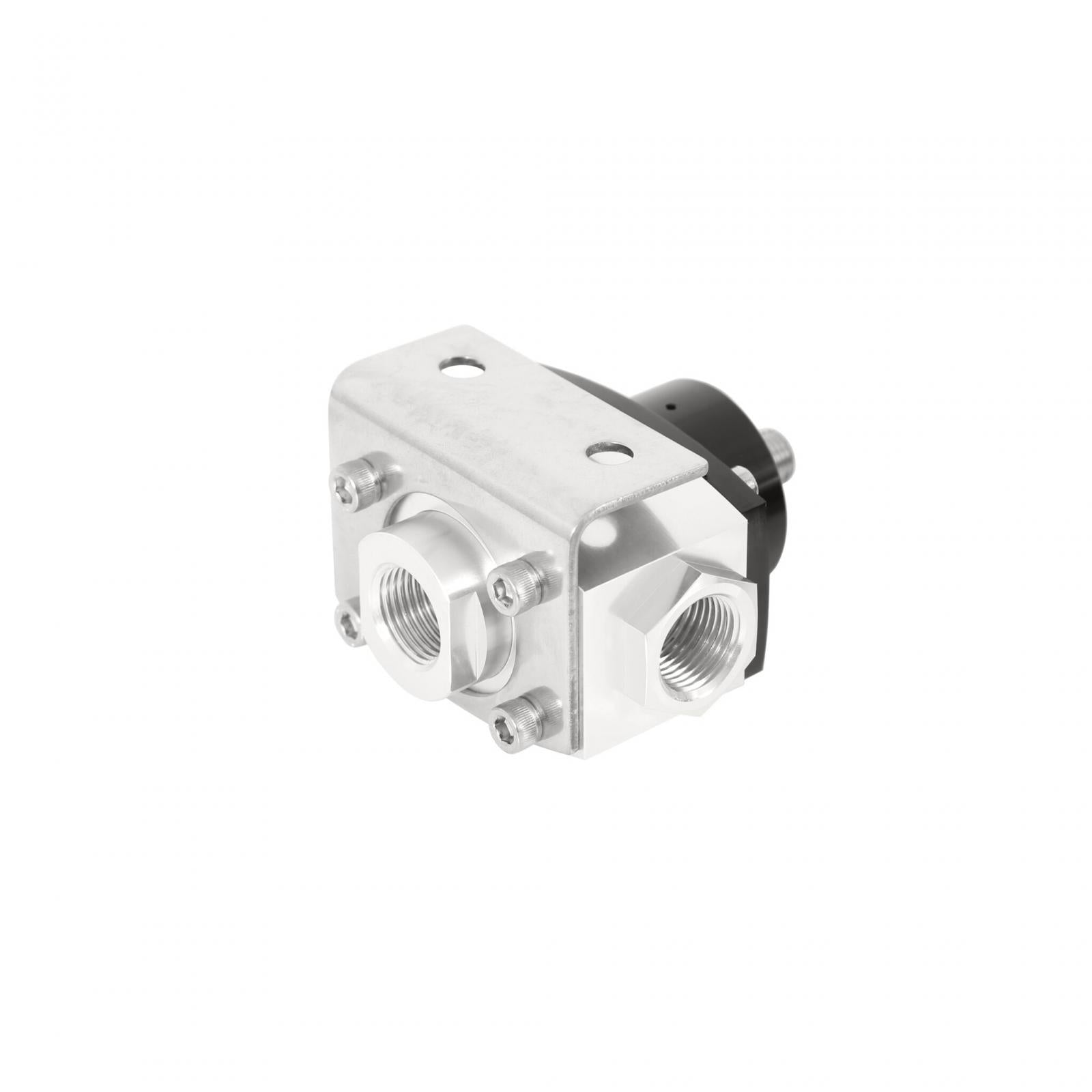

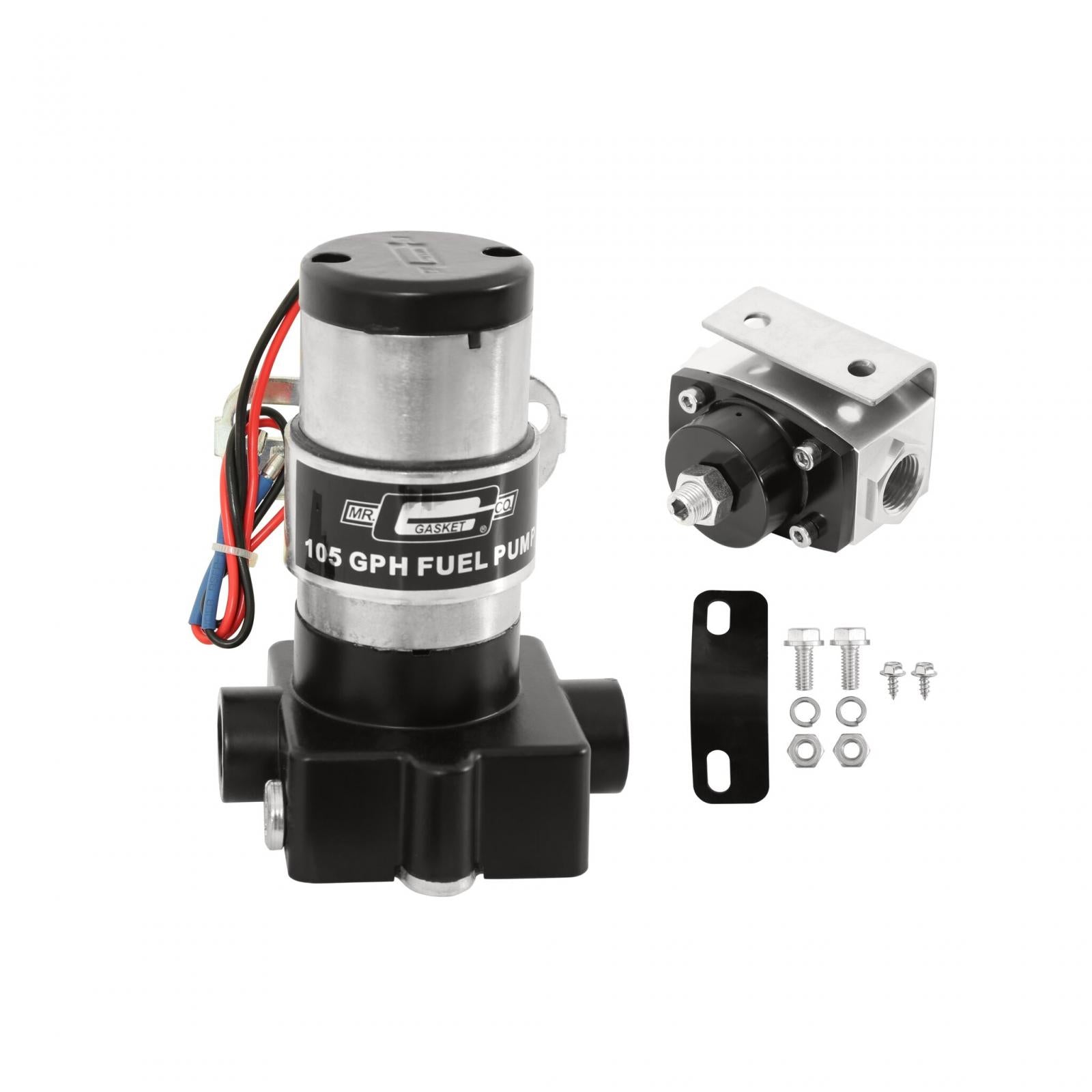

The operating fuel pressure is factory is set at 14 psi and is adjustable to as low as 4 through the included regulator. This pump must be used with included fuel pressure regulator.

A 3/8 Inch i.d. (inner diameter) hose is recomended with this fuel system.

The fuel return line should be as large or larger than the fuel line between the fuel pump and the regulator. Free flows at 105 GPH and 70 GPH at 9 PSI.

• Rotor/vane style
• 100% Pressure Tested For Perf And Reliability
• 3/8 Inchin NPT Inlet/Outlet For Easy Installation
• Universal Fit - Includes Mounting Bracket
• Return Style Regulator Eliminates Vapor Lock
• Improved Pump Design For A Longer Extended Life

Details:

• Color: Silver
• Emission Code: 5
• Free Flow GPH: 105.0
• Fuel Sending Unit Included: No
• Fuel System Type: Carbureted
• Fuel Type: Gasoline
• Gasket Or Seal Included: No
• Material: Steel
• Mounting Hardware Included: Yes
• Outlet Size: 3/8 inch NPT
• Strainer Included: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wiring Harness Included: No
