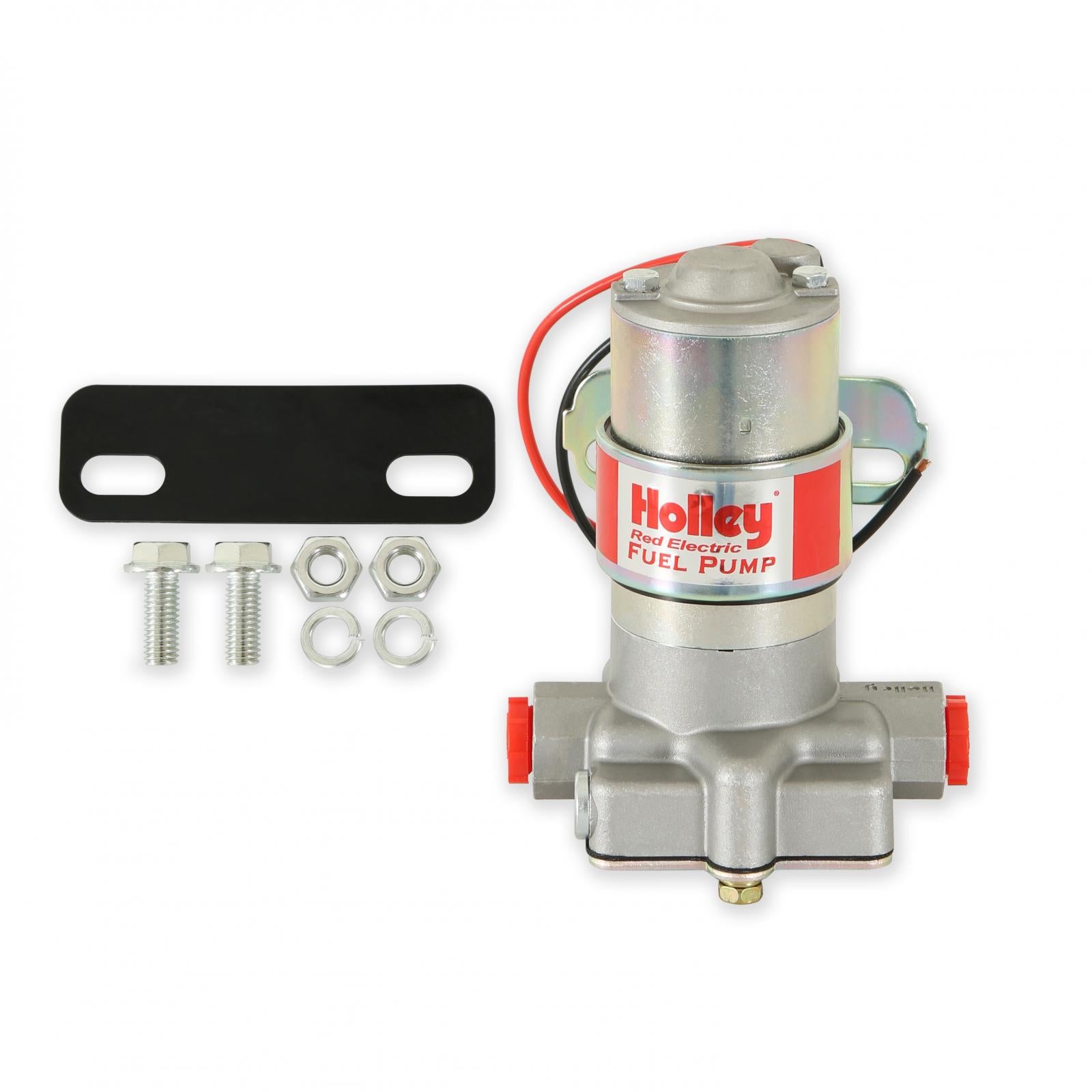

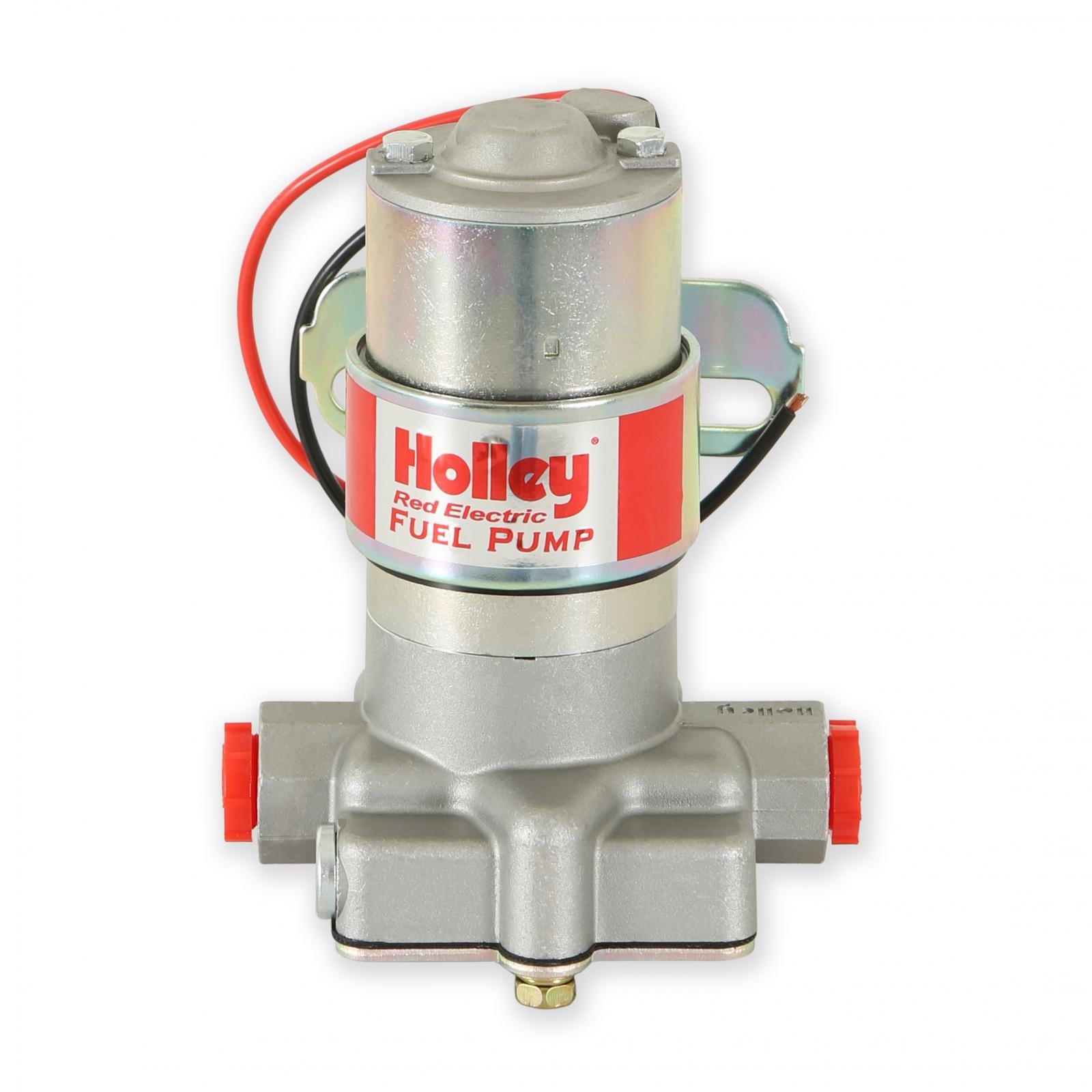

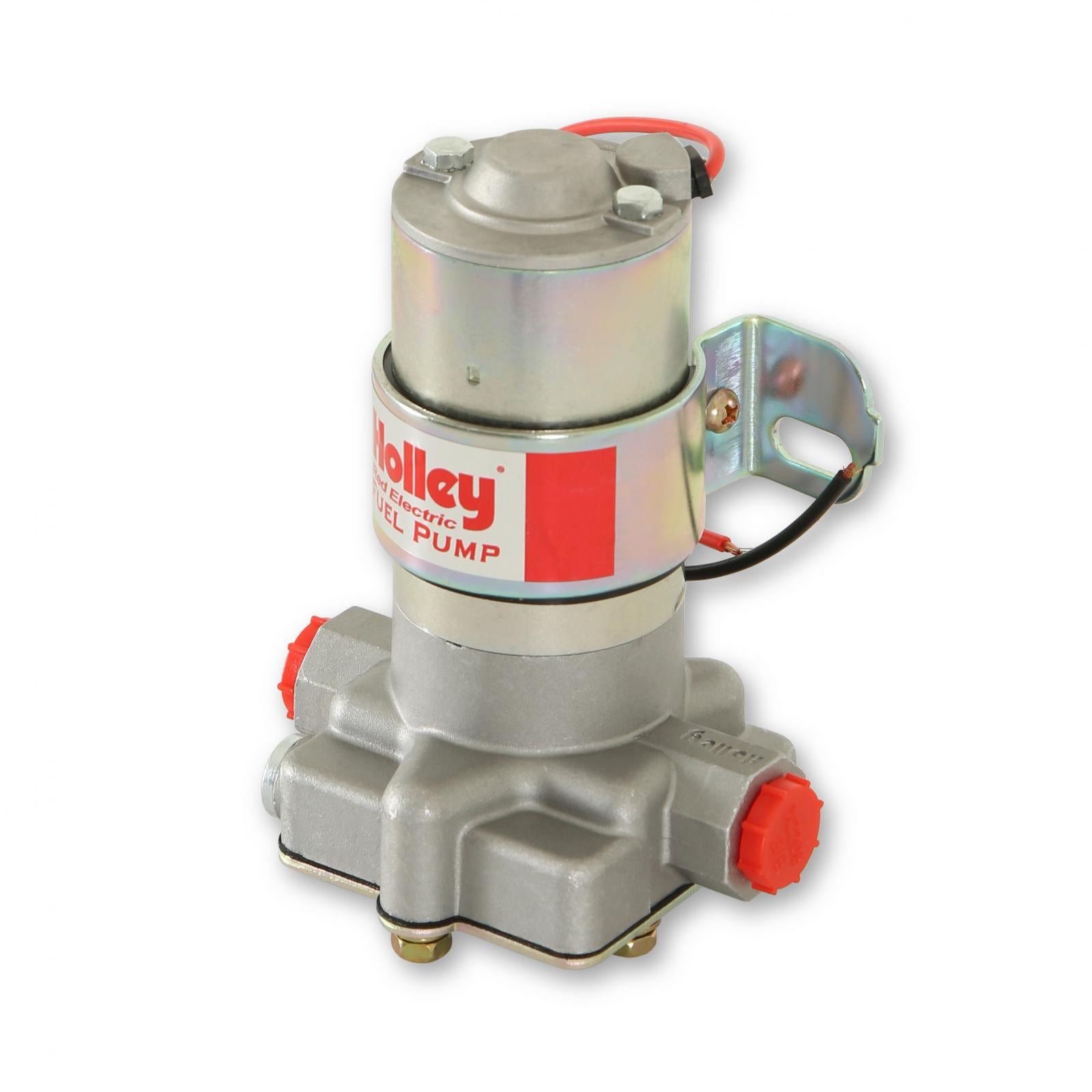

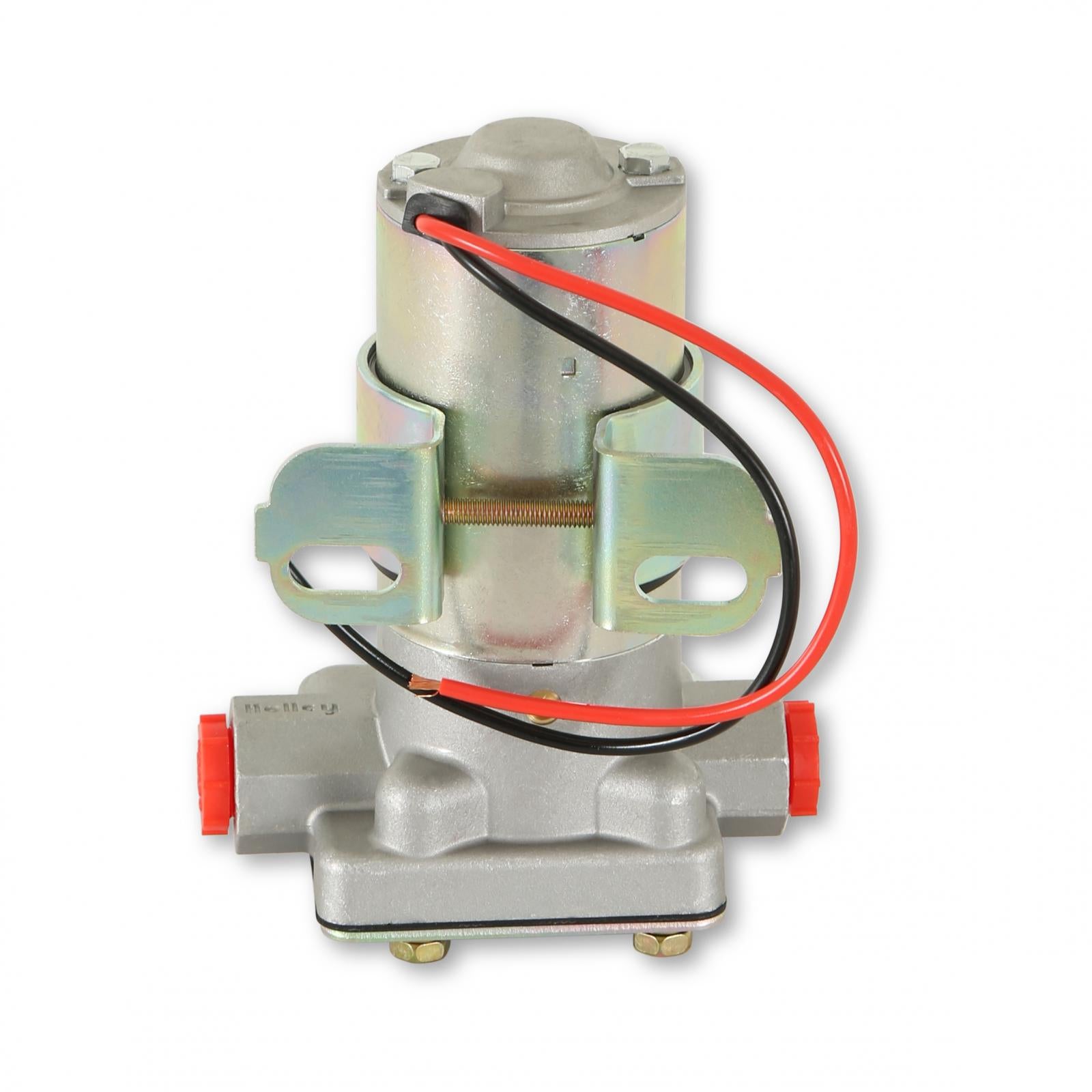

97 GPH RED Electric Fuel Pump Street/strip Carbureted Applications Compatible with Gasoline Only Holley

The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s.

Their time proven rotor/vane design is known to get the job done in an affordable package.

Features and Benefits:

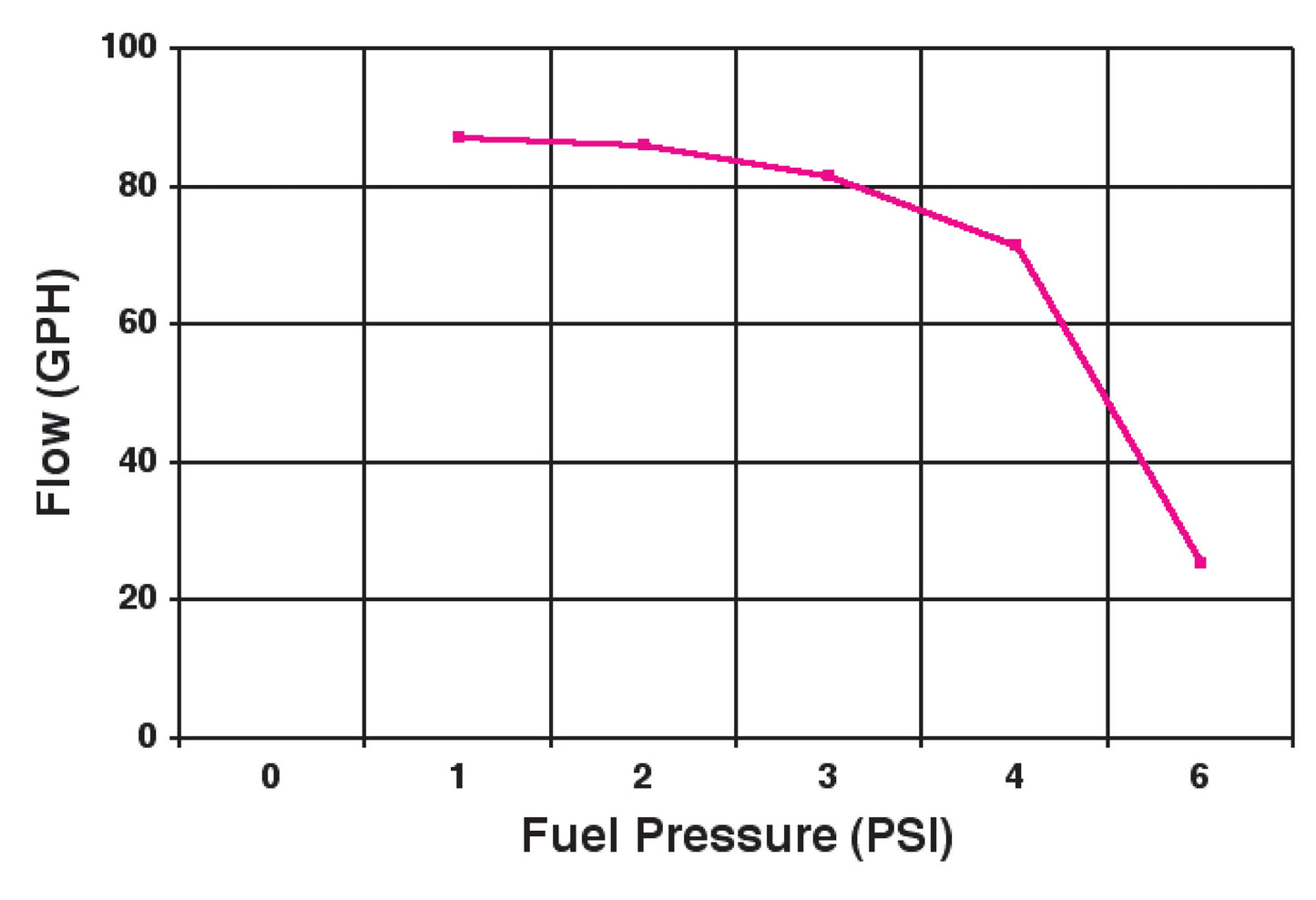

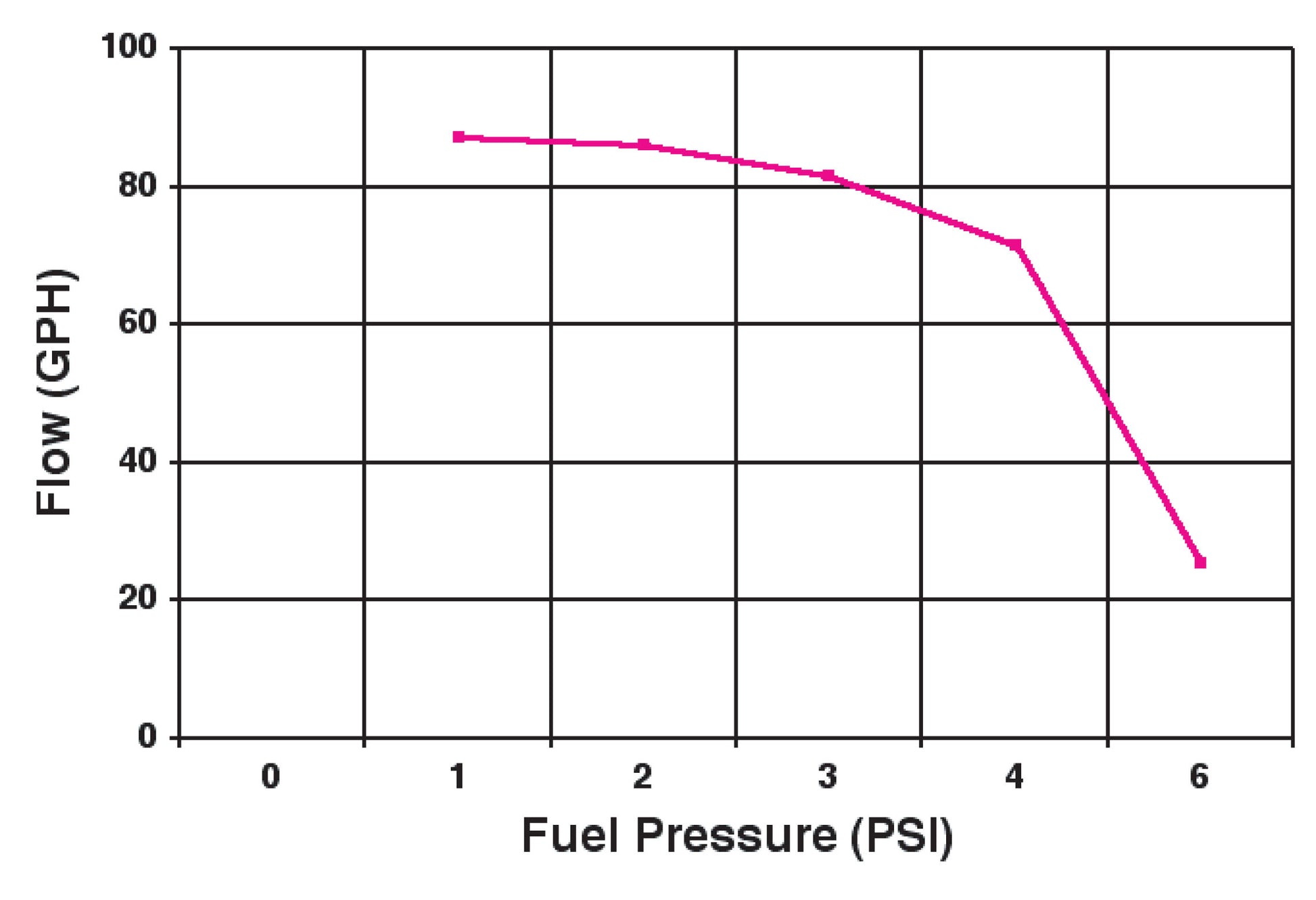

• Tumble polished billet look Lower housing casting designed for enhanced fuel flow Maximum pressure is 7 psi Motor draws 2 amps current Relay kit P/N 12-753 & 7 1/2 amp fuse recommended Constant fuel flow with no pulsation Improved design for street/strip applications Not designed to be used on aircraft of any type Distinctive Red logo Flows 97 Gph (free flow) Flows 71 Gph at 4 psi Regulator is not required Has externally accessible pressure relief valve (max 7 psi) Rotor/vane pump design is more tolerant of contaminated fuels Weighs only 2.88 lbs Not designed or recommended for use with fuel injection systems Includes mounting bracket Repair kits are readily available Can be serviced from the pump end Not compatible with alcohol or methanol fuels Use of safety shut-off switch, P/N 12-810, strongly recommended

Associated Comments:

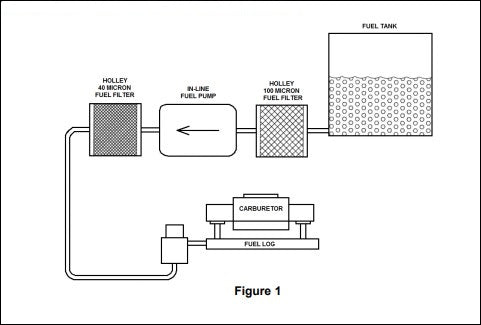

• Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended.
• These are to be used with 12 volt systems only.

Details:

• Application: Universal
• Bracket Color: Silver
• Free Flow Gph: 97
• Free Flow Lph: 367
• Fuel Type: Gasoline
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Fitting Thread Size: 3/8 Inch
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Internal Or External: External
• Material: Aluminum
• Maximum Amperage Draw: 2 Ampere
• Maximum Flow Rating: 97 U.S. Gallons per hour
• Maximum Pressure: 7 Pounds per Square Inch
• Motor Finish: Silver

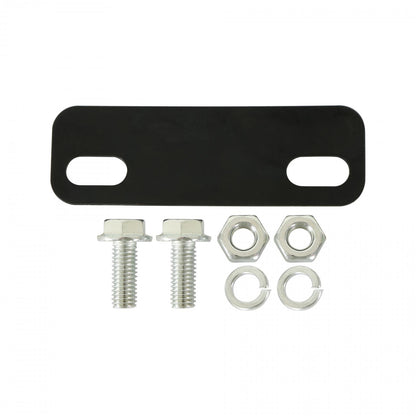

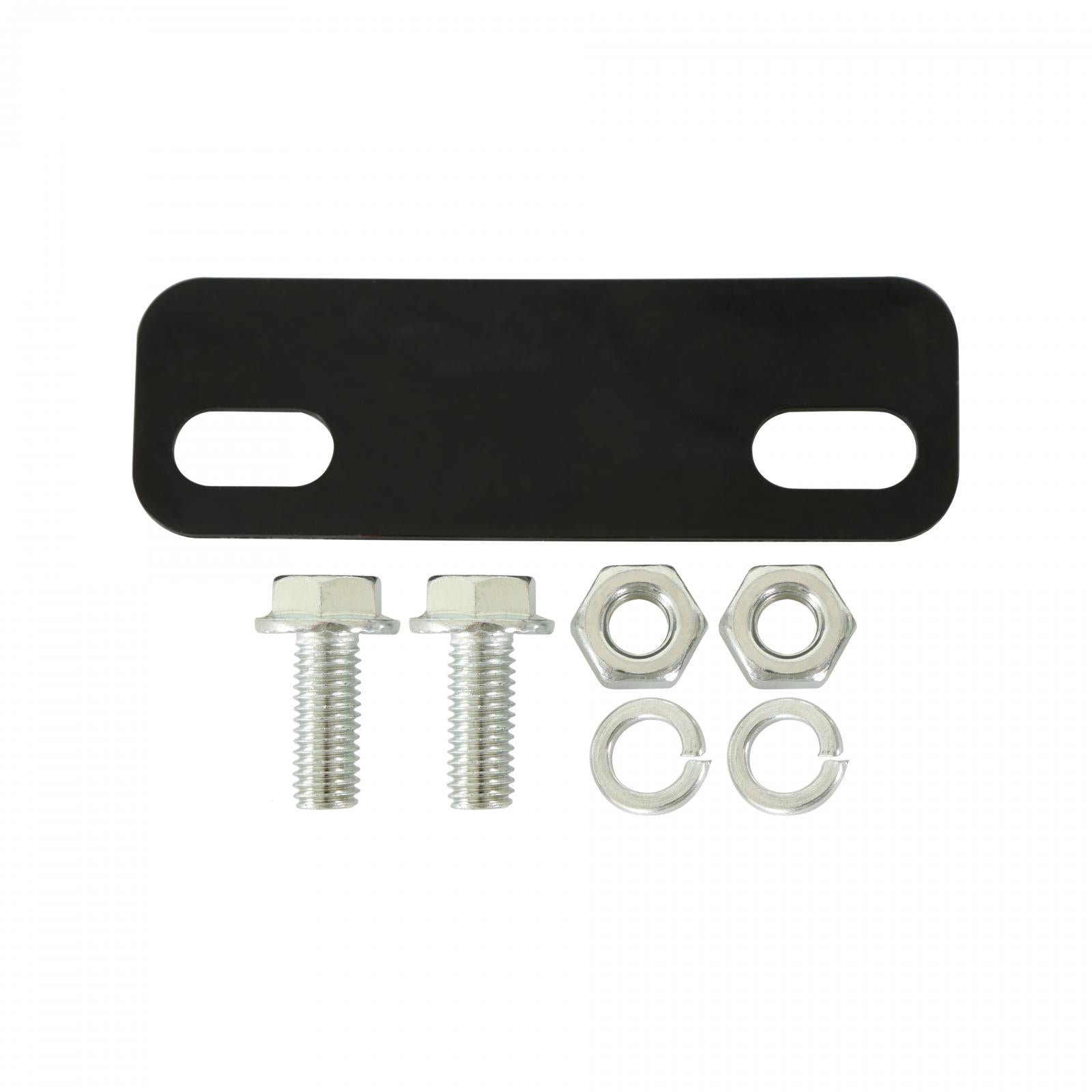

• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Fitting Thread Size: 3/8 Inch
• Outlet Quantity: 1
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Pump Body Color: Silver
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2.0
• Wiring Harness Included: No
