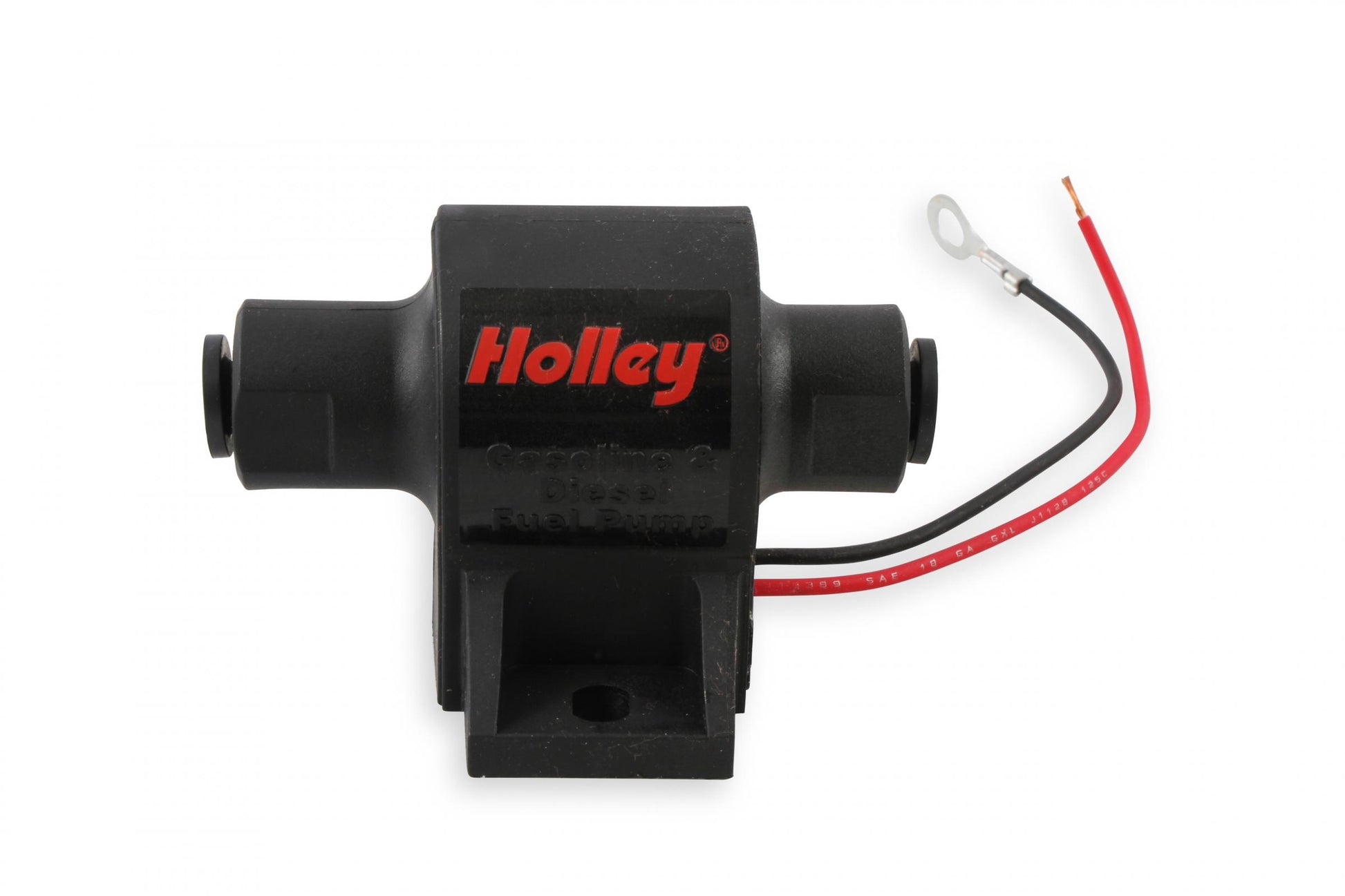

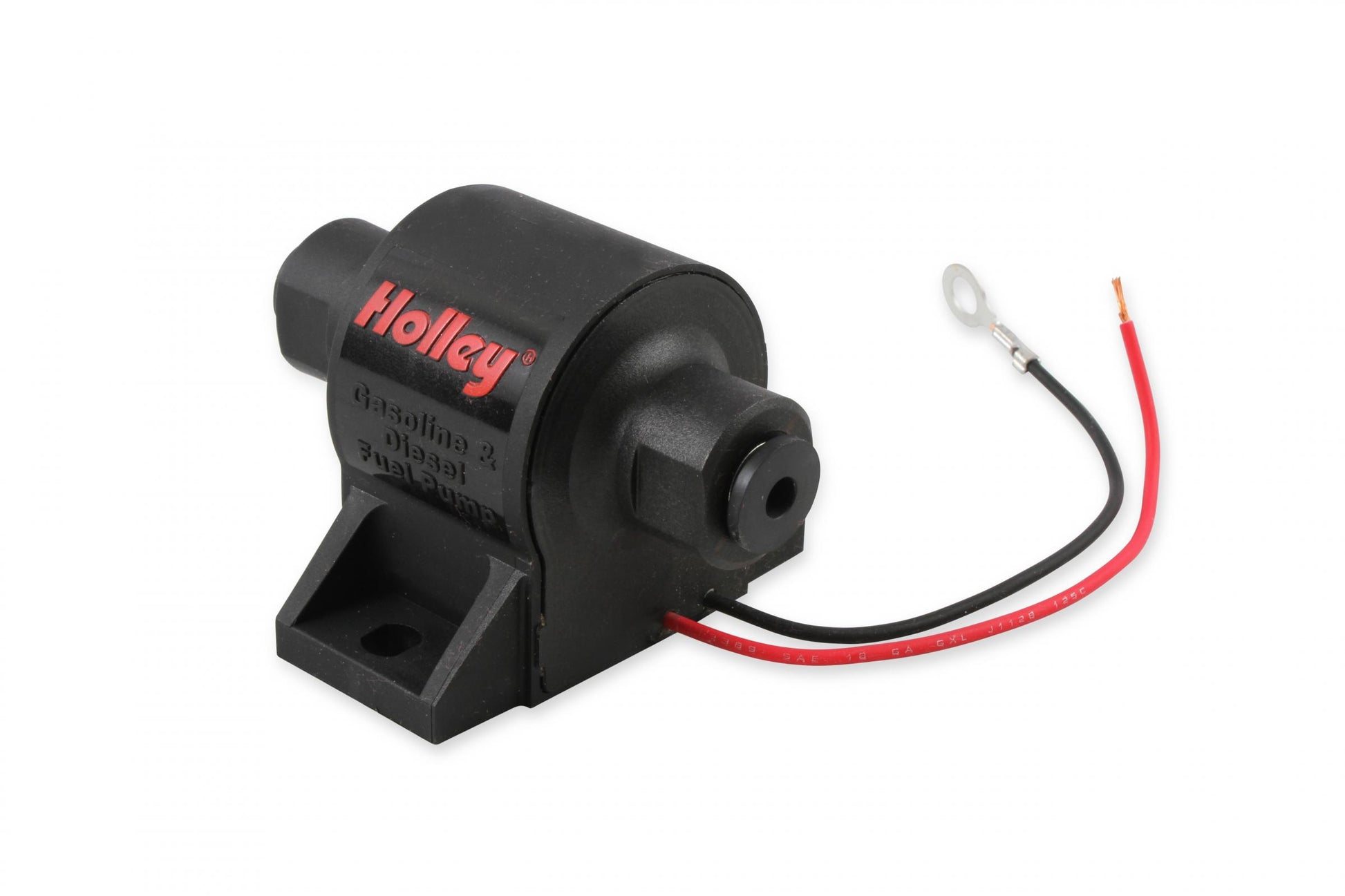

34 GPH Mighty MITE Electric Fuel Pump, 7-10 PSI Street Carbureted or Diesel Applications Compatible with All Fuels and Fuel Additives Holley

Holley pumps have fueled more performance engines than all others and the Holley line keeps on growing! Holley is proud to introduce the all new Holley Mighty MiteTM electric fuel pumps!

They're big on performance, but small in size! They're quiet, easy to install and work with gas, diesel, blended alcohol and E85!

A regulator may be needed for carbureted applications requiring less fuel pressure. We recommend the Holley 12-803 or 12-804 fuel pressure regulator.

Features and Benefits:

• 12 volt operation 7-10 psi operating pressure 34 gal/hr flow Good for up to 400HP naturally aspirated Reliable solid state design provides longer life Not designed for use on aircraft of any type
• Compatible with all fuels and fuel additives (gas, diesel, blended alcohol, ethanol, e-85) Simple 2 wire hookup Self-priming and regulating 50 inch dry lift capable Quiet operation - 65db Great for carbureted trucks, cars, generators and agricultural equipment - also makes a great transfer pump Engineered and matched performance with Holley, Demon, Quick Fuel and Edelbrock carburetors(all trademarks are property of their respective owners

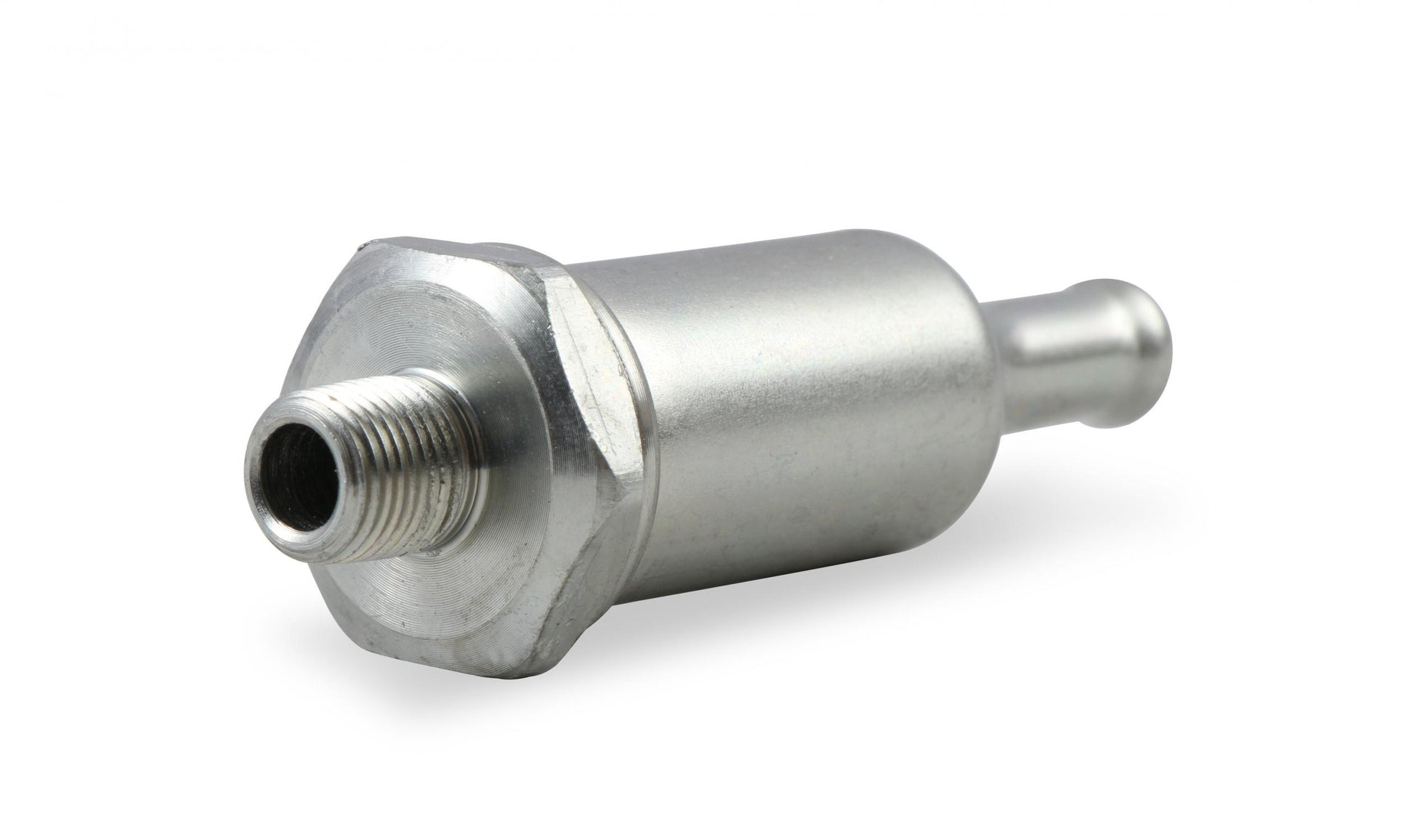

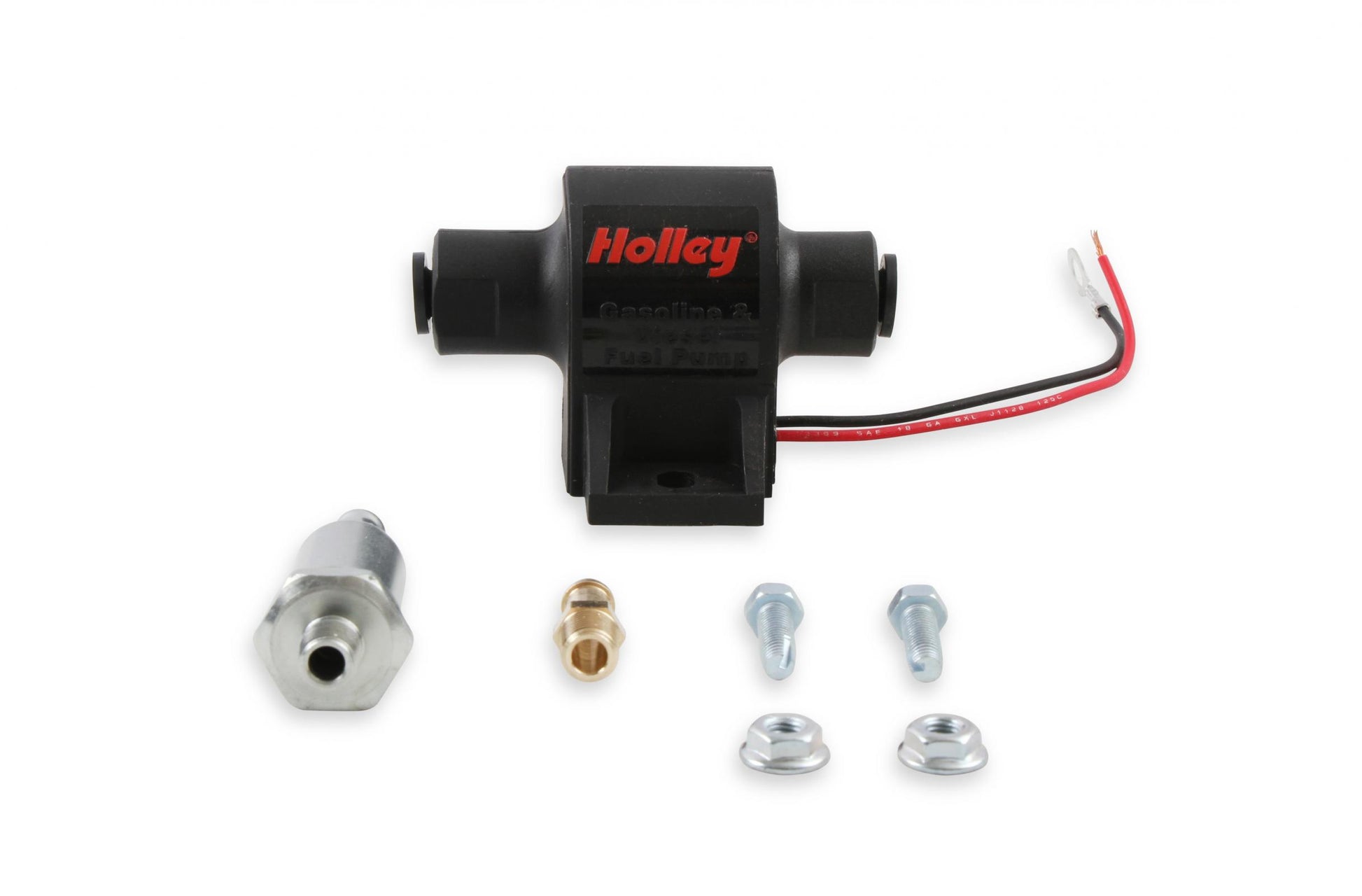

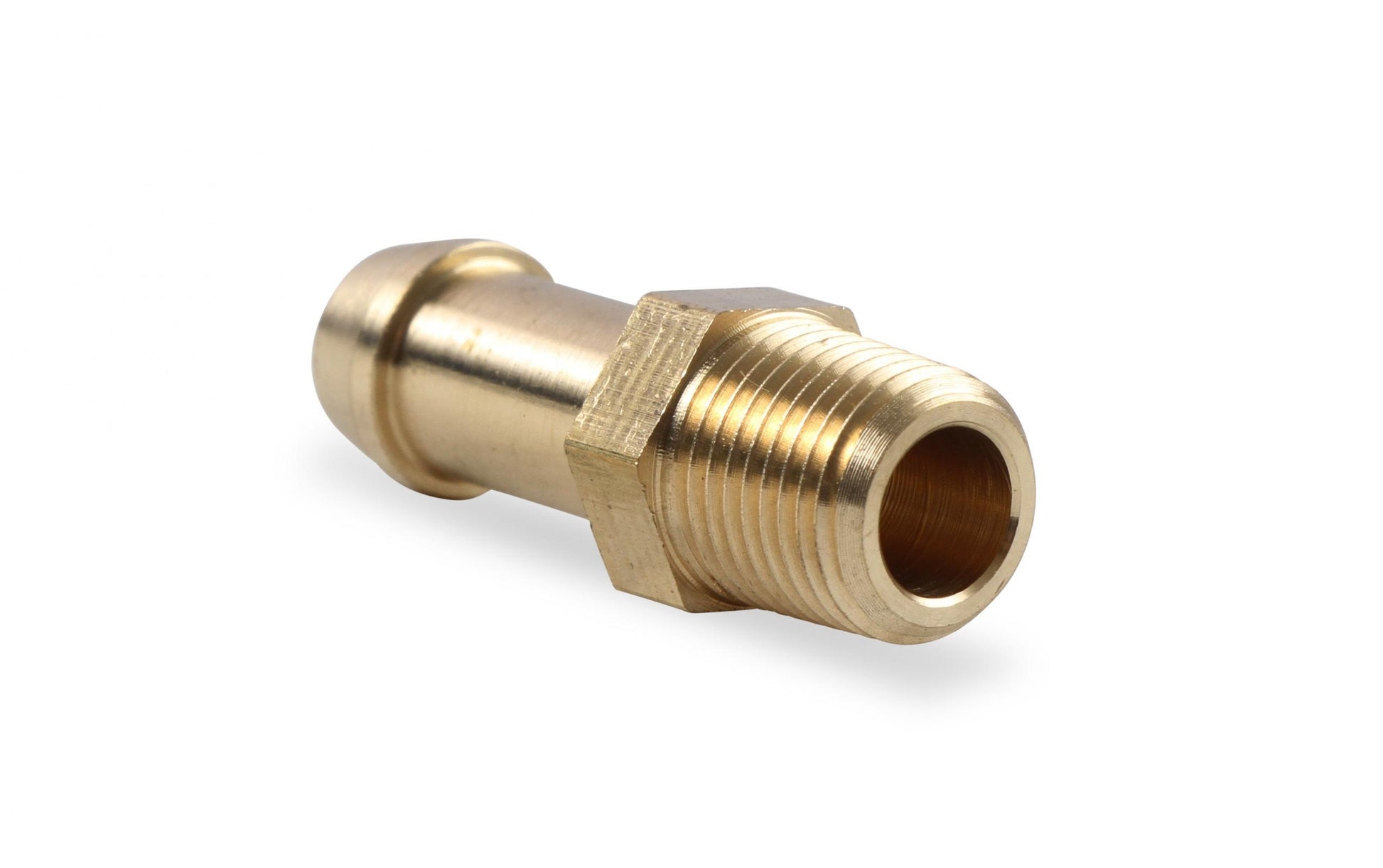

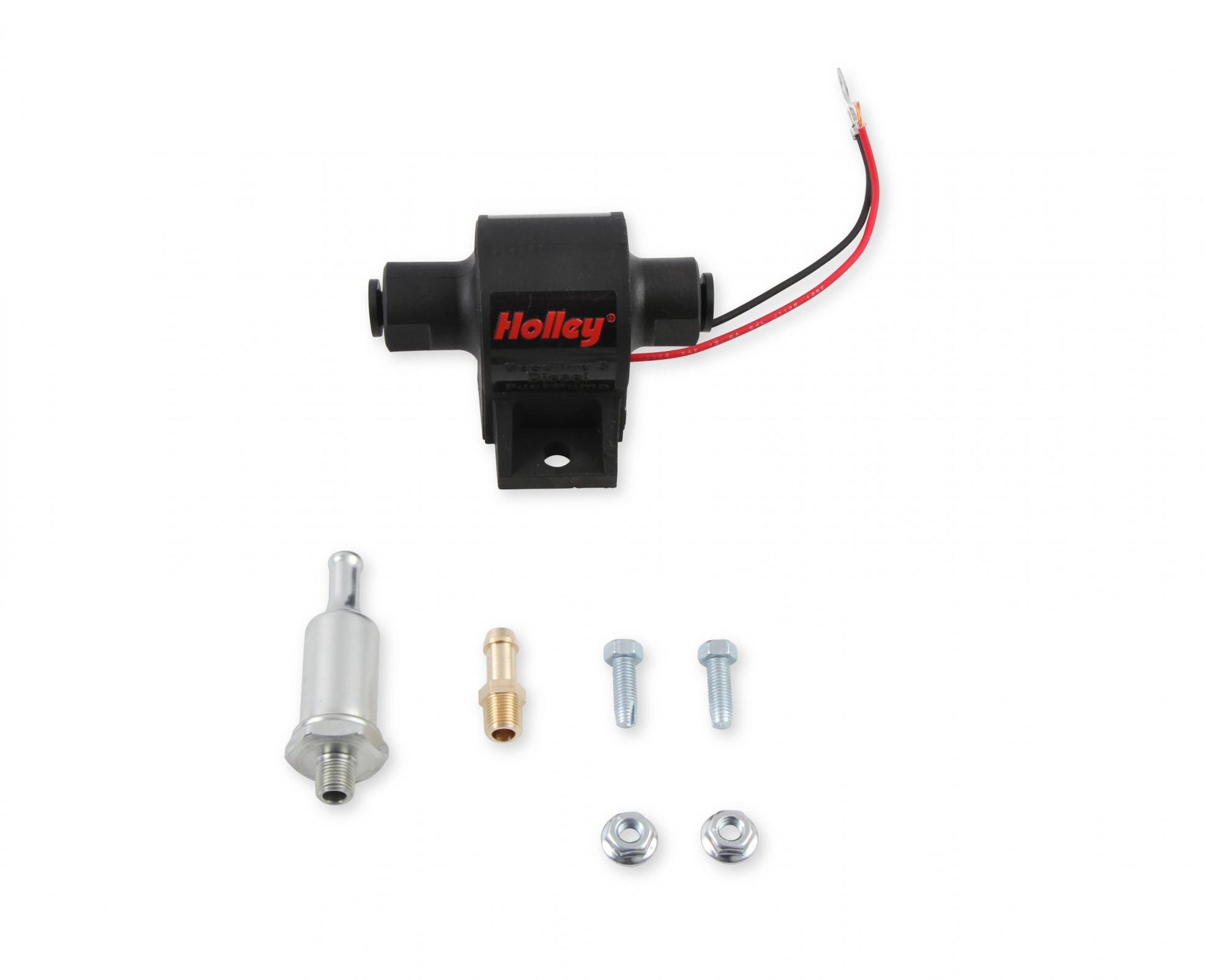

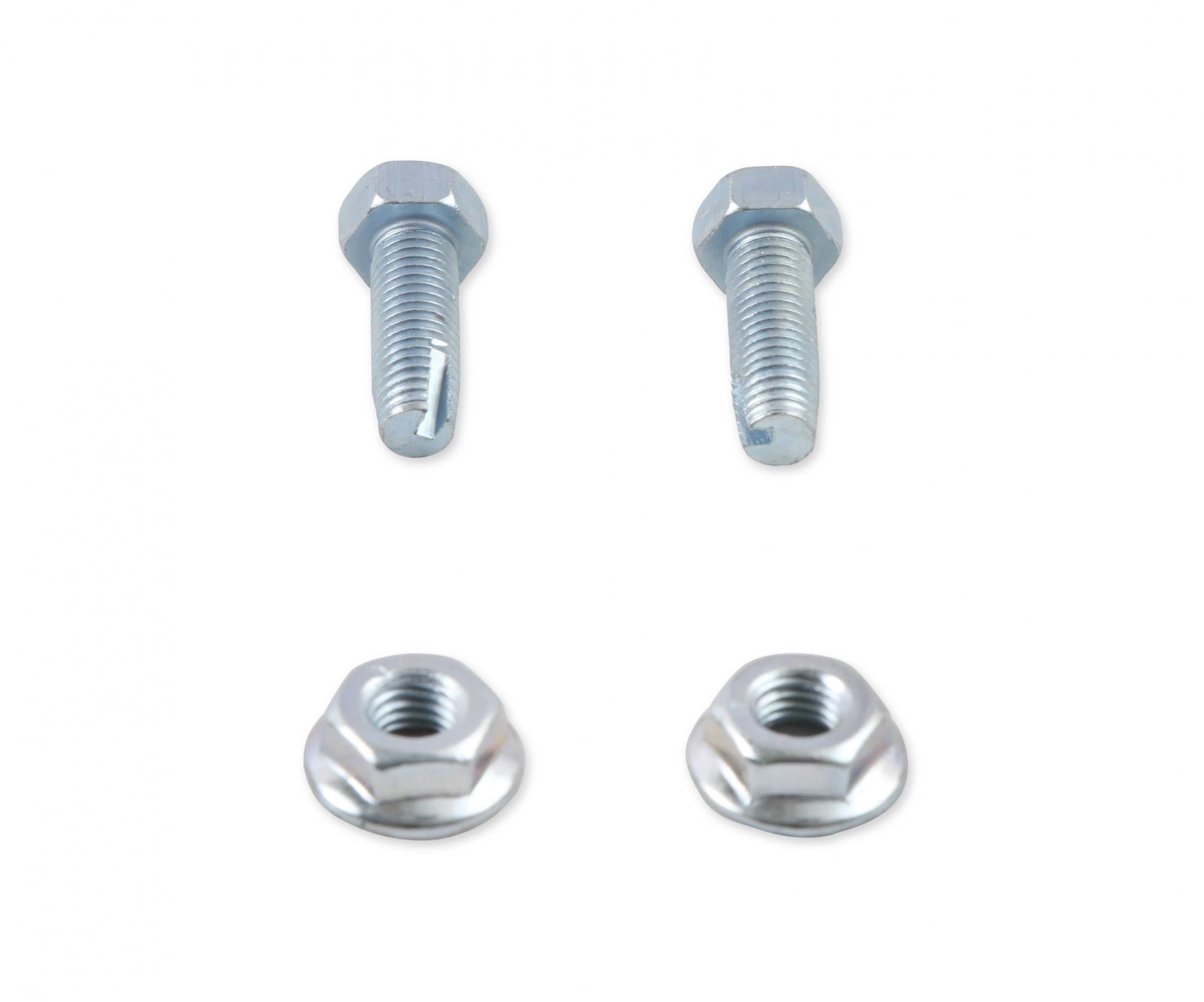

• Edelbrock is a registered trademark of Edelbrock,Llc) Comes with fuel filter, fittings and mounting hardware Made in the USA Hose Barbs Fit 5/16 inch Fuel Hose

Associated Comments:

• Should be mounted within 50 inch of the fuel tank. Mounting holes are 2 3/8 inch apart.
• This model does not have a one-way check valve or an anti-siphon valve, so fuel can be pulled in either direction when the pump is turned off. Perfect for a Diesel lift pump!
• Ideal for use with Earl's Vapor Guard Carburetor Hose!

Details:

• Application: Universal
• Free Flow Gph: 34
• Free Flow Lph: 129
• Fuel Type: Diesel | E85 | Gasoline
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Gasket Or Seal Included: No
• Grade Type: Performance
• Hose Size: 16-May
• Inlet Fitting Thread Size: 1/8 Inch
• Inlet Size: 1/8 inch NPT
• Inlet Type: NPT
• Internal Or External: External
• Material: Steel
• Max Pressure: 10 psi
• Maximum Flow Rating: 34 U.S. Gallons per hour
• Maximum Pressure: 10 Pounds per Square Inch
• Motor Finish: Black
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Fitting Thread Size: 1/8 Inch
• Outlet Quantity: 1
• Outlet Size: 1/8 inch NPT
• Outlet Type: NPT
• Pump Body Color: Black
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2.0
• Wiring Harness Included: No
