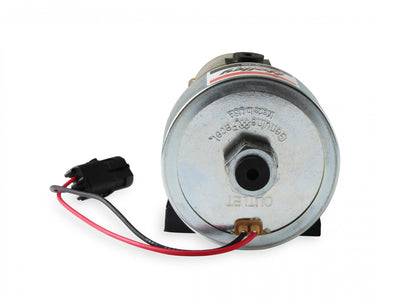

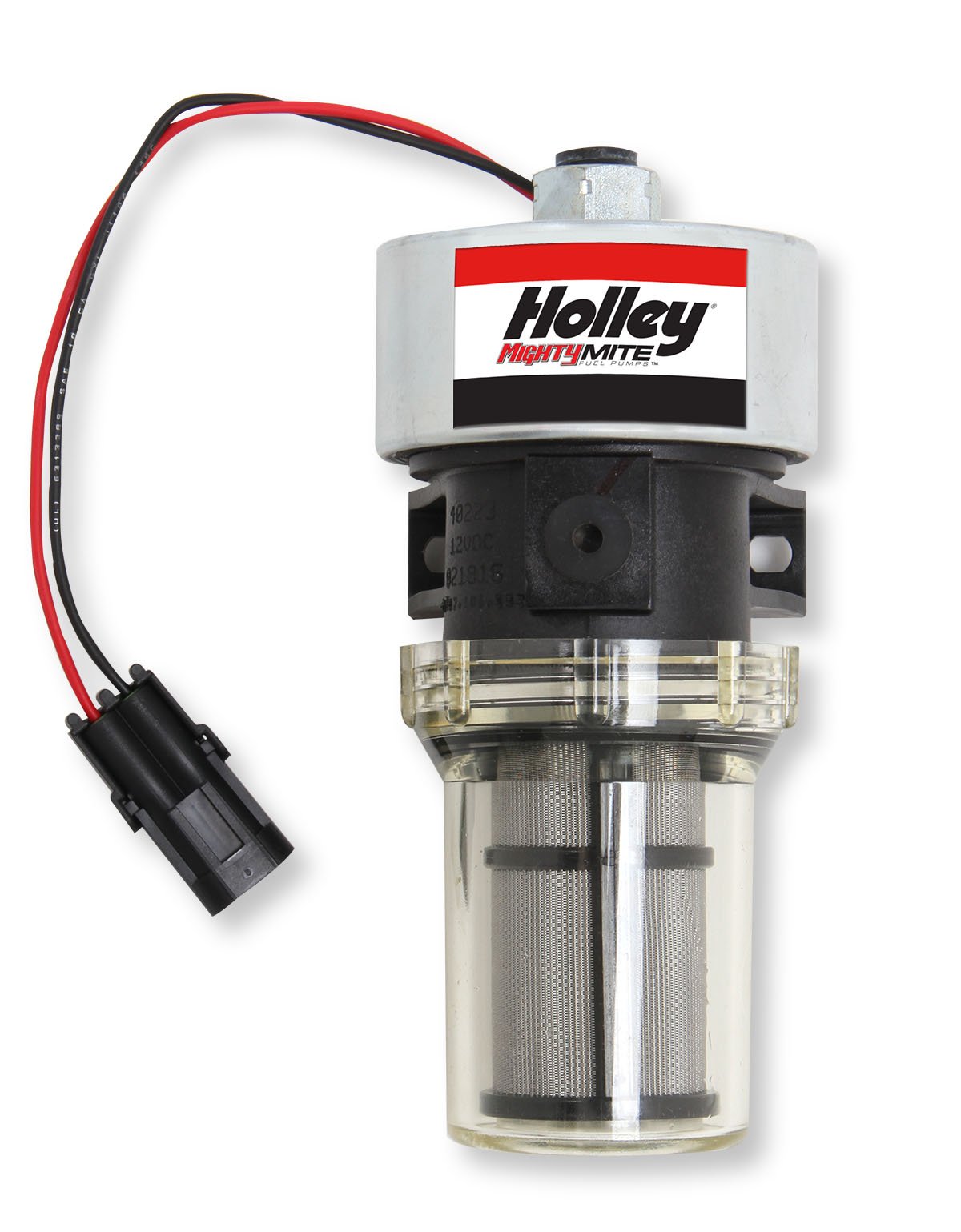

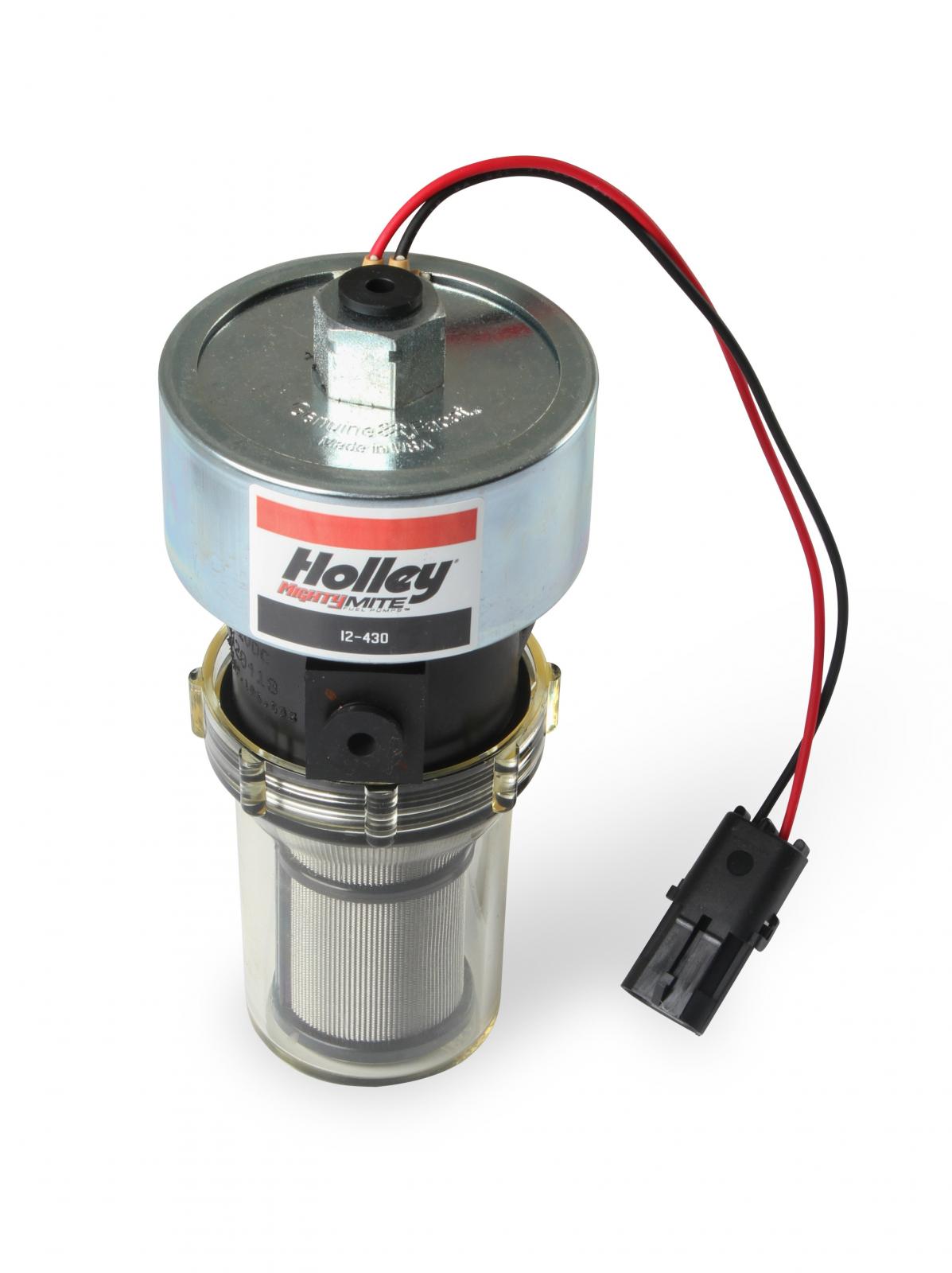

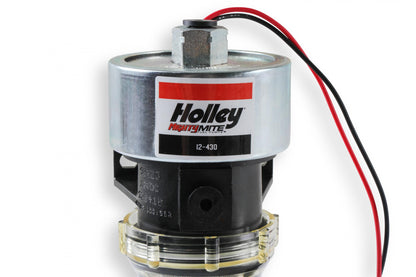

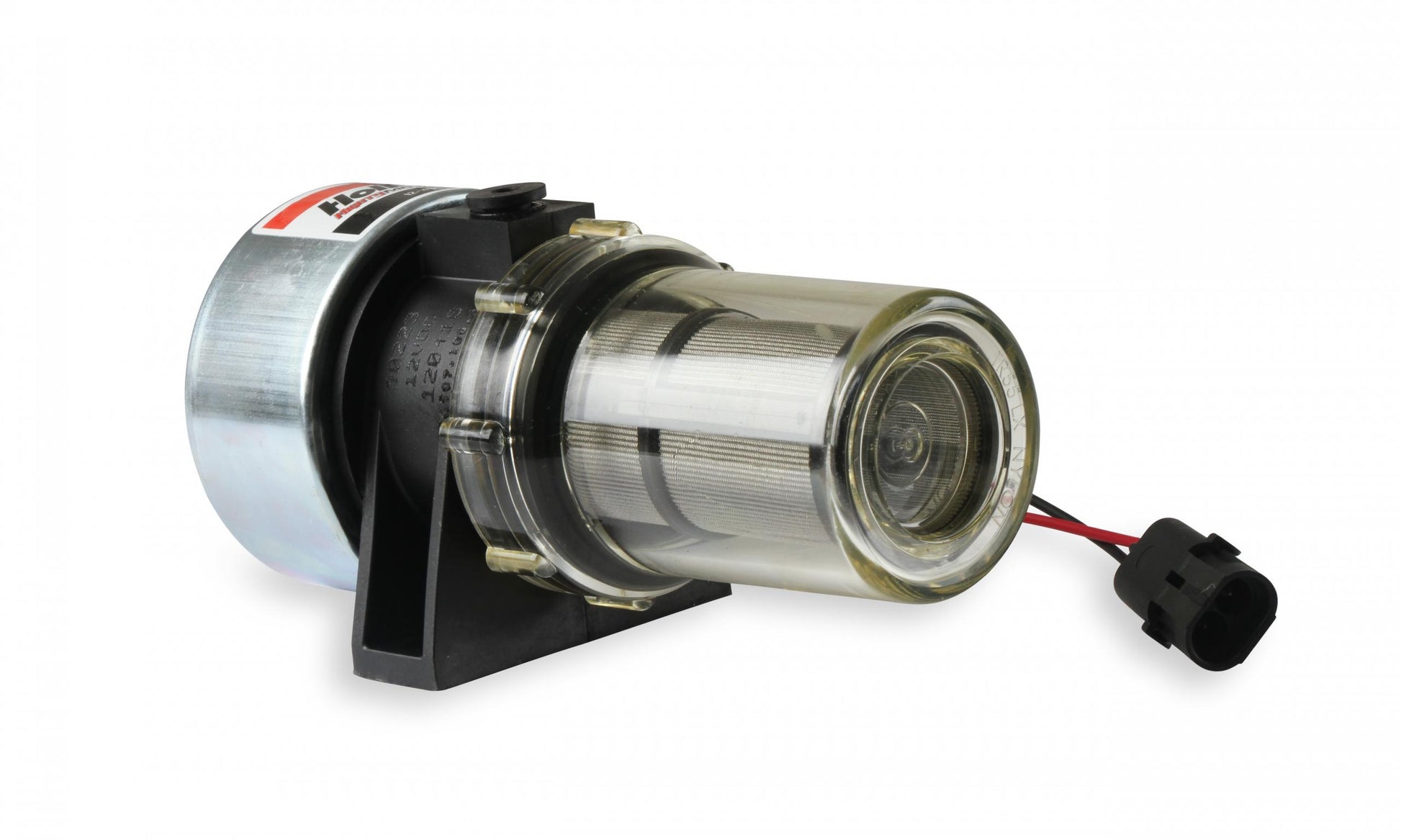

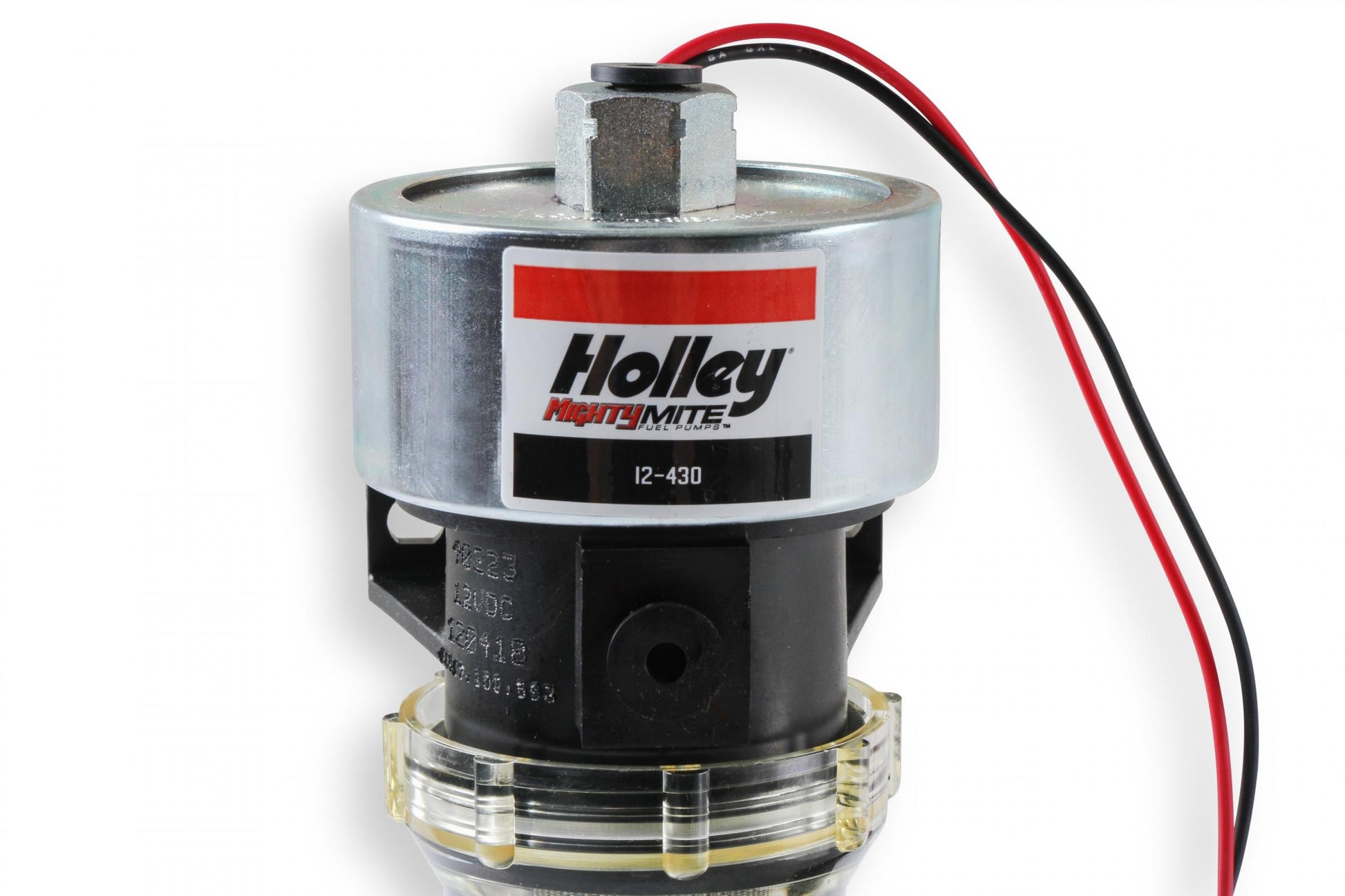

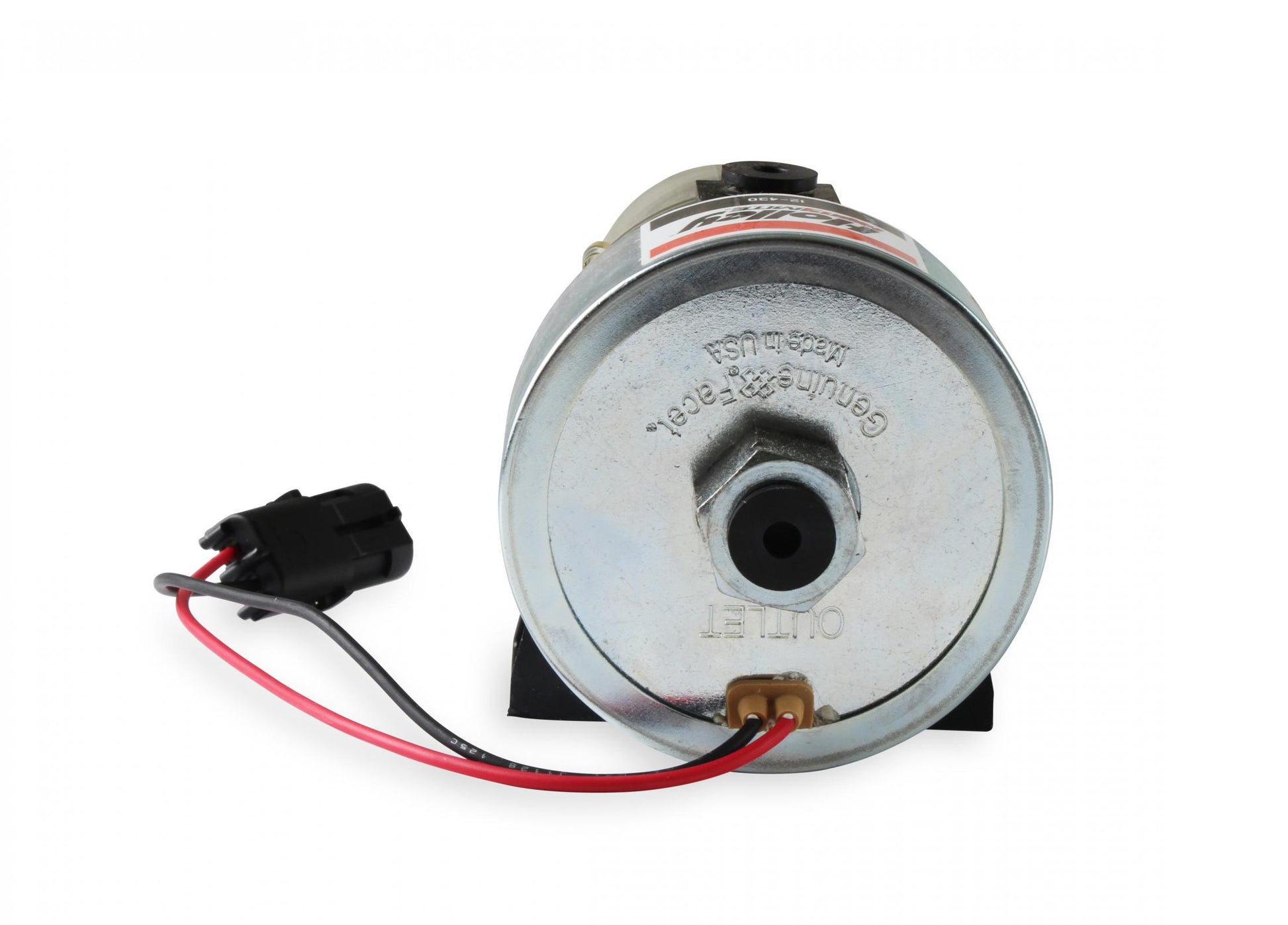

33 GPH Mighty MITE Electric Fuel Pump, 9-11.5 PSI Industrial, OTR Trucking, Construction, and Agricultural Applications Compatible with All Fuels and Fuel Additives Holley

Holley Mighty Mite pumps are suited for tough, hard-working applications. From truck refrigeration units, marine generators, and gasoline and diesel industrial applications, these pumps have the proven performance, quality, and dependability that you can count on.

They are self-priming and self-regulating at 9-11.5 psi and can deliver 33 Gph. Compatible with all types of fuels and additives, these pumps are the answer for your needs.

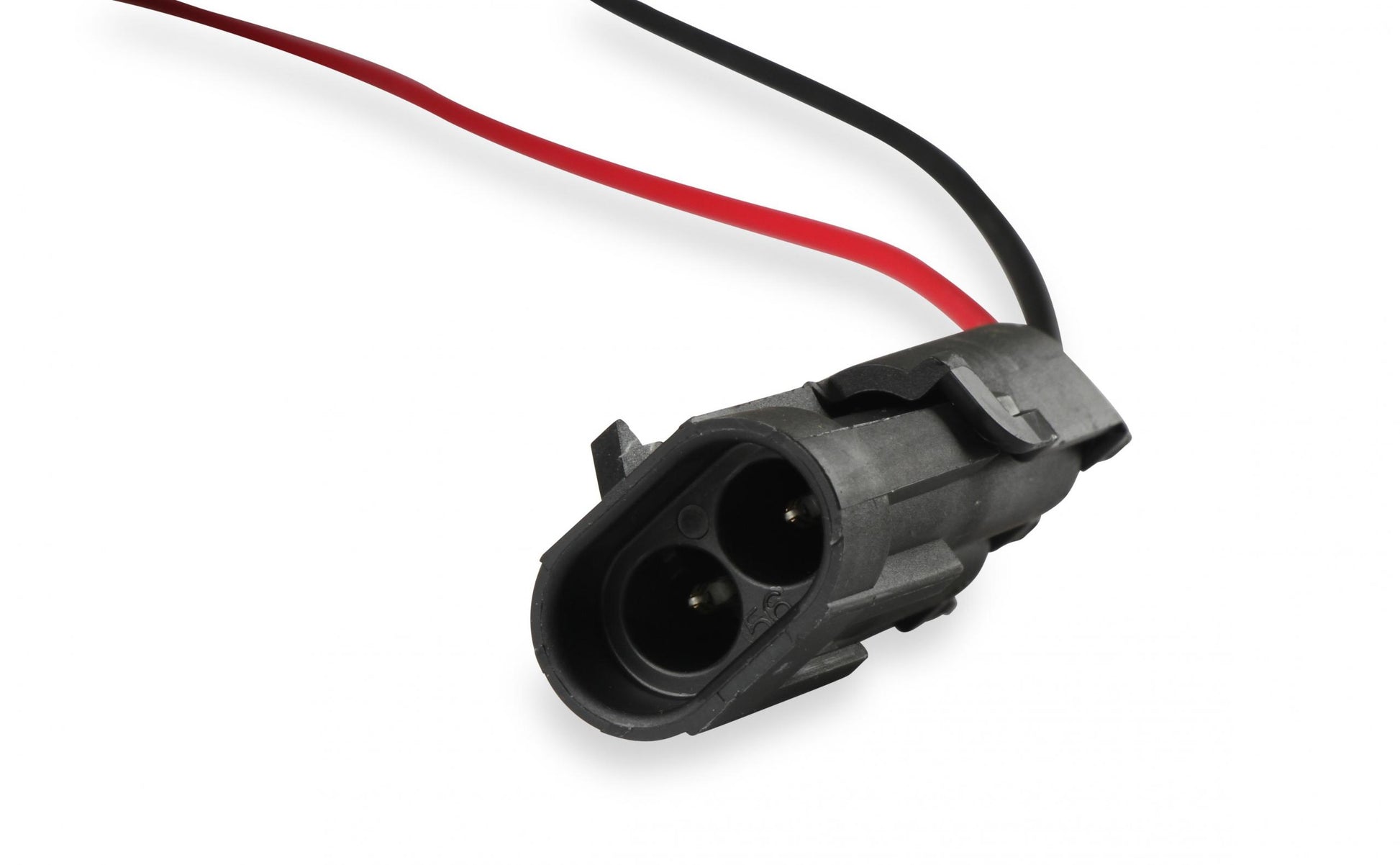

Rugged solid state design pumps are a simple two wire hook-up and made in the USA. A regulator may be needed for carbureted applications requiring less fuel pressure.

We recommend the Holley 12-803 or 12-804 fuel pressure regulator.

Features and Benefits:

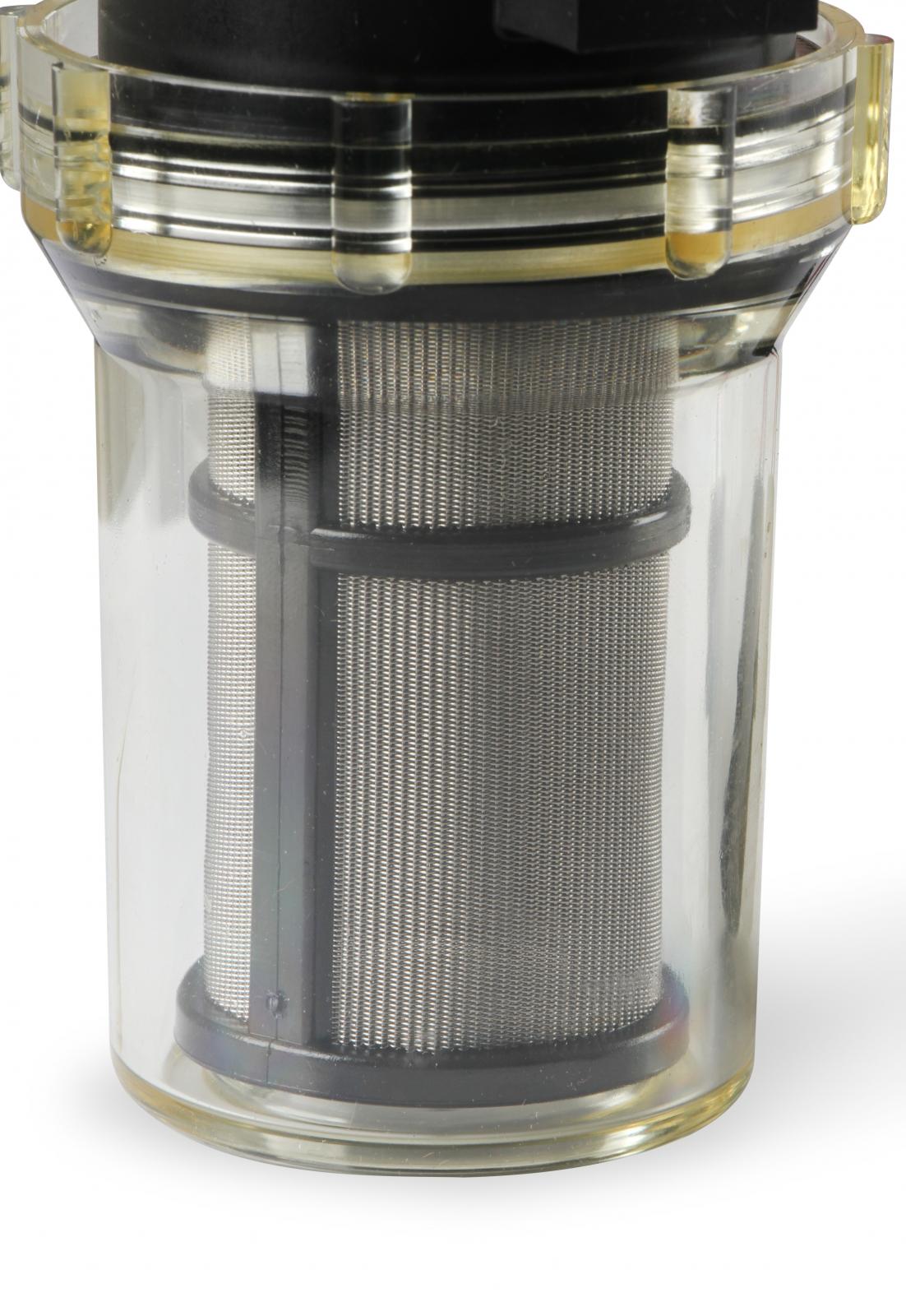

• 120 inch Dry lift/ 9-11.5 PSI / 33 Gph Self-Priming and Self-Regulating Compatible with gasoline, diesel, bio diesel, E85, blended alcohol and fuel additives Operating temperature range of -40F to + 180F Ul Certified 80 Micron stainless steel filter Transparent fuel bowl allows filter monitoring Corrosion resistant over 100 hours of salt spray Fuel filter and mounting hardware included

Associated Comments:

• Pump must be properly fused with a 3- to 5-Amp automotive-type fuse. Measures- 7.08 inch Tall and 3.25 inch Wide

Details:

• Application: Universal
• Color: Black
• Free Flow Gph: 33
• Fuel Type: Diesel | Gasoline
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Fitting Thread Size: 1/8 Inch
• Inlet Size: 1/8 Inch NPT
• Inlet Thread: 1/8 Inch NPT
• Inlet Type: NPT
• Internal Or External: External
• Material: Steel
• Maximum Flow Rating: 33 U.S. Gallons per hour
• Maximum Pressure: 11.5 Pounds per Square Inch
• Mounting Hardware Included: No
• Negative Ground: Yes
• Outlet Fitting Thread Size: 1/8 Inch
• Outlet Quantity: 1
• Outlet Size: 1/8 Inch NPT
• Outlet Thread: 1/8 Inch NPT
• Outlet Type: NPT
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2.0
• Wiring Harness Included: No
