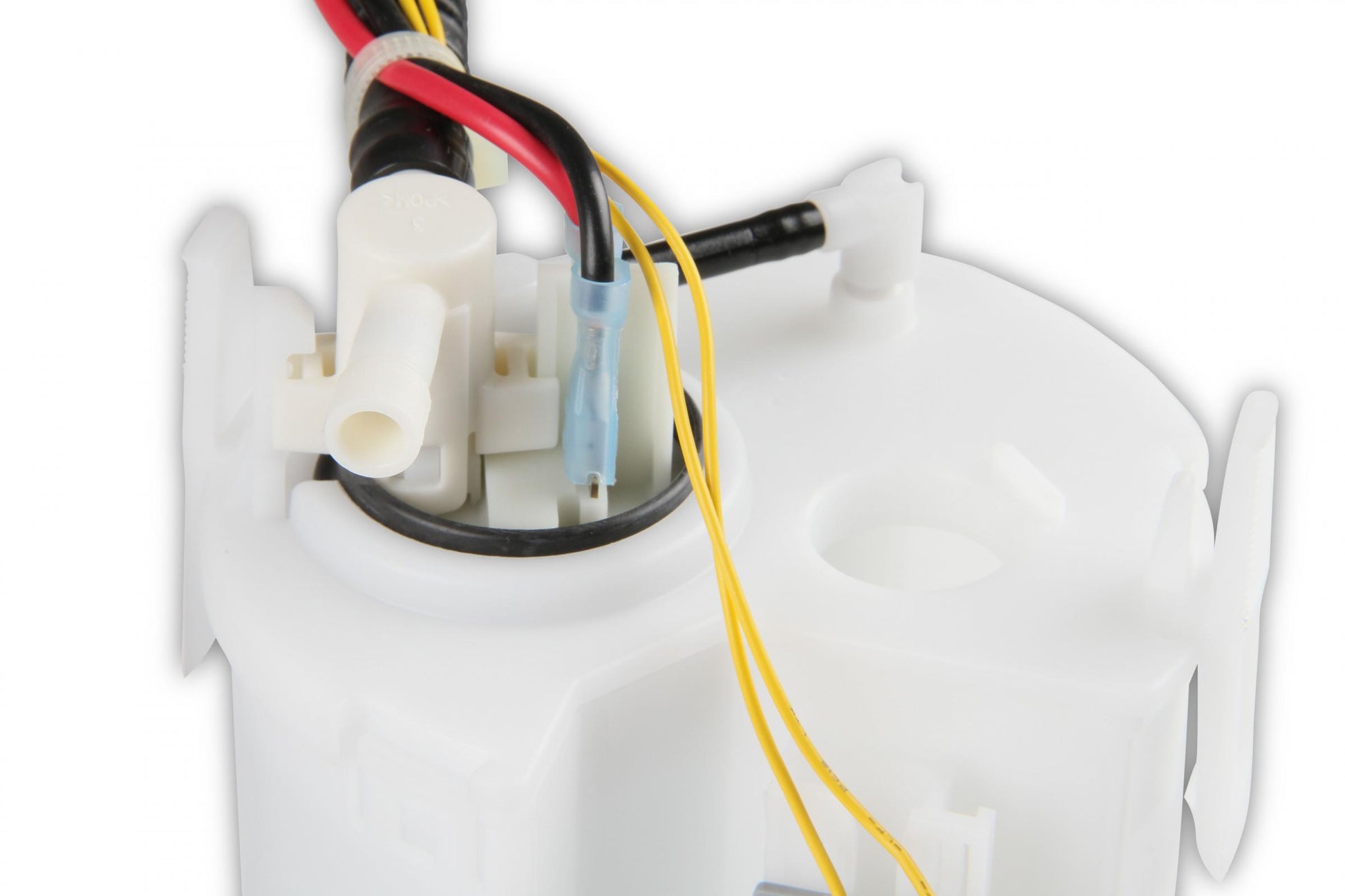

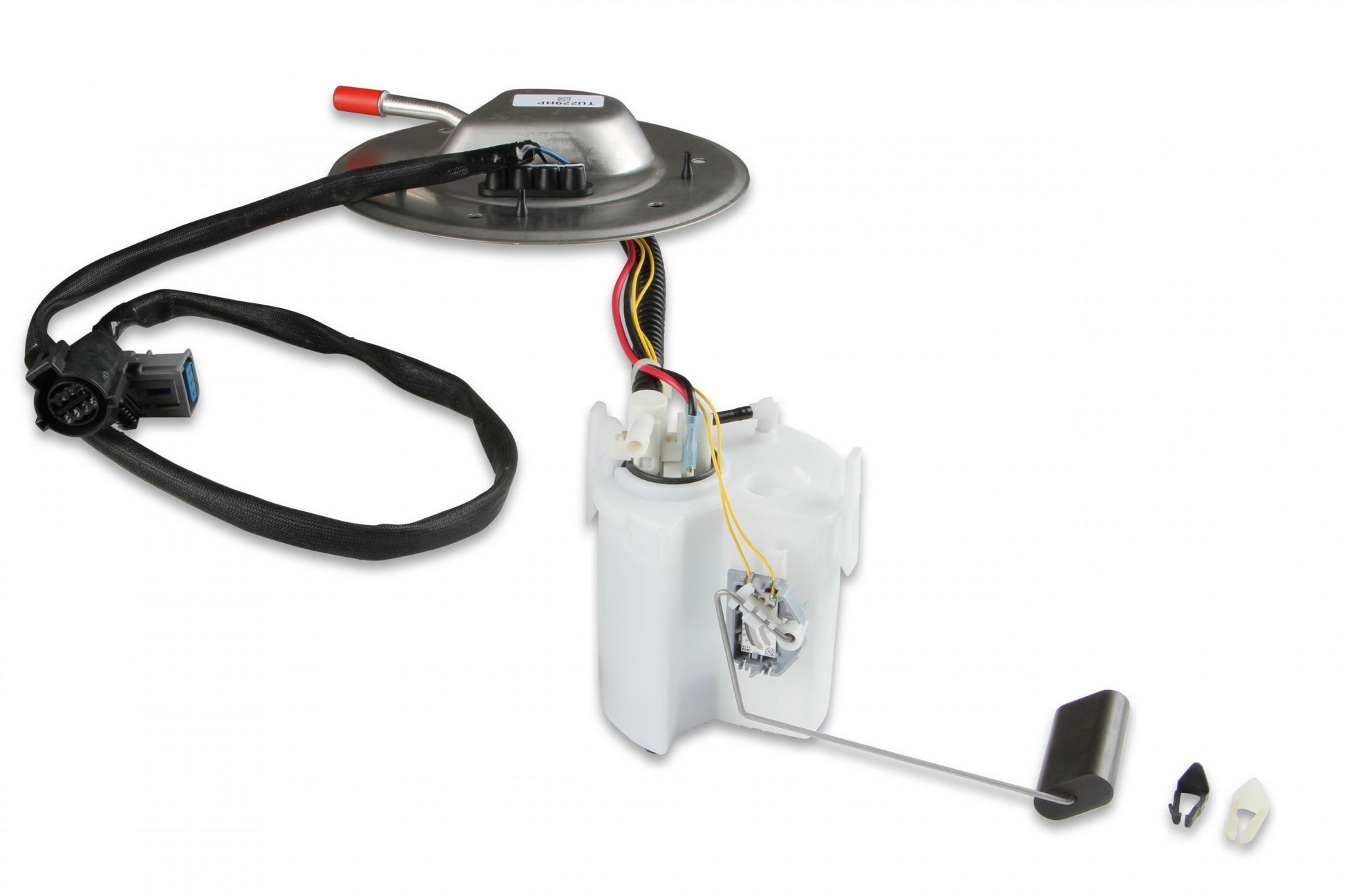

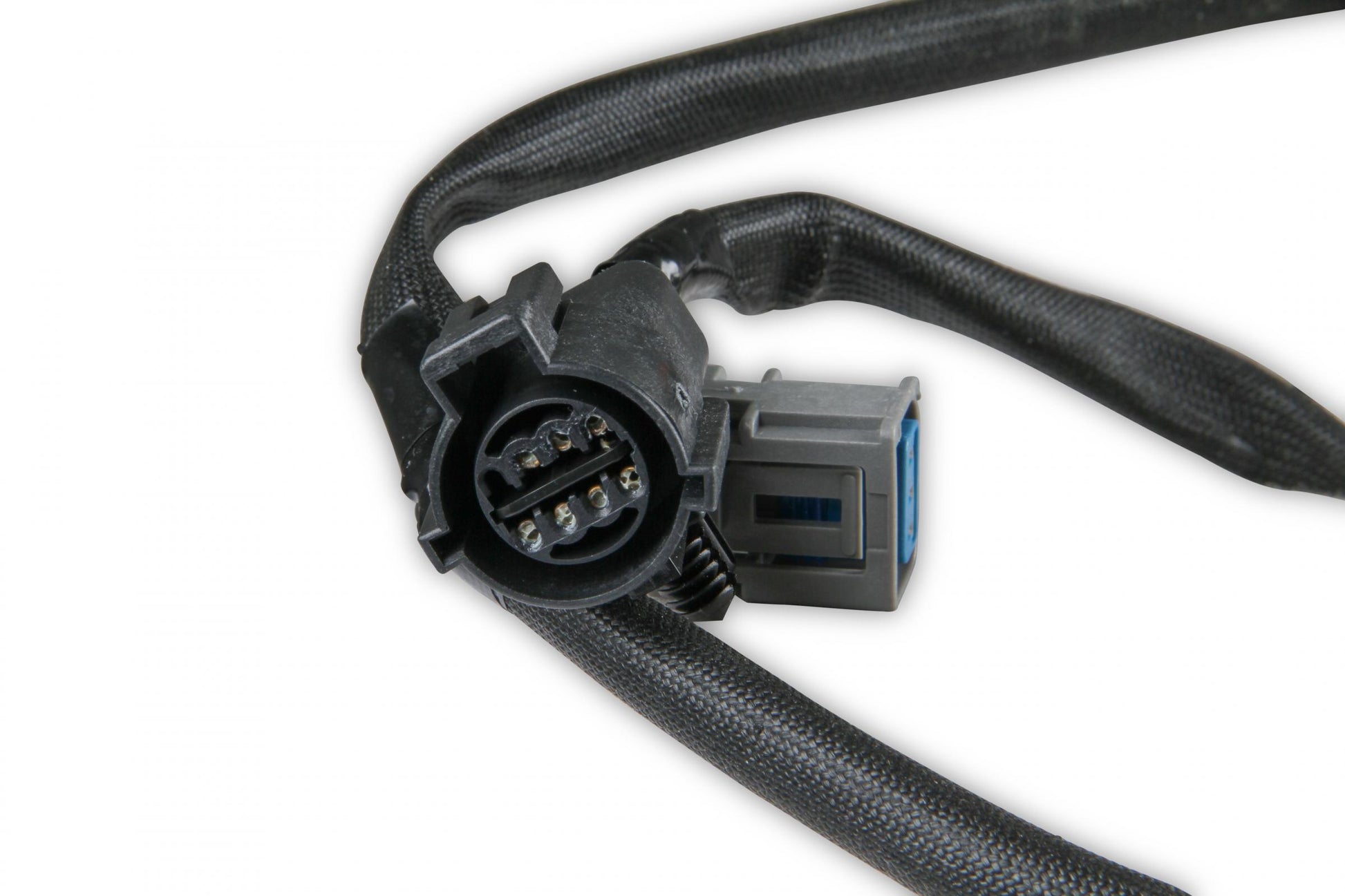

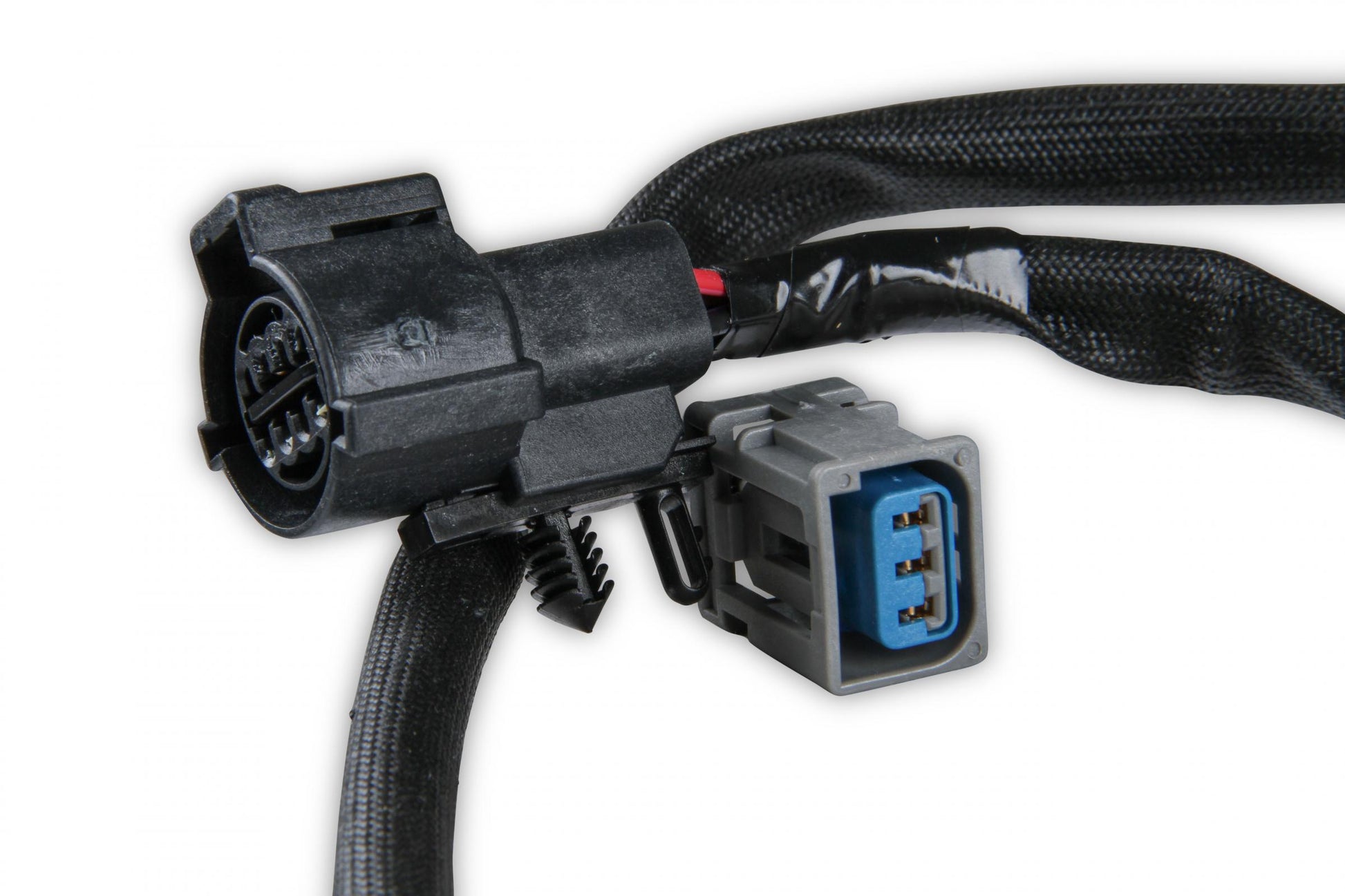

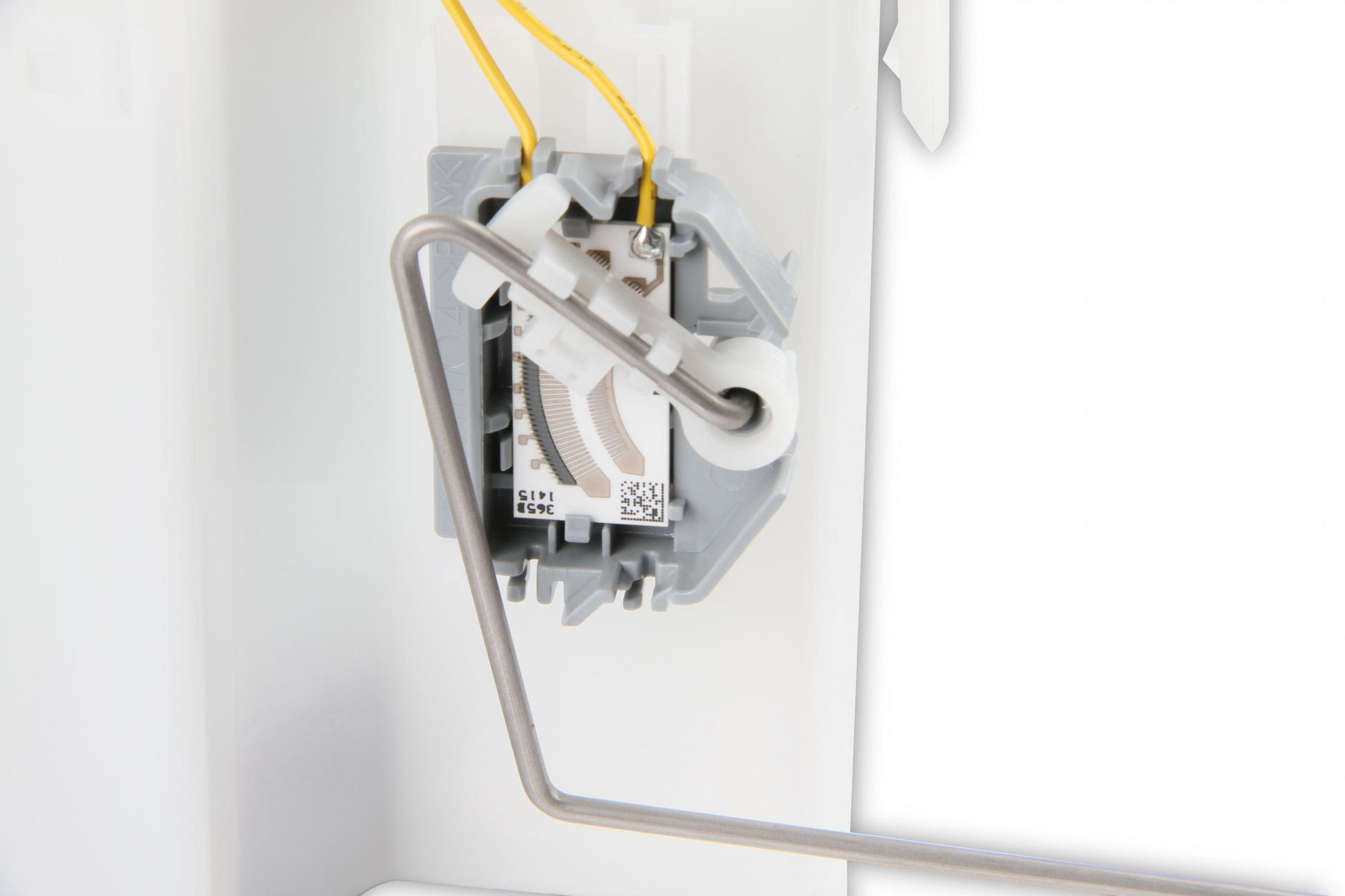

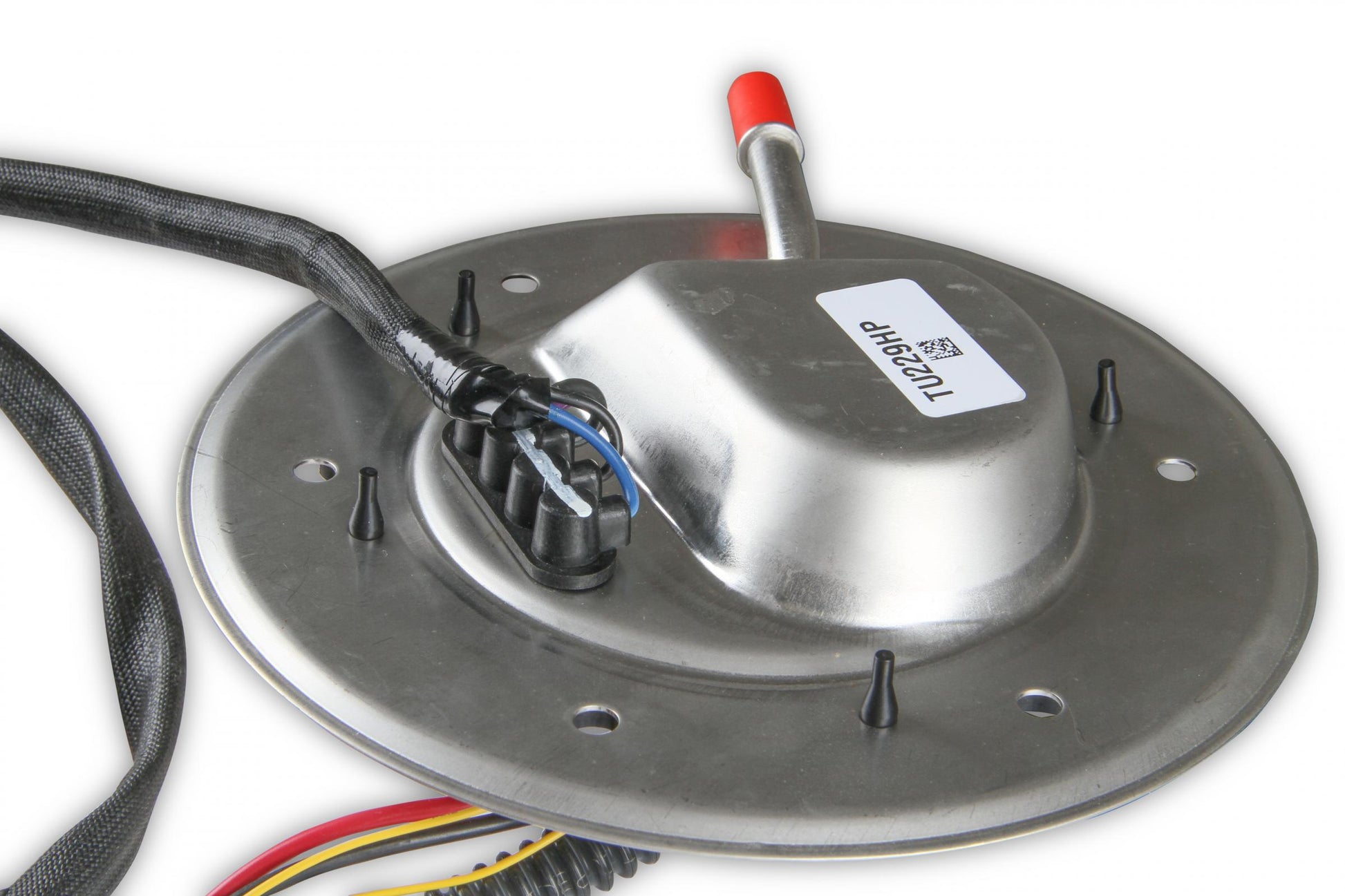

255 LPH Drop-In Fuel Module Assembly 255 LPH Drop-In Fuel Module Assembly for 2001-2004 Ford Mustang Models Holley

Holley now offers offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks. These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 600+ horsepower.

Features and Benefits:

• Complete drop-in fuel module assembly Integrated fuel storage and filtration technology Built in, pre-calibrated fuel level sensors Plug and play wiring harnesses Capable of supporting 600+ hp right out of the box Designed for return line and pulse width modulation (PWM)

Associated Comments:

• TU229HP

Details:

• Application: 2001-2004 Ford Mustang
• Average Current Draw: 10.4 Ampere
• Average Flow Rating: 255 Liters per Hour
• Connector Color: Black
• Connector Gender: Female
• Connector Quantity: 1.0
• Free Flow Gph: 67
• Free Flow Lph: 255
• Fuel Type: Gasoline
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes
• Fuel System: EFI
• Fuel Tank Pressure Sensor Included: No
• Gasket Or Seal Included: No
• Grade Type: Performance
• Height: Standard
• Housing Material: Plastic
• In Tank or External: In Tank
• Internal Or External Strainer: External
• Lock Ring Included: No
• Maximum Pressure: 60 Pounds per Square Inch
• Mounting Hardware Included: No
• Negative Ground: Yes
• Outlet Quantity: One
• Outlet Size: 5/16 Barb
• Outlet Type: Barb
• Pump Type: Electric
• Regulator Included: No
• Resistance Ohms Empty: 15 Ohm
• Resistance Ohms Full: 160 Ohm
• Universal Or Specific Fit: Specific
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Harness Included: Yes
• Wire Quantity: 4.0
