110 GPH Blue Electric Pump Without Regulator Street/strip Carbureted Applications Compatible with Gasoline Only Holley

The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's.

Their time proven rotor/vane design is known to get the job done in an affordable package.

Features and Benefits:

• Tumble polished billet look Lower housing casting designed for enhanced fuel flow and quiet operation Motor draws only 3 amps current 7 1/2 amp fuse recommended Improved design for street/strip applications Not designed for use on aircraft of any type
• Distinctive Blue logo Flows 110 Gph (free flow) Flows 88 Gph at 9 psi maximum pressure is 14 psi Provides constant fuel flow with no pulsation Has externally accessible pressure relief valve (max 14 psi) Rotor/vane pump design is more tolerant of contaminated fuels Weighs only 3 lbs Includes mounting bracket Repair kits are readily available Can be serviced from the pump end Not compatible with alcohol or methanol fuels Use of safety shut-off switch, P/N 12-810, strongly recommended Not designed or recommended for use with fuel injection systems Fuel pressure regulator not included

Associated Comments:

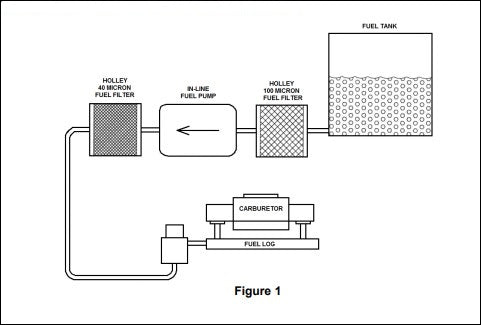

• Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.

Details:

• Application: Universal
• Bracket Color: Silver
• Free Flow Gph: 110
• Free Flow Lph: 416
• Fuel Type: Gasoline
• Fuel Delivery Type: Carburetor
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Fitting Thread Size: 3/8 Inch
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Internal Or External: External
• Material: Aluminum
• Maximum Amperage Draw: 3 Ampere
• Maximum Flow Rating: 110 U.S. Gallons per hour
• Maximum Pressure: 14 Pounds per Square Inch
• Motor Finish: Silver
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Fitting Thread Size: 3/8 Inch
• Outlet Quantity: 1
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Pump Body Color: Silver
• Regulator Included: No
• Strainer Included: No
• Universal Or Specific Fit: Universal
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 2.0
• Wiring Harness Included: No
