Fuel Tank System 400 LPH 1967-1968 Chevy Camaro / Firebird With Notched Front Corners Holley Sniper EFI

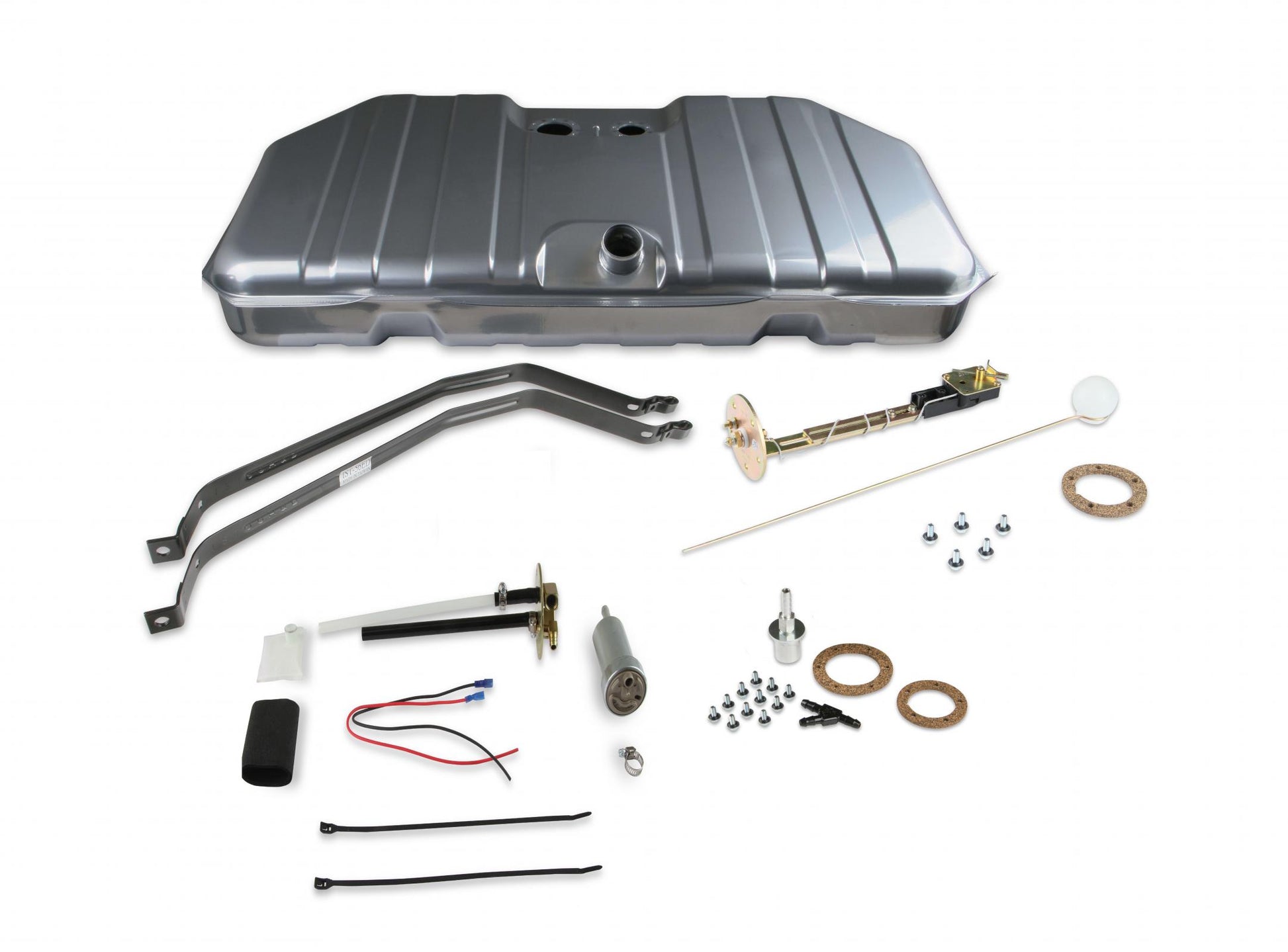

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 400 lph fuel pump, a fuel level sender, and New tank straps.

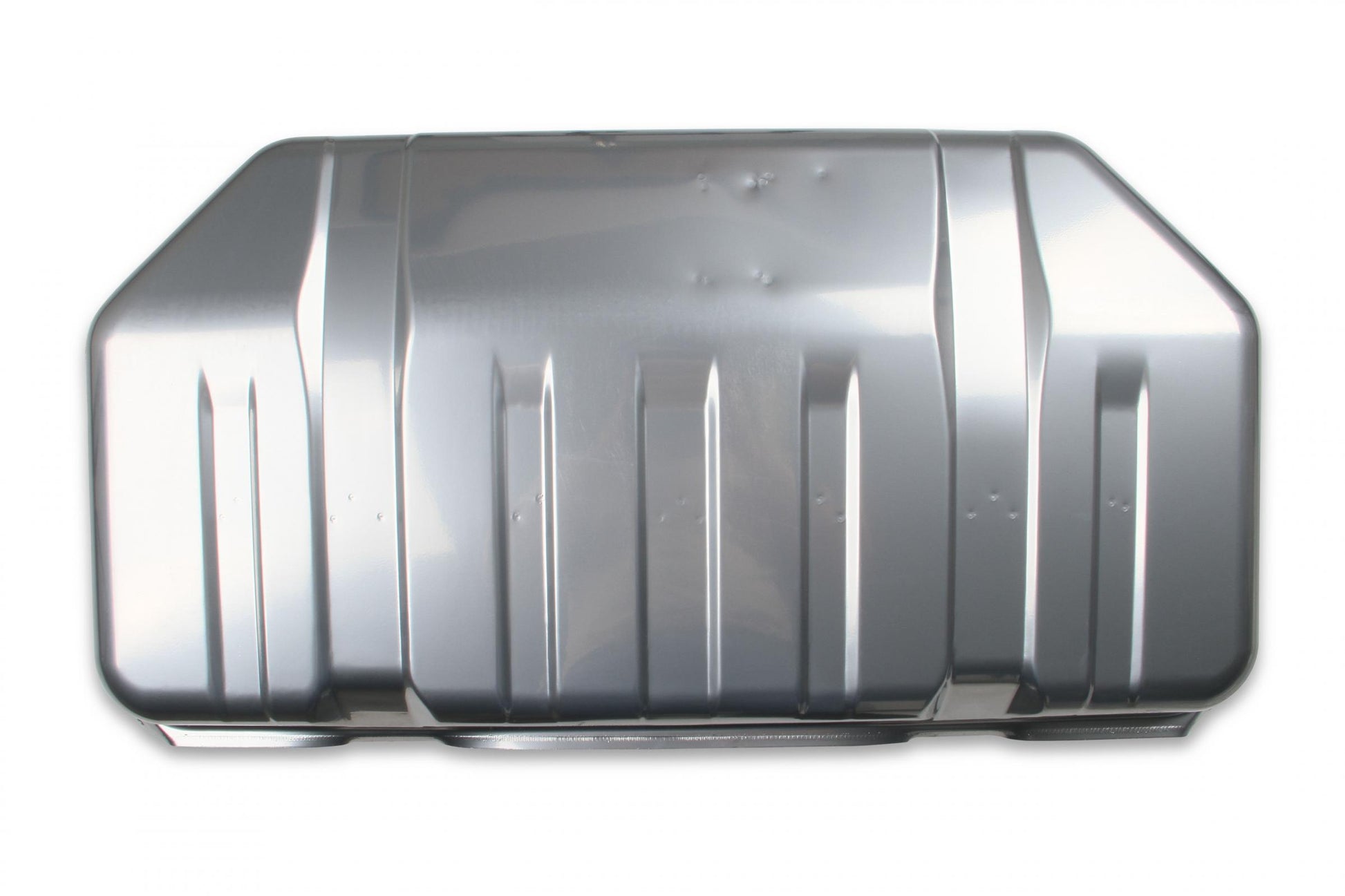

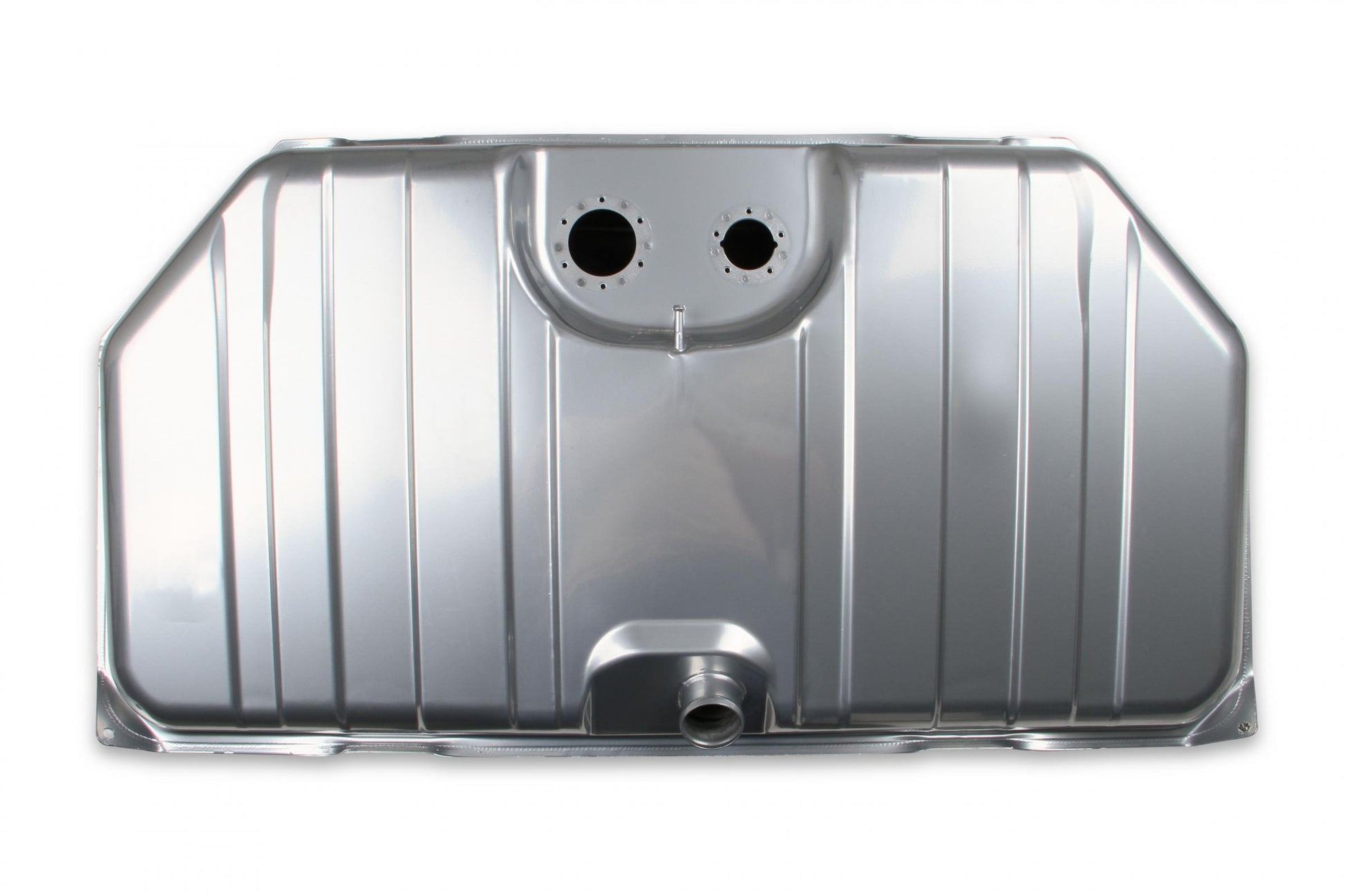

The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance.

This notched corner 67-68 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27 inch to clear up to a 345 tire and 3 inch exhaust.

To help regain fuel capacity from the notched corners this tank is 1 inch deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust.

The 400 LPH fuel pump supports up to 750 EFI (at 60 PSI at 13.5 Volts / 10.4 AMP Draw).

• Tanks are galvanized steel then powder coated silver for total corrosion protection.

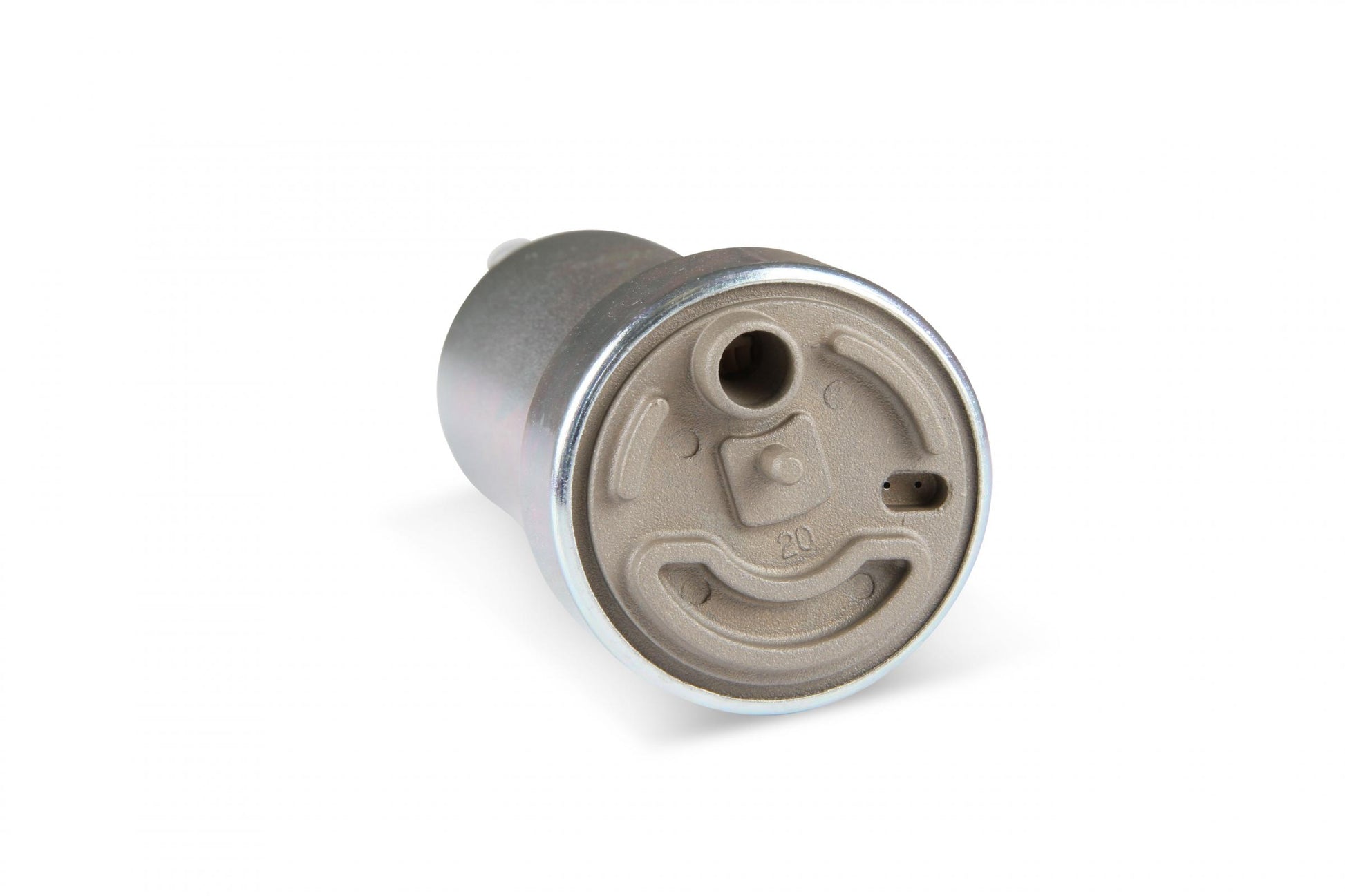

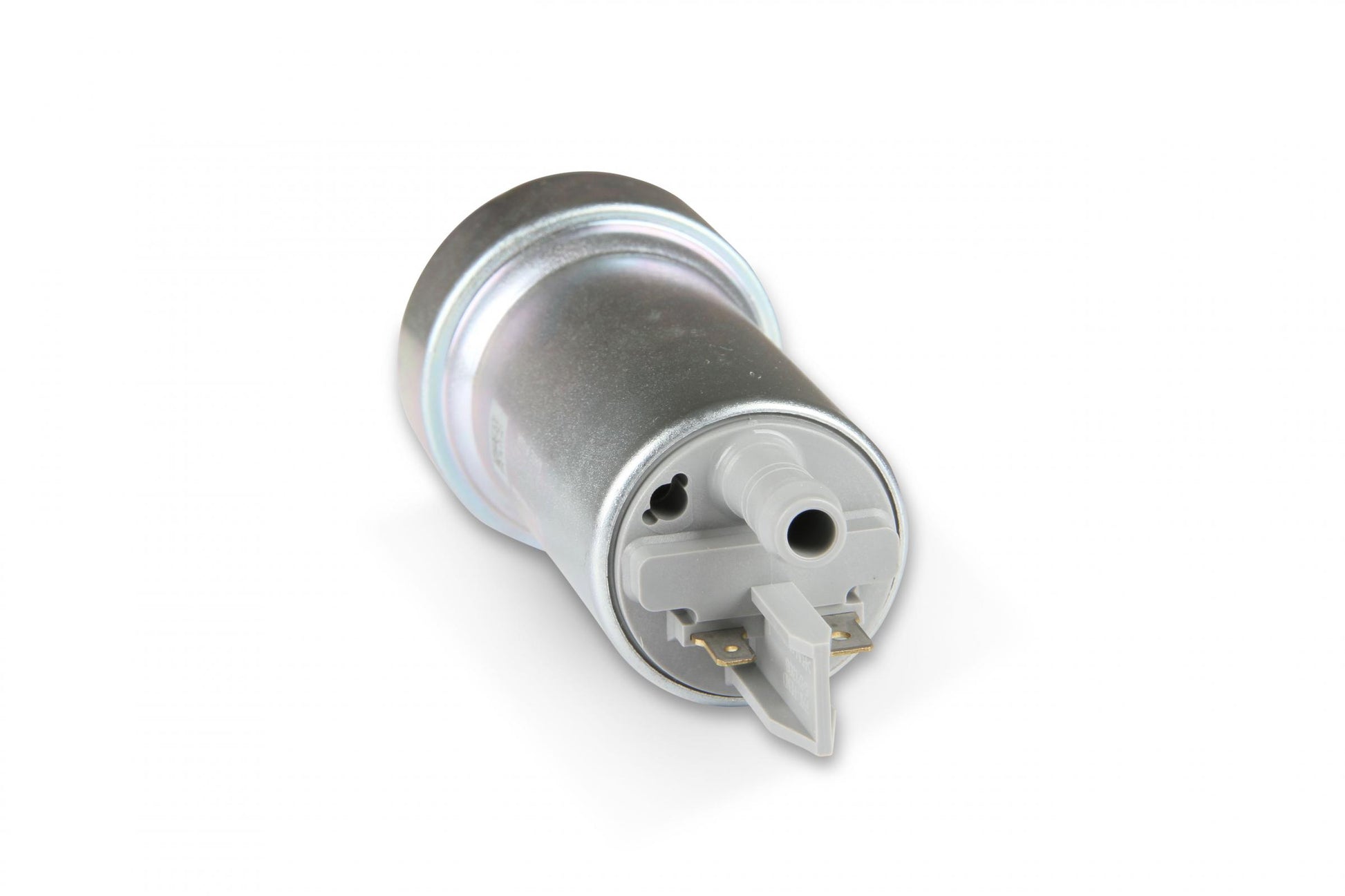

• 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness.

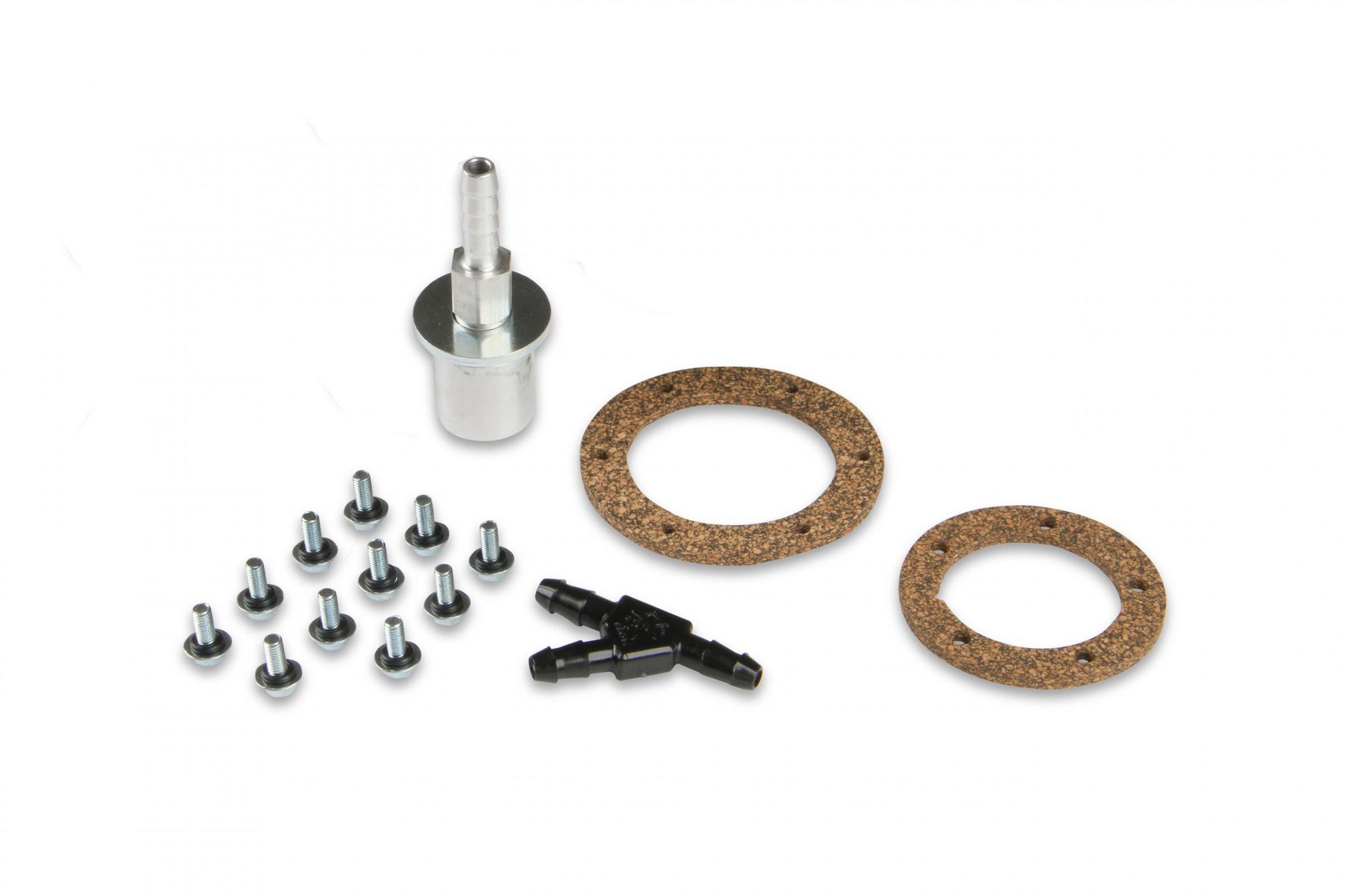

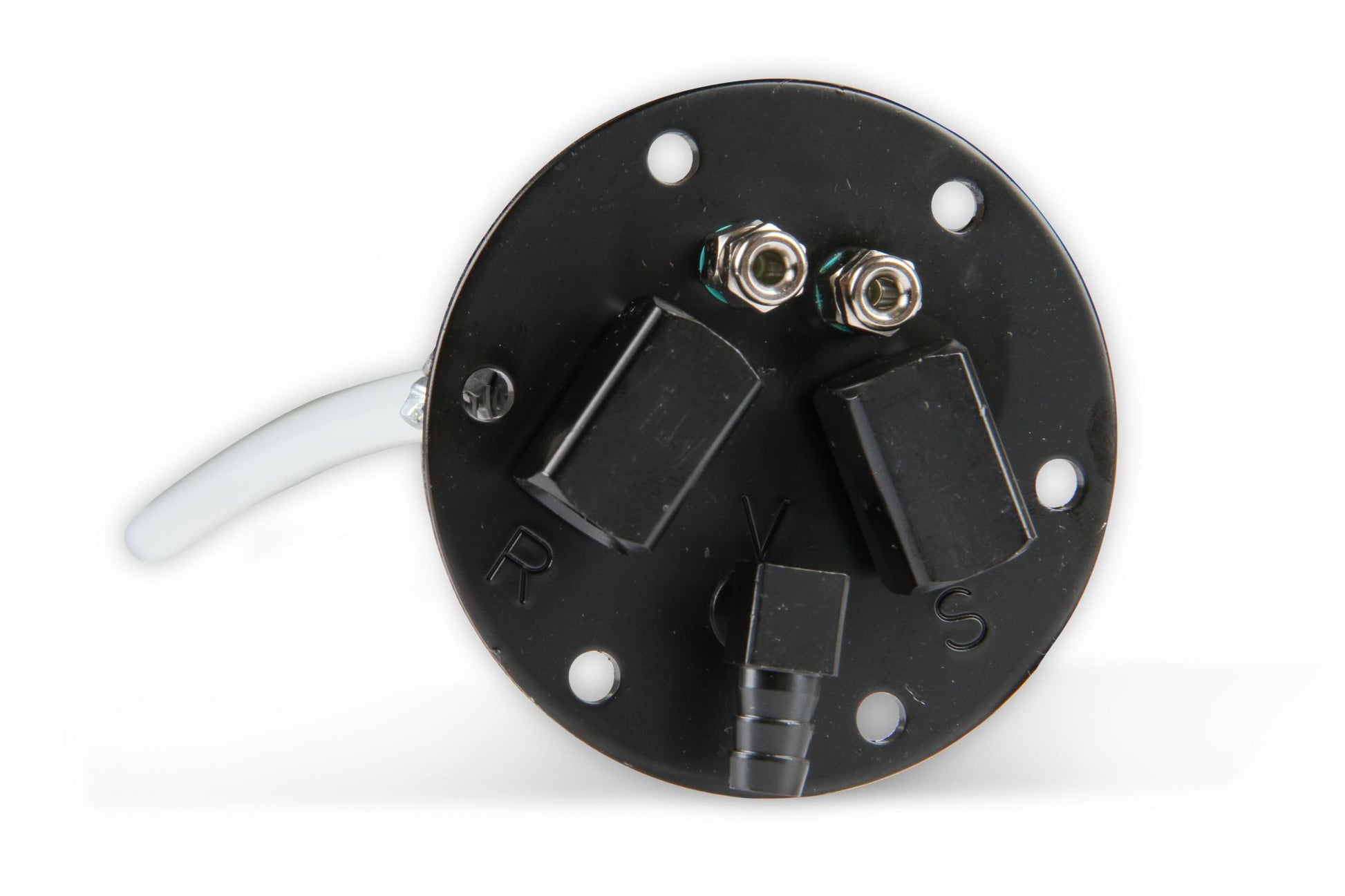

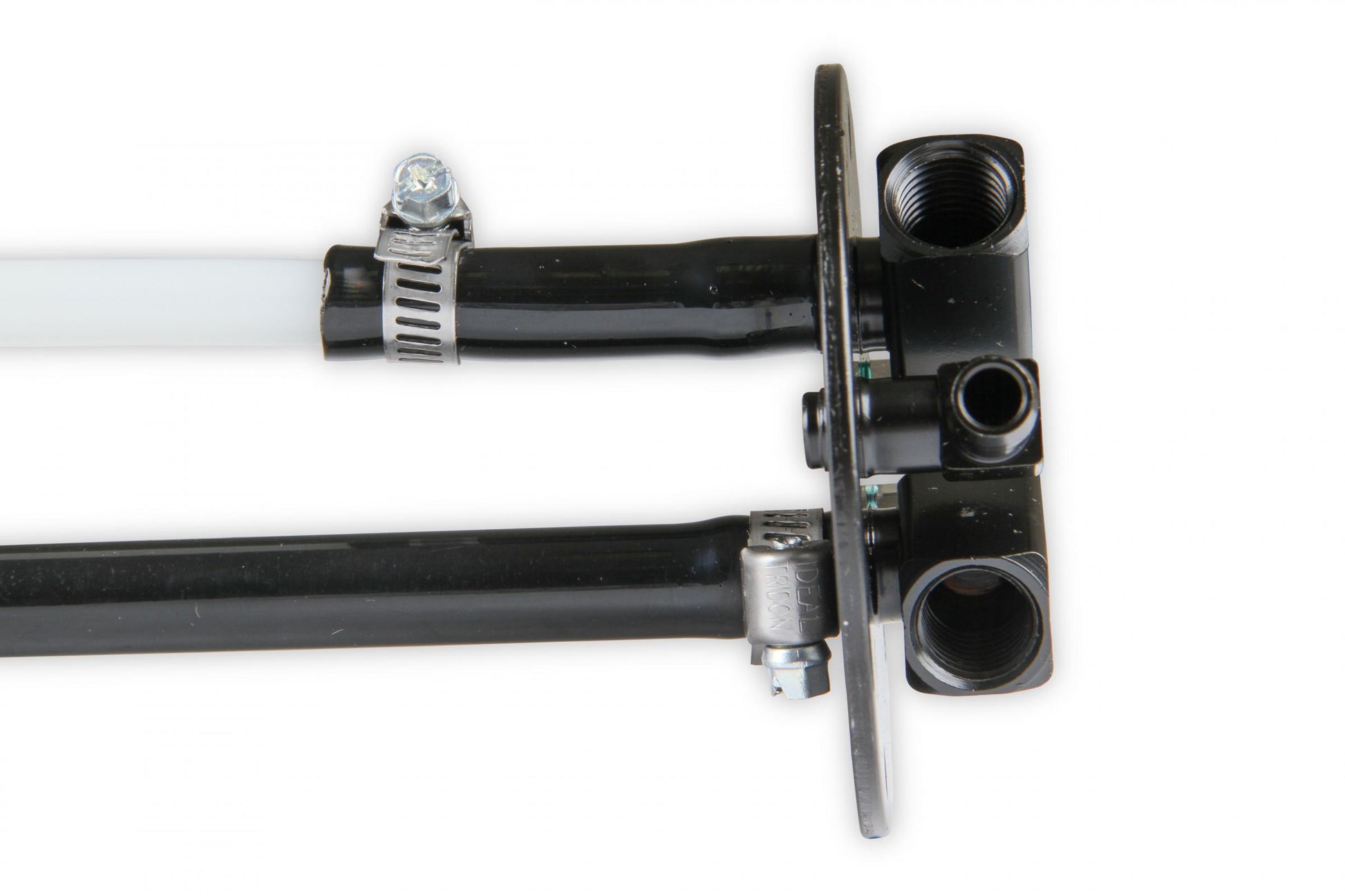

• Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting.

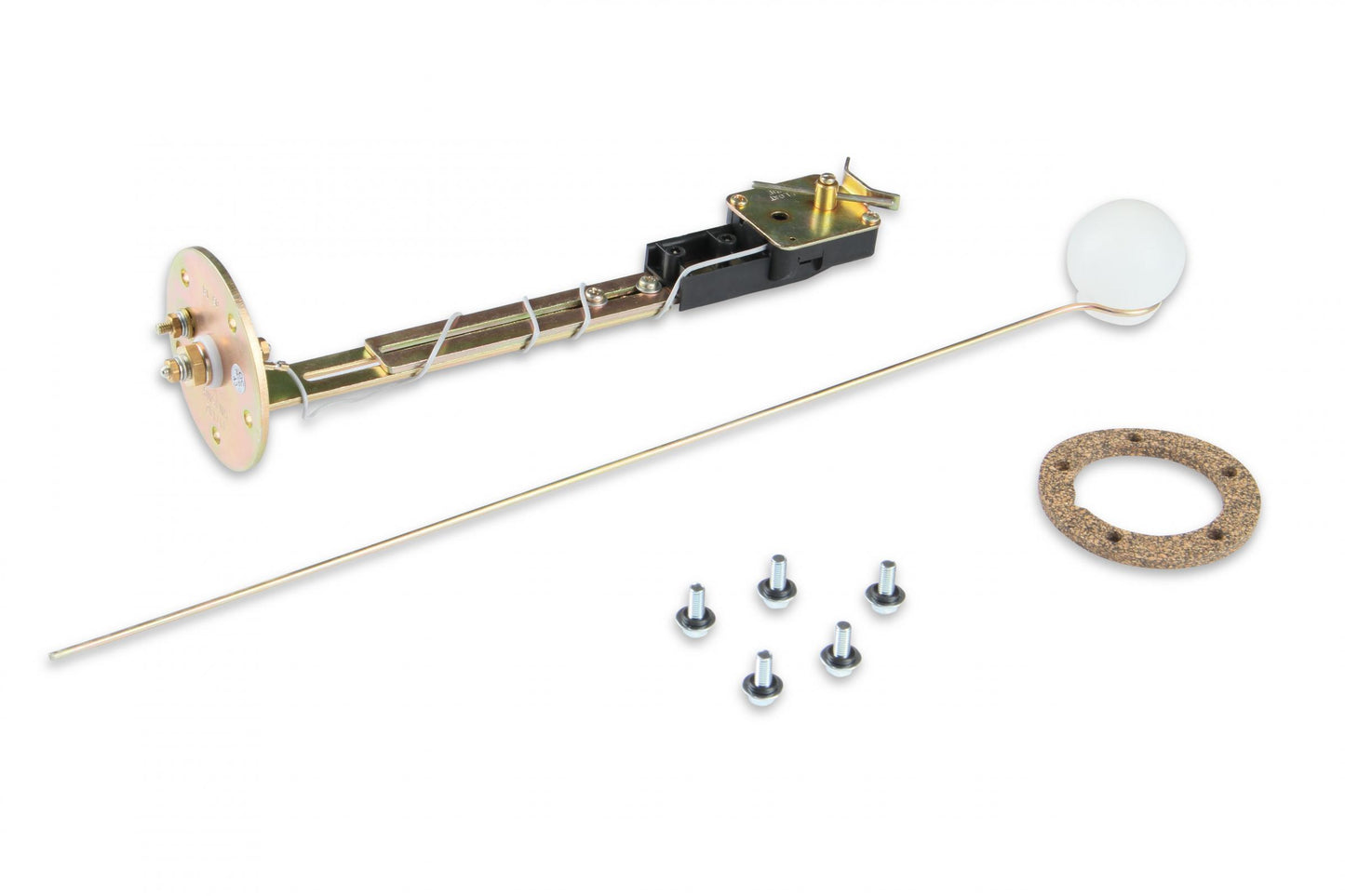

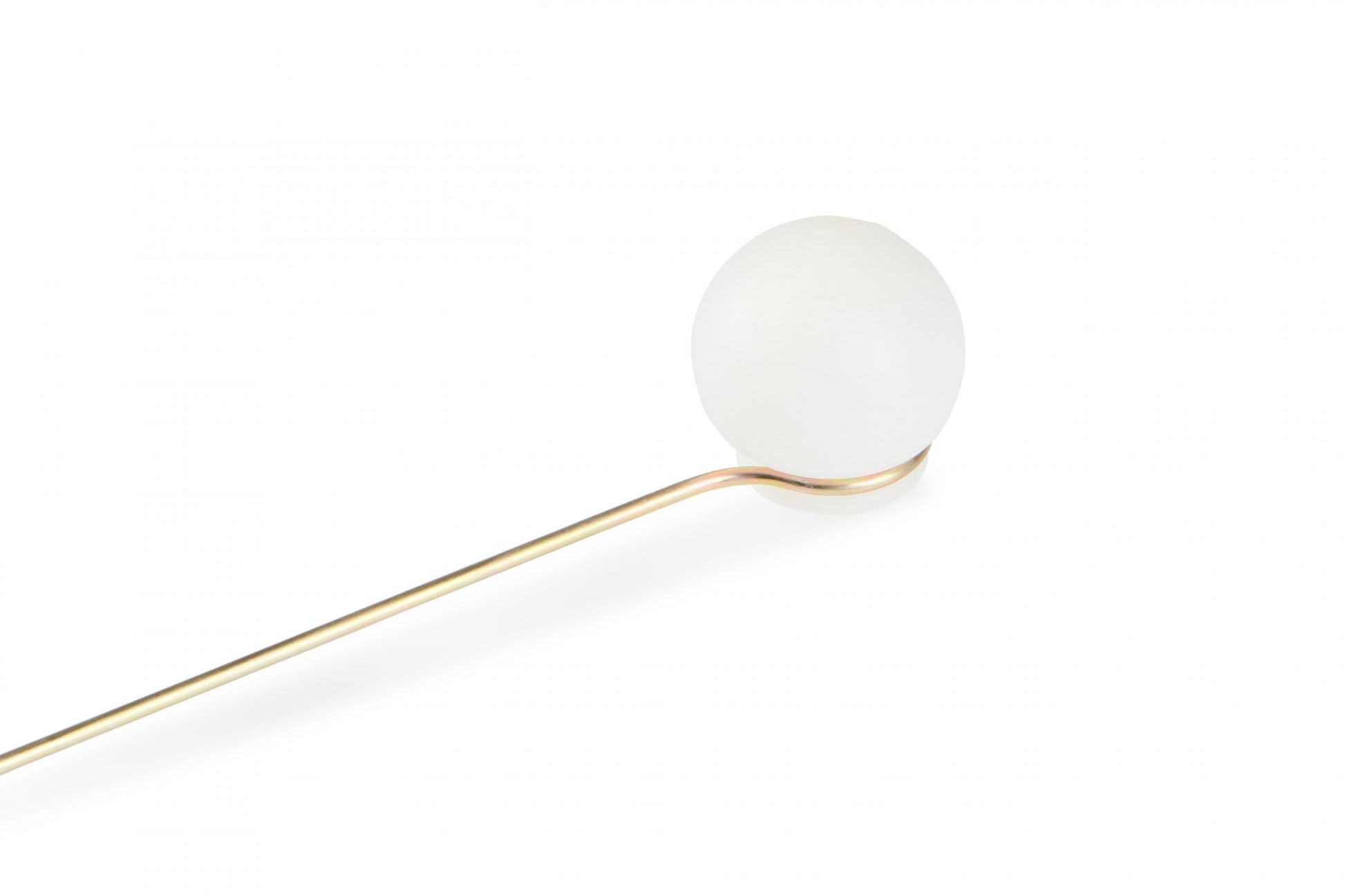

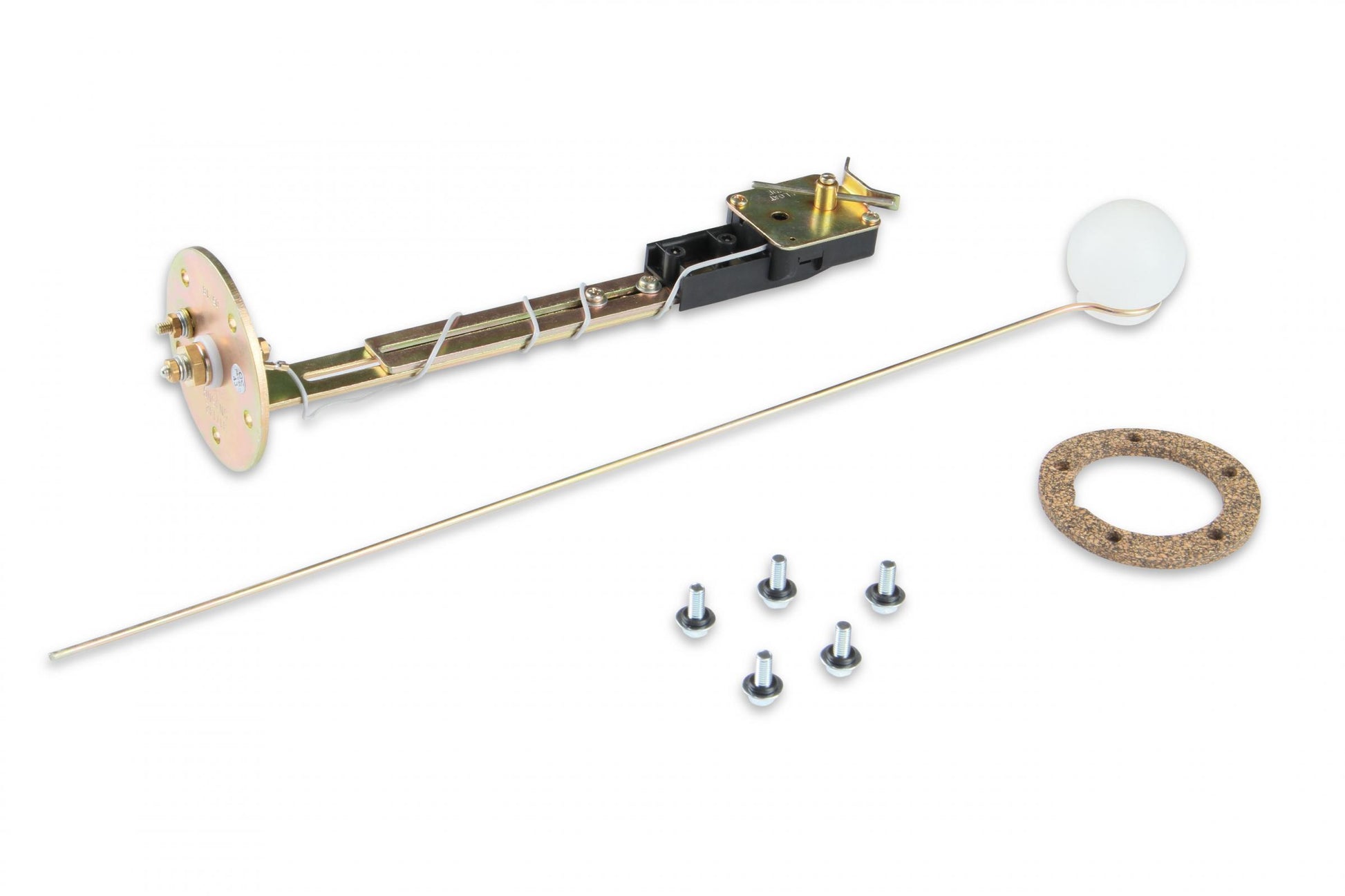

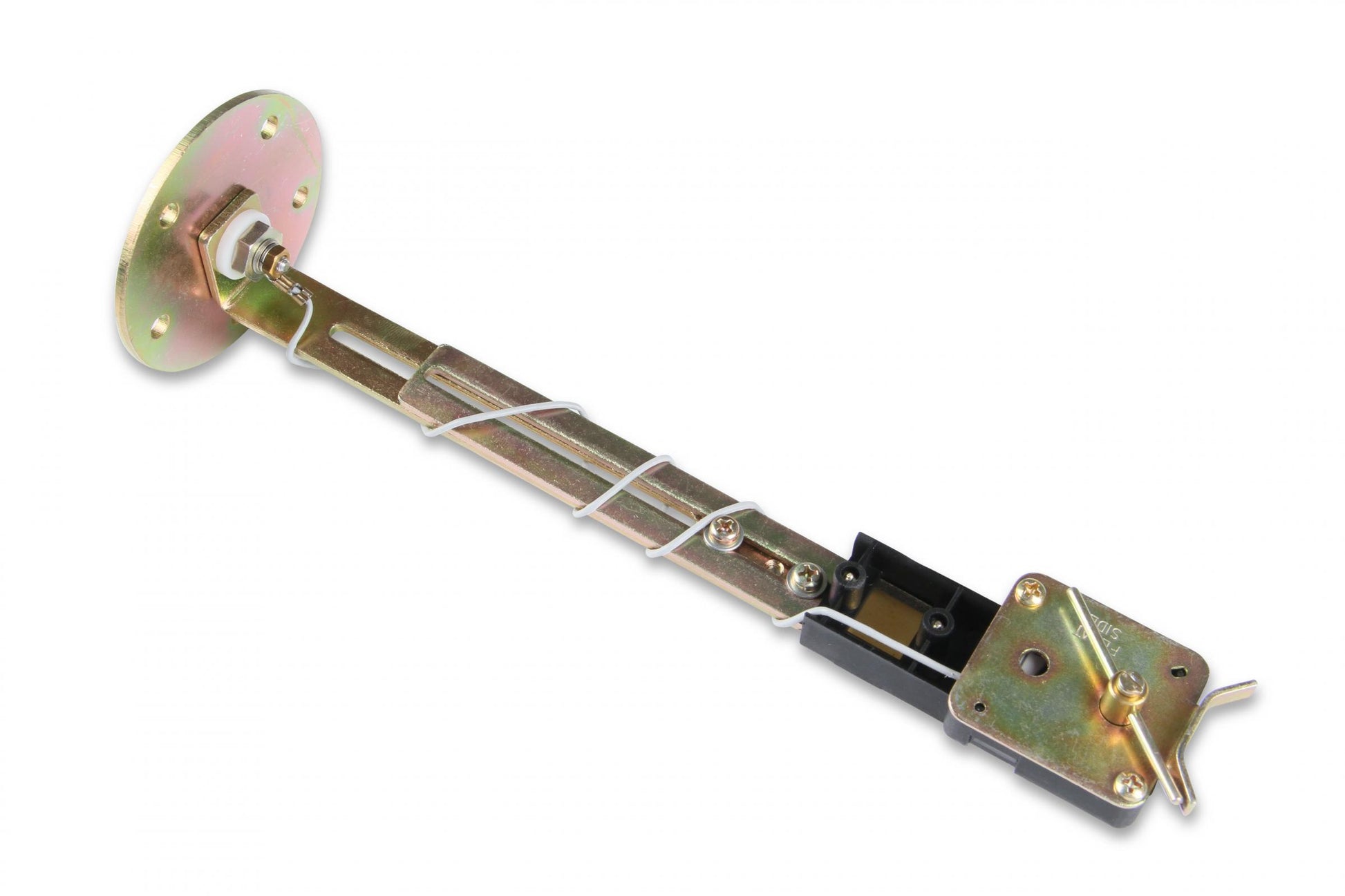

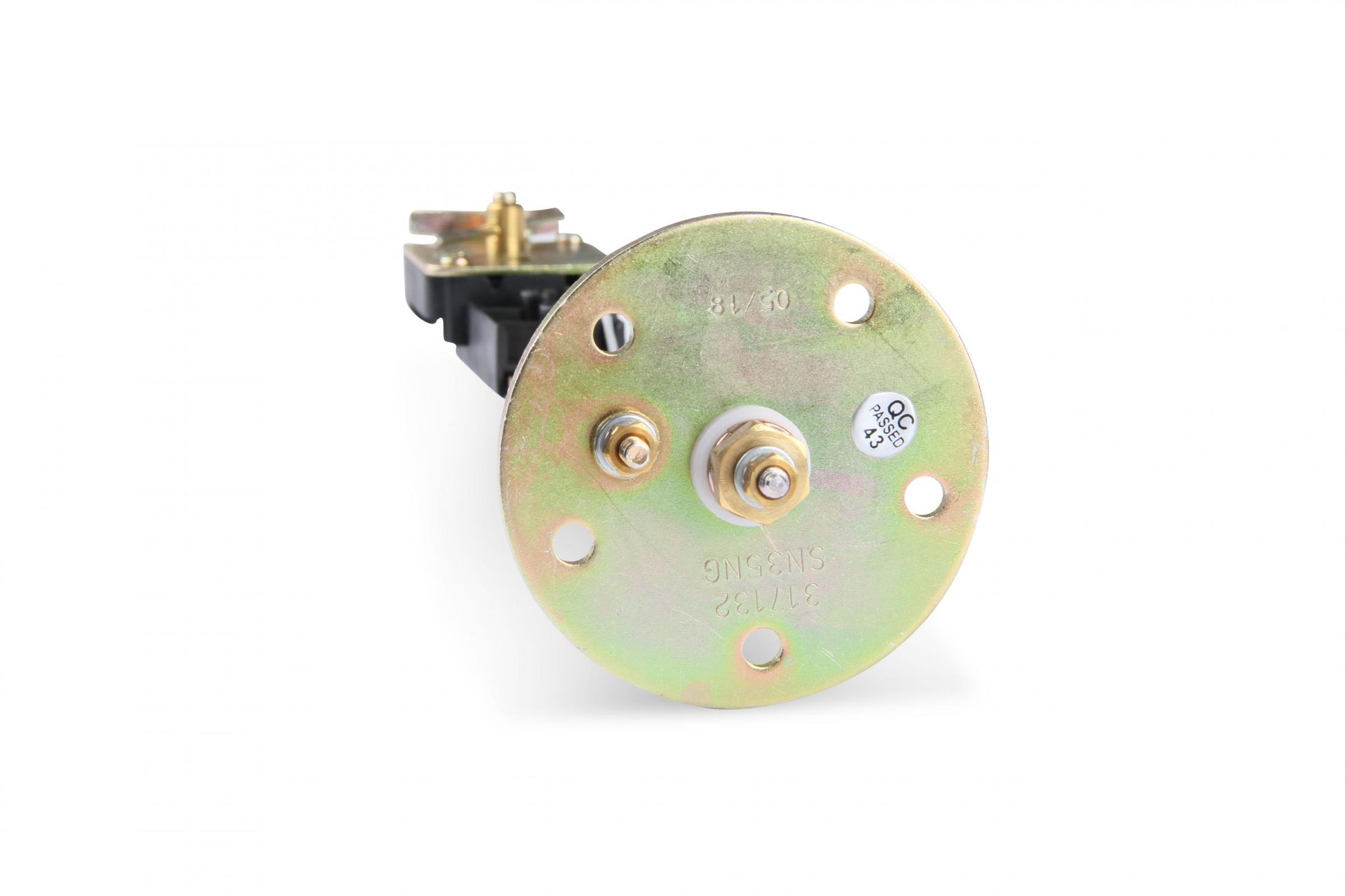

• Fuel level sender included with the correct Ohm range for your factory gauges.
• Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car.
• Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation.
• Fits and looks like an OE tank when installed.
• Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance.

Details:

• Application: 1967-1968 Chevrolet Camaro/Pontiac Firebird
• Attached Sump: Yes
• Baffled Sump: Yes
• Color: Silver
• Drain Plug: No
• Emission Code: 3
• Filler Neck Attached: No
• Finish: Powdercoated
• Free Flow LPH: 400
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel System Compatibility: Electronic Fuel Injection
• Fuel System Type: Gasoline
• Fuel Tank Coating: Powder Coated
• Gallon Capacity: 18
• Grade Type: Performance
• Lock Ring Included: Yes
• Material: Steel
• Maximum Flow Rating: 400 LPH
• Mounting Straps Included: Yes
• New Straps Included: Yes
• O-Ring Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Sending Unit Included: Yes
• Tank Capacity: 18 U.S. Gallon
• Tank Color: Gray
• Tank Material: Steel
• Warranty: Manufacturer's Limited 90 Day Warranty
