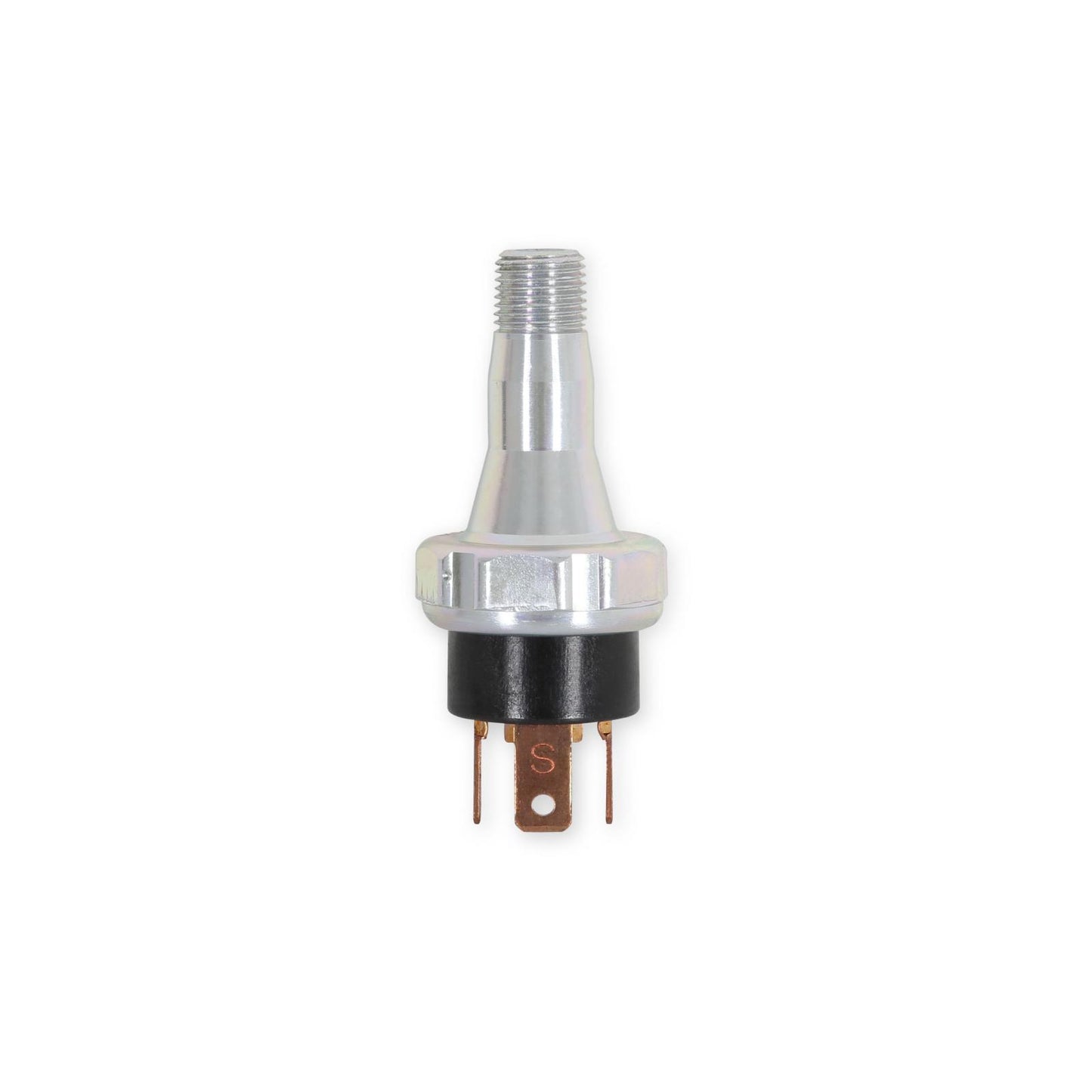

Fuel Pump Safety Pressure Switch Universal Switch for Use with All Electric Fuel Pumps Working Pressure Range Is 2-100 PSI Holley

The Holley P/N 12-810 fuel pump pressure safety switch is a good peace of mind to help save your engine in the unlikely event of oil pressure loss. The safety switch is installed in conjunction with the oil pressure switch and if a loss of oil pressure should occur, the switch will remove power from the electric fuel pump stalling the engine due to a loss of fuel.

This safety switch can help to save your engine if it losses oil pressure. Working Pressure range is 2-100 PSI.

Features and Benefits:

• Safety pressure switch that reads oil pressure Will shut off fuel pump when oil pressure drops below 5 psi Includes detailed instructions

Details:

• Amperage Rating: 7.5 Ampere
• Component Type: Safety Pressue Switch
• Mounting Bracket Included: No
• Pressure Limit Open: 5 Pounds per Square Inch
• Pressure Range: 2-100 PSI
• Terminal Type: Screw
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 3.0
