Fuel Tank System 400 LPH 1974-1977 Camaro Coated Steel Gas Holley Sniper EFI

Holley and Sniper will help you to complete your EFI swap with our New EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary.

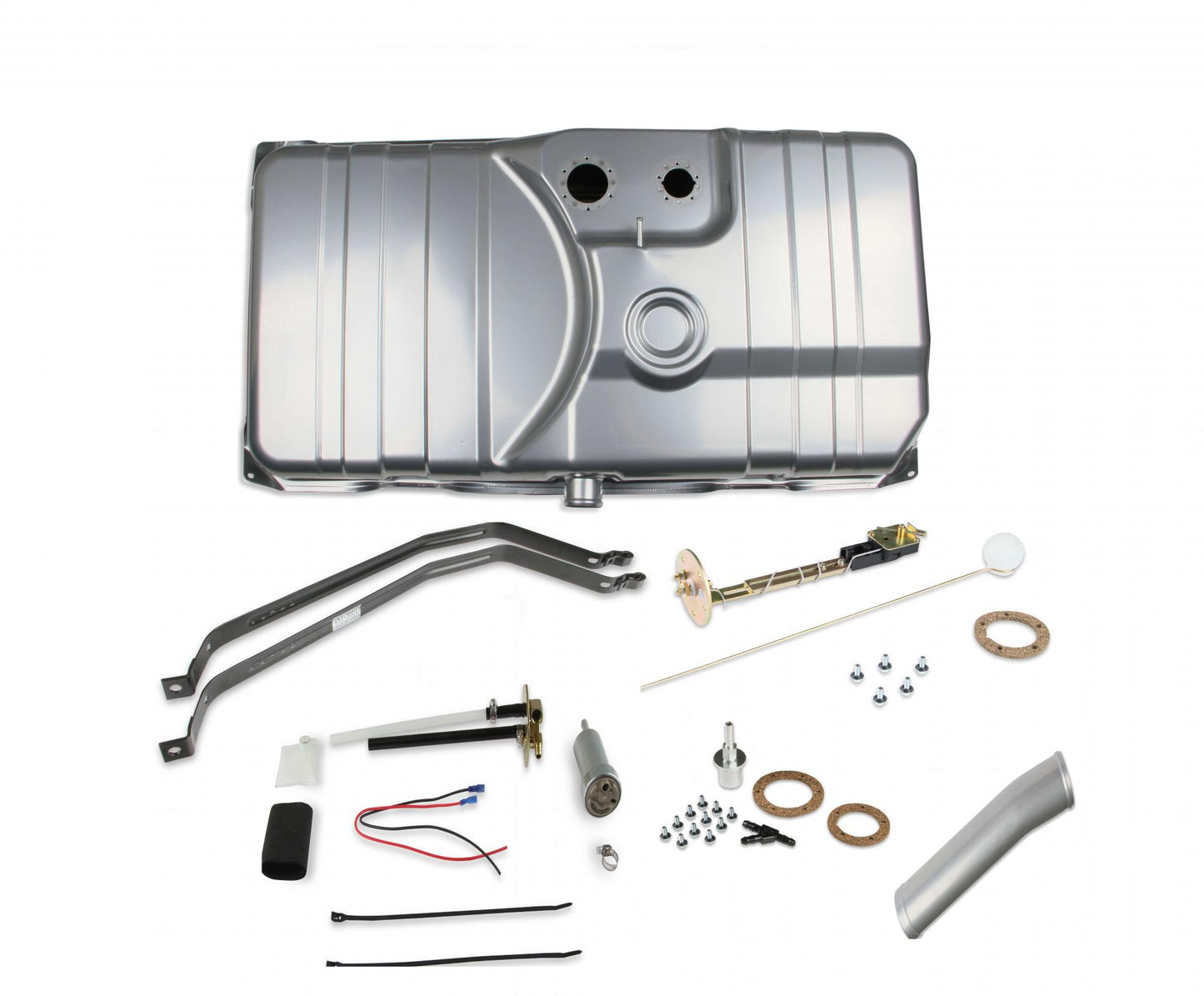

The kit includes the tank, a 400 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks.

These tank kits are a complete solution for your EFI project!

• Supports up to 750 EFI (at 60 PSI at 13.5 Volts / 10.4 AMP Draw).
• Size is: 39-5/8 inch x 21-1/4 inch x 10-1/4 inch.

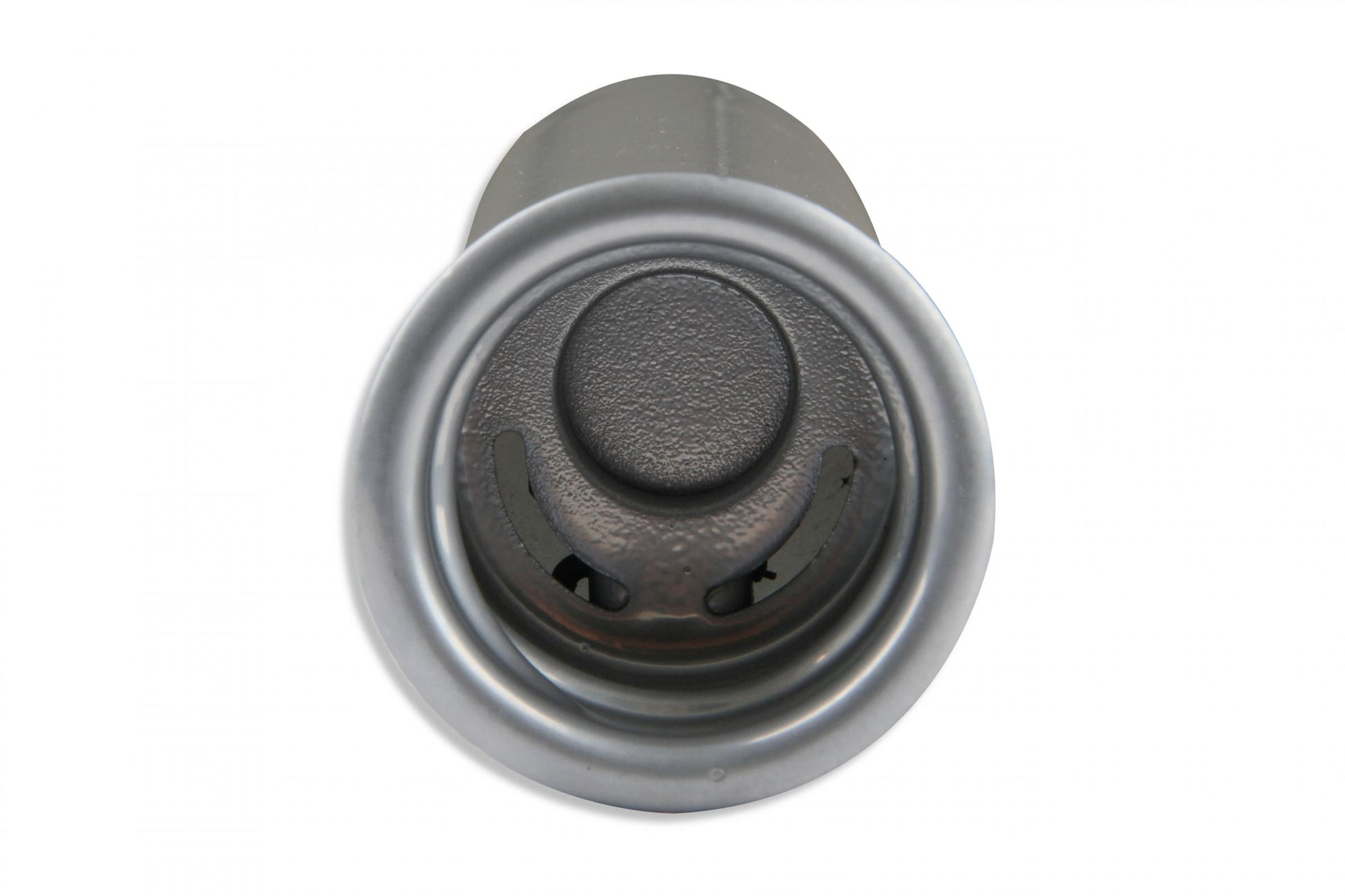

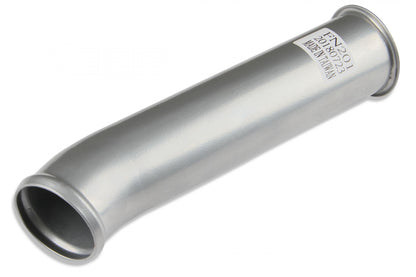

• Hose clamps are not included for two piece filler neck.
• Tanks are coated galvanized steel then powder coated silver for total corrosion protection.
• 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness.

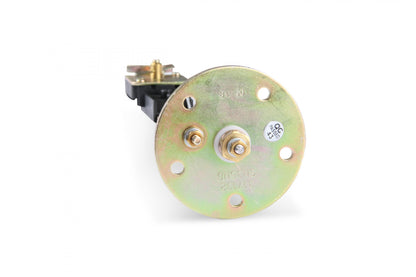

• Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting.

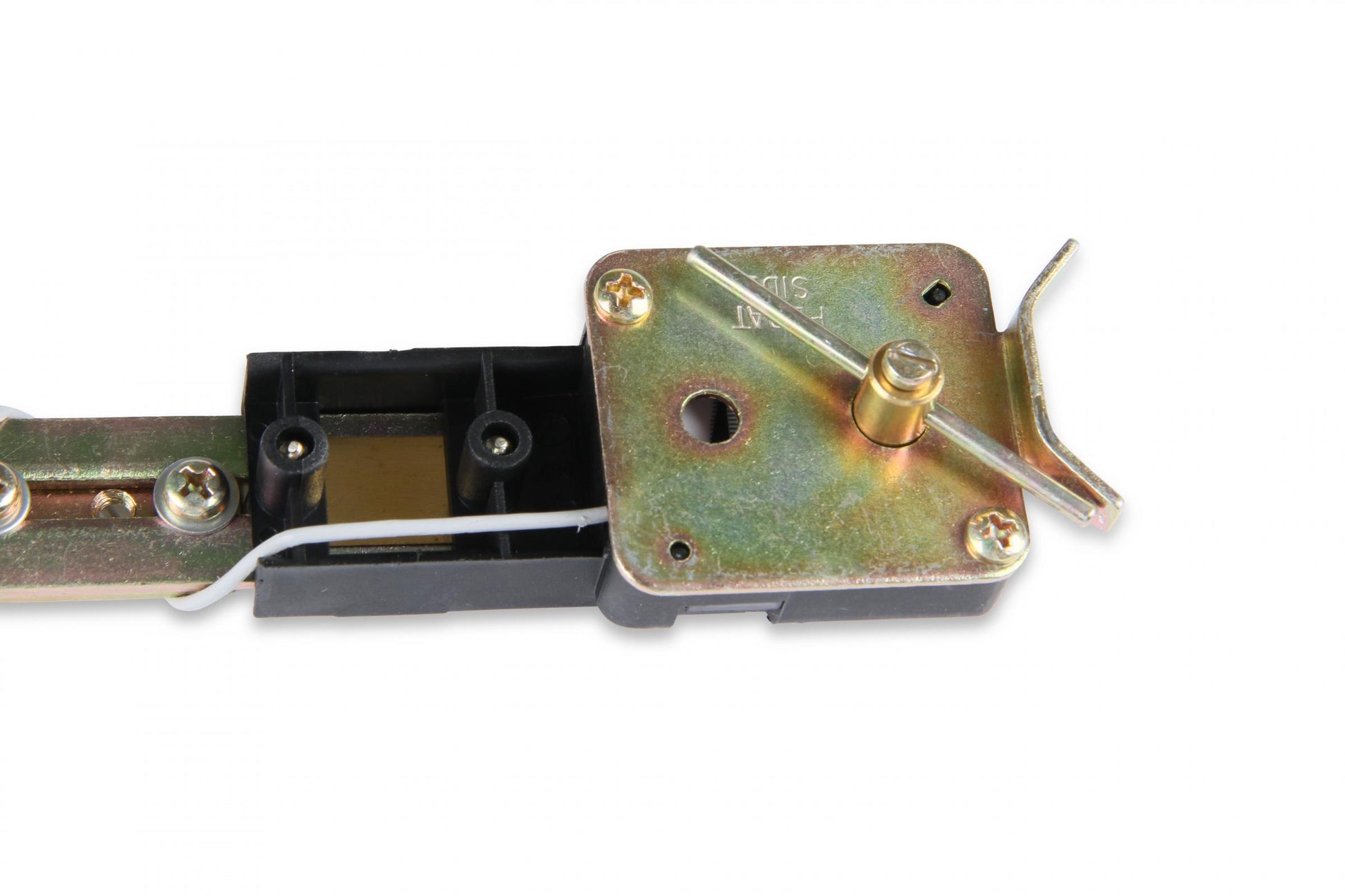

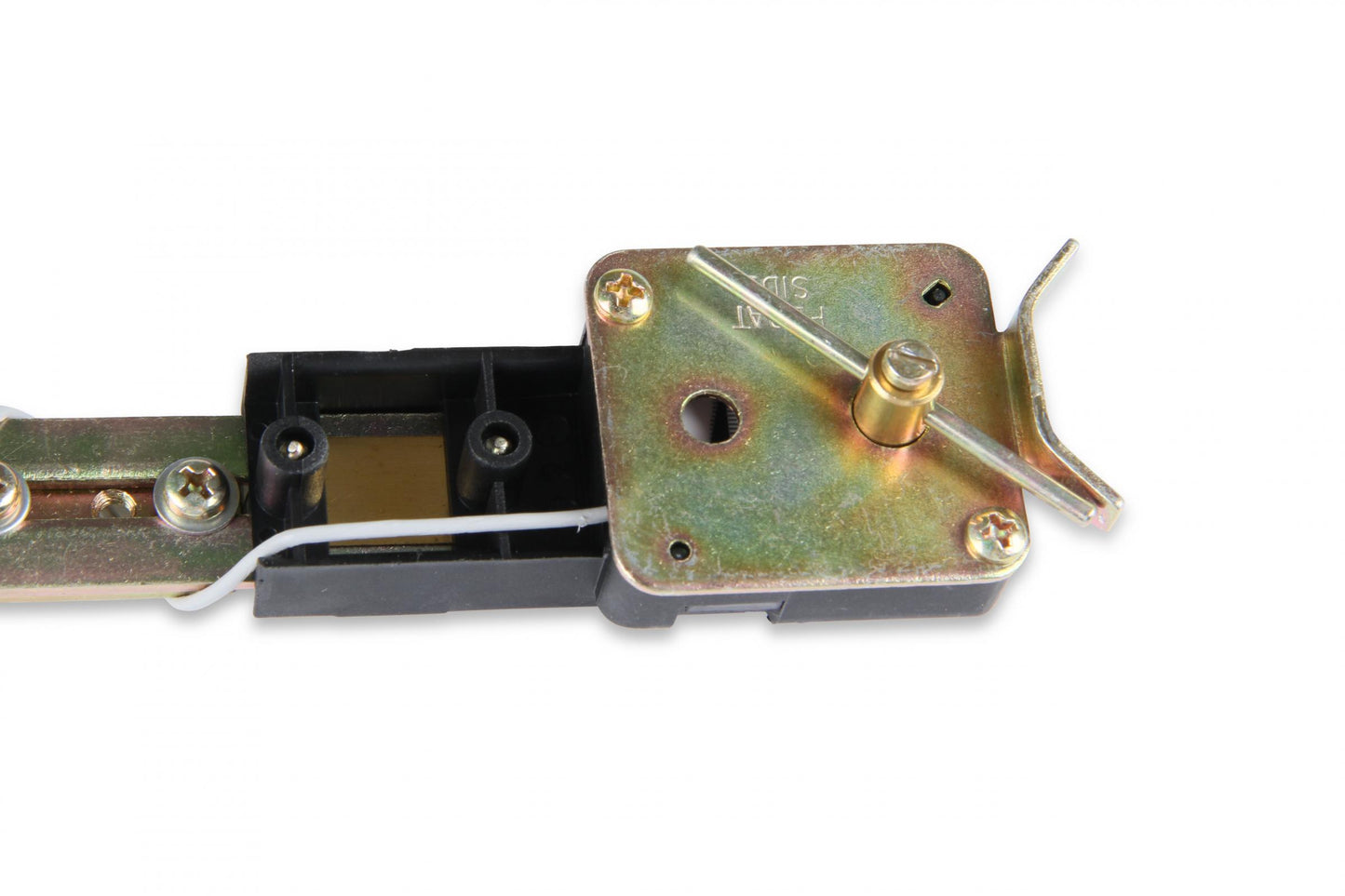

• Fuel level sender included with the correct Ohm range for your factory gauges.
• Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting.
• Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car.
• EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation.
• Fits and looks like an OE tank when installed.
• Complete bolt in solution for your EFI conversion.
• Includes New tank straps.

Details:

• Application: 1974-77 Chevrolet Camaro, 1974-78 Pontiac Firebird / TransAm
• Attached Sump: Yes
• Baffled Sump: Yes
• Color: Silver
• Drain Plug: No
• Emission Code: 4
• Filler Neck Attached: No
• Finish: Powdercoated
• Free Flow LPH: 400
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel System Compatibility: Electronic Fuel Injection
• Fuel System Type: Gasoline
• Fuel Tank Coating: Powder Coated
• Gallon Capacity: 21
• Grade Type: Performance
• Lock Ring Included: Yes
• Material: Steel
• Maximum Flow Rating: 400 LPH
• Mounting Straps Included: Yes
• New Straps Included: Yes
• O-Ring Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Sending Unit Included: Yes
• Tank Capacity: 21 GA
• Tank Color: Gray
• Tank Material: Steel
• Warranty: Manufacturer's Limited 90 Day Warranty
