255 LPH Pump Module Returnless 1998-2004 Dodge Truck 255 LPH Pump Module System Returnless with 220-20 OHM Fuel Sending Unit Holley

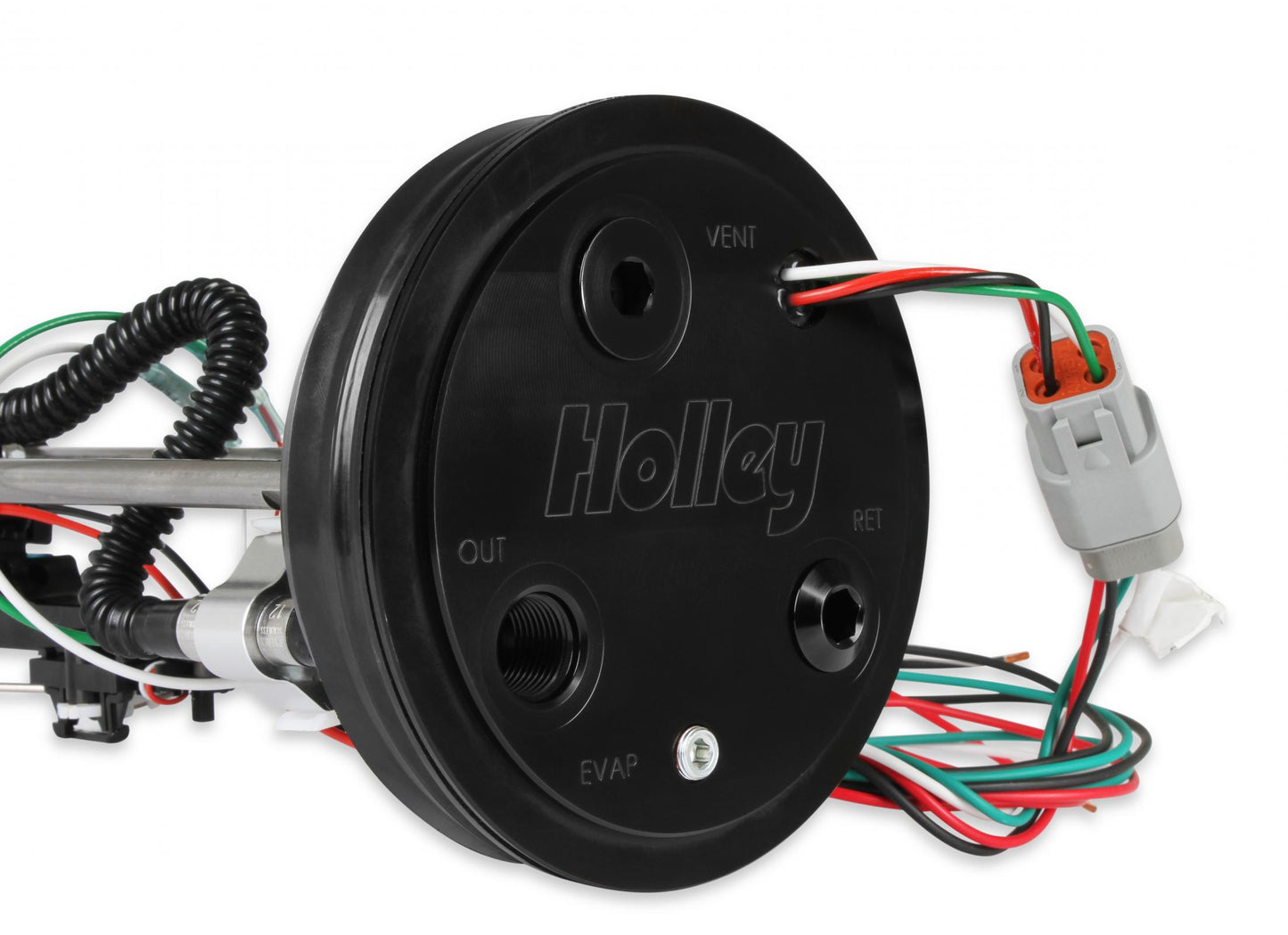

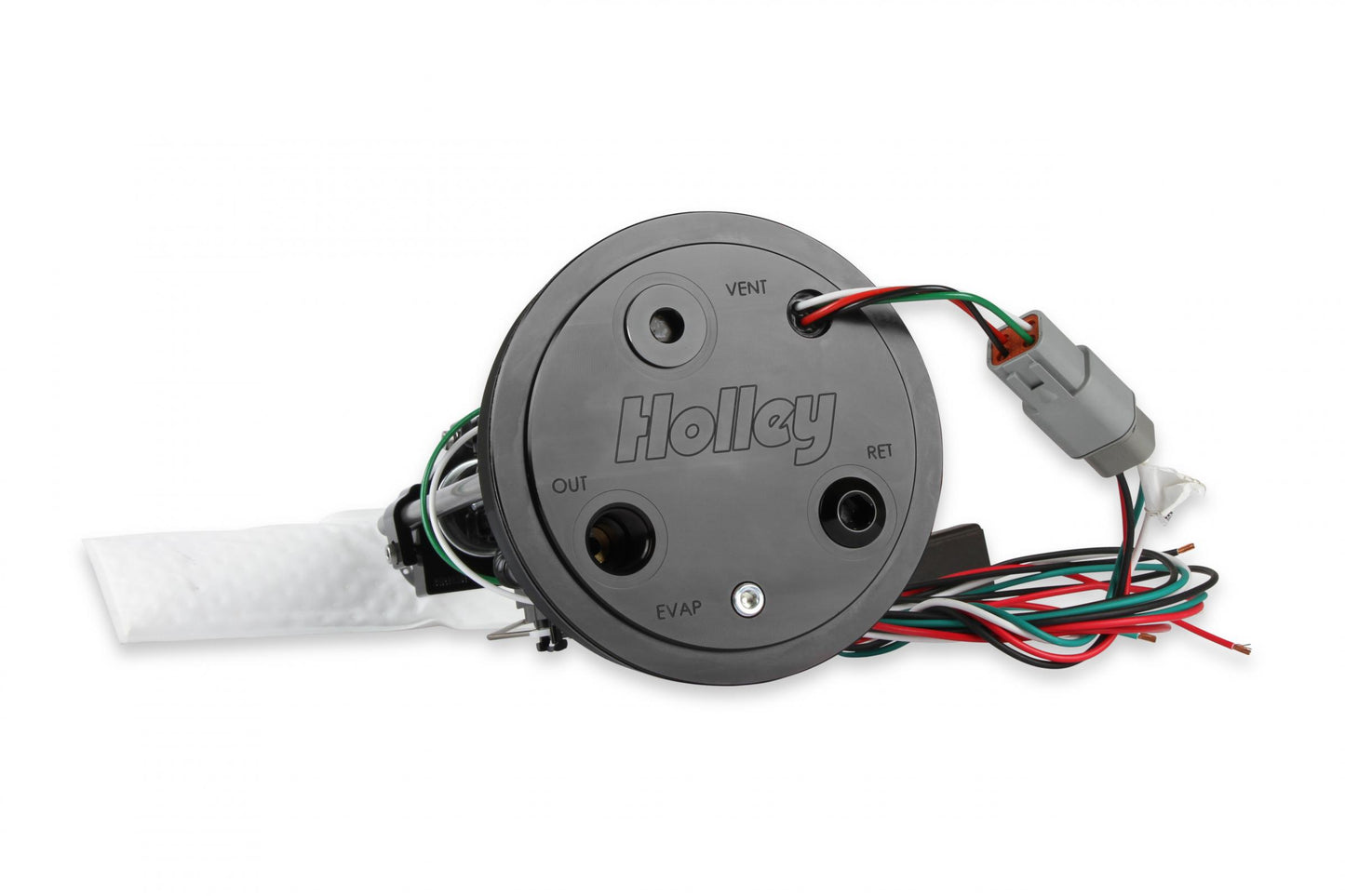

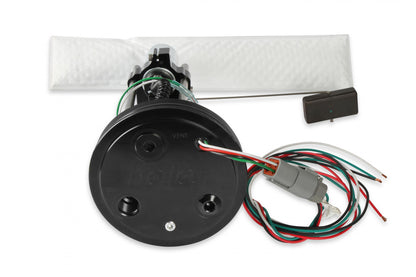

Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, Hydramat, fuel sending unit, and high performance pump.

Choose from 255 or 450 Lph (liters per hour) fuel flow & return style or returnless design. The amazing HydraMat is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells.

During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!

Direct Fit in the following Vehicles: 1997-2004 Dodge Dakota (2WD & 4WD) 1998 Dodge B1500/B2500/B3500 (Full Size Vans) 1999-2003 Dodge Ram 1500 Van/Ram 2500 Van/Ram 3500 Van (Full Size Vans) 1998-2003 Dodge Ram 1500/Ram 2500/Ram 3500 (2WD & 4WD Full Size Pickups) 1999-2001 Dodge Ramcharger (2WD & 4WD - Mexico Only) 1998-2003 Dodge Durango (2WD & 4WD)

Features and Benefits:

• High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks Billet Aluminum Flange, Clamp & Fuel Level Sender Black Anodized Finish Choose from 255 or 450 Lph (liters per hour) Pump Adjustable for Tank Depth Choose from Return Style or Returnless Fuel Module Provisions for Evap (Evaporative Emission Control System) - See the Installation Notes Inlets & Outlet Ports: -8 An O-Ring Boss New Fuel Level Sender Included Optional Fill Vent Built Into Billet Aluminum Top - See the Installation Notes Includes Hydramat - 3 inch x 15 inch Fits in Stock Factory Fuel Tanks Ideal for Use In Gen Iii Hemi Engine Swaps

Associated Comments:

• Filler Neck Vent - Some vehicles will have a 3/4 inch filler neck vent line that goes to the flange on the fuel module. If this is the case for your vehicle, you will need to purchase the following Earl's fittings: AT949013ERL and AT700113ERL.
• Evap Line - Some vehicles will have a small Evap hose that goes to the flange on the fuel module. If you wish to retain this, the following parts will need to be purchased: AT984204ERL, and 12-874.
• Thread sealant with Ptfe will also be needed - Use Earl's # D024ERL.

Details:

• AMP Draw: 18.0
• Application: 1998-2004 Dodge Trucks
• Average Current Draw: 18 Ampere

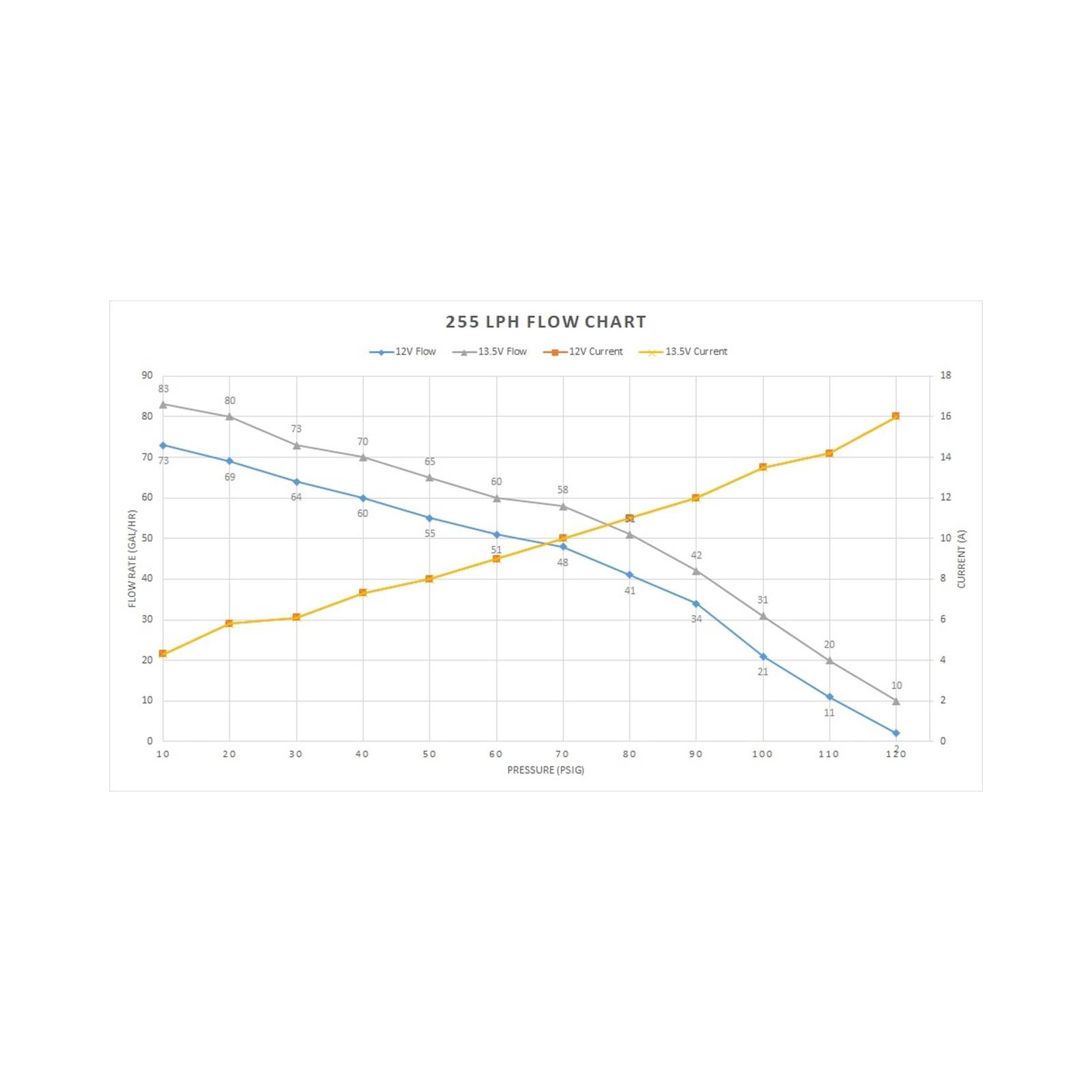

• Average Flow Rating: 255 Liters per Hour
• Connector Color: Gray
• Connector Quantity: 1.0
• Forced Induction HP at 60PSI: 450.0
• Free Flow Gph: 67
• Free Flow Lph: 255
• Fuel Type: Gasoline
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes

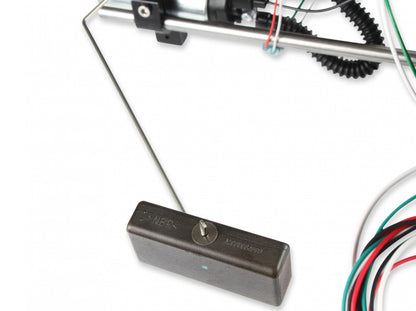

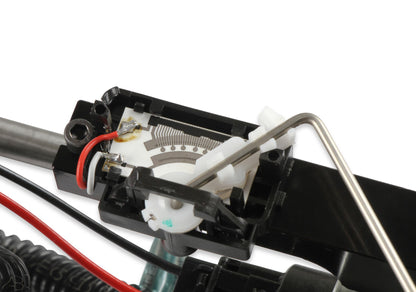

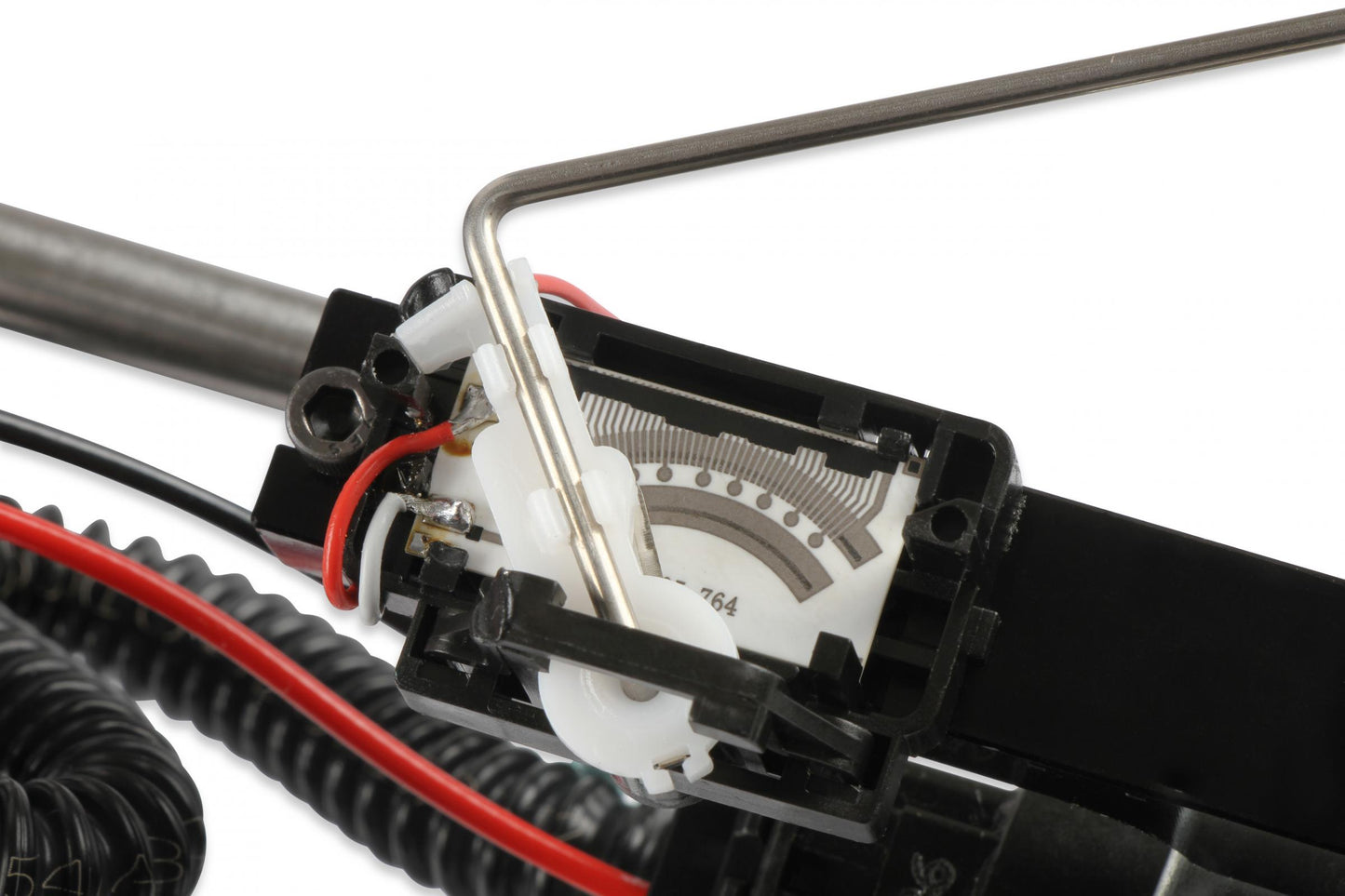

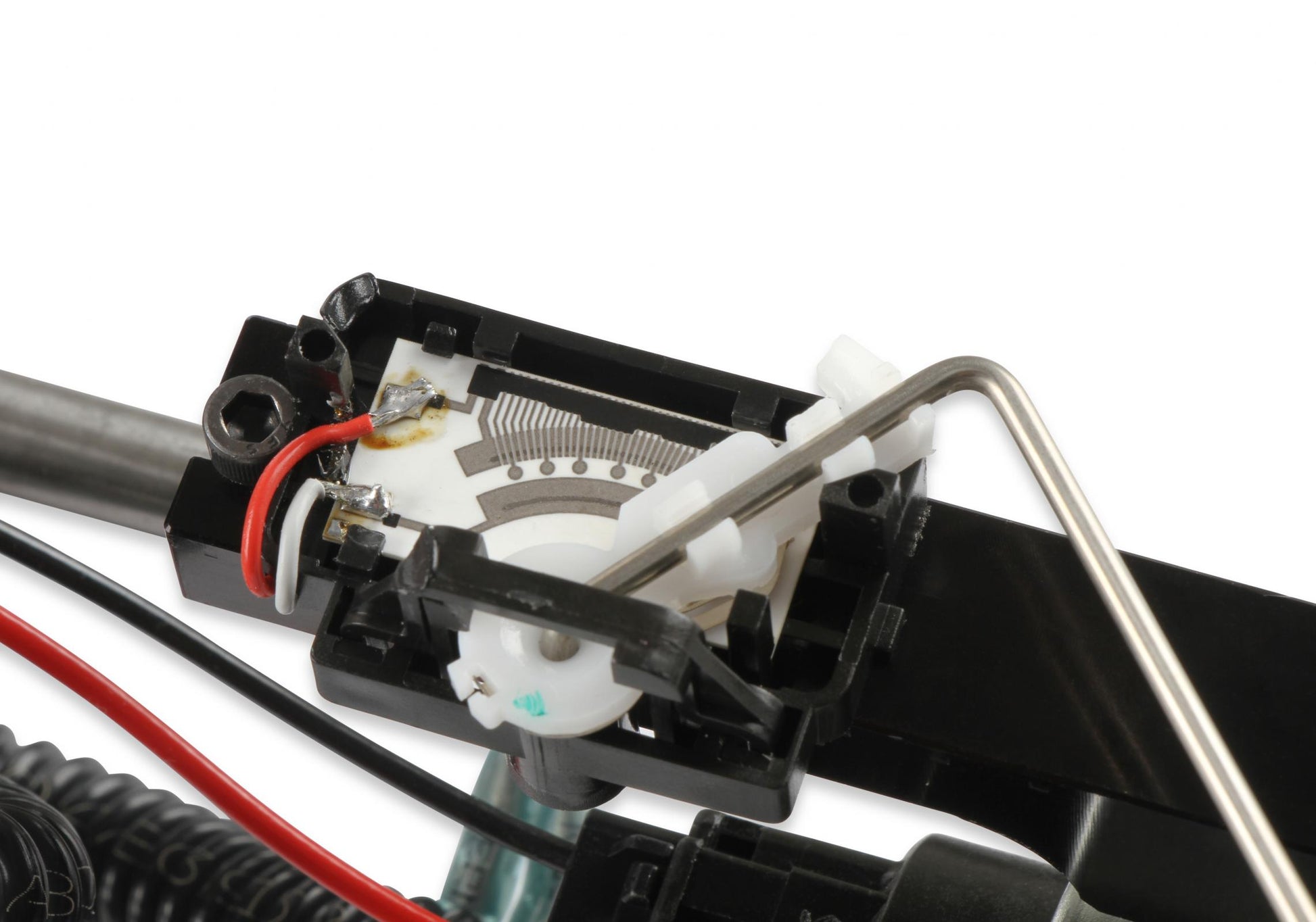

• Fuel Sending Unit Ohms: 220-20 Ohms
• Fuel System: EFI
• Fuel Tank Pressure Sensor Included: No
• Gph at 60PSI: 60.0
• Gasket Or Seal Included: Yes
• Gasket Or Seal Material: Rubber
• Grade Type: Performance
• Height: Adjustable
• Housing Material: Aluminum
• In Tank or External: In Tank
• Inlet Quantity: One
• Inlet Size: 8 An O-Ring
• Inlet Type: 8 An Orb
• Internal Or External Strainer: External
• Lock Ring Included: No
• Material: Billet Aluminum and Steel
• Naturally Aspirated HP at 60PSI: 600.0
• Outlet Quantity: One
• Outlet Size: 8 An
• Outlet Type: 8 An Orb
• Pump Body Color: Silver
• Pump Type: Electric
• Regulator Included: No
• Resistance Ohms Empty: 220 Ohm
• Resistance Ohms Full: 20 Ohm
• Returnless: Yes
• Universal Or Specific Fit: Specific
• Voltage: 12 Volts DC
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Harness Included: Yes
• Wire Quantity: 4.0
